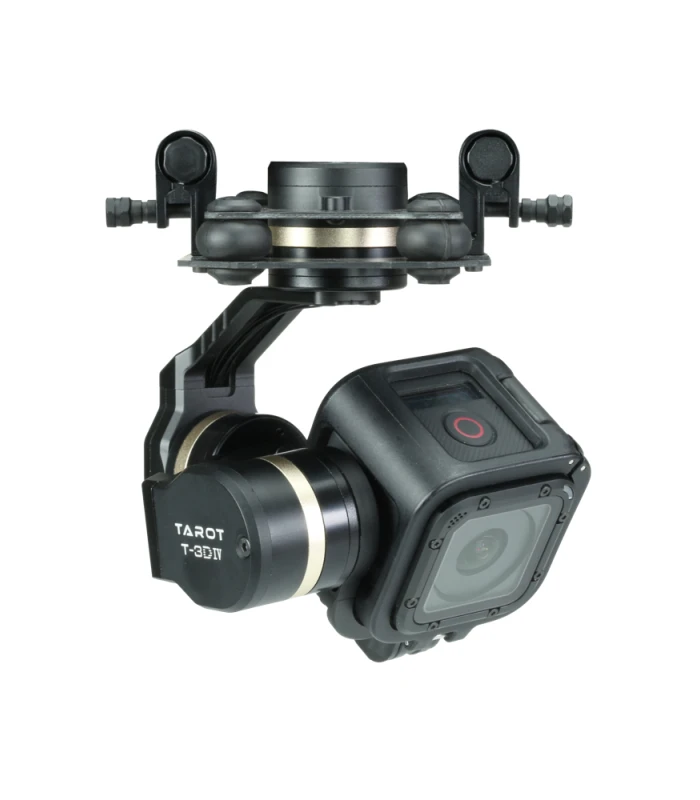

Tarot T-3D IV 3-Axis Brushless Gimbal For GoPro Hero Session

Name: Tarot T-3D IV 3-Axis Brushless Gimbal For GoPro Hero Session - Flying Tech
Brand: Tarot
SKU: GIMBAL-TL3T02
Price: 148.99 GBP
Availability: InStock

£148.99 Inc. VAT

The Tarot T-3D IV is a high quality 3 axis stabilised gimbal, designed to carry the GoPro 4 Session.

Only 1 left in stock

Add to compare

0 People watching this product now!

SKU: GIMBAL-TL3T02 Categories: Camera Gimbals & Stabilisers, FPV, FPV Accessories Tags: Brushless Gimbal, Gimbal, GoPro

Description

Tarot ZYX T-3D IV is the latest 3 Axis brushless gimbal designed for GoPro 4 Session from Tarot. With unique internal wiring design, built-in IMU gimbal control module, specialized servo drive module, this gimbal is able to support Pan Follow (PF) mode and First Person View (FPV) mode.

Also compatible with the RunCam 3 with a little modification.

Please Note: The GoPro Hero Session doesn’t support video out via USB, so you can’t use it for real time FPV flight.

Product Features:

Point follow mode (PF)
First-person view mode (FPV)
Built-in independent IMU modules
TAROT PTZ dedicated servo module
Wide range voltage input
Support conventional receiver / PPM receiver / S-Bus receiver / DSM receiver
Supports Camera: GOPRO HERO4 Session / HERO5 Session

Specification

Support conventional receiver / S-Bus receiver / PPM/ DSM receivers
Support Camera Type: GoPro HERO4 Session / GoPro HERO5 Session
Input Power: 2S ~ 6S LiPo battery
Attitude control accuracy: ± 0.02 degrees
Operating Current: 30mA (@ 25V) 50mA (@ 12V)
Stall Current: 350mA (@ 25V) 700mA (@ 12V)
Working temperature: -20 ° C ~ 50 ° C
Weight: 153g
Size: 80mm × 90mm × 120mm
Software installation requirements: Windows XP; Windows VISTA; Windows 7; Windows 8 (32 or 64 bit)

Maximum controllable speed:

The direction of rotation (PAN): ± 200 ° / s
Pitch direction (TILT): ± 200 ° / s
Roll direction (ROLL): ± 200 ° / s

The controllable range of rotation:

The direction of rotation (PAN): ± 125 °
Pitch direction (TILT): -120 ° to + 80 °
Roll direction (ROLL): ± 50 °

Included:

1x TL3T02 T-3D 3 Axis Brushless Gimbal
1x PTZ control module (36 × 25 × 11MM)
1x 8P head main body and the head cable
1x 5V output, the receiver and video cable
1x USB module
1x Flight control cable
1 x Foam sponge

Downloads

Manual (pdf, 858KB)

Download
