Tarot 3DIII 3-Axis Brushless Gimbal For GoPro Hero 3/4

Name: Tarot 3DIII 3-Axis Brushless Gimbal For GoPro Hero 3/4 - Flying Tech
Brand: Tarot
SKU: GIMBAL-TL3T01
Price: 160.00 GBP
Availability: InStock

£160.00 Inc. VAT

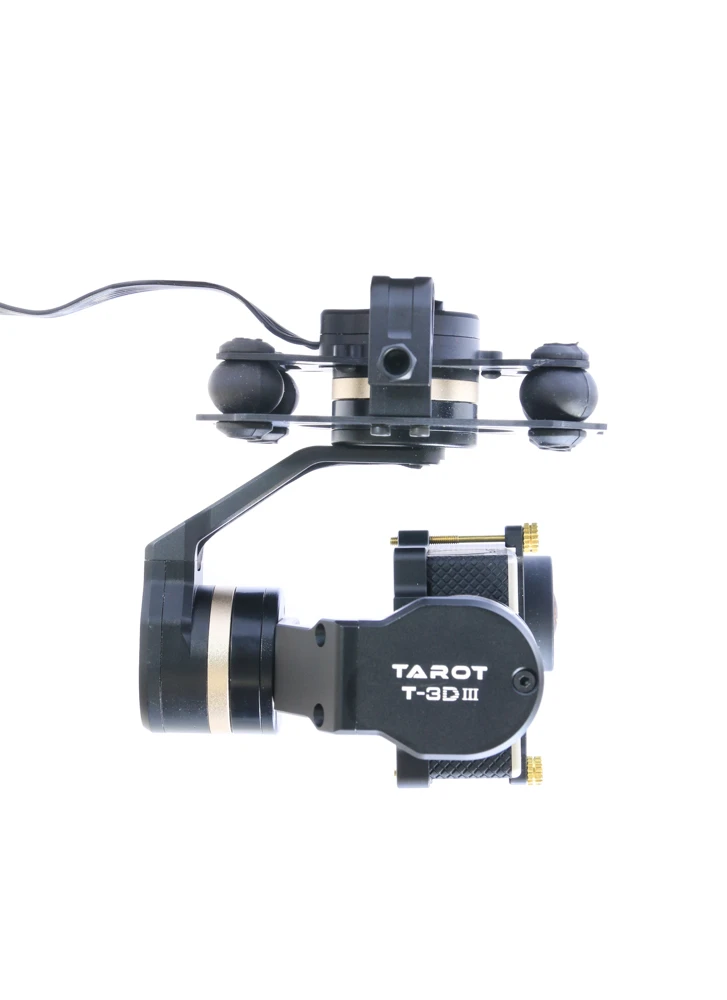

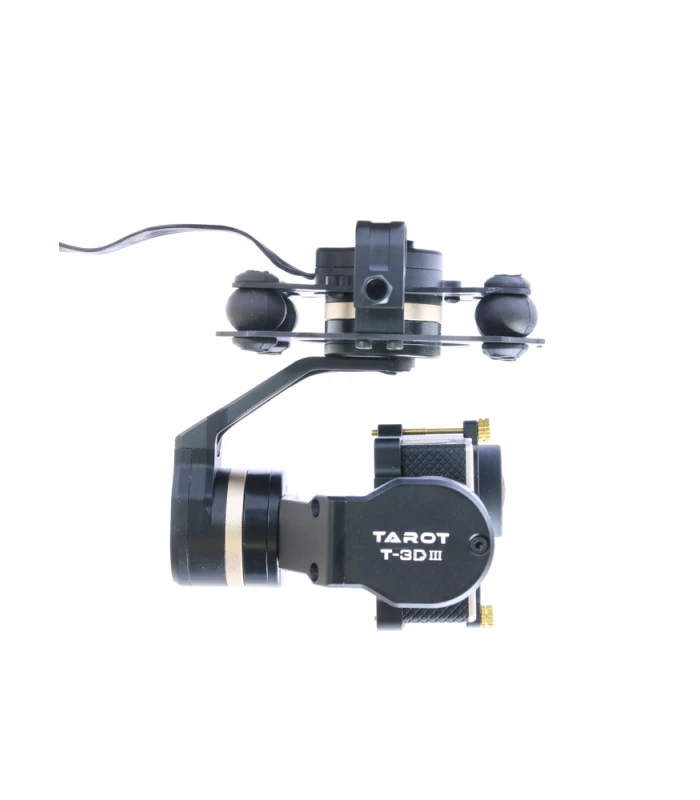

The Tarot 3DIII is a high quality 3 axis stabilised gimbal, designed to carry the GoPro Hero 3/4.

Only 1 left in stock

Add to compare

0 People watching this product now!

SKU: GIMBAL-TL3T01 Categories: Camera Gimbals & Stabilisers, FPV, FPV Accessories Tags: Gimbal, GoPro, GoPro Mount

Description

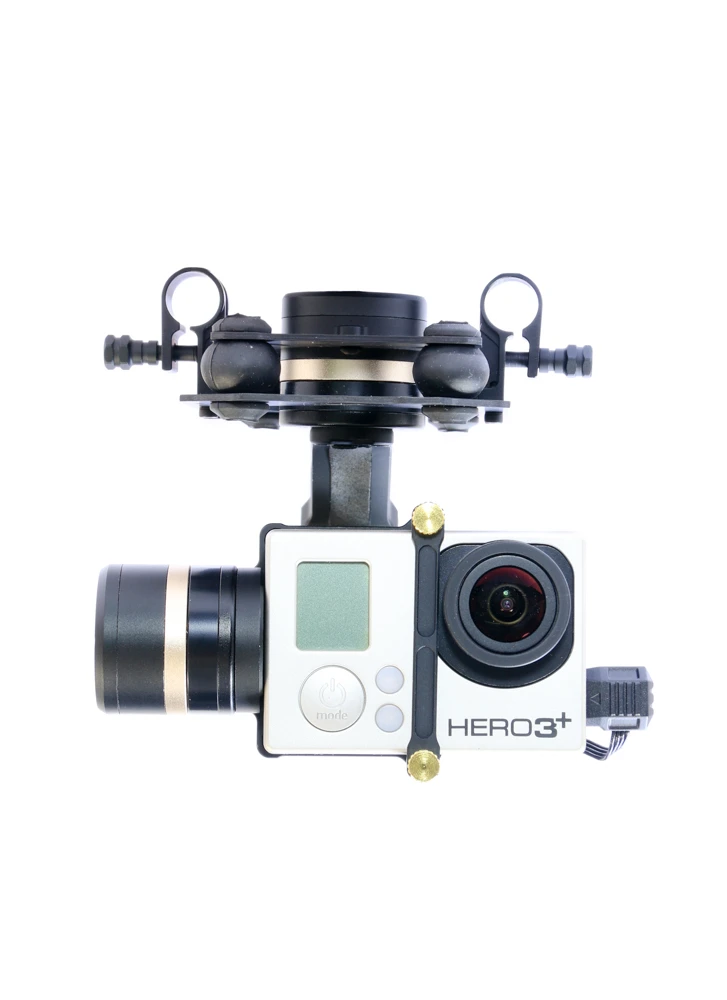

High quality 3-axis Brushless Gimbal from Tarot. This Gimbal is suitable for GoPro 3, GoPro GoPro 3+ 4 camera.

The gimbal is already completely preconfigured and adjusted.

The 3DIII offers two different operating modes: Pan Follow Fashion (PF) and First Person Mode (FPV). In Pan mode Follow the Gimbal the copter movement follows in YAW direction (Pan), roll and pitch stabilized remain horizontal. In FPV mode, Gimbal follows in all axes of multirotor.

Allows access to the tilt axis (pitch) and Pan-axis (yaw) are manually controlled by remote control. The connection is via normal individual connection or via SBUS possible (per single connection of up to two channels are controlled, to use all 3 channels is the connection via SBUS necessary).

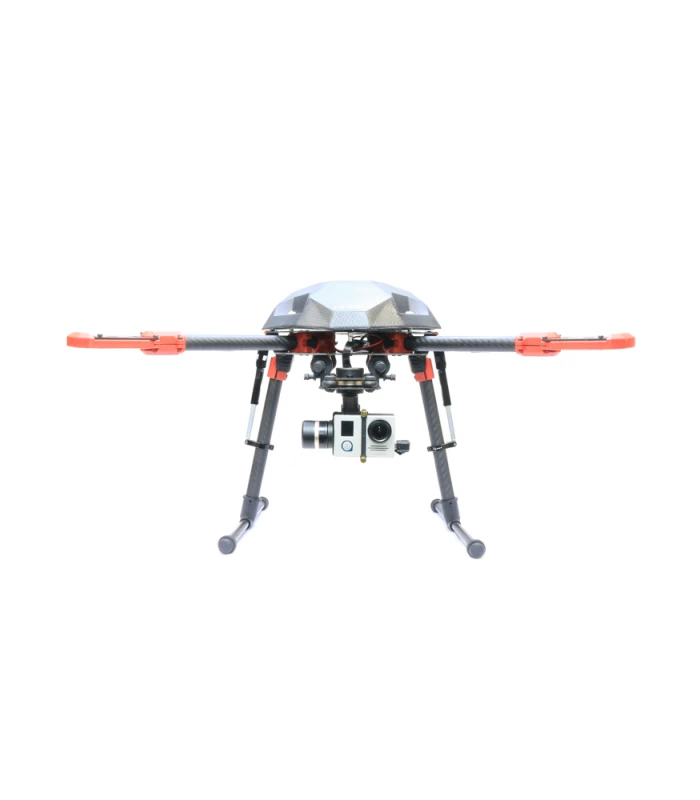

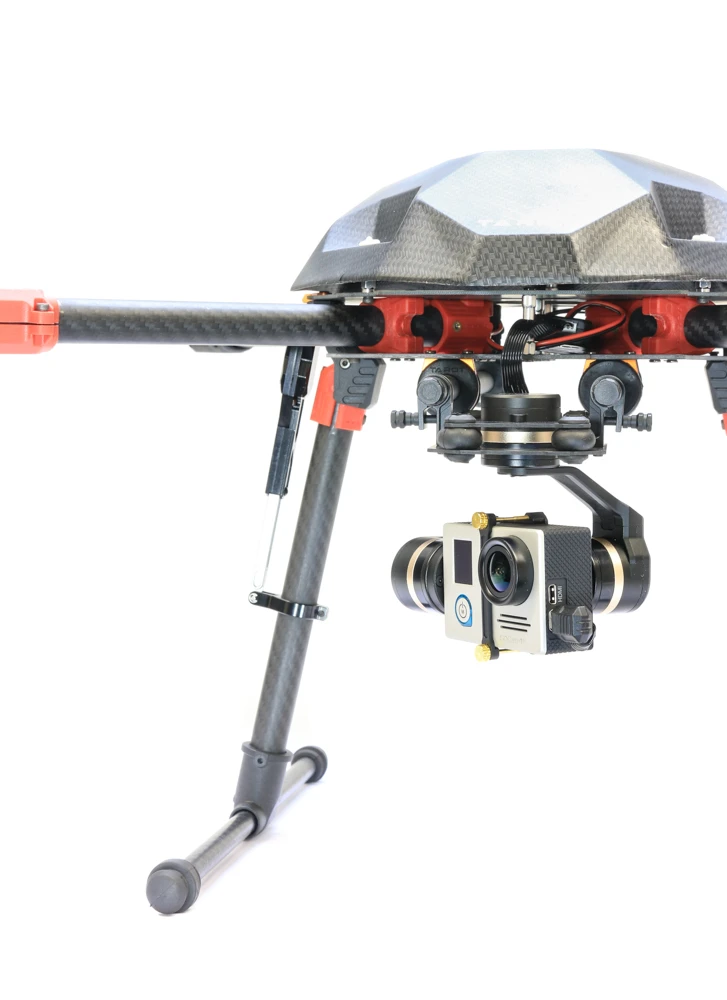

In addition, for users of the Tarot ZYX-M Multicopter control is the possibility to connect the gimbal via an optional cable with the ZYX-M. The ZYX-M then provides correction data to the gimbal so that a still better stabilization is ensured.

Upgraded version based on T4-3D
Designed for GoPro, quick installation
Precision-driven algorithms, precise control of the motor, only to present live moment.
Support computer interface settings, posture lock mode (AL), point to following mode (PF), first-person mode (FPV).

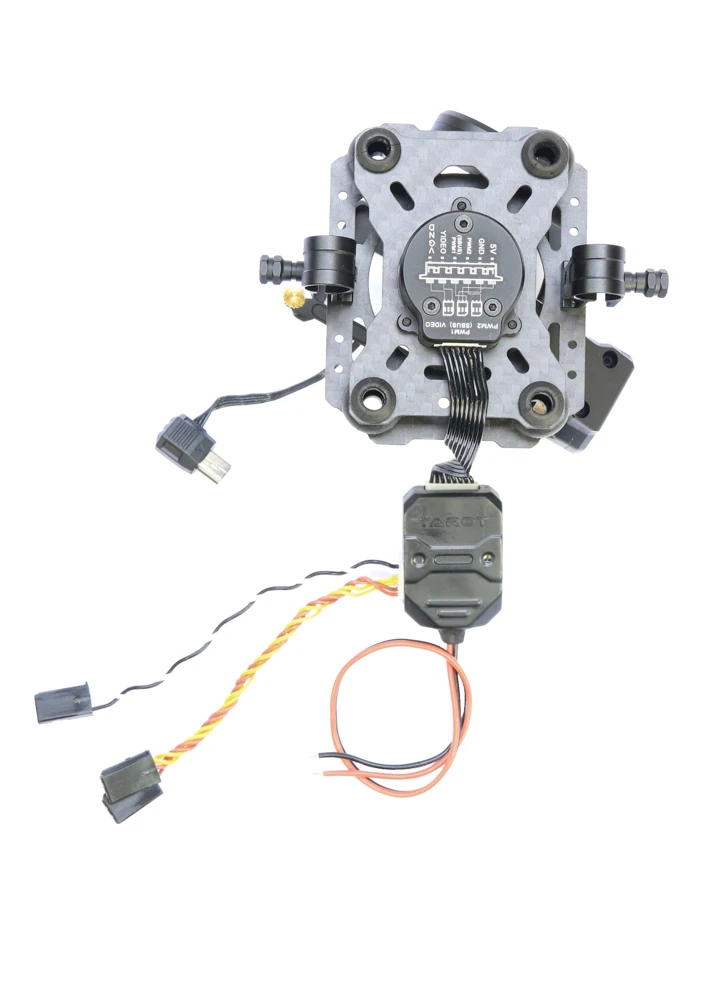

Built-in independent TAROT PTZ dedicated servo drive module.

Specification

Mechanical/Electrical Specification:

Compatible camera: GoPro Hero 3/3+/4 (other GoPro size cameras)
Input power: 3S-6S Li (11-26V)
Working current: 30mA@25V; 50mA@12V
Torque current: 350mA@25V; 700mA@12V
Attitude control accuracy: +/-0.02 degree

Max control speed:

PAN: +/-200 degree/s
TILT: +/-200 degree/s
ROLL: +/- 200 degree/s

Control range:

PAN: +/-330 degree
Tilt: -135 degree to 45 degree
Roll: +/-48 degree

General:

Support S-BUS/PPM/DSM receiver
Working environment: -20~50 Celsius
Size: 60x75x100mm
Weight: 160g
System requirement: Windows XP; Windows VISTA; Windows 7;Windows 8(32/64bit)

Included:

3-axis metal gimbal 160 g x1
PTZ control module (36x25x11MM) x1
8P main controller-gimbal cable x1
5V output, the receiver and video cable x1
USB module x1
Flight control cable x1
Manual x1
