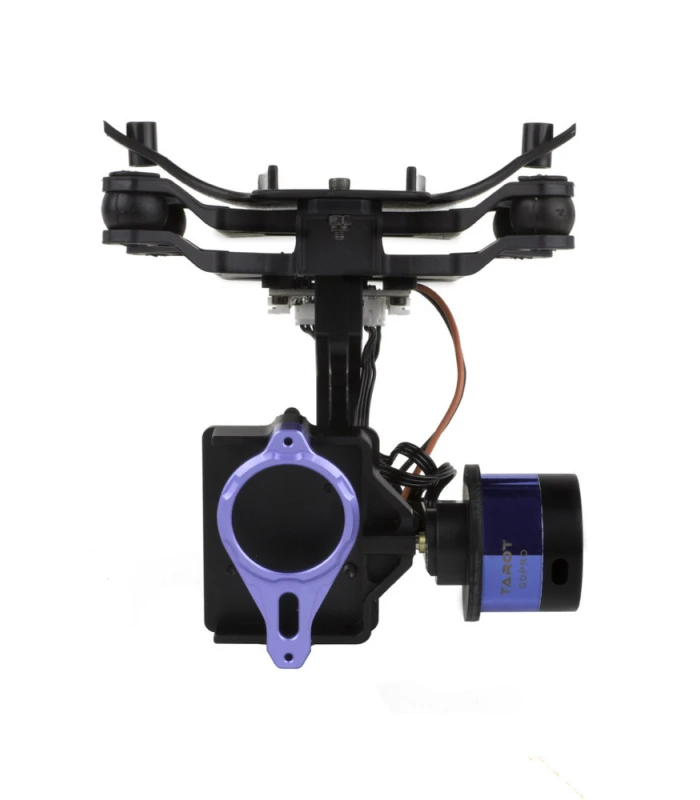

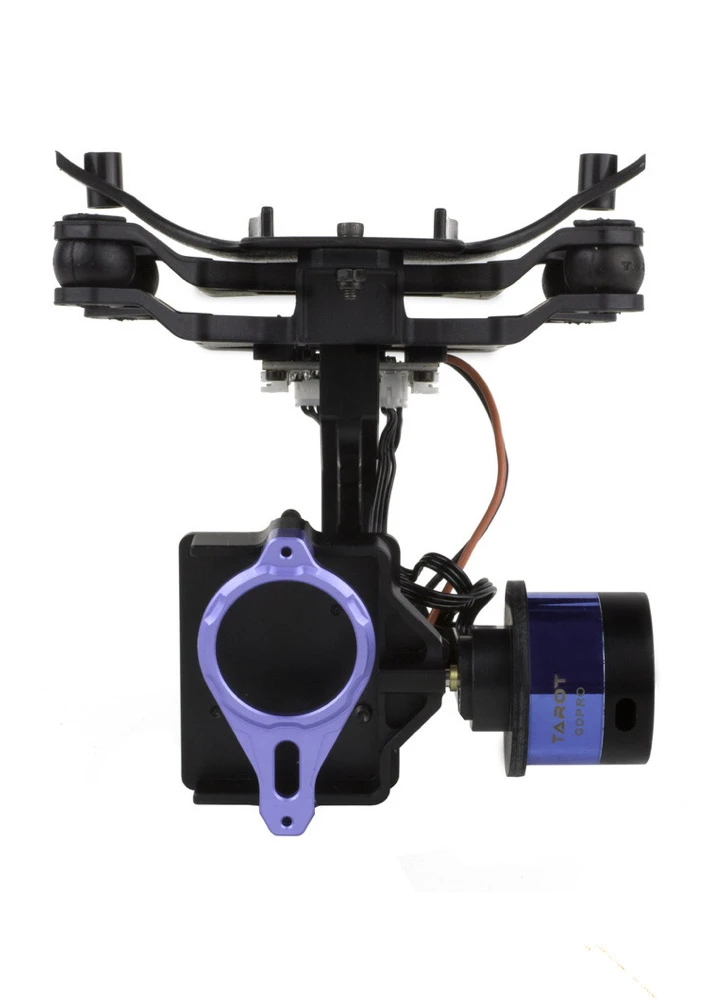

3DR Tarot T-2D 2-Axis Brushless Gimbal Kit for IRIS+

Name: 3DR Tarot T-2D 2-Axis Brushless Gimbal Kit for IRIS+ - Flying Tech
Brand: Tarot
SKU: GIMBAL-3DR-T-2D
Price: 86.99 GBP
Availability: OutOfStock

£86.99 Inc. VAT

Add stability to your aerial GoPro footage with the Tarot T-2D 2-Axis Brushless Gimbal.

Out of stock

This product is currently sold out.

No worries! Enter your email, and we'll let you know as soon as it's back in stock.

I have read and accept the privacy policy

Add to compare

0 People watching this product now!

SKU: GIMBAL-3DR-T-2D Categories: Camera Gimbals & Stabilisers, FPV, FPV Accessories Tags: Brushless Gimbal, Gimbal

Description

Add stability to your aerial GoPro footage with the Tarot T-2D 2-Axis Brushless Gimbal Kit for IRIS+ from 3D Robotics. This is a two-axis gimbal, which means it can correct along the tilt (up/down) and roll (left/right) axes. Motors in the gimbal counteract unwanted movement such as vibration from the rotors or wind buffeting to help keep shots steady and free of the “rolling shutter” effect, while maintaining a level horizon. There is also a manual mode where the tilt aspect can be operated from a switch on the quadcopter’s radio controller. The gimbal is specifically balanced for the HERO3. Note: This gimbal is also compatible with the original IRIS, however you will need to install a taller set of legs.

Features:

Pre-wired, pre-calibrated, and configured to work with the IRIS+ quadcopter – works with original IRIS, too, if tall landing gear installed.
The T-2D offers manual camera control from your transmitter’s Tilt knob. Or set to auto – ideal for Follow Me autopilot flight mode
Pre-assembled with mounting screws for IRIS/IRIS+

Battery usage: The Tarot gimbal should be powered by a 2S or 3S LiPo battery only. If you plan to use 4S, please use a voltage regulator to ensure the voltage stays within safe operating limits.

Note: Tarot gimbal does not include the GoPro camera. The mounting plate is compatible with 2014 Quad, Y6, and X8 only and does not attach to 2013 copter models. Assembly required to connect to Quad, Y6, and X8: assembly requires 1.5 mm and 2 mm hex keys (not included). IRIS+ includes a set of tall legs to use with the Tarot Gimbal. Users with an original-edition IRIS will need to purchase a set of tall legs to use the gimbal

Specification

Support GoPro HERO3 video auxiliary output (cable sold separately)
Supply voltage polarity protection and voltage compensation
Motor drive end short-circuit protection
Sensitivity parameter adjustment and software 3D pose show through PC connection
Adjustable rocker rate mode and position mode
Supported receiver type: conventional receiver, S-BUS receiver, DSM2/DSMJ/DSMX receiver
Support for remote devices: PPM/PCM/2.4G
Working voltage: DC 7.4V ~ 14.8V (Recommended 12V, three lithium battery)
Working current: 200 mA-500 mA (power supply voltage and the motor related)
Working environment temperature: -15 ℃ ~ 65 ℃
Processor: Dual 32-bit high-speed ARM core processor
Sensor: Three axis MEMS gyroscope and MEMS accelerometers
Maximum angular rate: 2000 ° / sec
Control frequency: 2000 Hz
Motor drive frequency: 20 kHz (no noise smoothing driven)
Control accuracy: 0.1 ° (Pixel Grade)
Control angle range: -45 ° ~ 45 ° (roll), -135 ° ~ 90 ° (tilt)
Pose solver algorithms: PTZ dedicated brushless motor decoupled EKF algorithm
Shooting equipment: GoPro HERO3
Weight without camera: 200 g
Battery usage: The Tarot gimbal should be powered by a 2S or 3S LiPo battery only. If you plan to use 4S, please use a voltage regulator to ensure the voltage stays within safe operating limits. 3DR RTF Quad, Y6, and X8 include a voltage regular to allow use of 4S batteries with the Tarot gimbal.

Downloads

Manual (pdf, 992KB)

Download
