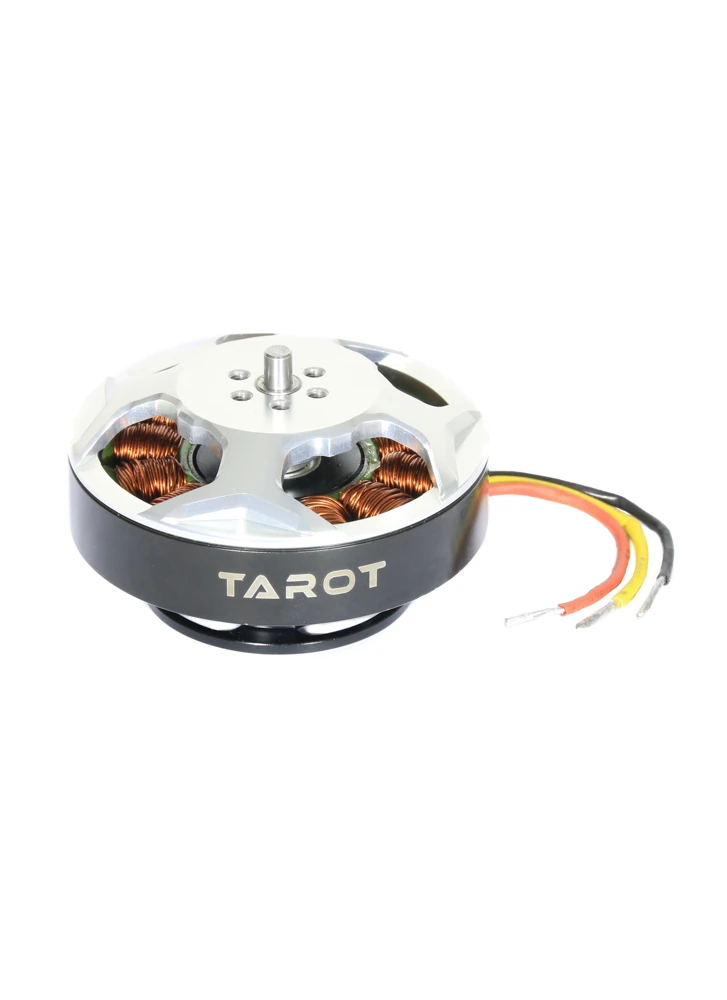

Tarot 5008 340KV 6S Multirotor Brushless Disc Motor – TL96020
£49.90 Inc. VAT
Suits 5-10KG quad or hexacopter builds, such as the Tarot X4 / X6. Rated for 6S LiPo. Suggested prop size: 17-18inch.
In stock|Next shipping: 18/03/2026

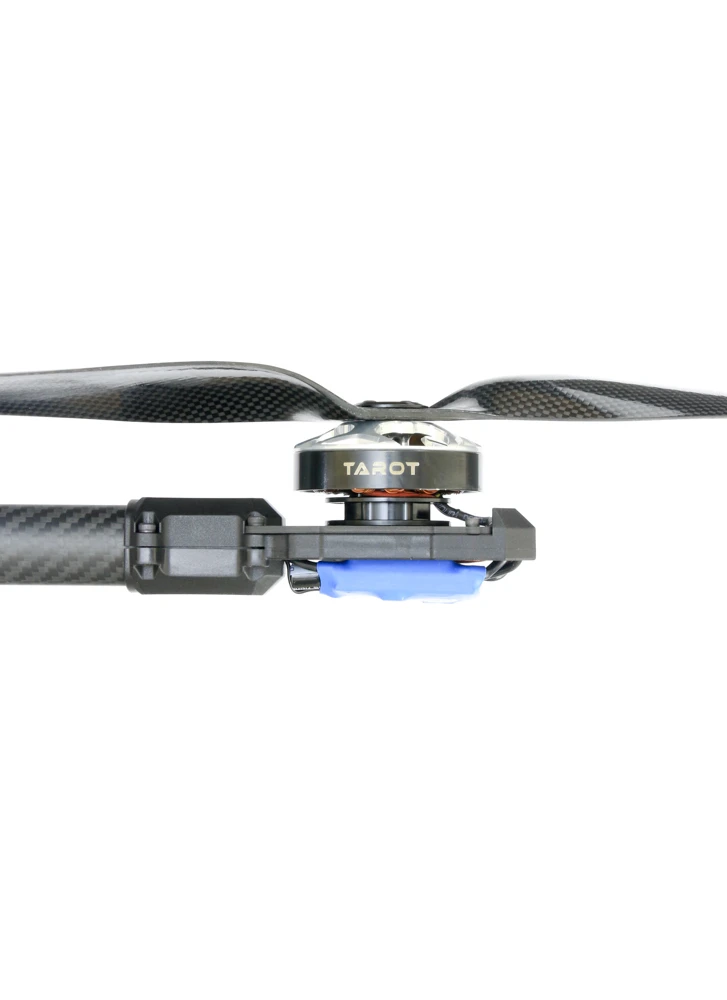

Tarot make excellent multirotor frames, but they also manufacture well engineered motors to match. The 5008 340KV is a high-powered, super efficient 6S (22.2V) motor, specially designed for heavy lifting multirotors (5 to 10 kg). It lends itself to the X-Series Tarot frames, but equally to any heavy lifting hex or octocopter. Matched with a 18×5.5 propeller, it can produce over 3kg of thrust at full throttle. For a hexacopter that equates to in excess of 18kg of lift, which is more than enough to lift a large DSLR. It’s efficient too; pulling 1kg on 6S it only draws 3.8amps, an efficiency of over 11g/W.

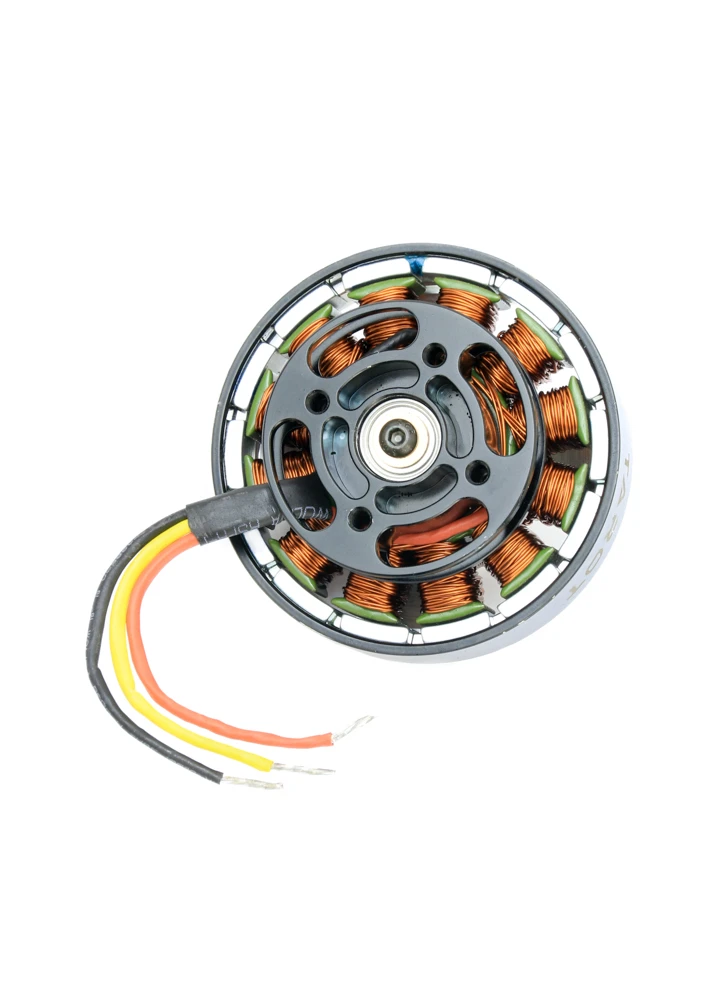

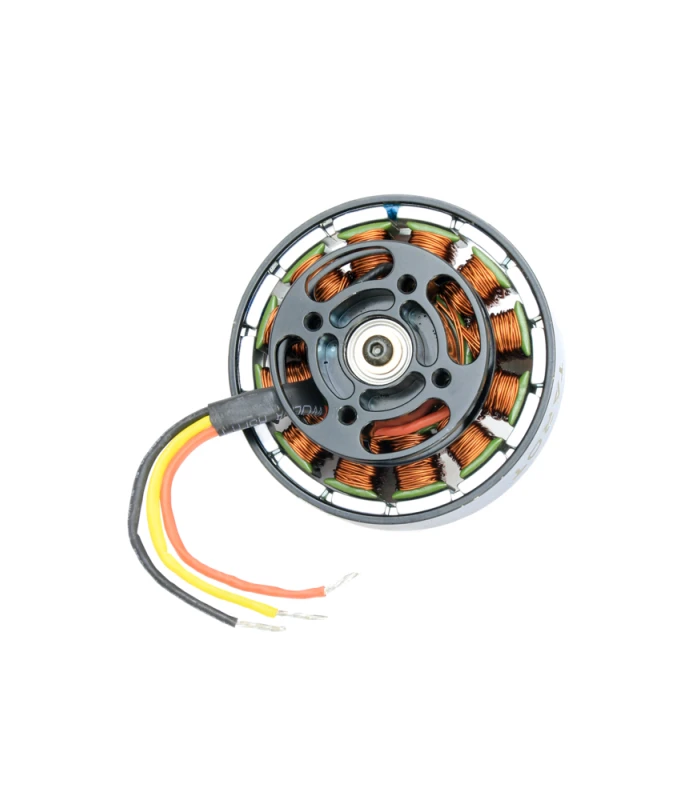

The motor utilises quality components such as a neodymium iron boron rotor, a high-precision CNC machined shell and large high-speed precision bearings. The motor features a high pole count for smooth and responsive power, and a turbofan cover, which provides excellent heat dissipation. Every motor is tested for concentricity and balanced for smooth running. The end result is a super efficient, vibration free, high performance motor.

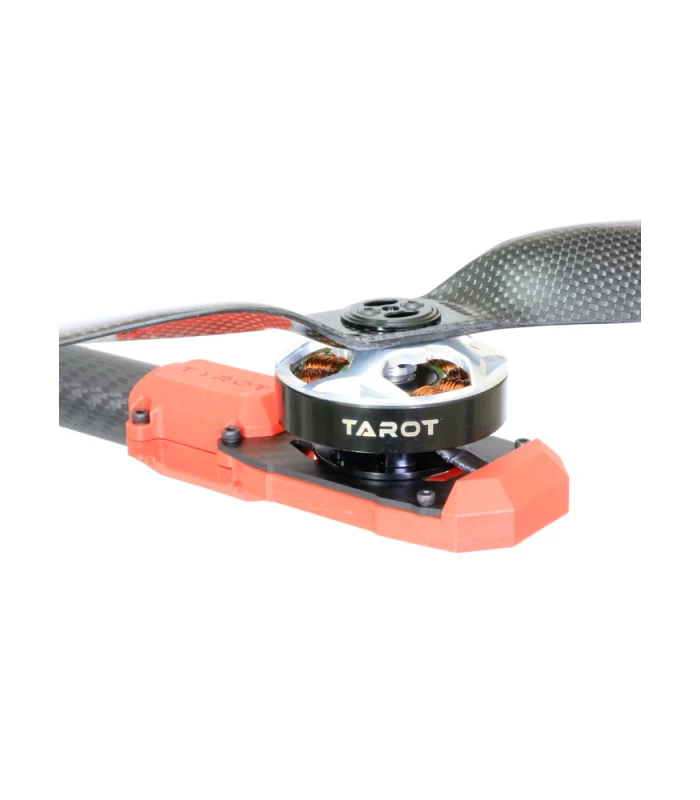

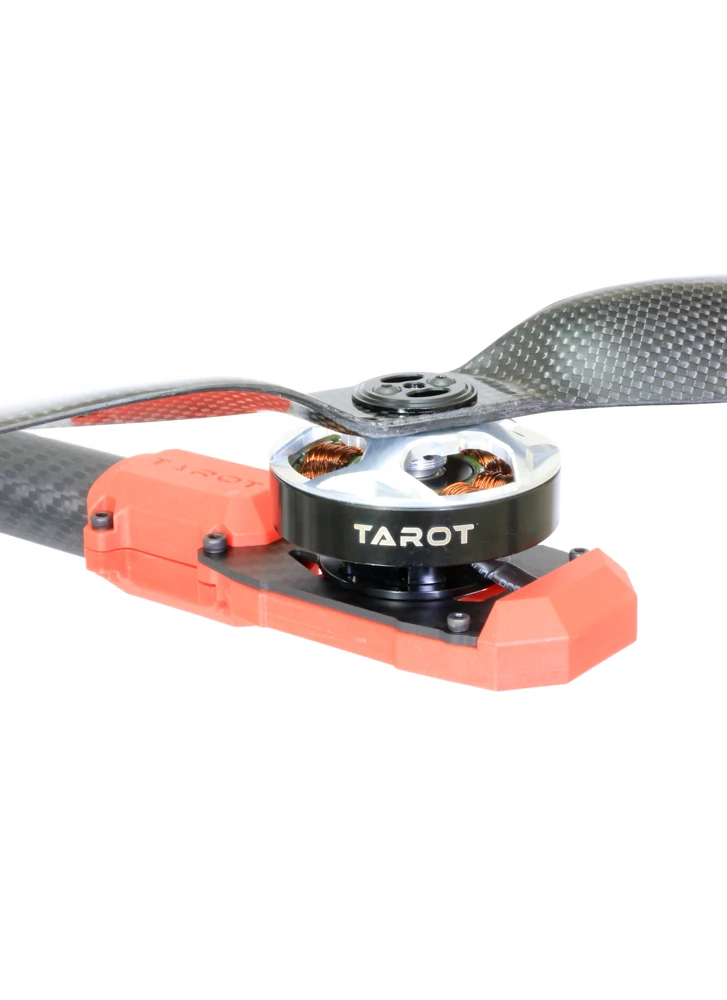

The 5008 can be matched with 15″ to 18″ propellers and we recommend using a 40A ESC like the Hobbywing Pro. We sell compatible quick release prop adapters for the 5008, please see ‘Related Products’ below.
Compatible with: Propeller – Tarot 1855 / ESC – Hobbywing Pro 40A
- Model: 5008 (TL96020)
- KV: 340KV
- Power supply: 3-6s LiPo
- Suitable for: 5-10KG multirotor
- Propeller mounting: Two Holes, M3 holes with 12mm spacing
- Motor outer diameter: 58.5mm
- Motor height: 32mm
- Stator diameter: 50.0m
- Motor pole number: 14P
- Shaft diameter: 4mm
- Weight: 171g
- Max thrust (1855 Prop): 3.7kg
- Max power: 700W
- Max current: 40A
- Motor resistance: 126 M.
- No load current 25.2V: 1.1A
- Wires length: 50mm
- Motor mounting specifications: 25mm x 4 holes
- Suggested prop size: 17-18 inch
- Recommended ESC: 40A

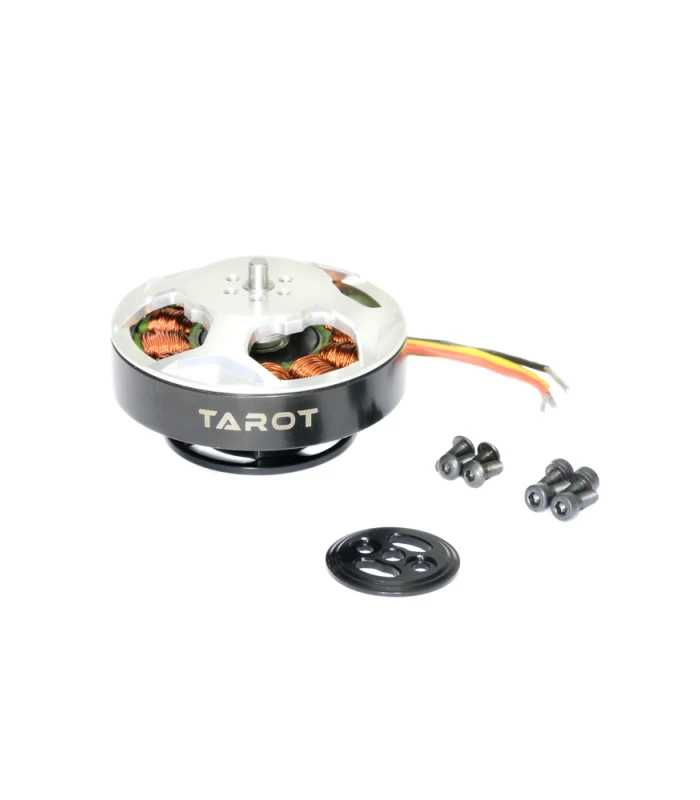

Includes:
- 5008/340KV brushless motor x 1
- Socket head cap screw (M3 x 8mm) x 4
- Button head screw (M3 x 8mm) x 4
- Propeller cover x 1
