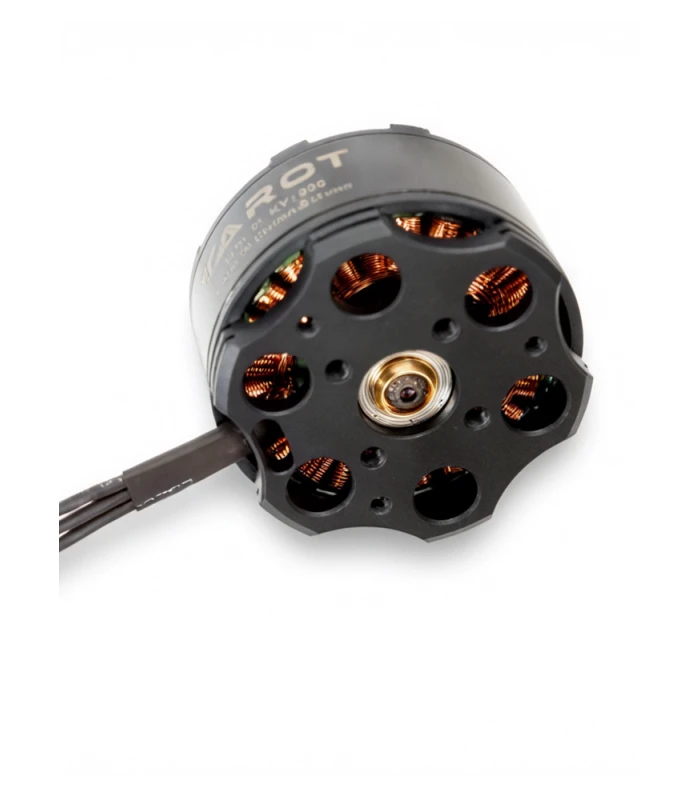

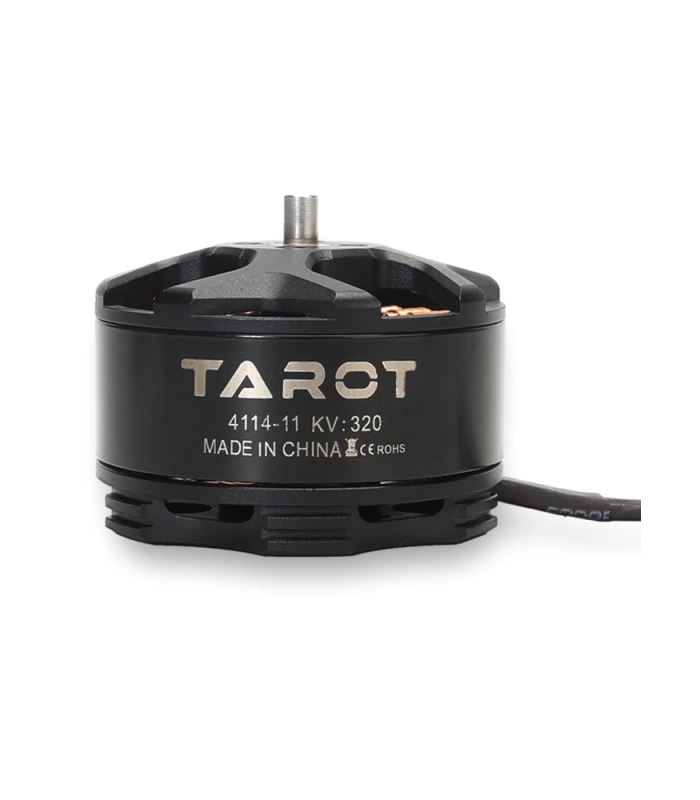

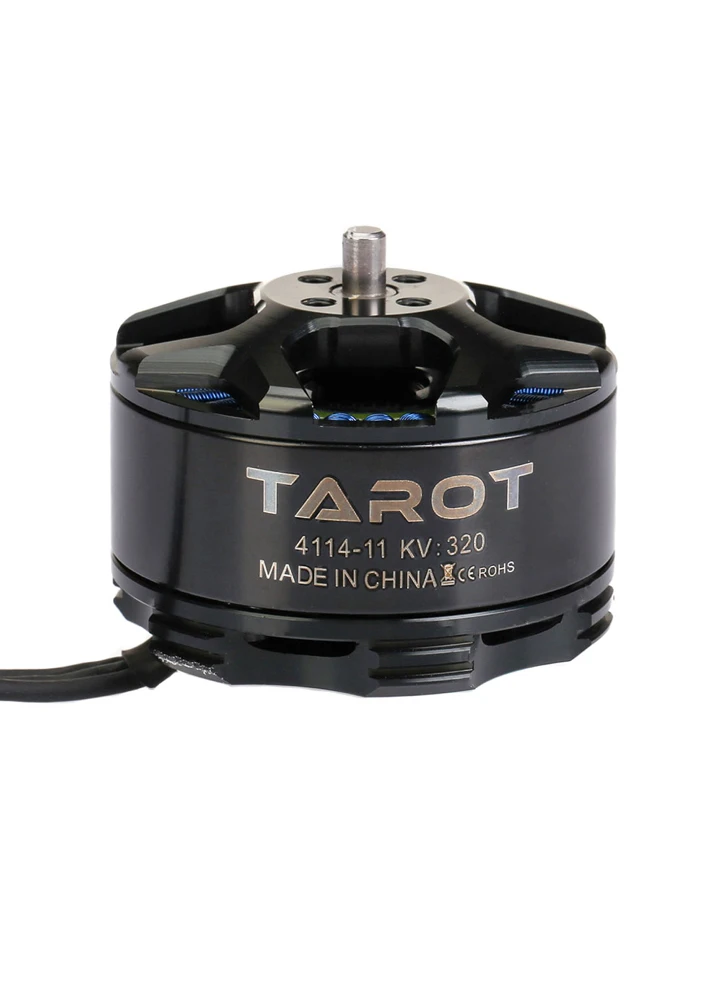

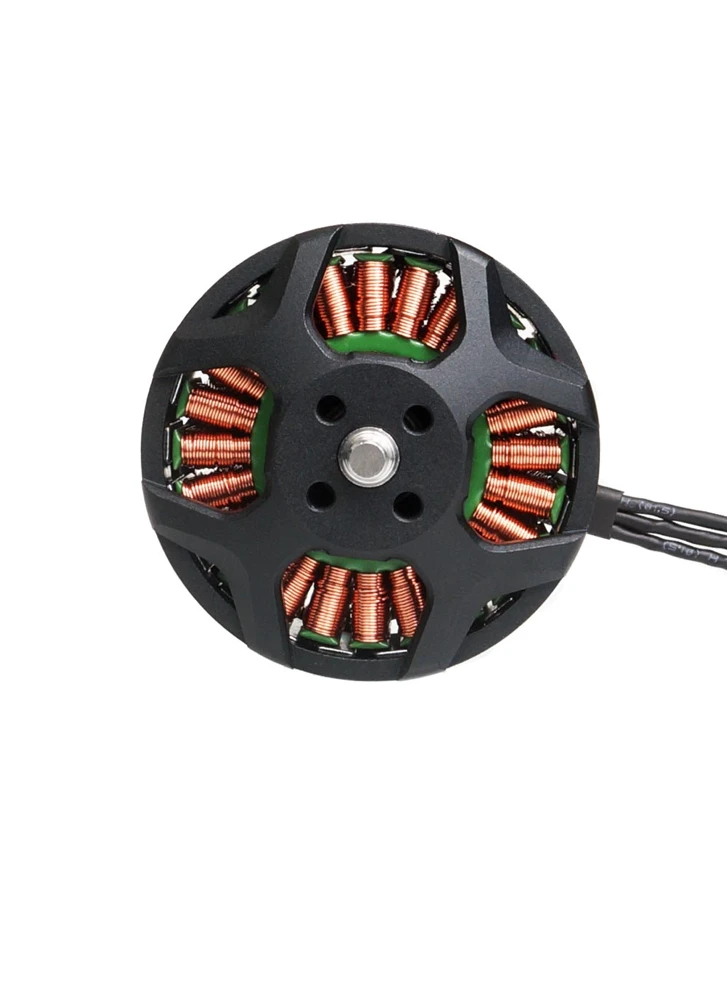

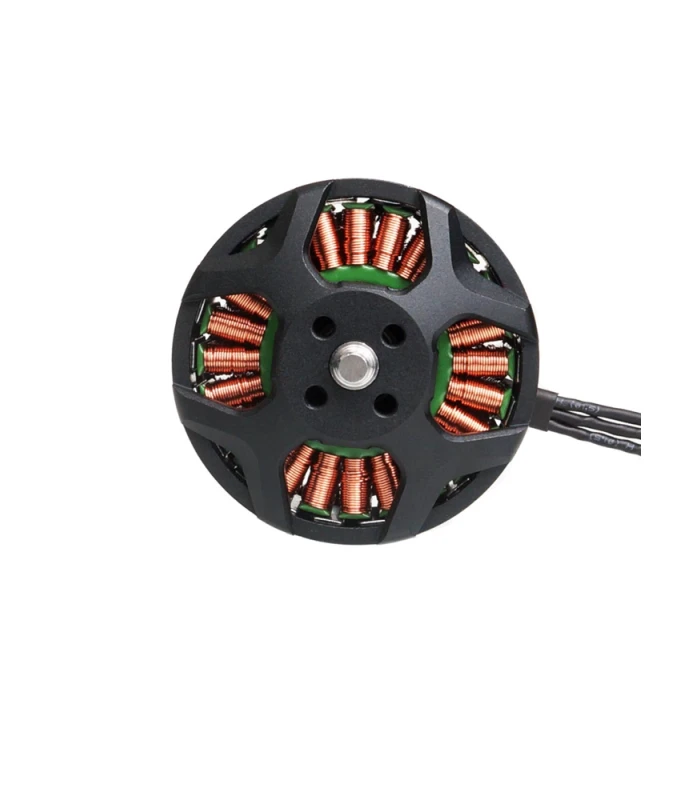

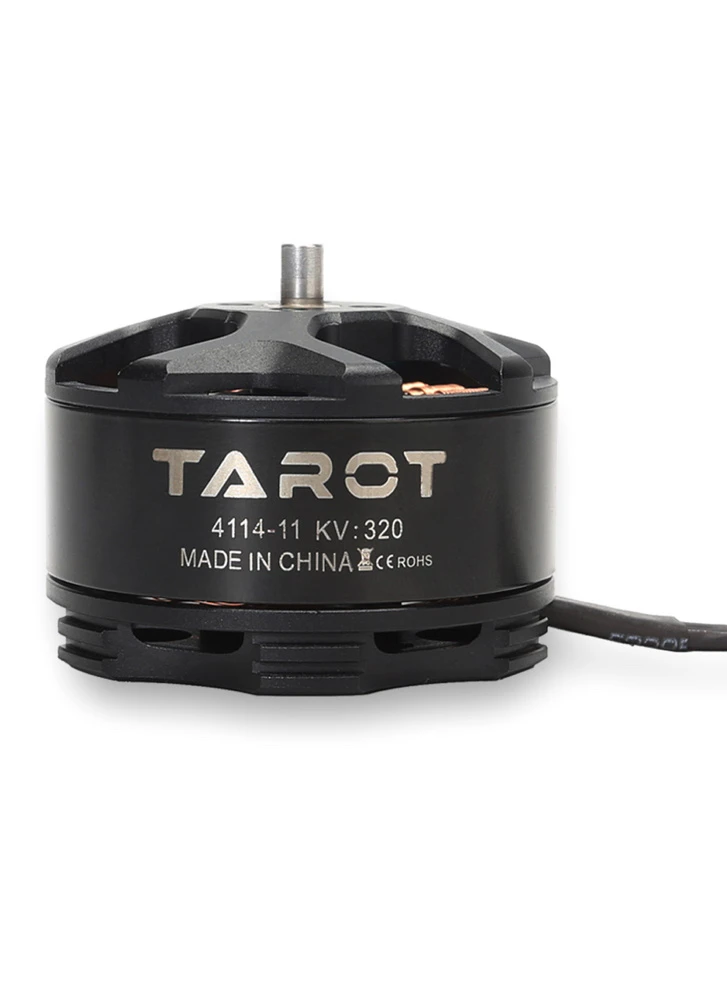

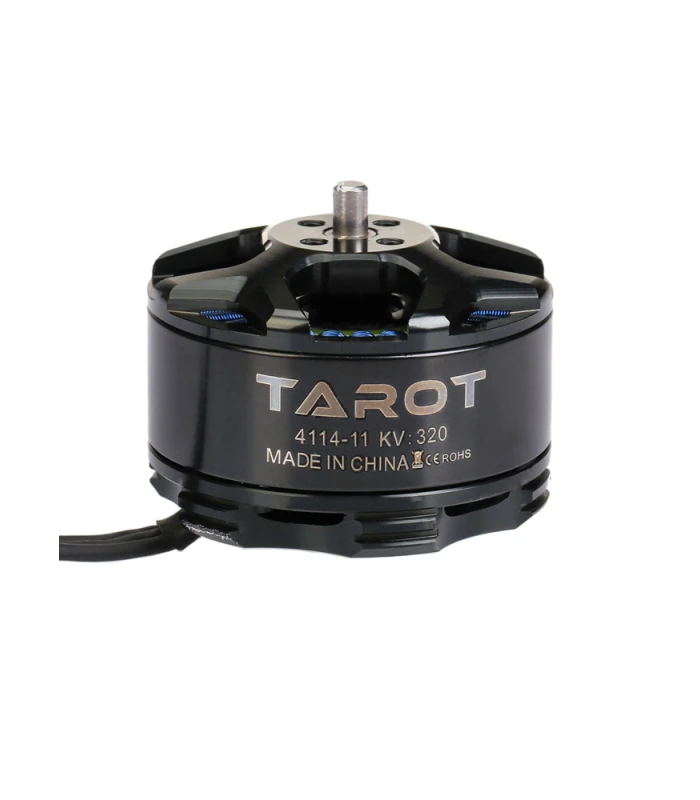

Tarot 4114 320KV 6S Multirotor Brushless Motor – TL100B08

Name: Tarot 4114 320KV 6S Multirotor Brushless Motor - TL100B08 - Flying Tech
Brand: Tarot
SKU: M-320KV-TARO
Price: 44.90 GBP
Availability: InStock

£44.90 Inc. VAT

This motor suits 800 to 1000 size multi-rotors running 6S. Recommended prop size 15-16inch.

In stock

Add to compare

0 People watching this product now!

SKU: M-320KV-TARO Categories: Multirotor Motors (22XX +), Brushless Motors, Motors Tags: 320Kv, Brushless Motor, Motor

Description

This is a medium size motor optimised for 6S operation. It is reliable and efficient for 800 to 1000 size multi-rotors, generating 1.3kg to 1.5kg of thrust using the Tarot 1555 to 1655 propellers at 50% throttle. Max thrust peaks at ~2.65KG.

The motor utilises quality components such as a neodymium iron boron rotor, a high-precision CNC machined shell and large high-speed precision bearings. With a 22P24S pole count the motor has loads of torque that results in a smooth and responsive power delivery. The motor design features a turbofan cover, which provide good heat dissipation. Tarot precision balanced their motors for smooth running; the end result is a super efficient, vibration free, high performance motor.

Specification

Model: 4114
KV: 320
Stator diamater: 41mm
Stator height: 14mm
Stator: 24N
Poles: 22P
Motor shaft: 4mm
Dimension: Φ46×32mm
Weight: 148g
Idle current (A)@22.2V: 0.5A
LiPo: 6S
Internal resistence: 126mΩ

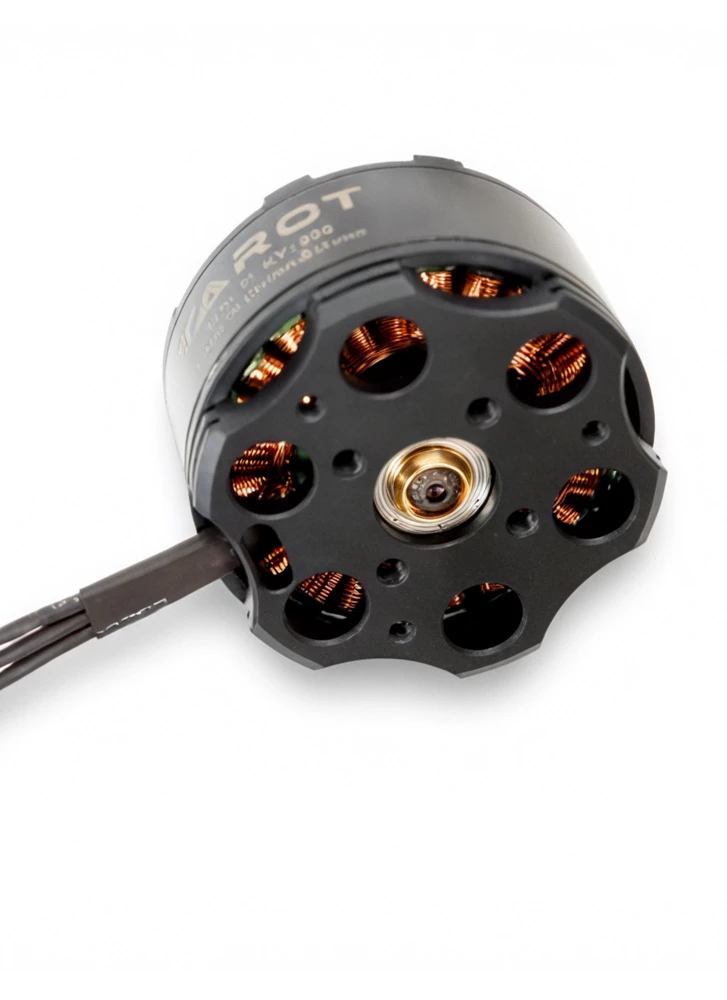

Mounting: M3 19mm diagonally across square / M2.5 32mm circle
Recommended prop size: 15-16 inch

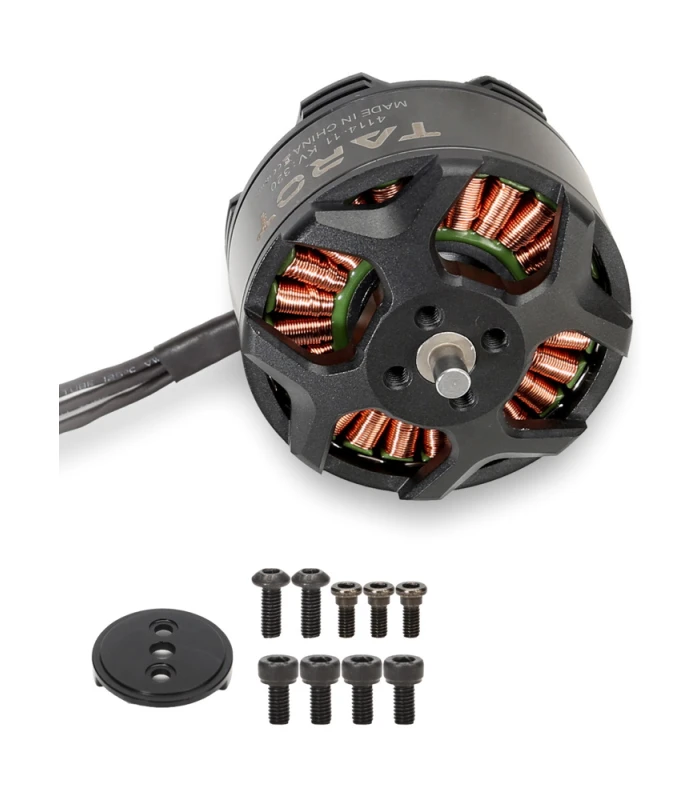

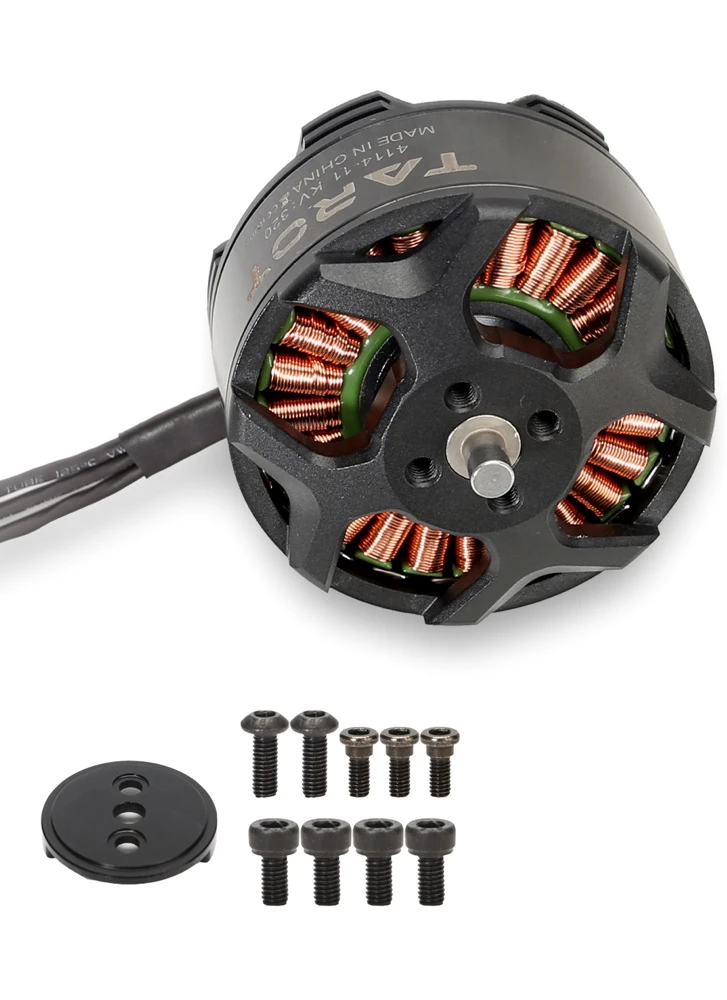

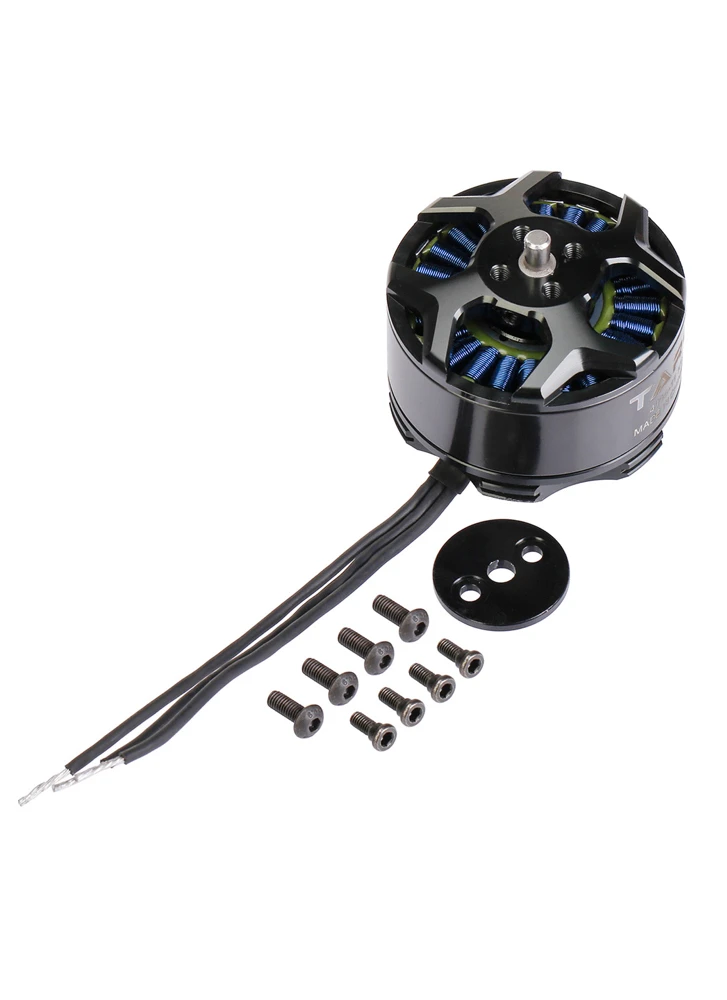

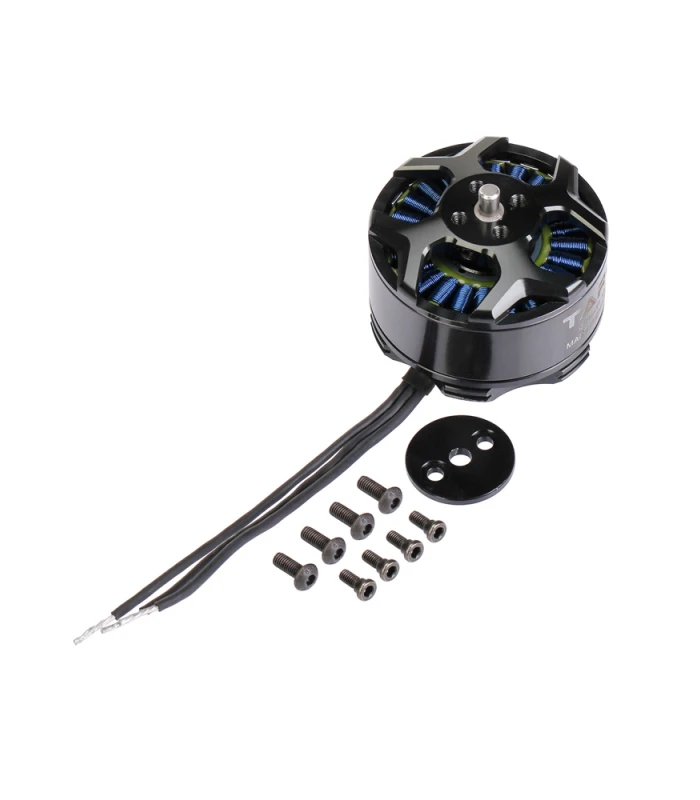

Included:

1x Tarot 4114-320kv brushless motor
1x Propeller adapter
4x M2.5 x 6mm socket hex screw
4x M3 x 8mm button-head screw

Downloads

Data Sheet (jpg, 642KB)

Download

Q&A

Questions and answers of the customers

If I apply 11*5.5 propeller to the motor. How many amp will be consumed?

0 votes

Q If I apply 11*5.5 propeller to the motor. How many amp will be consumed? answer now

A
Hi, sorry we don't have that info. Tarot have provided the data sheet based on a 15in prop: Download File. You could use https://www.ecalc.ch/xcoptercalc.php to simulate the setup for another prop size - they have the Tarot 4114 320KV motor as an option in their calculator.
