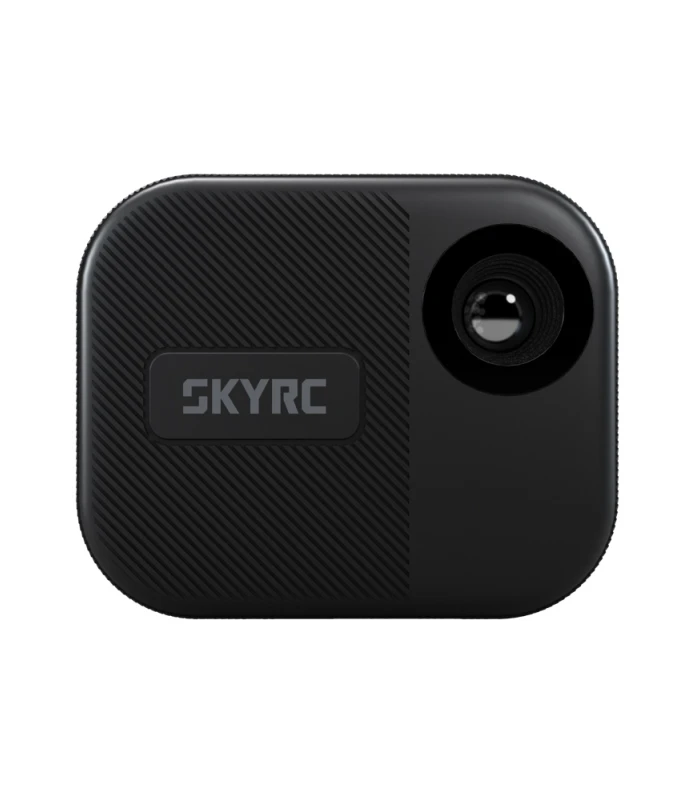

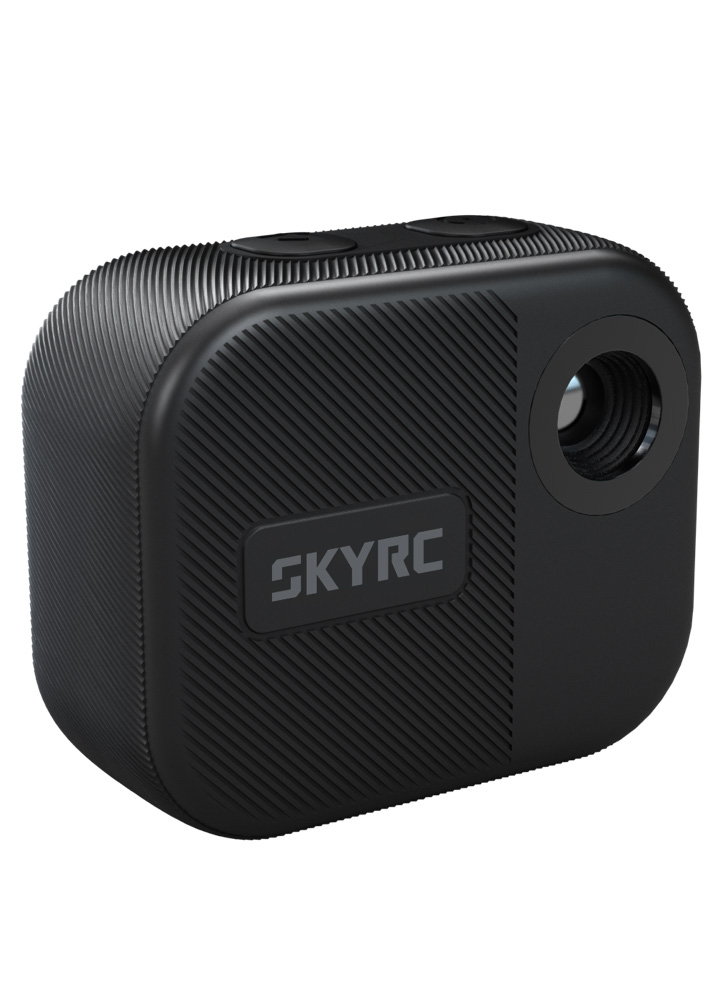

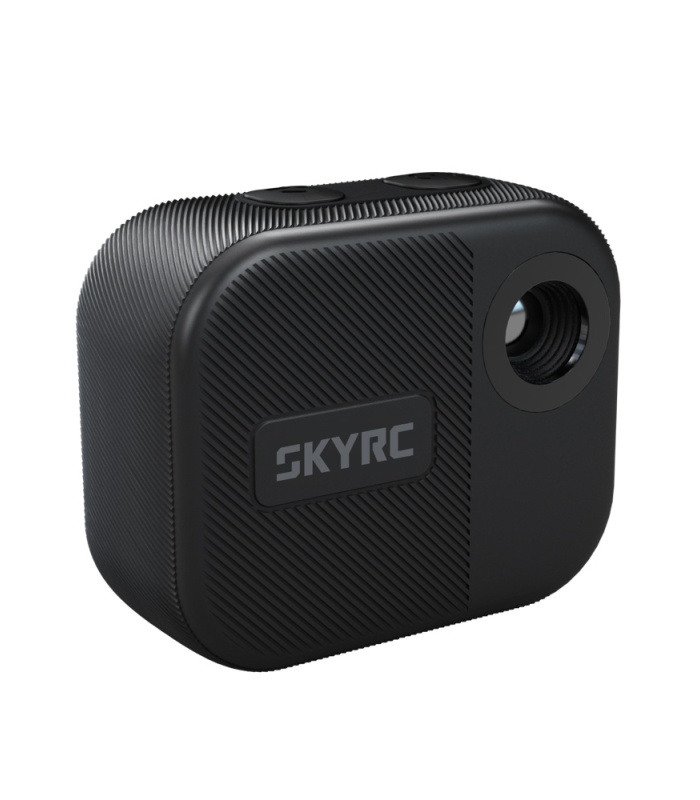

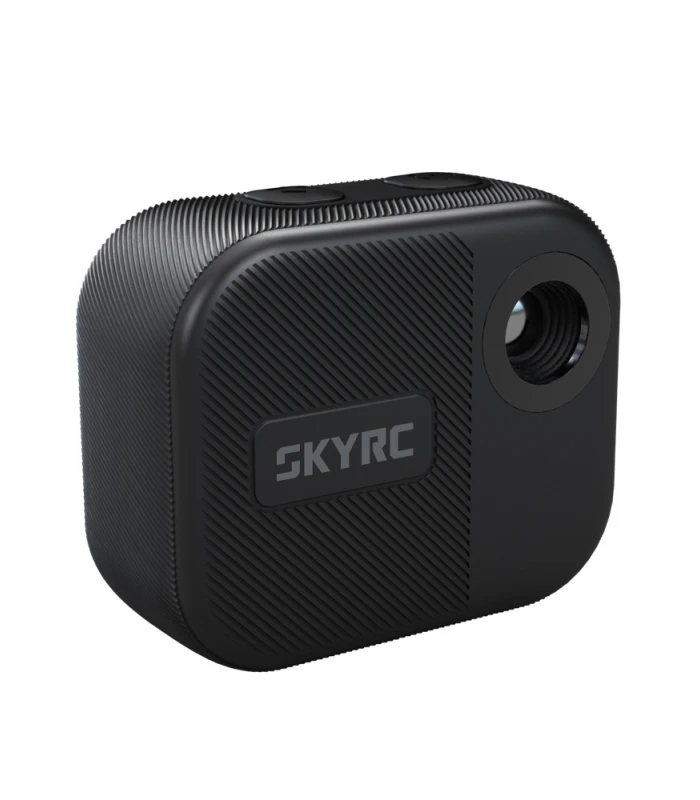

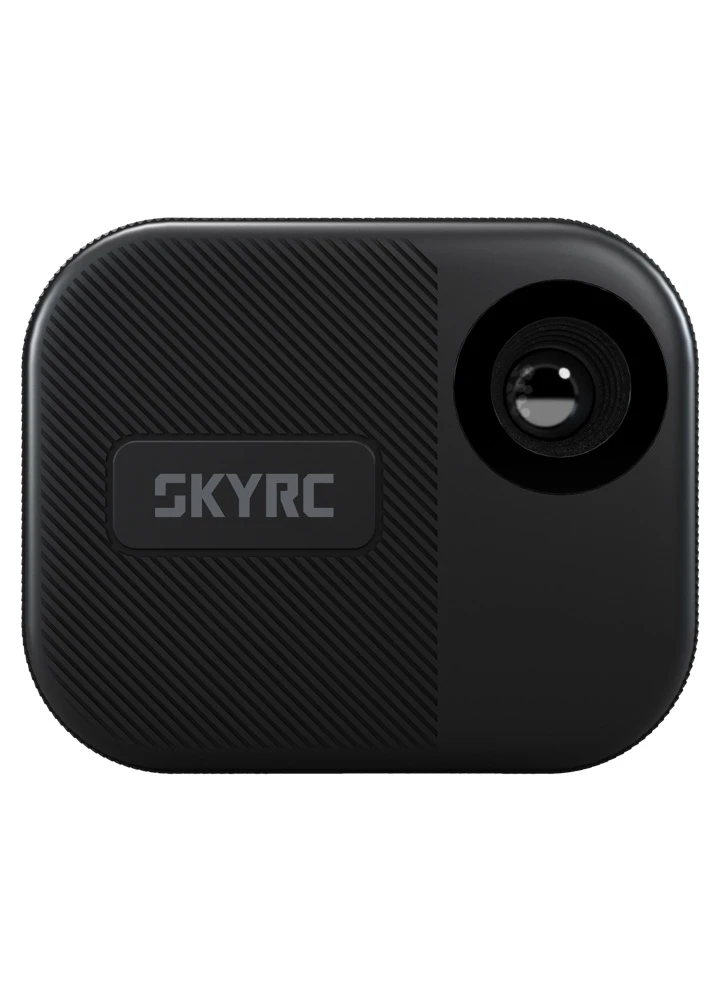

SkyRC ITV500 Mini Infrared Thermometer
Original price was: £64.99.£59.99Current price is: £59.99. Inc. VAT
A compact thermal imaging tool for spotting hot spots and tuning RC systems.
In stock|Next shipping: 19/05/2026

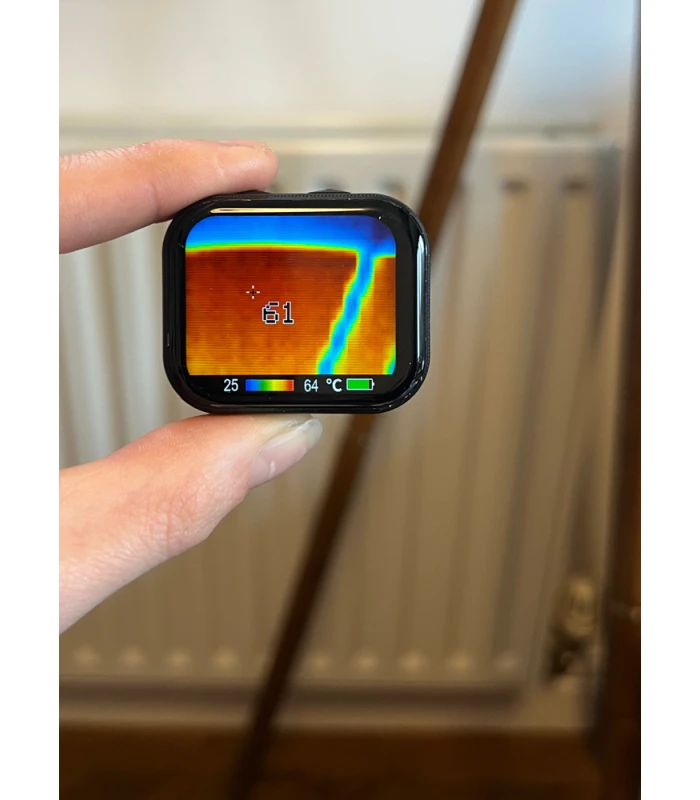

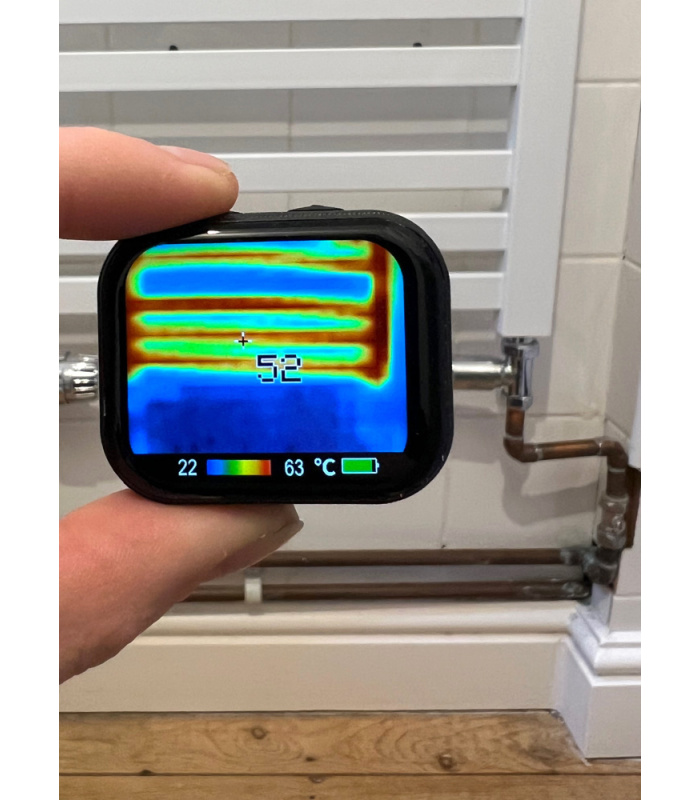

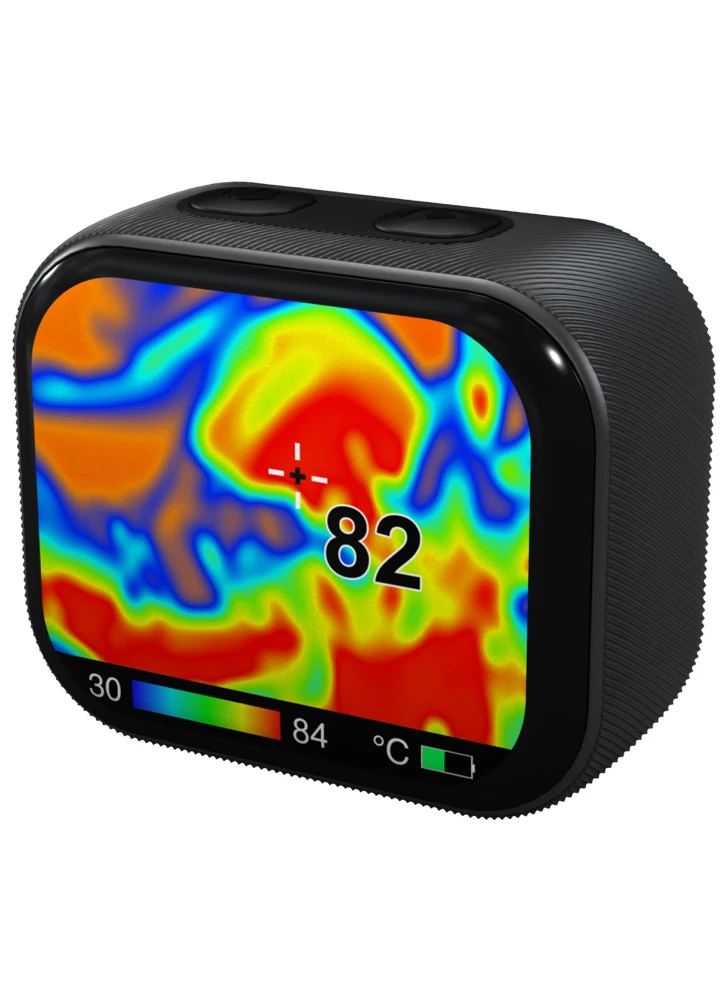

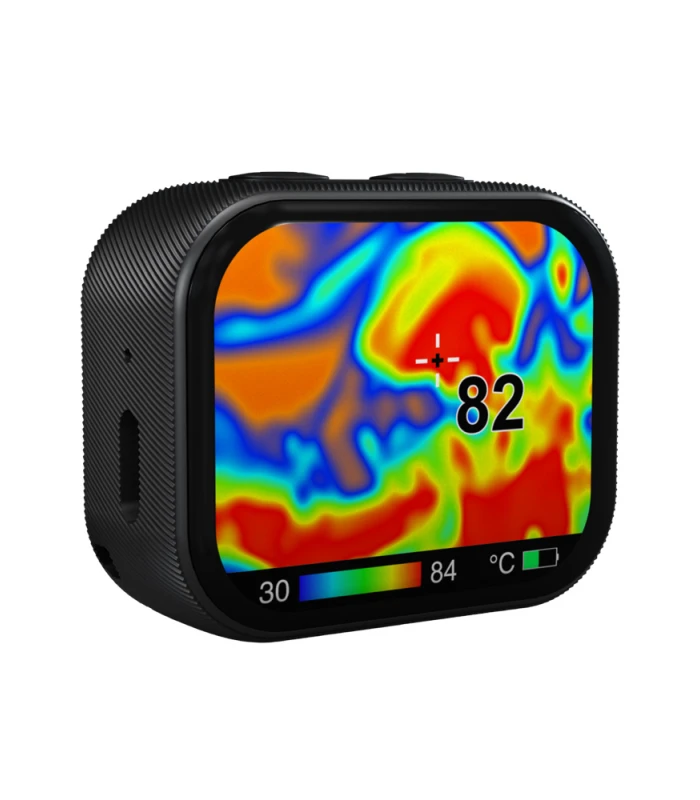

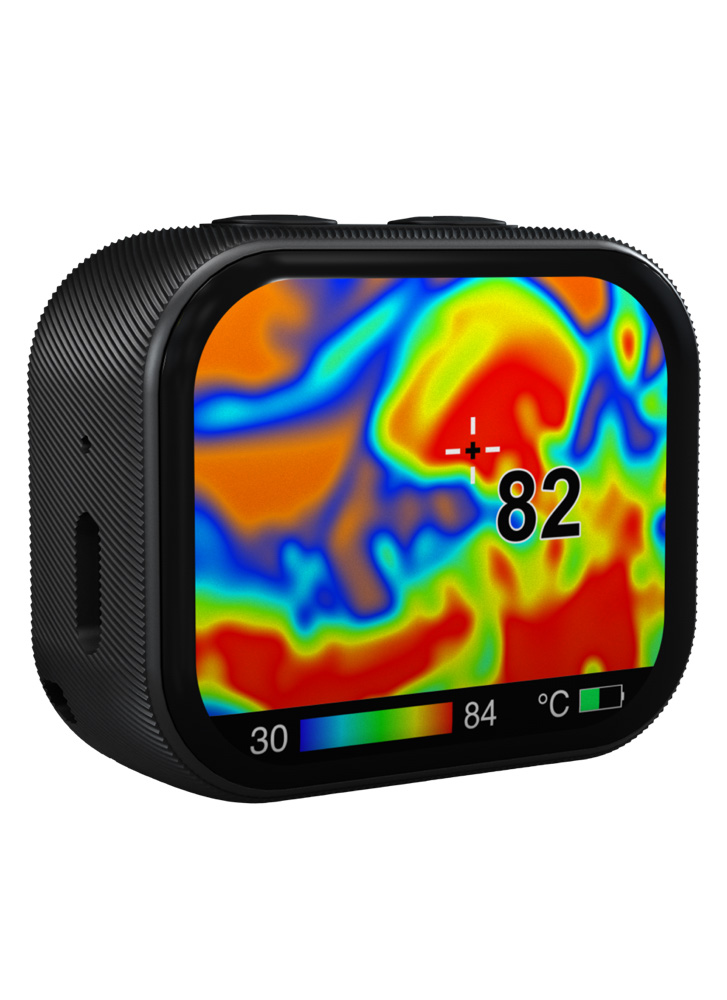

The SkyRC ITV500 is a compact Mini HeatVision tool built specifically for RC enthusiasts, letting you see heat before it becomes a failure point. Using far-infrared sensing, it converts invisible temperature changes into a live thermal image so you can quickly spot overheating motors, stressed ESCs, warming LiPo packs, poor connectors, or hot tyre surfaces.

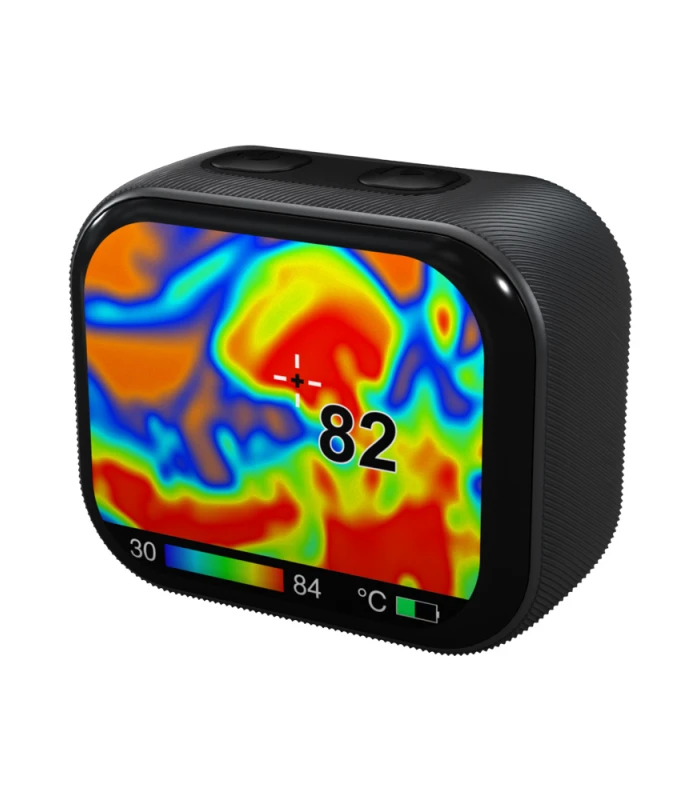

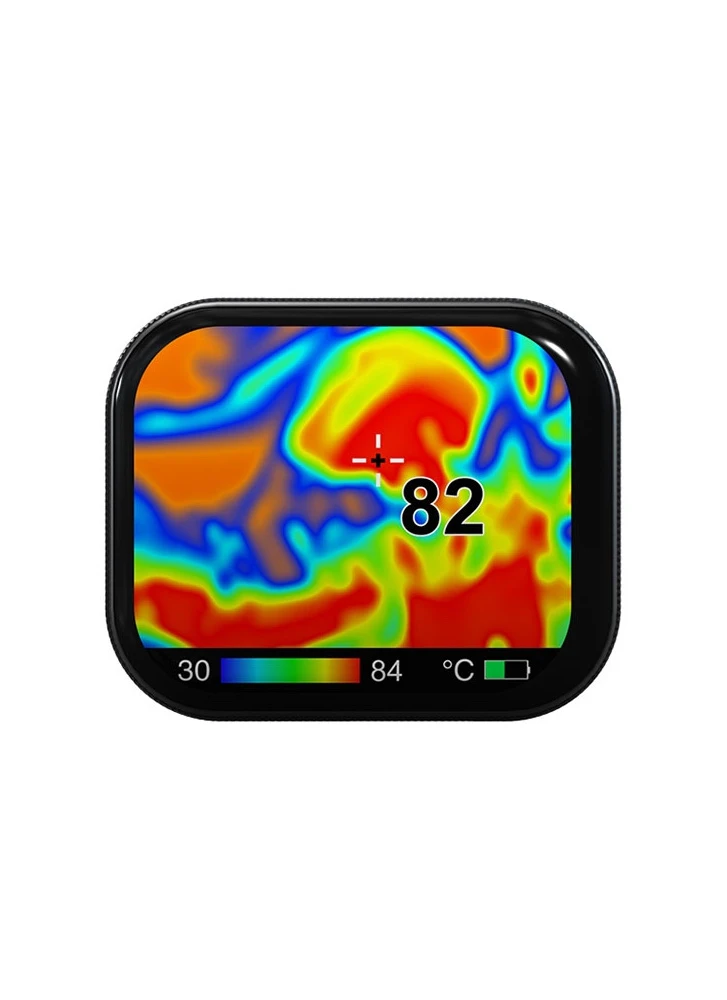

Designed for pit-bag portability, the ITV500 weighs only around 38 g and features a bright 1.83-inch capacitive touchscreen that displays real-time temperature maps, automatic hot/cold markers, and tap-to-measure spot readings. Adjustable emissivity makes it accurate across metal, plastic, carbon and composite parts, while multiple colour palettes help highlight subtle temperature differences during setup and tuning.
Rechargeable via USB-C and firmware-upgradable using simple UF2 drag-and-drop, the ITV500 is a powerful diagnostic tool for racers and builders who want maximum reliability and performance from their RC rigs.
For alternative SkyRC temperature tools, we also stock the SkyRC 380P Infrared Thermometer with LED Screen for quick, no-frills surface checks, and the SkyRC TLD001 Thermologger Duo for recording temperature data over time using dual probes and Bluetooth connectivity. Together with the ITV500’s live thermal imaging approach, they give RC users several ways to monitor heat depending on how they tune and run their models.
Key Features
- Far-infrared thermal imaging with live on-screen display
- ±2 °C measurement accuracy across −20 °C to 300 °C
- Adjustable emissivity (0.01–1.00) for different materials
- 1.83″ capacitive touchscreen (240 × 284)
- Auto marking of hottest and coldest points
- Tap-to-measure custom spot temperatures
- Rainbow, Iron Red and White Hot colour palettes
- Switchable °C / °F / K units and brightness control
- USB-C charging with 600 mAh rechargeable battery
- UF2 drag-and-drop firmware updates
- Six-language interface (EN / CN / FR / DE / ES / JP)
- Ultra-portable 46 × 38 × 20.1 mm body, approx. 38 g
Important Note:
The ITV500 is designed for RC hobby use and is not intended as a medical or clinical thermometer for people or animals
SkyRC ITV500 Mini Infrared Thermometer pairs well with SkyRC AirDuster RT002
Size and Weight
- Size: 46 × 38 × 20.1 mm
- Weight: about 38g
Display
- Display Type: 1.83″ capacitive touch screen 240 × 284 pixels
TechSpec
- IR Resolution: 32 × 24 pixels
- Thermal Sensitivity: 100mK @ 1Hz
- Field of View: 55° × 35°
- Frame Rate: 8 FPS
- LCD Display: 240 × 284 pixels
- Battery: 600 mAh rechargeable lithium battery
- Charging Interface: USB Type-C
- Charging Input Voltage: DC 5V
- Temperature Measurement Range: -20°C(-4℉) ~ 300°C(572℉)
- Measurement Accuracy: ±2.0℃(3.6℉)
- Measuring Distance: <5 m (for high accuracy, within <20 cm)
- Languages: EN / CN / FR / DE / ES / JP
Working and Storage
- Operating temperature: -5℃-60℃
- Working humidity: ≤85%RH, non-condensing
- Storage temperature: 0°C–35°C
- Storage humidity: ≤65% RH, non-condensing
