Improved accuracy by tracking two satellite constellations
The GNSS Performance Analyzer supports GNSS (Global Navigation Satellite System) with GPS and GLONASS system that means more satellites. The advantage is improved positional accuracy by tracking two satellite constellations instead of just GPS.
Small but Versatile

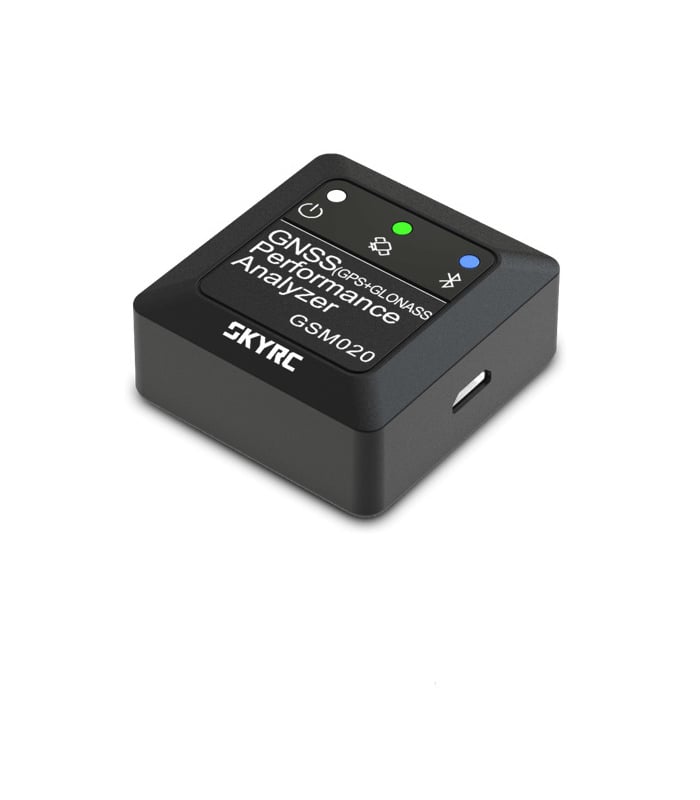

GNSS Performance Analyzer (GSM020) allows you to measure and analyze many aspects of your RC car & airplaneโs performance using the latest GNSS engine (GPS, GLONASS) which gives you Acceleration, G-force, Speed, Time, Distance, High and Vertical Velocity. With its compact dimension of 40mm x 40mm x 17mm and internal antenna, it is an ideal choice for mounting on RC vehicles & airplanes.
Peace of mind with built-in liPo battery
5 hours’ run-time on the built-in rechargeable LiPo battery can give enough racing time for the RC drivers or pilots in the field! With the micro USB charging port, it is very convenient to connect it to a USB port or another compatible USB power source for charging.
Visual LED indicator
The GNSS Analyzer is equipped with 3 LED indicators, signaling different operating modes. Open GNSS PA on the smartphone, the analyzerโs Bluetooth icon will stay steady blue, reflecting the device is connected; the satellite icon will stay steady green after a while of successful GNSS signal acquisition.
Built-in 1M Memory
The built-in 1M memory can record up to 50 records. And all the data can be transferred to the smartphone for analyzing! When the Flash is full, the previous record will be replaced automatically. Now you don’t have to think about clearing data all the time or worry about missing the critical tracking data when the memory is full.
Support both Metric and Imperial system of Measurement
The Metric and Imperial systems can be switched easily by the App!
Operating Modes:
Drag: Automatic start/stop logging. The logging behaviour of the device is to automatically start and stop logging. Measuring every run automatically without pressing any button. The device starts logging when a satellite lock has been achieved and a speed value higher than 1.0km/h is detected.
Track: Ideal for RC racing. Provides data such as speed, total distanceย and top speed.
Flying:ย Recommend for planes, quads, rockets, helicopters, glides & kites – it measures peak altitude, distance, avg speed and max speed.
