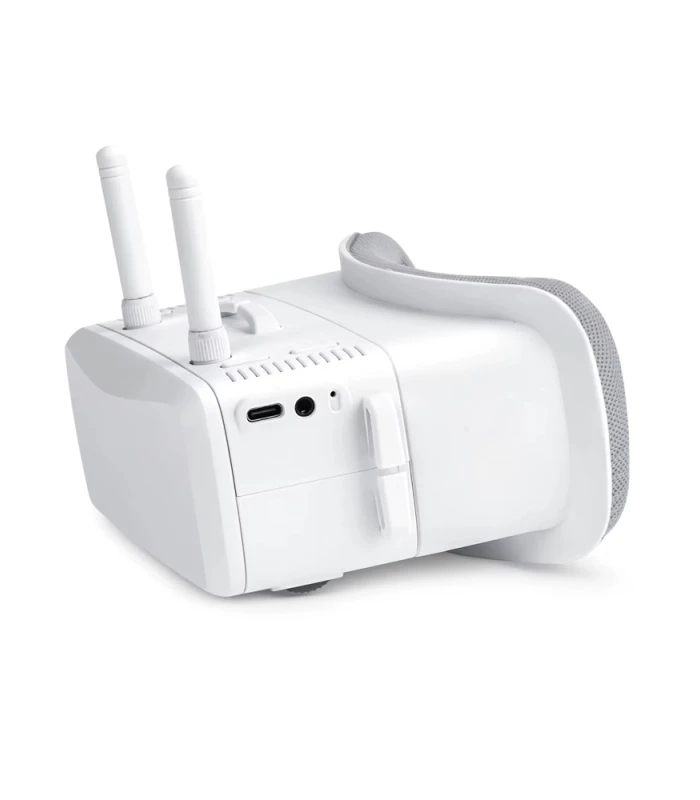

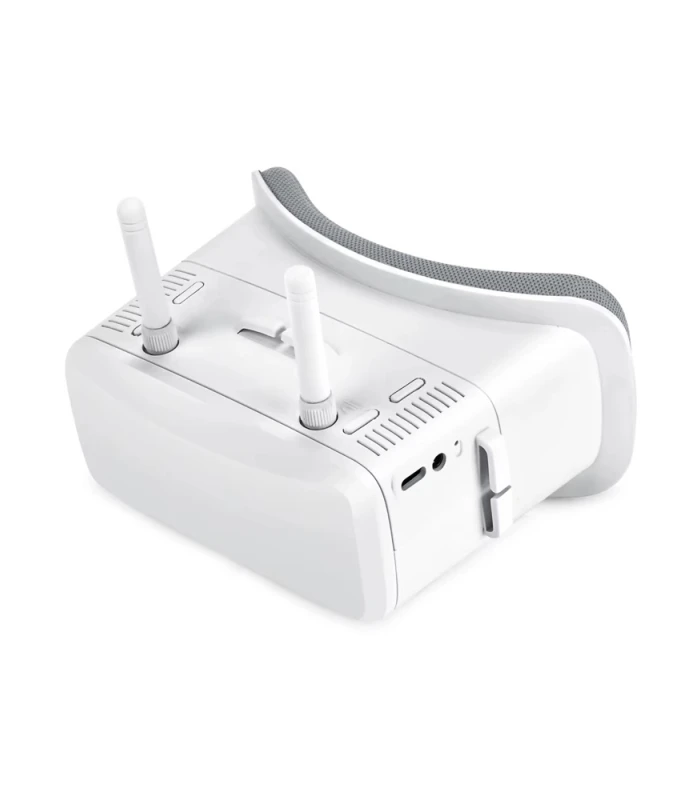

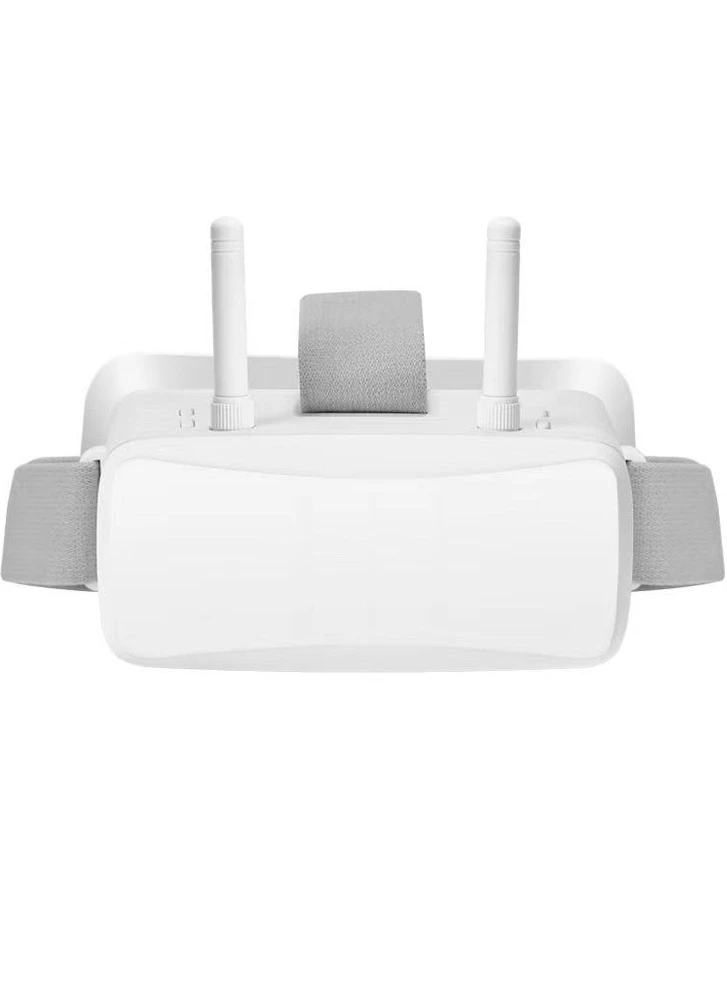

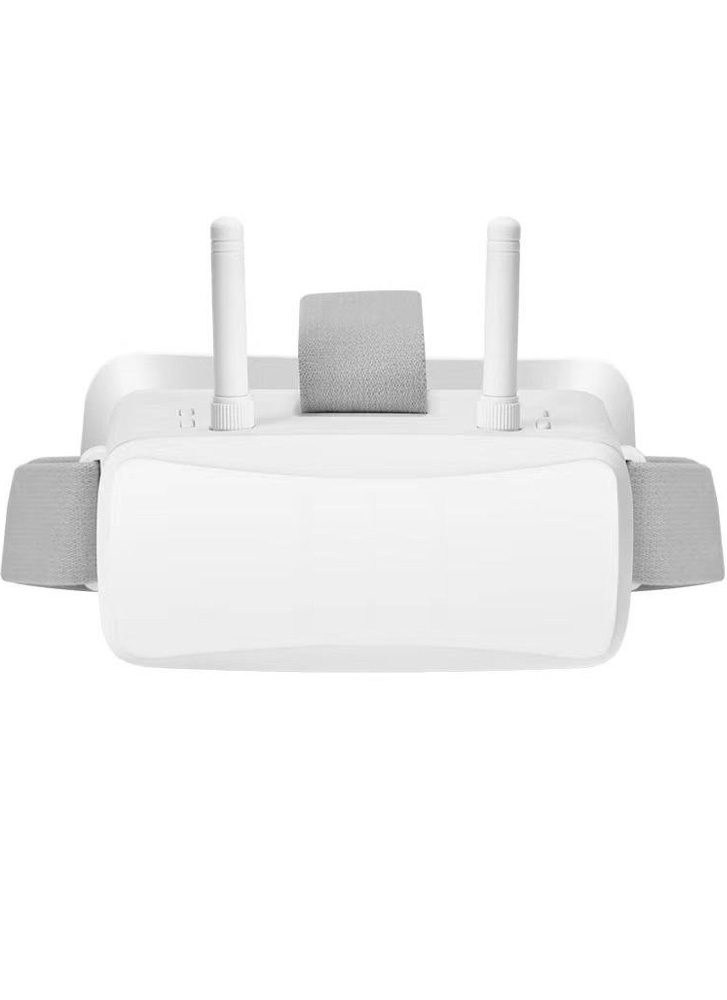

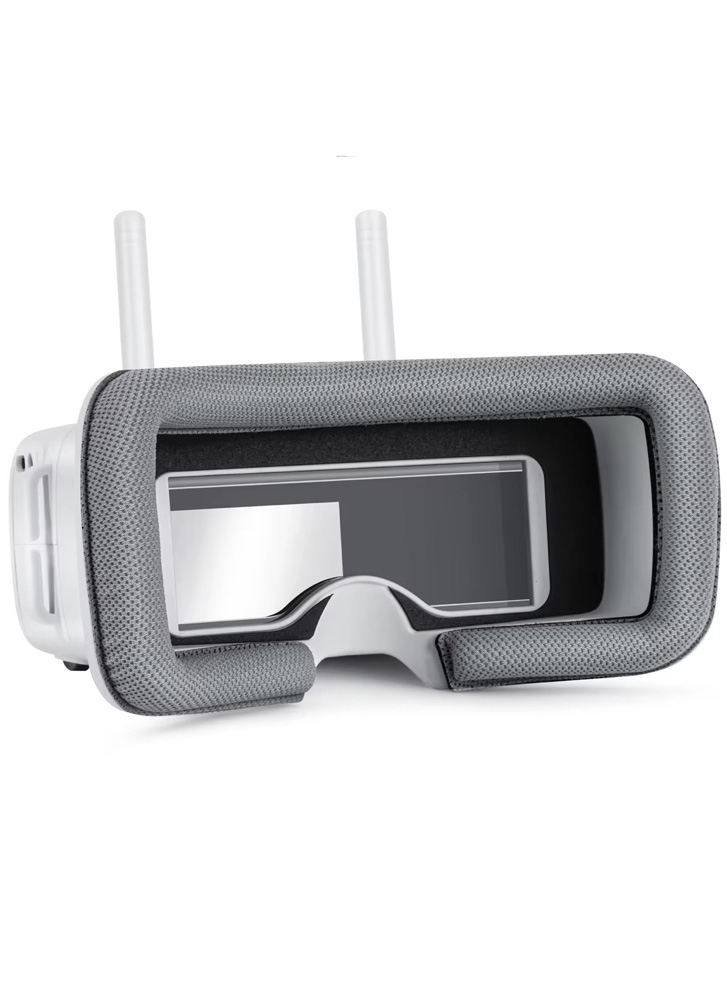

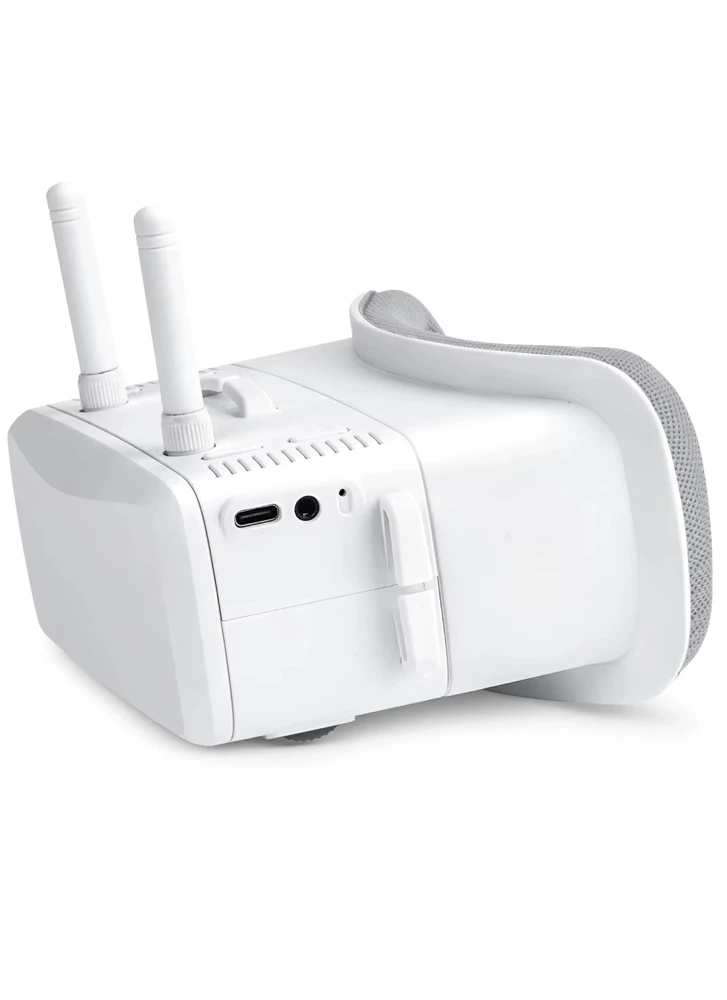

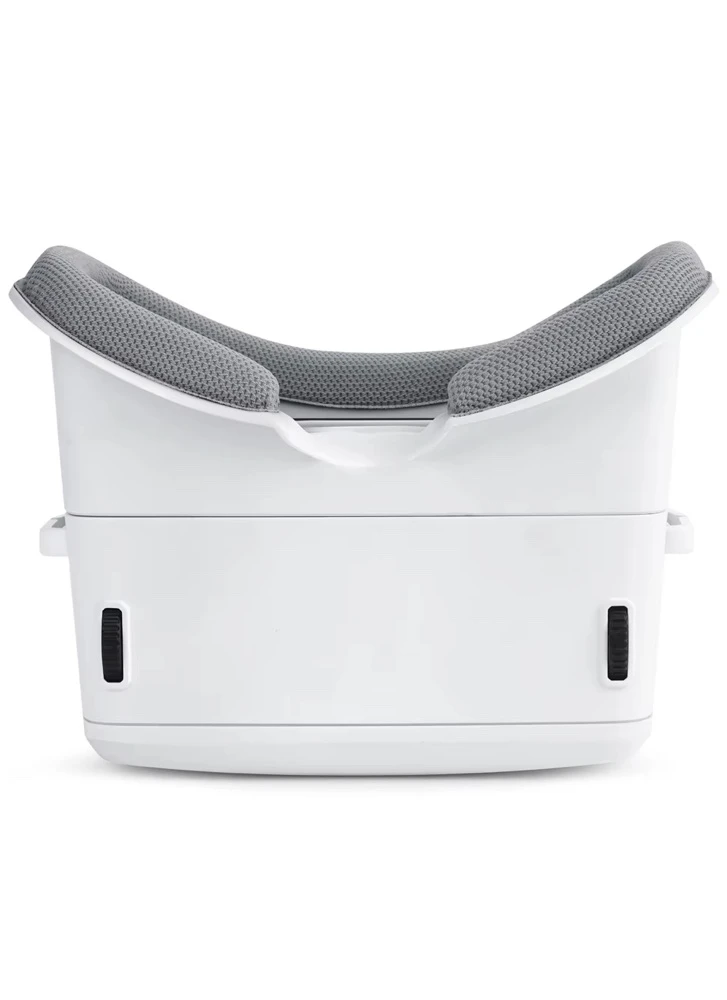

VR100 3 Inch FPV Box Goggle with Focus Adjustment – 5.8G 40CH Receiver
£79.90 Inc. VAT
3-inch FPV box goggles with focus adjustment and integrated 5.8 GHz analogue receiver.
Only 4 left in stock|Next shipping: 01/05/2026
The VR100 FPV Box Goggle is a compact and lightweight analogue FPV headset designed for beginners, casual pilots, and bench testing setups. Featuring a bright 3-inch IPS screen, built-in 5.8 GHz diversity receiver, and adjustable optical focus, it delivers clear, stable video without the need for additional modules.

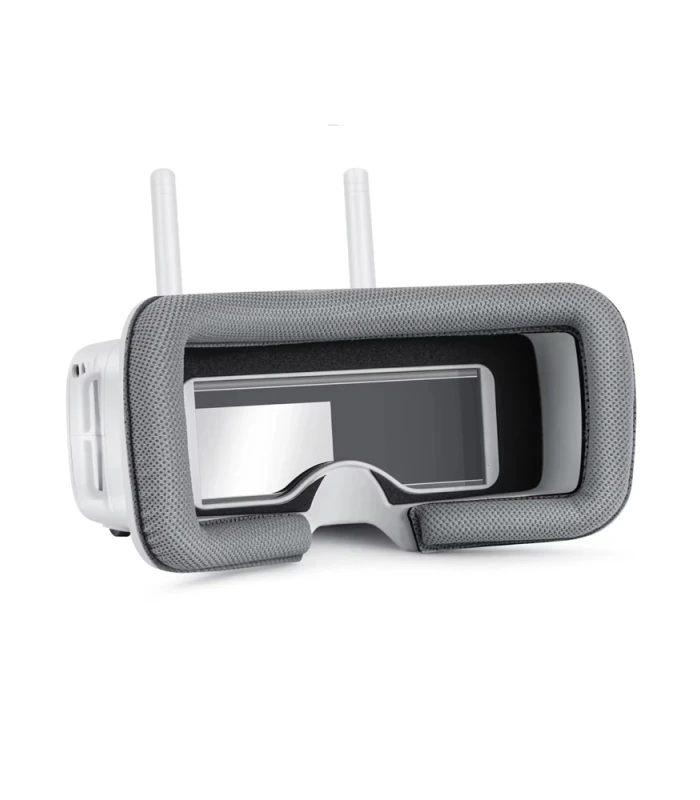

Its refraction-based optical design allows the focus to be adjusted to suit myopia up to approximately –7.0 diopters, making it comfortable to use without glasses for many pilots. Low-latency video processing keeps delay under 10 ms, while the sensitive 40-channel receiver provides reliable reception across all common analogue FPV bands.
A built-in rechargeable Li-ion battery powers the goggles for around three hours, charged conveniently via USB-C. AV input and output are also supported, allowing connection to external video sources or DVR recorders for capturing flights.
Key Features
- 3.0″ highlight IPS display with 480 × 320 resolution

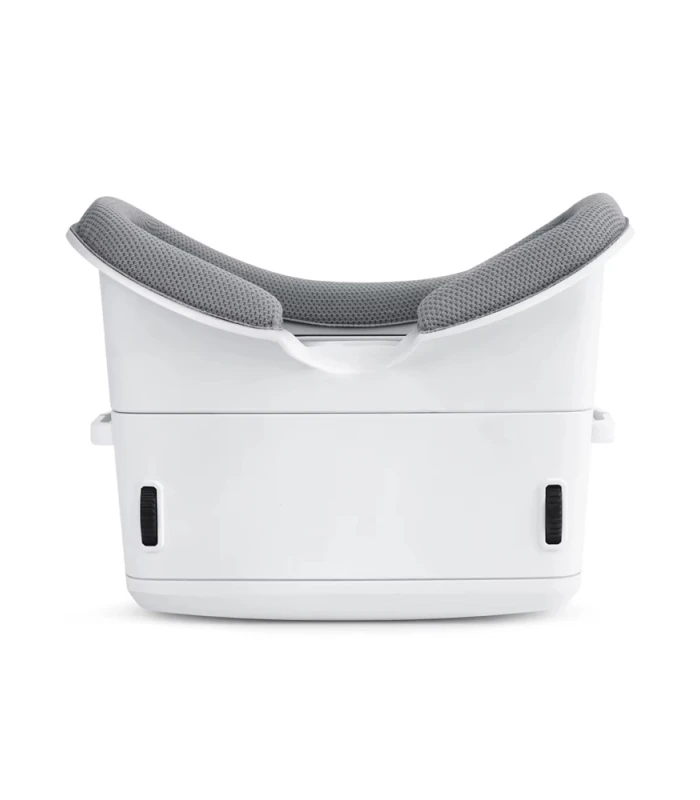

- Adjustable focus system for myopia (approx. 0 to –7.0)
- New refraction light-path optical design
- Integrated 5.8 GHz analogue receiver with 40 channels
- Auto channel search function
- Low-latency video processing (<10 ms)
- Built-in 3.7 V rechargeable battery
- USB-C charging port

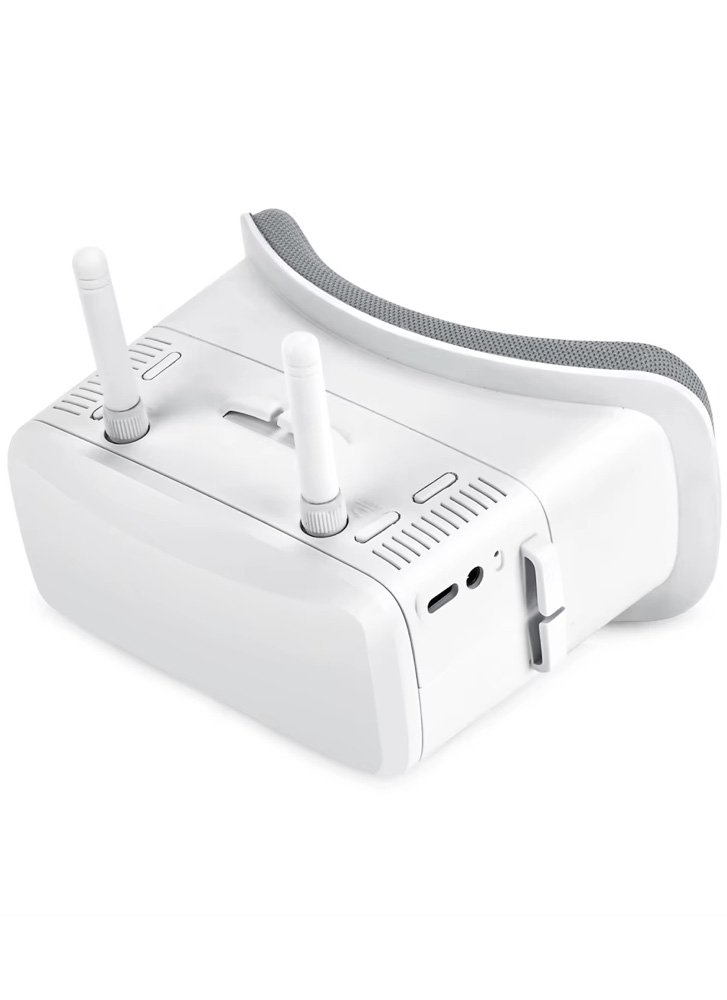

- External AV input and AV output for DVR recording
- Low power consumption (350 mA working current)
| Item | VR100 | ||||||||
| Name | 5.8G FPV Goggle | ||||||||
| Display | Screen: 3.0 inch IPS Highlight screen | ||||||||
| Screen resolution: 480*320 | |||||||||
| Ratio: 16:9 | |||||||||
| View Angle: 360-degree viewing angle | |||||||||
| Backlight brightness: 500cd/m² | |||||||||
| video delay | Less than 10 milliseconds | ||||||||
| Interface definition | Antenna | SMA male to RP-SMA female | |||||||
| Charging | TYRE-C port charge battery | ||||||||
| Headphone | 3.5mm AV port available for video input and output | ||||||||
| Language | Chinese and English | ||||||||
| Power Supply | Power adapter: suggest use DC5V/1 or DC/5V2A interface | ||||||||
| Capacity: Built in 3.7V/81200mAh lithium polymer battery | |||||||||
| Working power:
*working current: 350 mA *one hour charge fully, can be worked nearly 3 hours |
|||||||||
| Wireless | Frequency Table (MHz) | ||||||||
| CH1 | CH2 | CH3 | CH4 | CH5 | CH6 | CH7 | CH8 | ||
| Band A | 5865 | 5845 | 5825 | 5805 | 5785 | 5765 | 5745 | 5725 | |
| Band B | 5733 | 5752 | 5771 | 5790 | 5809 | 5828 | 5847 | 5866 | |
| Band E | 5705 | 5685 | 5665 | 5645 | 5885 | 5905 | 5925 | 5945 | |
| Band F | 5740 | 5760 | 5780 | 5800 | 5820 | 5840 | 5860 | 5880 | |
| Band R | 5658 | 5695 | 5732 | 5769 | 5806 | 5843 | 5880 | 5917 | |
| Appearance | Dimension: 107mm * 150mm * 75mm | ||||||||
| Weight: 300g without antenna | |||||||||
