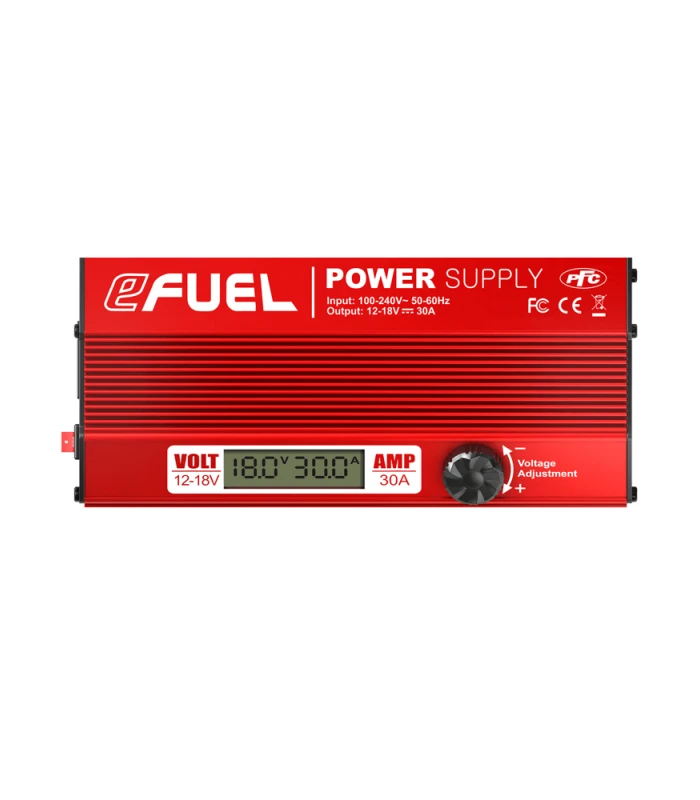

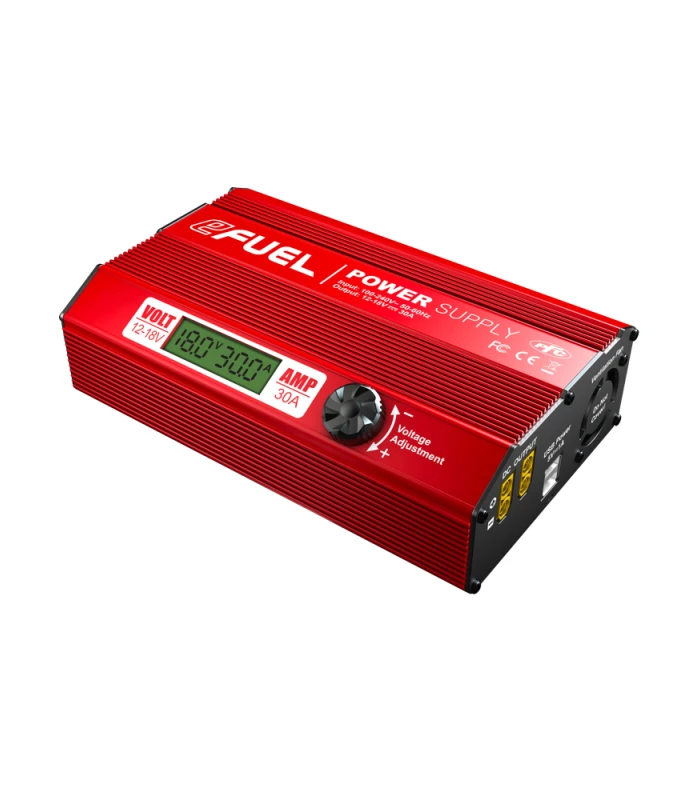

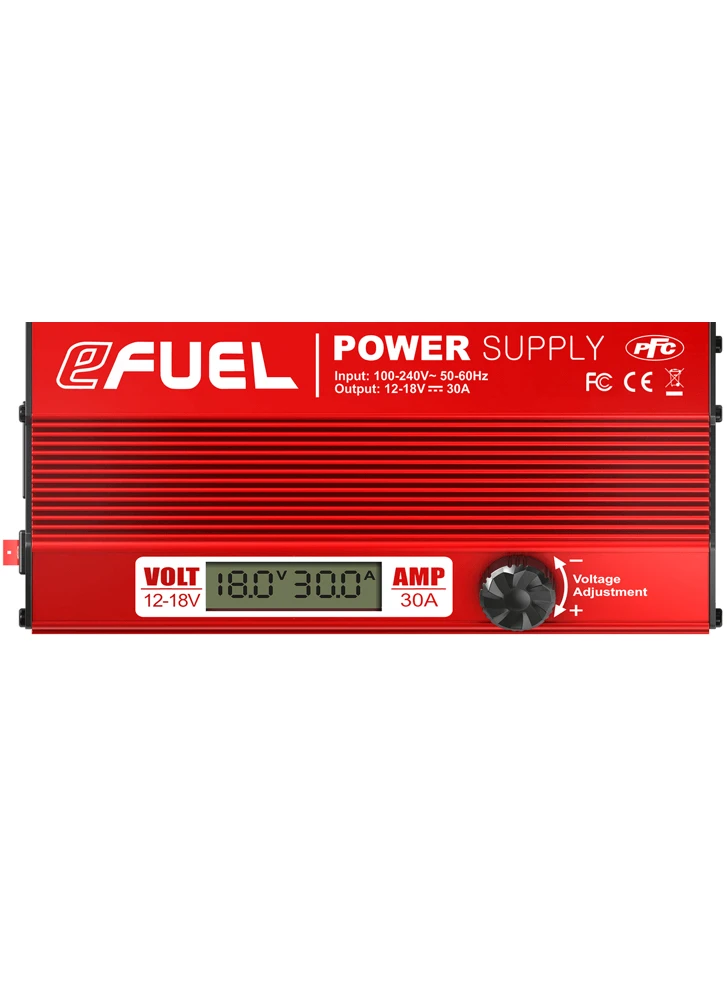

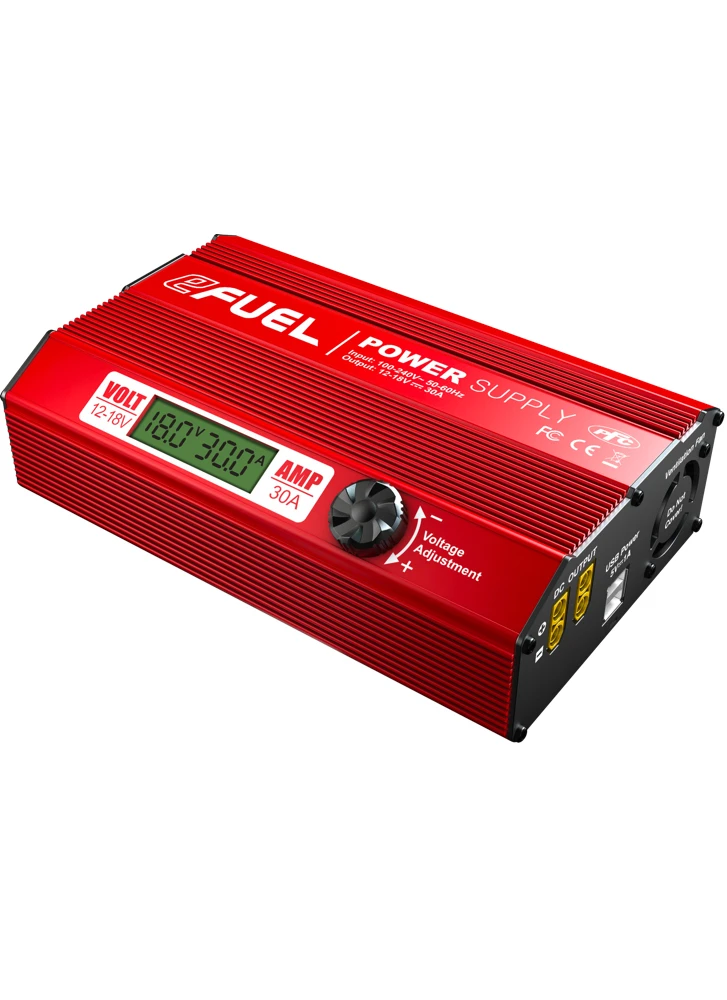

Name: SkyRc eFuel 30A 540W 12-18V DC Power Supply w/LCD Display - Flying Tech
Brand: SkyRC
SKU: PSU-EFUEL30A
Price: 114.90 GBP
Availability: InStock

Description

The eFUEL switching DC Power Supply is designed to use household AC power source to power equipments that required DC power. The eFUEL converts standard household power 100-240V AC to 12-18V DC power and can supply up to 30 amperes of continuous power.

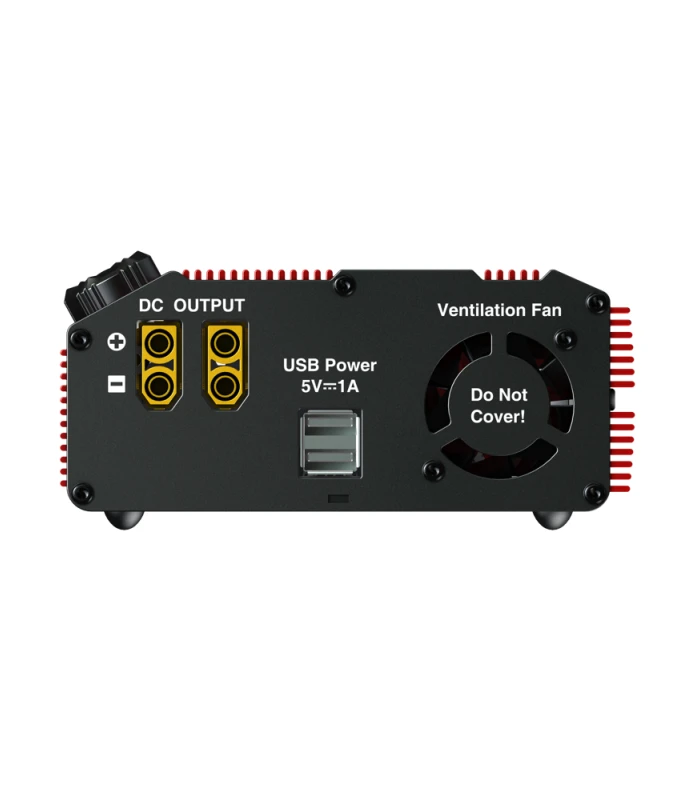

The output power sockets use XT90 female – requires XT90 Male connector.

Features:

Dual DC power outputs, up to 30 Amps
Output voltage adjustable 12-18V
Large LCD indicates voltage and current amperes output
Two USB charging ports
Smart cooling fan
Over temperature protection
Over loading protection
Short circuit protection

Specification

Input Voltage: 100-240V AC
Input AC Frequency: 50Hz-60Hz
Output Voltage: 12-18V DC±0.5V
Output Current: 30A±1A
Current Overload Protection: ≤31A 500MS
Input Fuse: 100-240V AC 10A Fuse
LCD Display: Voltage Precision ±0.3V Current Precision ±0.3A
Output Voltage Ripple: <150MV
Power Efficiency: >89%
Power Factor: >0.98
Over Temperature Protection: <65℃
Cooling Method: Cooling Fan
Operating Temperature: 0-40℃
Operating Humidity: 0-90%
Dimensions (L x W x H): 218 x 139 x 59.5mm
Net weight: 1.62kg

Included:

1x SKYRC eFuel 30A
1x UK Power Plug

Downloads

Manual

Download File

Spec Sheet

Download File
