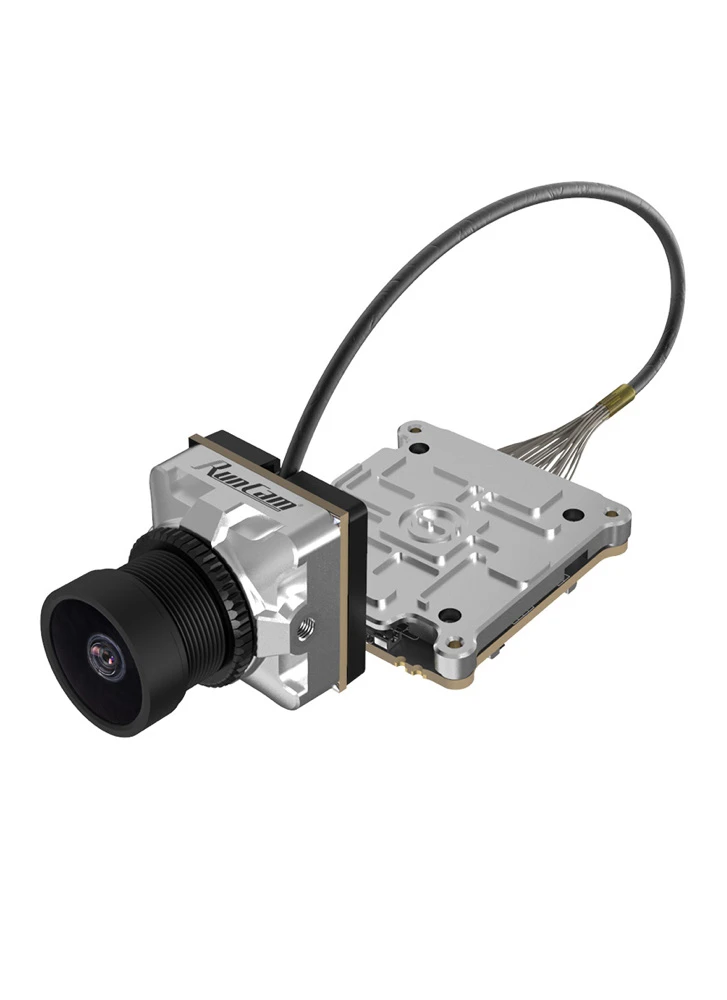

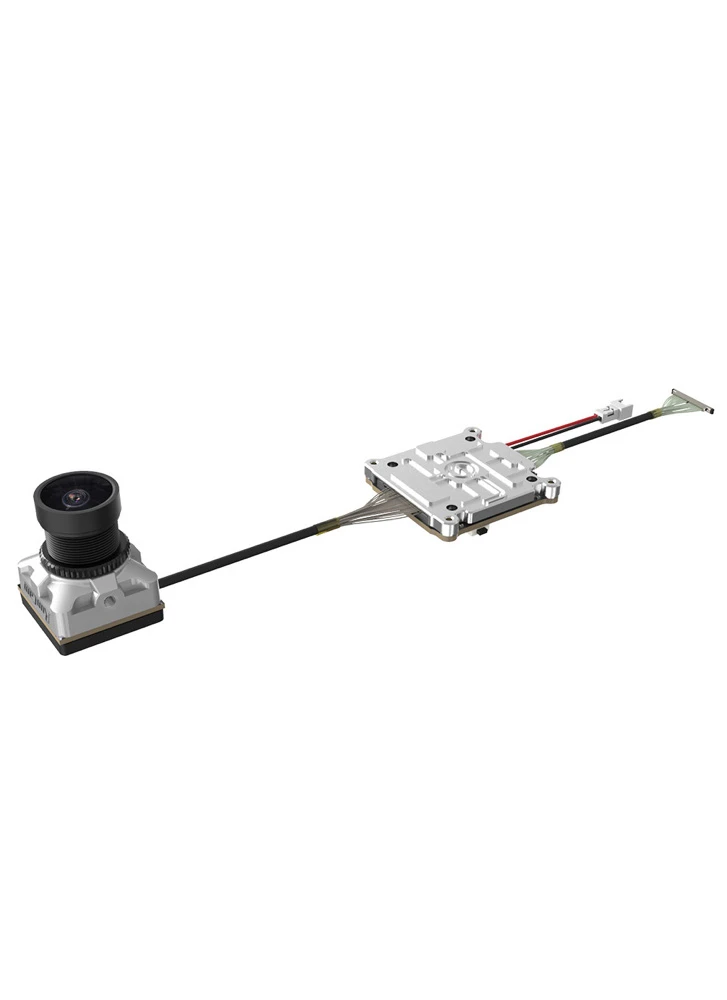

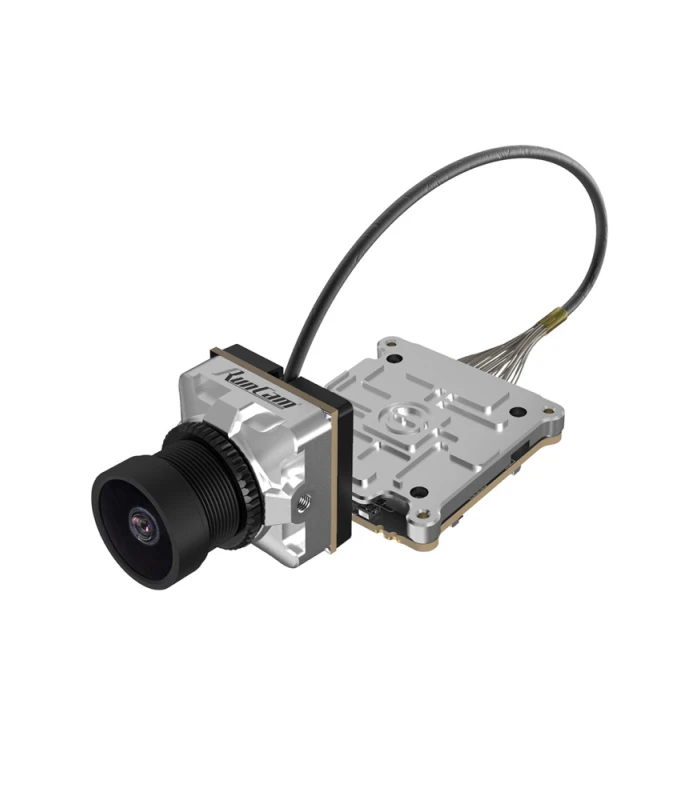

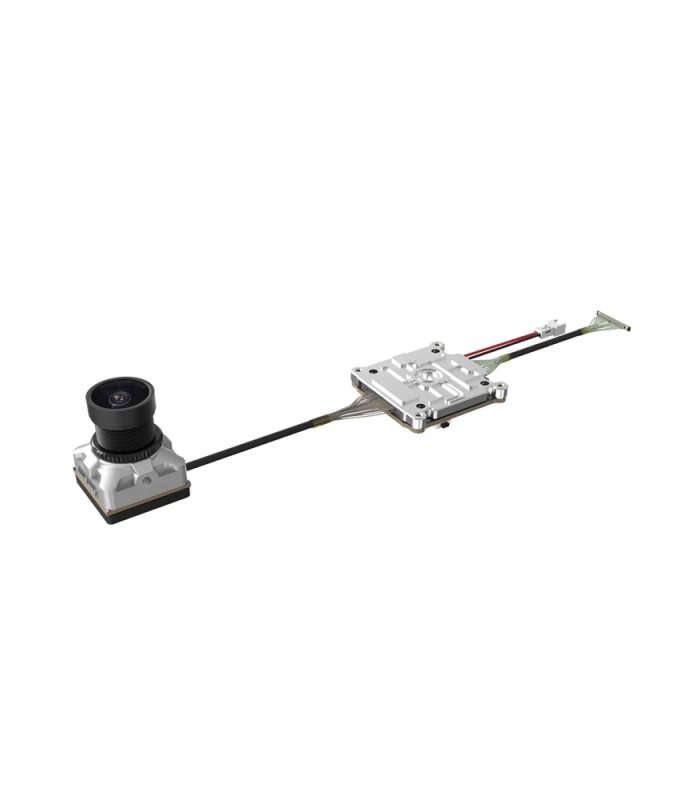

RunCam Split HD Camera Kit for DJI HD FPV

Rated 5.00 out of 5 based on 1 customer rating

£85.00 – £147.00 Inc. VAT

The Split HD Camera Kit is a digital camera and 2.7K video recorder solution for DJI HD FPV.

Version	Clear

0 People watching this product now!

Description

The Runcam Split HD camera supports the DJI FPV system. Essentially it’s a camera unit and DVR video recorder – to use you would then need to couple it with the DJI Air Unit or Caddx Vista / Runcam Link. We also sell the Split HD bundled with the RunCam Link video transmitter, so please select as required. Unlike other recording solution, for example using the DVR in the DJI goggles, the Split records directly from the camera. This means the video is pristine, without break up, freezing or quality degradation due to bad signal. It can record 2.7K resolution, 60 FPS in 4:3 and 16:9 aspect ratios (SD card required). In addition to its DVR function, the Split also has a built-in gyro sensor that supports GyroFlow image stabilisation. The camera includes an ND16 filter to allow for reduced jello effect under strong sunlight.

Features

DJI Digital HD FPV Air and Runcam Link (DJI Air Unit Lite) Compatible
2.7K+720P FPV HD Video Integrated
16:9/4:3 Optional Video Resolution
Gyro Flow Image Stabilization
Sony 5mp Image Sensor
ND 16 Filter
Easy Installation
Digital WDR
154° FOV

Specification

Communication Interface Supported: Max Micro SD Card Supported Up to 128G. Samsung’s U3 card is recommended (2.7K60/1080P120 requires U3 or above; other solutions require U1 or above) Please make sure that the file format of the SD card is FAT32 or exFAT, otherwise, it will easily cause errors.
Mounting Hole Distance: 20*20mm / 25.5*25.5mm
Video Resolution: 2.7K@60fps/2.7K@60fps(4:3)
Working Current: 450mA@5V(Max)
FPV Resolution: 720P@60fps
1440P@60fps/1080P@60fps
Lens Module Size: 19*19mm
Horizontal Perspective: 124°
Image Sensor: SONY(5MP)
Model: RunCam Split HD
Field of View(FOV): 154°
Video File Format: MP4
Lens Specs: M12*0.5
PCB Size: 29*30mm
Power Input: DC 5V
Weight: 19.9g
