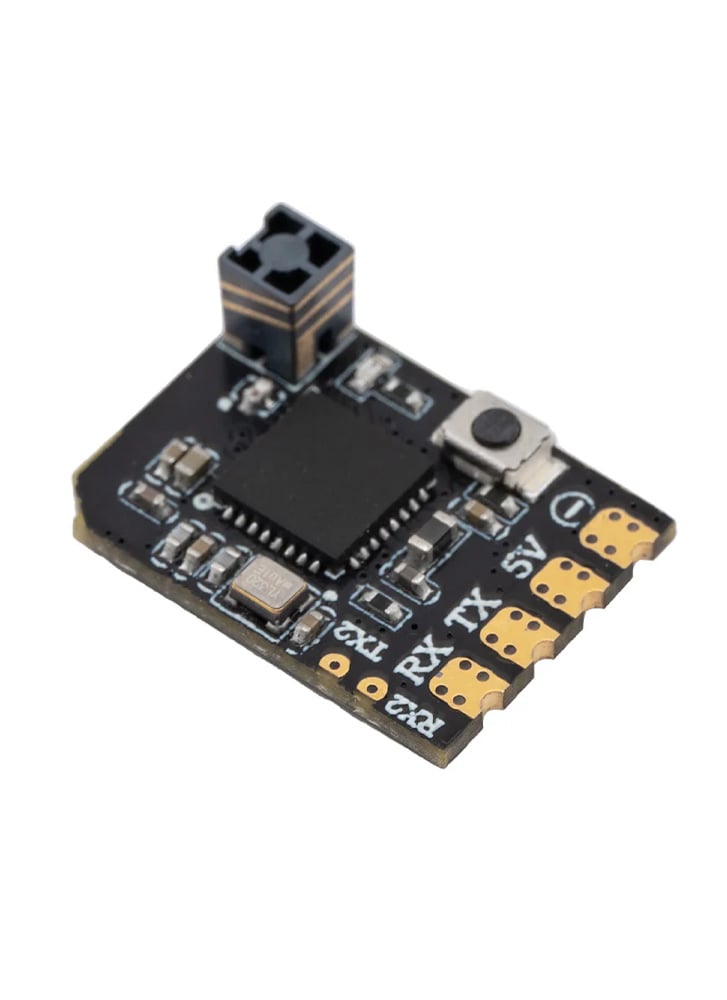

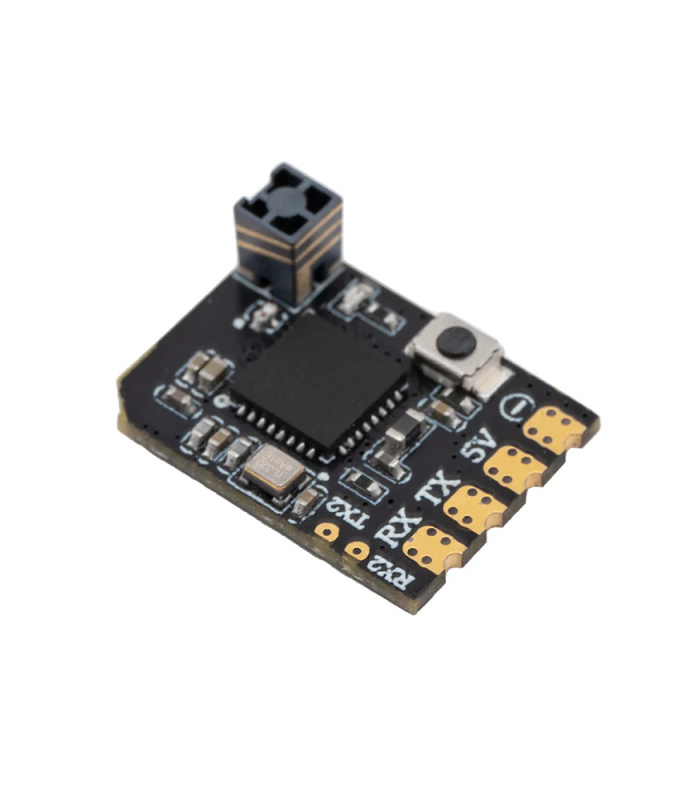

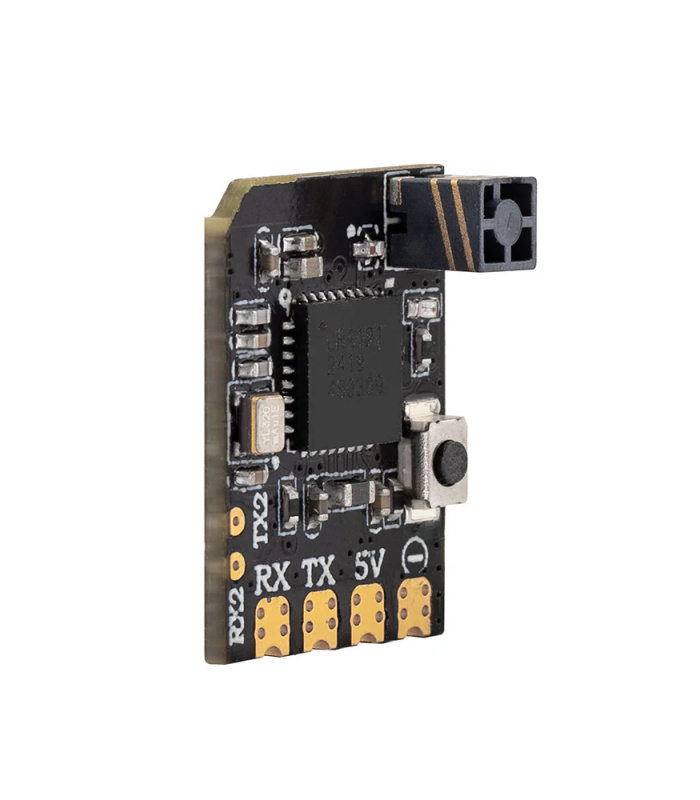

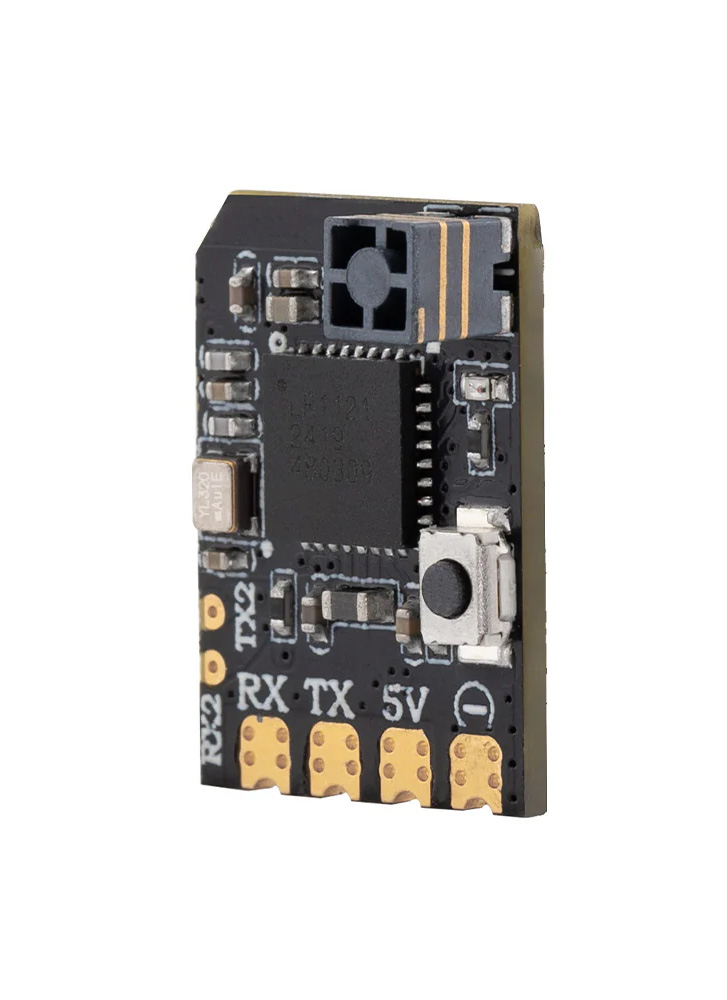

RadioMaster XR2 Nano 2.4GHz ExpressLRS Receiver

£11.99 Inc. VAT

The XR2 has a built-in ceramic antenna which is super light and small in size, ideal for micro builds.

In stock

0 People watching this product now!
Description

XR2 Nano Banner

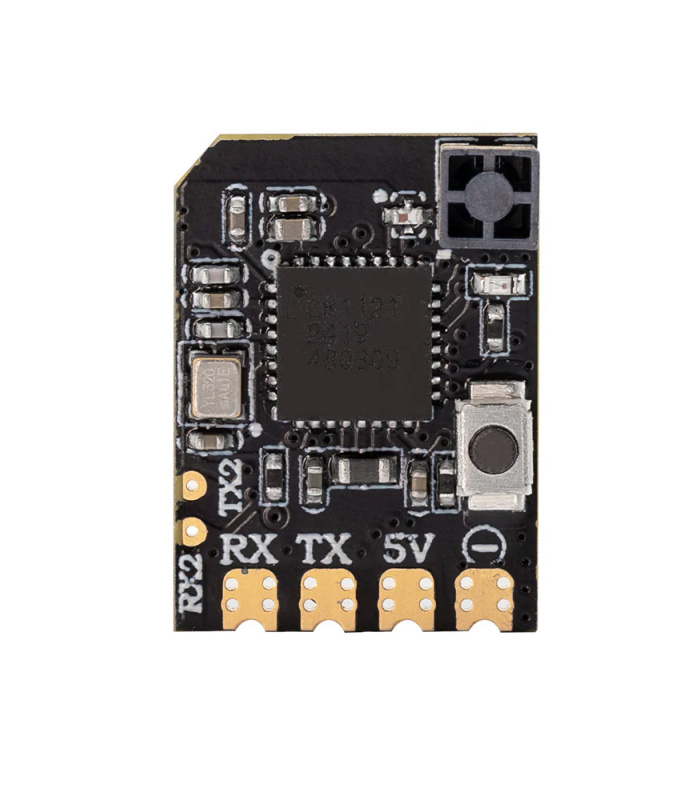

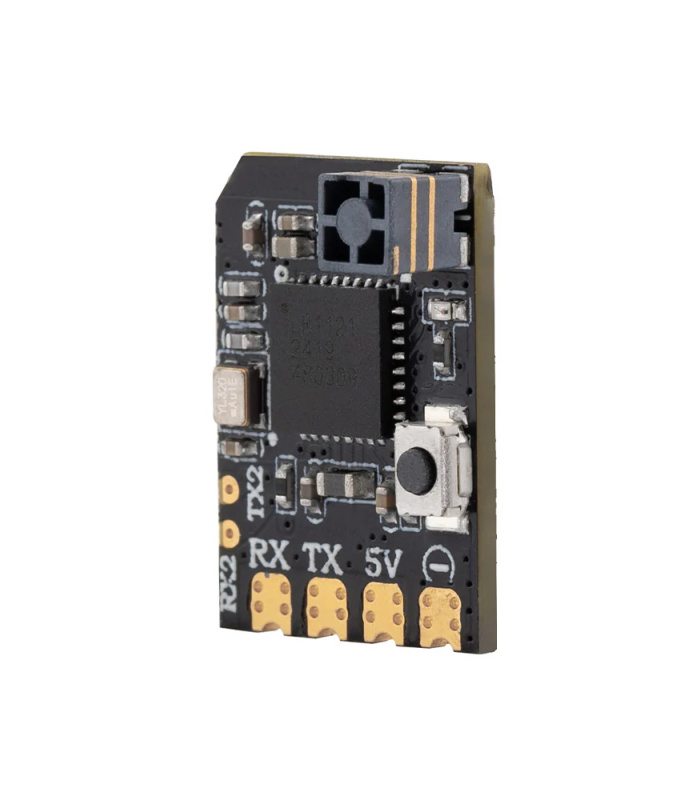

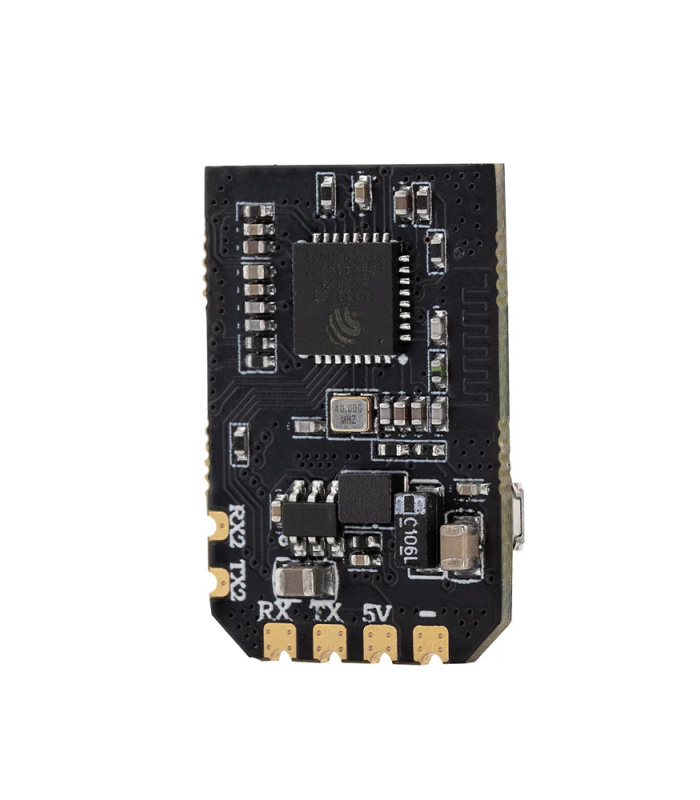

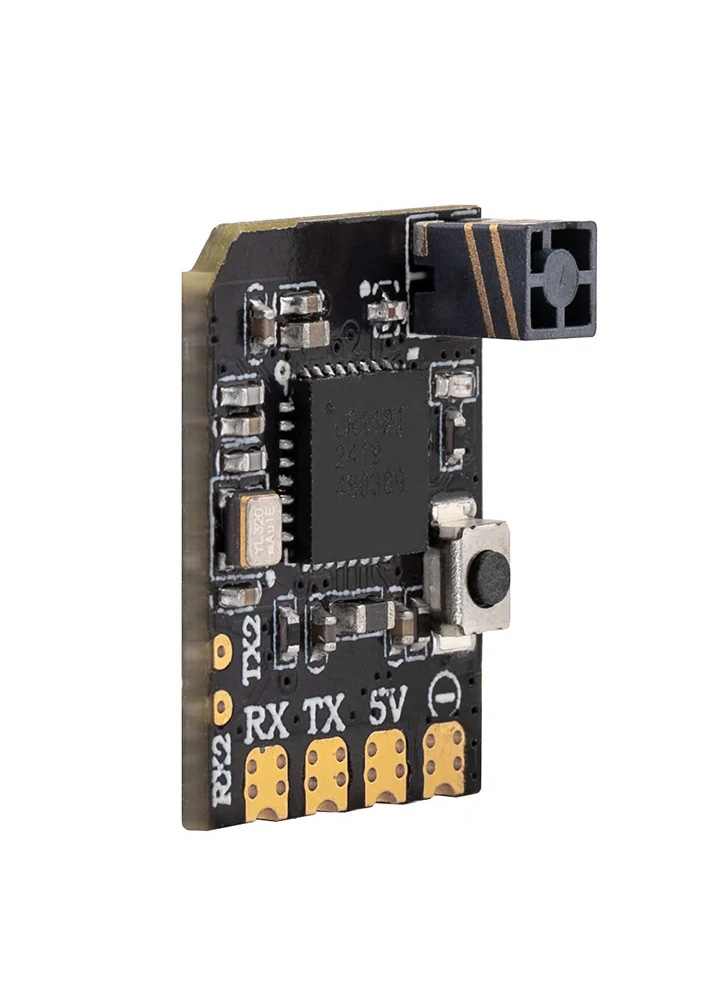

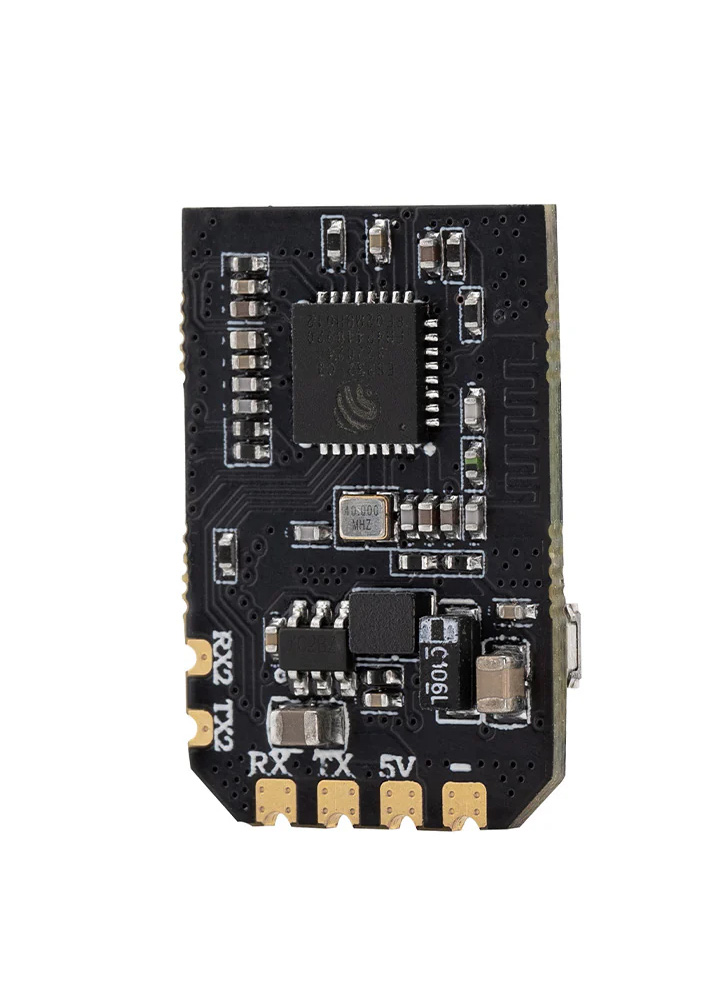

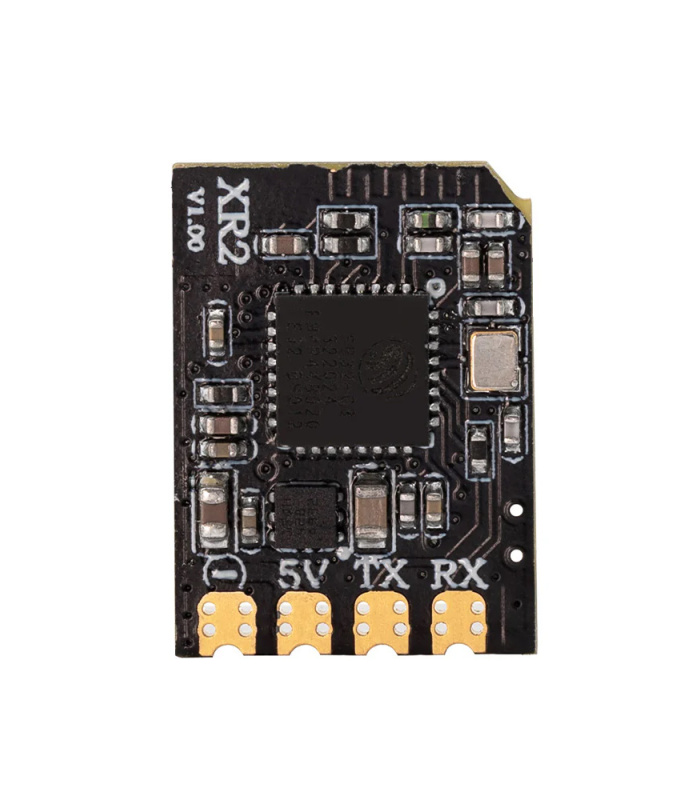

The XR2 Receiver is a nano-sized powerhouse engineered for 2.4GHz ExpressLRS, featuring an integrated tower antenna that delivers exceptional reception within its ultra-compact design. With a footprint of just 16x12mm and a lightweight of only 0.8g, it fits seamlessly into even the most space-constrained builds. Driven by the advanced Semtech LR1121 transceiver (third generation), the XR2 offers compatibility with all ELRS 2.4GHz transmitters and unlocks the benefits of DK500Hz mode for LR1121-based systems, ensuring unparalleled reliability and responsiveness. The built-in Wi-Fi module simplifies firmware updates and configuration via a WebUI on your PC or mobile device. With ultra-low latency and high refresh rates, the XR2 stands out in Whoops, micro drones, and fixed-wing models, where every gram and millimeter counts for peak performance.

For more details and support, visit expresslrs.org.

Features

  • Integrated 2.4GHz tower antenna
  • ExpressLRS 2.4GHz
  • ESP32C3 high-performance MCU
  • Semtech LR1121 Transceiver
  • Secondary UART port for advanced functionality
  • Castled pads for easy soldering

Associated Products

XR2 Nano LR1121XR2 Nano UARTXR2 Nano RX XR2 ChartALR1121 Frequency ChartELRS Dual Band Compatibility ChartXR2 Nano Contents XR2 WeightXR2 Size

Specification
  • Item: XR2 Nano 2.4GHz ExpressLRS Receiver
  • Type: ISM2.4
  • MCU: ESP32C3
  • RF Chip: Semtech LR1121
  • Antenna: Integrated 2.4GHz Tower Antenna
  • Frequency Range: 2.400 – 2.479GHz
  • Telemetry Power: 10mW
  • Maximum Packet rate: DK500Hz
  • Minimum Packet refresh rate: 50Hz
  • Working voltage: 5V
  • Weight: 0.8g
  • Dimension: 16mm * 12mm * 6mm
  • Firmware Version: ExpressLRS v3.5.1 pre-installed
  • FW Target: ย RadioMaster XR2 2.4 RX
  • Bus interface 1: CRSF
  • Bus interface 2: UART

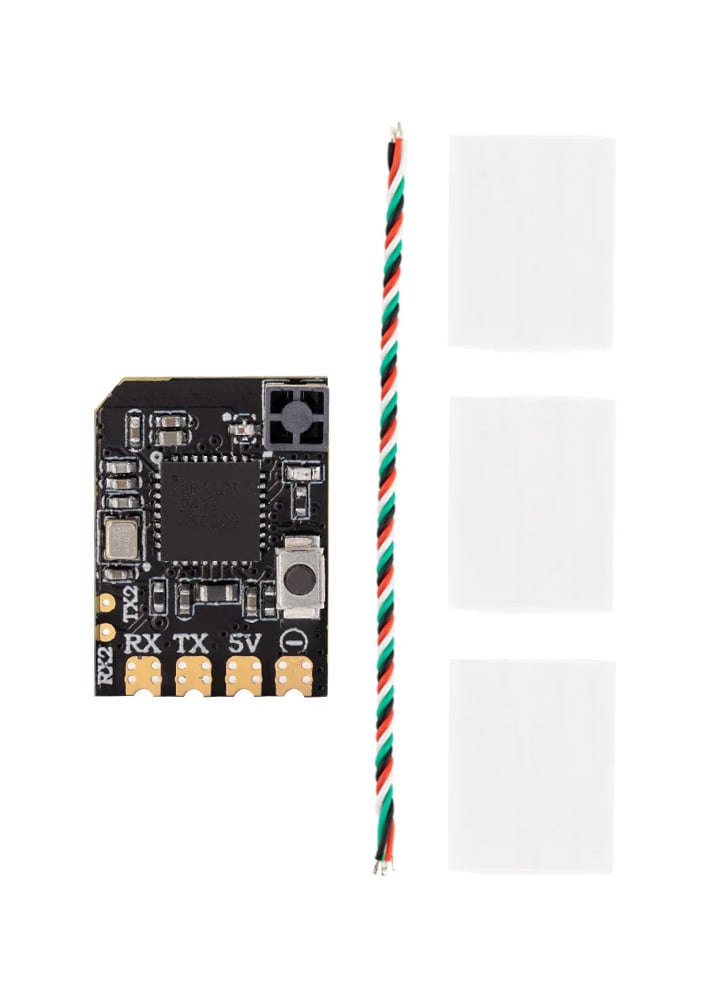

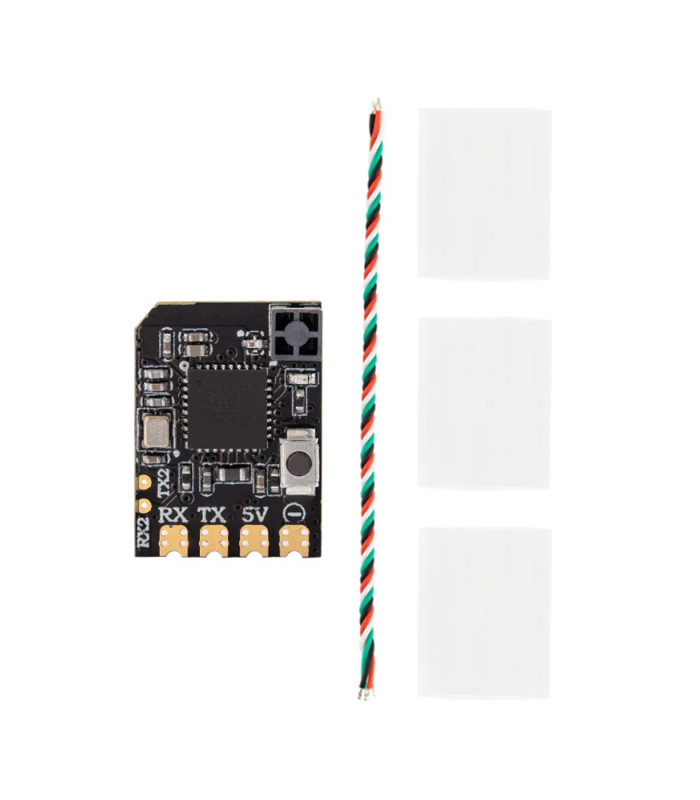

Included:

  • 1 x XR2 Nano 2.4GHz ExpressLRS Receiver
  • 1 x CRSF Wire
  • 3 x Heat-Shrinkable Tube
  • 1 x Manual Card
