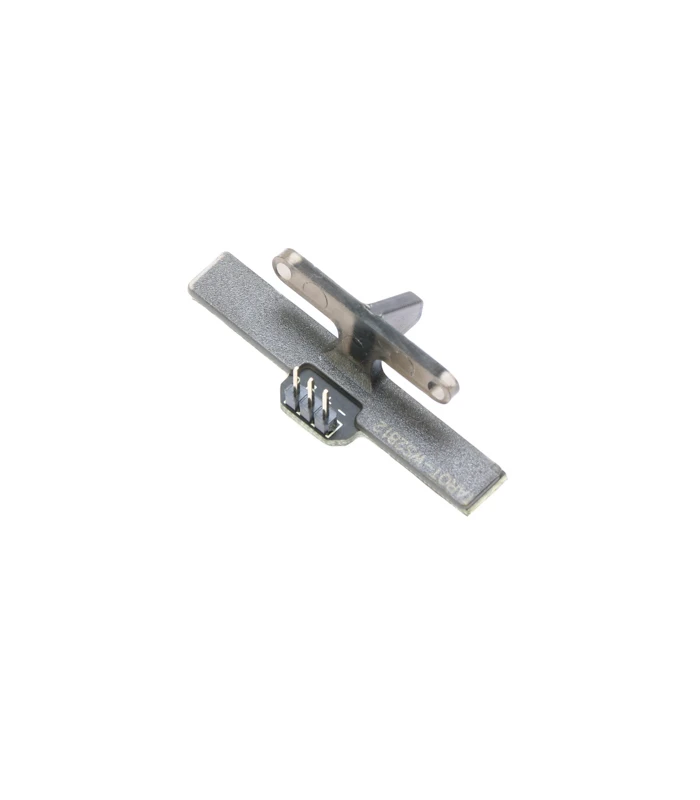

Programmable Cleanflight RGB 7 Colour 5V LED Board with Mount (50x12mm)

Programmable BetaFlight RGB 7 Colour 5V LED Board with Mount (50x12mm)

Name: Programmable BetaFlight RGB 7 Colour 5V LED Board with Mount (50x12mm) - Flying Tech
Brand: Tarot
SKU: LED-RGB-TL300D5
Price: 7.00 GBP
Availability: InStock

Original price was: £9.00.Current price is: £7.00. Inc. VAT

This programmable LED board and mount makes the perfect tail light for your racing drone.

In stock

Compare

0 People watching this product now!

SKU: LED-RGB-TL300D5 Categories: Programmable RGB LEDS, Electronics, Lighting Tags: LED, LED Light Board, Light, Lighting, RGB

Description

LEDs look great at night and they can be useful to help with orientation even in the day. Maybe more useful still, you can use programmable LEDs like this RGB WS2812B light board to indicate flight data. By using different colours, you can program flight controller running Betaflight/Cleanflight/iNav to indicate things such as: directional control inputs, battery warnings, flight mode, thrust levels and even RSSI strength. For example, you could program a fading pattern from white to red as you throttle up, or indicator flashes for when you roll right and left. If you want to keep it simple, you can set the LEDs to just sit at a solid colour. Programming the LED board has now been made super easy, thanks to the fantastic new GUI in Cleanflight.

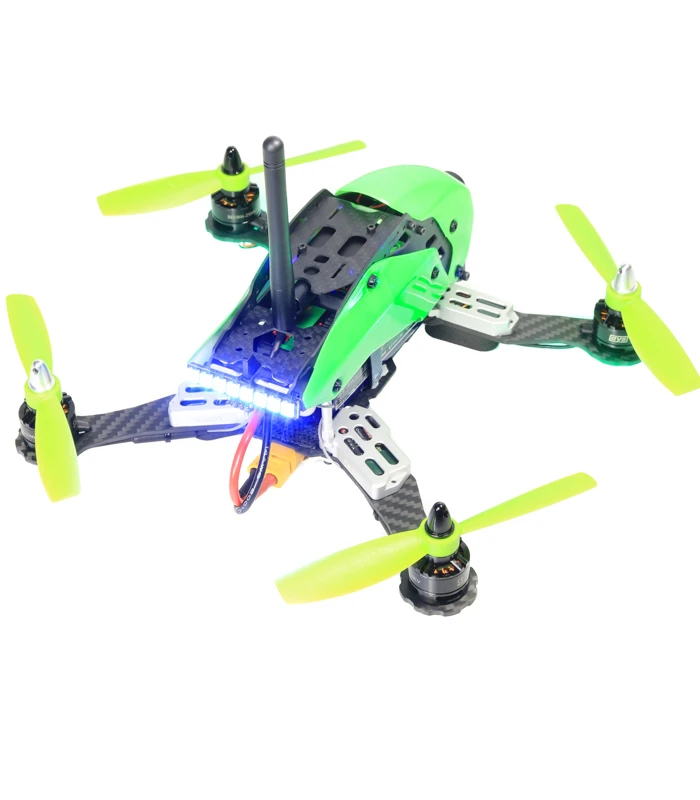

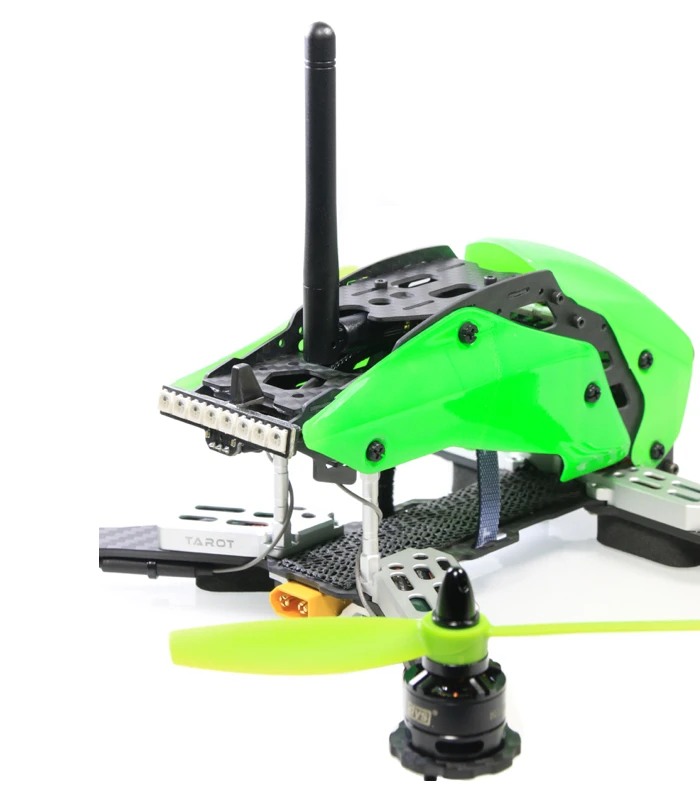

We sell a few different programmable LED boards, but this one is our favourite as it comes with a really neat plastic mount. With the mount, it’s super easy to attach to your drone and it looks really stylist too. We use this particular LED as a taillight light for our Tarot Robocat racing drone builds; it’s the perfect size, it’s like it was made for it.

As with all 5050 RGB Led boards, it requires 5volts and a ground connection that can be supplied from your flight controller. The remaining connection is a signal wire, which if you are using the Naze32, should be connected to PWM pin 5.

Specification

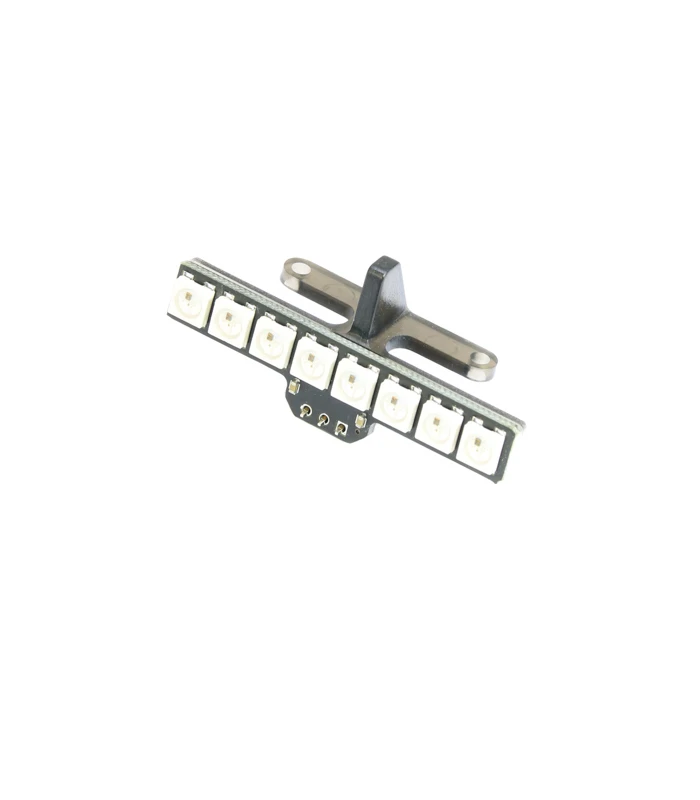

LED: 5050 RGB LED x8
Voltage: 5V（4~7V）
Size: 50x12mm
Mounting Holes: 26mm (M2.5)

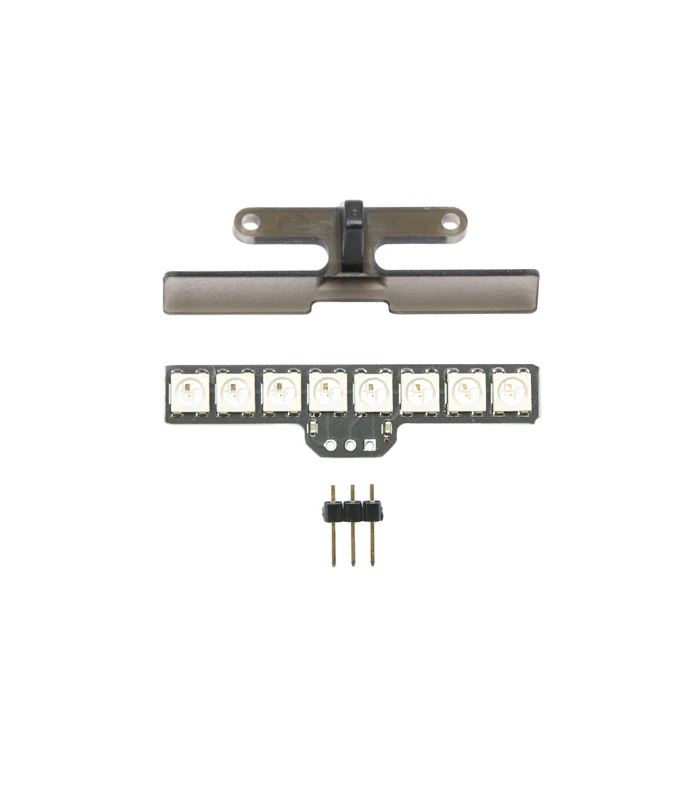

Included:

1x LED Light Board (TL300D5)
1x Plastic Mount
3-pin Connector

Q&A

Questions and answers of the customers

There are no questions yet. Be the first to ask a question about this product.

Advice

How to light your multirotor: Lighting is obviously a necessity for nighttime flying, however it’s also really helpful when flying in daylight. Unlike helicopters, multicopters typically lack defining features to help with orientation; lighting is therefore a great solution. It makes most sense to employ a navigational lighting setup – Red on the Port (left) side, Green on the Starboard (right) side and a white strobe astern. When it comes to selecting your lights there are lots of options: LEDs, HPLEDs (High power LEDs), Strip lights and Strobes. Regular LEDs are inexpensive and come in an array of colours. While they consume little power, LEDs are best suited to nighttime applications as they are usually too dim to be seen in bright daylight. Alternatively the next generation of LEDS, namely HPLEDs and CREE LEDs are much brighter. They can be driven by much greater currents meaning that some can emit over 1000 lumens. At night they can be seen for miles, but more importantly they are visible in bright daylight. Since overheating is destructive, HPLEDs must be mounted on a heat sink to allow for heat dissipation. Both regular and HP LEDs are easy to wire up – however note that LEDs will only light up with correct electrical polarity and that they have a maximum current rating which must not be exceeded. To limit the amount of current through an LED a suitable resistor should be used. Strips lights are fun when it comes to night flights and are fantastic for orientation purposes. Some can be powered/controlled with an LED RGB Driver to cycle between different modes and colours. LEDs of all types can be turned into a strobe by using a suitable controller, strobes have the added bonus of low power consumption. The key to all lighting installations is to think about voltage and current requirements, a voltage regulator/UBEC will usually be necessary to help meet this requirements. Finally it is advisable to power lights from a separate battery to your flight battery.
