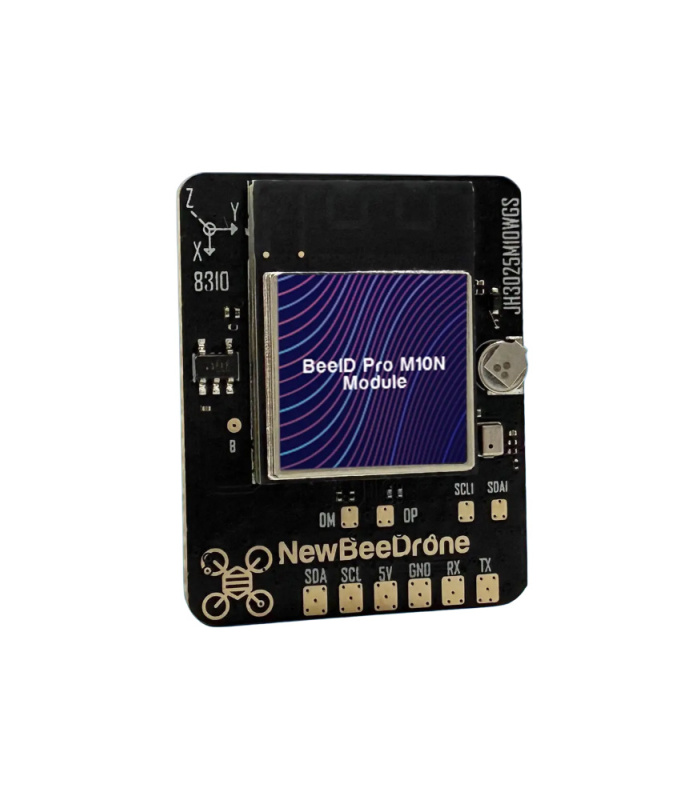

NewBeeDrone BeeID Pro M10 GPS Module with RemoteID & IST8310 Compass

Navigation, Remote ID & Compass Integration in One Compact Module

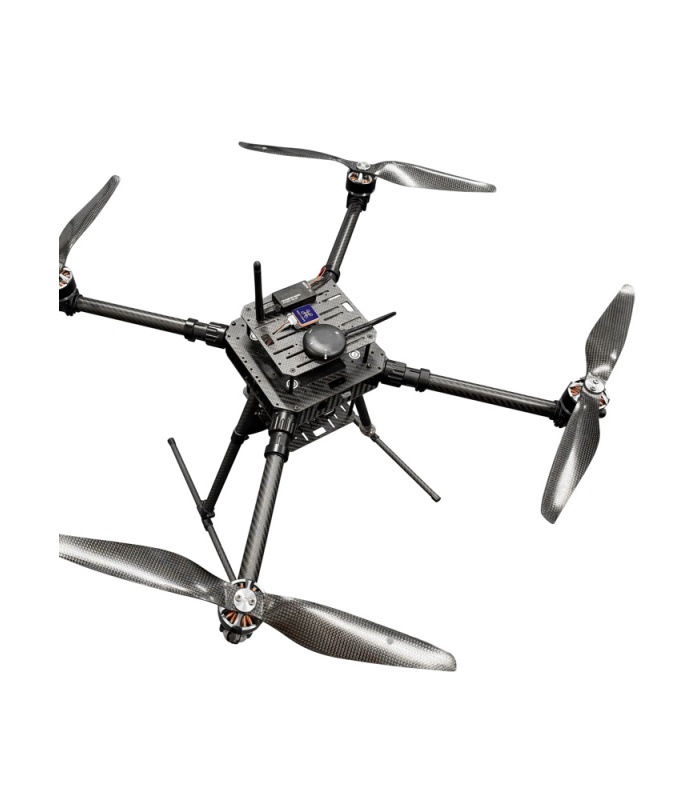

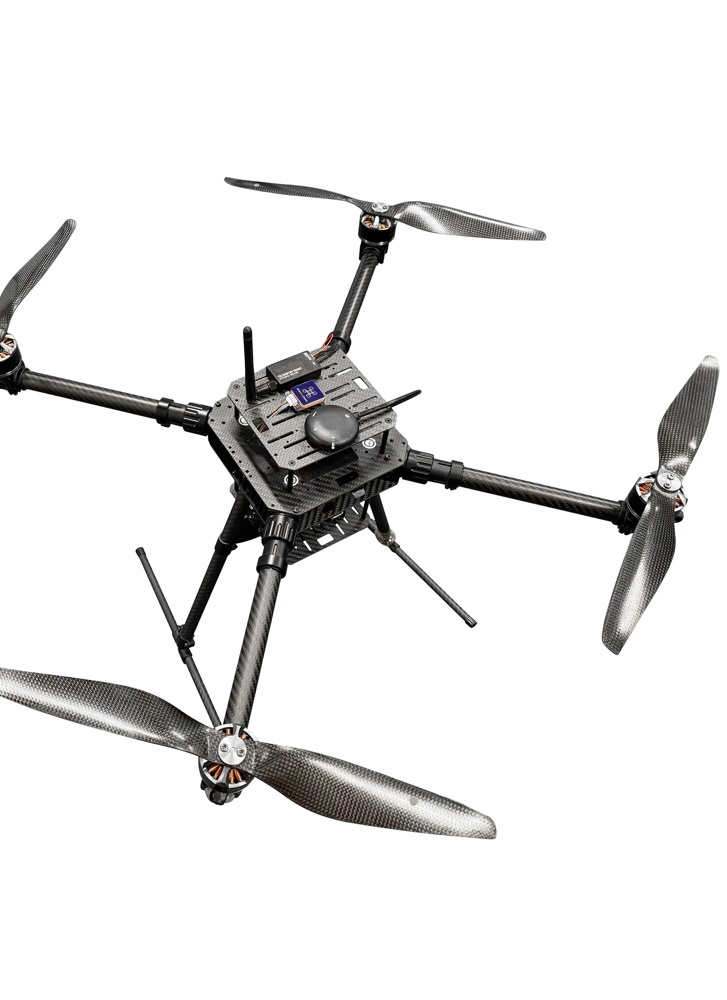

The NewBeeDrone BeeID Pro M10 GPS Module is an advanced navigation and Remote ID solution designed for larger FPV drones, autonomous aircraft, and professional flight controller setups. Building on the original BeeID platform, the Pro version adds a high-precision IST8310 compass, a more robust GH1.25 connector system, and improved compatibility with PX4 and ArduPilot-based builds.

At the core is a modern u-blox M10 GNSS receiver, supporting simultaneous reception from multiple satellite systems for fast satellite acquisition and reliable positioning accuracy. Combined with the integrated IST8310 magnetometer, the BeeID Pro delivers precise heading and location data essential for advanced autonomous functions including waypoint missions, Return-to-Home, loitering, and GPS-assisted flight modes.

Like the original BeeID, the Pro version includes built-in FAA-compliant Remote ID broadcasting over Bluetooth and WiFi. It continuously transmits required telemetry including drone position, altitude, speed, and serial identification without the need for an external module. A dedicated onboard barometer is included specifically for Remote ID altitude data.

Despite its expanded feature set, the BeeID Pro remains compact and installation-friendly. It uses an industry-standard GH1.25 6-pin connector for clean integration with professional flight controllers, while still retaining direct solder pads underneath for custom DIY installations.

Ideal for PX4, ArduPilot, iNav, and advanced Betaflight GPS builds, the BeeID Pro combines navigation accuracy, Remote ID compliance, and compass functionality into a single compact module.

Features:

• u-blox M10 multi-GNSS GPS receiver
• Integrated IST8310 compass (magnetometer)
• Built-in FAA-compliant Remote ID broadcasting
• Bluetooth and WiFi Remote ID transmission
• Dedicated onboard barometer for Remote ID altitude data
• Designed for PX4, ArduPilot, iNav, and Betaflight

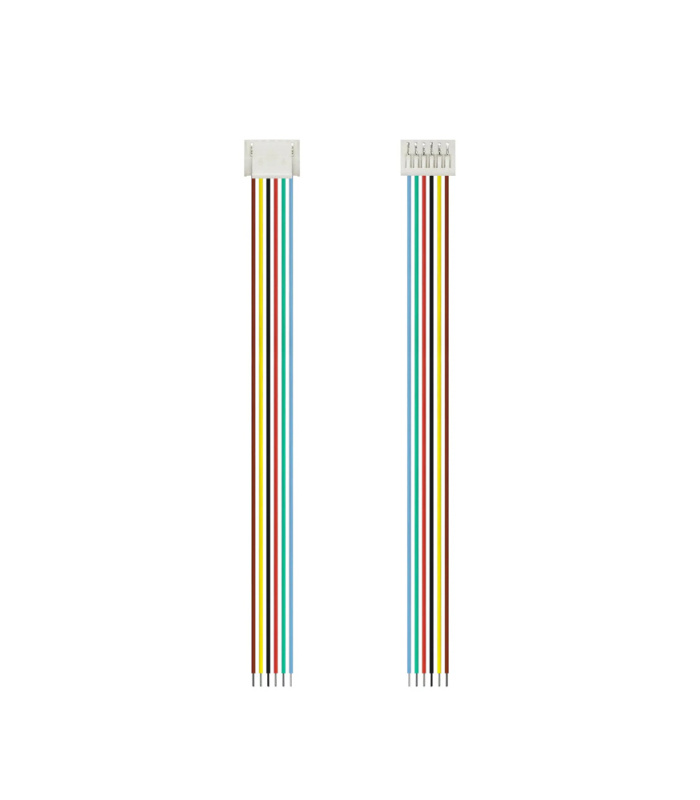

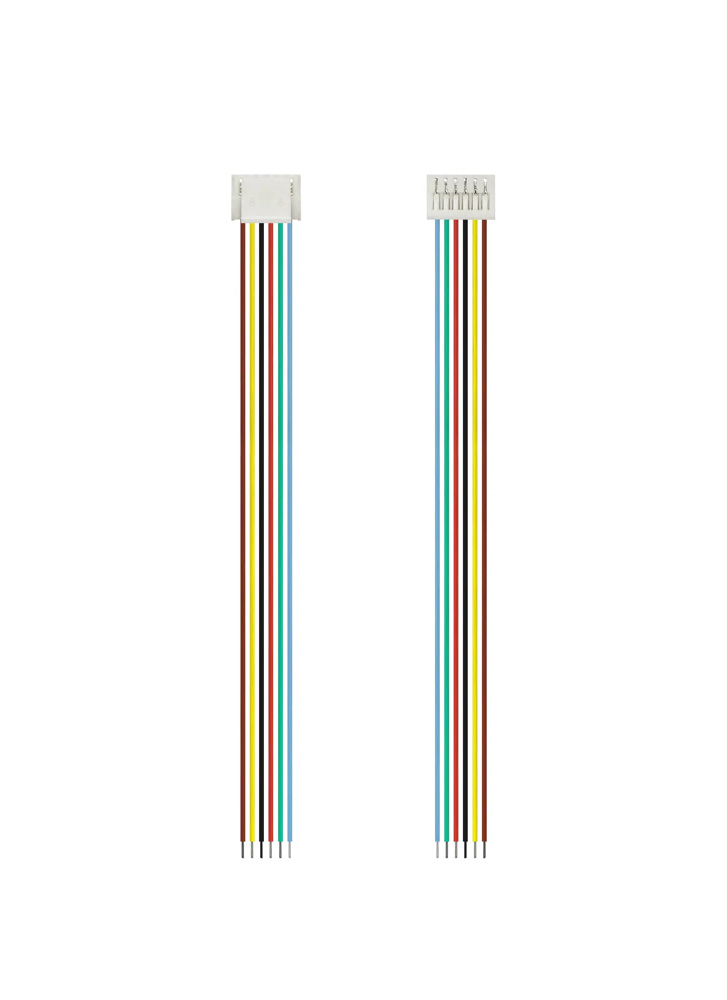

• GH1.25 6-pin connector for reliable installation

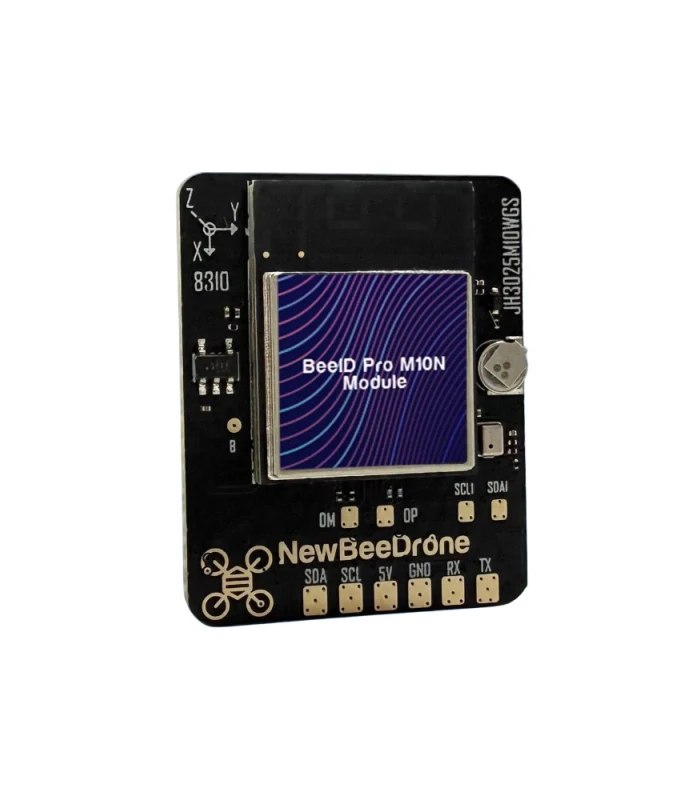

• Direct solder pads available for custom builds
• Compact all-in-one GPS, compass, and Remote ID solution

Remote ID Built In — When You Need It

Flying drones in FAA-regulated airspace? The BeeID Pro includes fully compliant Remote ID broadcast functionality built directly into the module. It operates seamlessly in the background while the GPS and compass continue handling navigation, positioning, and autonomous flight functions.

Downloads:

• BeeID_PRO 3D PRINT Mount Step File: Link
• BeeID_PRO Firmware: Link

BeeID Bluetooth  Setup Instructions

Step 1: Verify Flight Controller Compatibility

Before installation, ensure that your flight controller (FC) and its firmware support the UBLOX GPS protocol.

• Some older versions of Betaflight firmware may not be compatible with UBLOX GPS.

• It is recommended to update your FC to the latest firmware to ensure proper functionality.

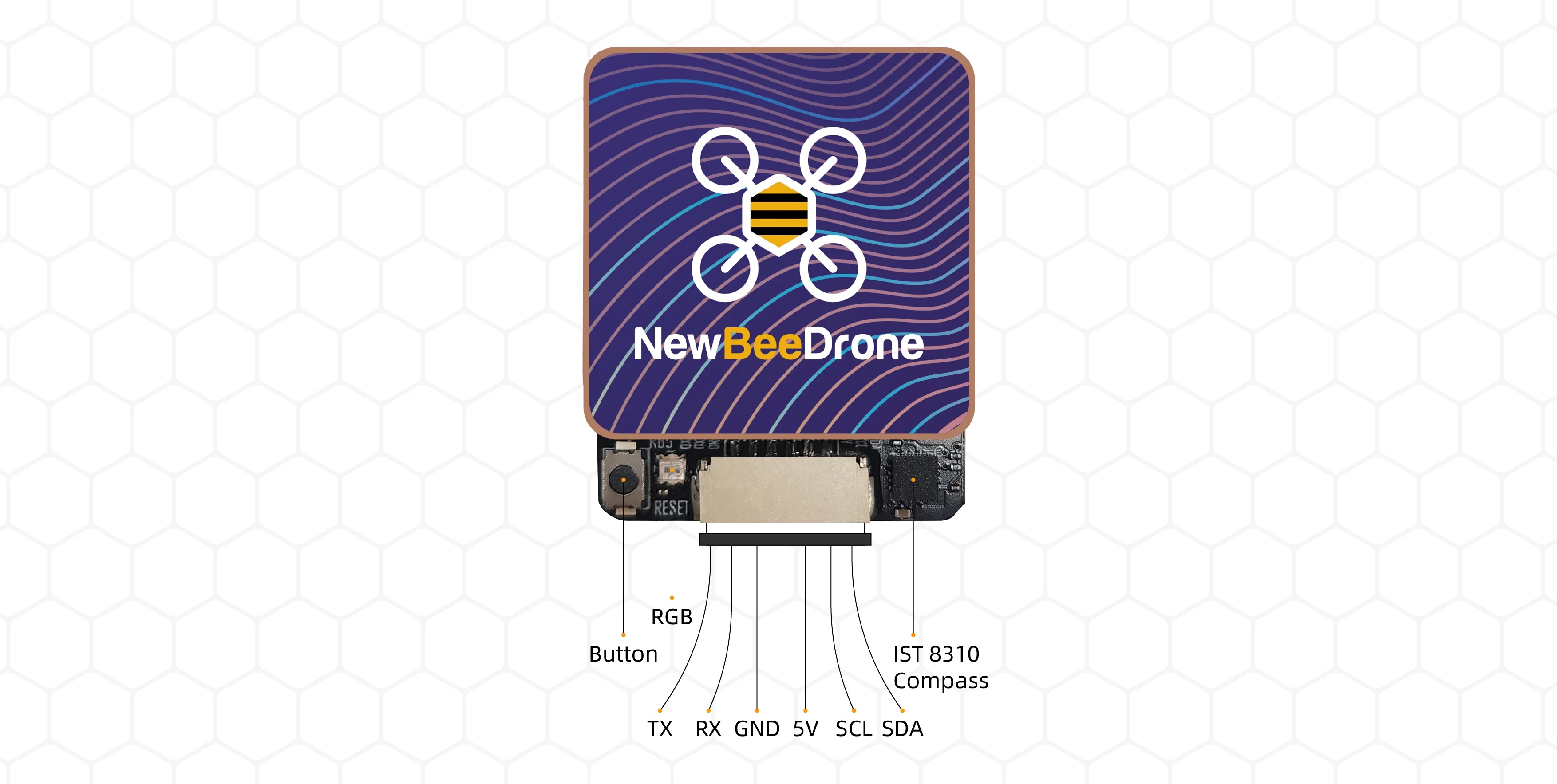

Step 2: Wiring the BeeID M10Q GPS Module

Proper wiring is essential for accurate data transmission between the BeeID module and your flight controller. Follow these steps:

• Connect the BeeID TX (Transmit) pin to the FC RX (Receive) pin on the same UART port.

• Connect the BeeID RX (Receive) pin to the FC TX (Transmit) pin on the same UART port.

• Ensure 5V power and ground are correctly connected to provide stable operation.

Step 3: Configuring the UART Port

After wiring, configure the corresponding UART port in your flight controller firmware:

• Set the baud rate to 115200bps to match the module’s default speed.

• Enable GPS mode on the selected UART port.

• Save and reboot your flight controller to apply the changes.

Step 4: Confirm GPS Functionality

• Verify that the module successfully acquires GPS satellites.

• In Betaflight, iNAV, or Ardupilot, check the GPS status page for satellite lock and position updates.

• Ensure that RemoteID broadcasting is active and functional via BLE. You can use the Drone Scanner App to check the broadcasting information.

⚠️ IMPORTANT for iNAV Users
Please disable the AUTO-CONFIG setting in iNAV to ensure proper functionality of the BeeID module.
