Sequre M10-12/M10-18/M10-25Q GPS Glonass / Q5883 Compass Module

£15.90 – £18.99 Inc. VAT

Sequre GPS Series: Precision positioning and advanced features for every craft, from micro drones to long-range builds.

GPS Size

Clear

Add to compare

0 People watching this product now!

SKU: N/A Categories: Standard GPS Modules, Electronics, GPS & Compass Modules Tags: Compass, GPS, M10, Magnetometer, Racing Drone GPS

Description

Enhance your Betaflight quadcopter or INAV fixed-wing aircraft with a GPS module for precise positioning and advanced features like GPS Rescue, Return to Home, and position hold. The module also enables GPS data in your OSD, providing real-time information such as coordinates, home direction, and distance.

The SEQURE GPS Series offers three models tailored for different craft types: M10-12, M10-18, and M10-25Q. Each model name reflects the size of its ceramic antenna, with larger antennas delivering faster and more reliable GNSS signal reception. All models support major satellite systems, including GPS, GLONASS, BeiDou, and Galileo.

M10-12: A compact, lightweight module (12x16x4.5mm, 2.3g), ideal for micro long-range 3-4″ drones and 5″ ultralight builds.
M10-18: Measuring 18x18x8mm, this module is well-suited for freestyle drones and 7″ long-range setups.
M10-25Q: The largest in the series (25x25x8mm), featuring an integrated QMC5883L compass for full INAV compatibility, making it perfect for larger drones and projects requiring compass functionality. (Note: M10-12 and M10-18 do not include a compass.)

All modules support both direct plug-in and soldering pad connections. For optimal performance, mount the GPS module on top of your craft, away from the VTX and other interference sources.

Specification

Model: M10-12 GPS / M10-18 GPS / M10-250Q GPS
Chip: M10
Frequency: GPS L1, GLONASS L1, BDS B1, GALILEO E1, SBAS L1, QZSS L1
Power supply: 5V

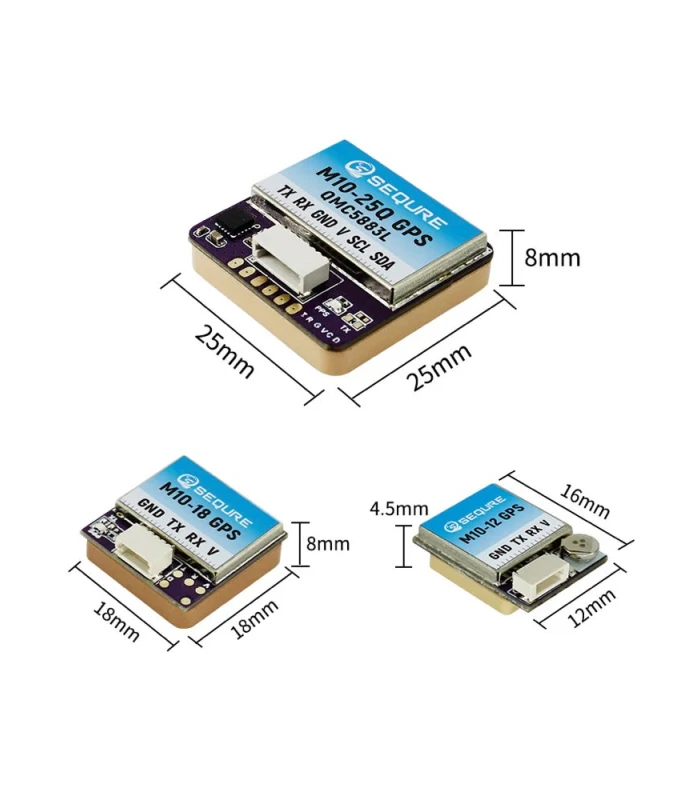

Size: 12*16*4.5mm / 18*18*8mm / 25*25*8mm
Weight: 2.3g / 7.2g / 12.2g
Interface: SH0.8-4Pconnector,PCBpad / SH1.0-4Pconnector,PCBpad / SH1.0-6Pconnector, PCBpad
Antenna: Ceramic Antenna
Receiving channels: 72 search channels
Baud rate: 115200
Output protocol: UBLOX / UBLOX/ NMEA UBLOX dual protocol,
I2C(Mag)
Compass: QMC5883L (M10-250Q Version Only)
Output frequency: 1Hz-10Hz，default 10Hz
Speed accuracy: 0.05m/s
Horizontal positioning accuracy: 2D ACC1.5m（open-air)
Receive sensitivity: Trace-162dBm，capture-160dBm

Included:

GPS module (select version)×1
Cable×1

Q&A

Questions and answers of the customers

Will the m10-12 work with Inav? As I only have a small wing and the weight of the 25q would be too heavy for the wing. Thankyou Jeremy

0 votes

Q Will the m10-12 work with Inav? As I only have a small wing and the weight of the 25q would be to...... Read more answer now

A
Yes, the M10-12 will work with iNav and is a great lightweight choice for small wings. However, it doesn't include a compass.

For fixed-wing setups, this is usually fine since iNav can determine heading from GPS movement. The main trade-off is that features like Return to Home may be less accurate when launching or hovering from a standstill.

If you're not relying on navigation while stationary, the lack of a compass shouldn't be an issue.
