Menace RC cobDRIVER – Constant Current LED Driver (2–6S)
£8.95 Inc. VAT
Constant-current LED driver for powering Menace COB LEDs from 2–6S batteries.
Only 1 left in stock
The Menace RC cobDRIVER is a compact, lightweight constant-current LED driver designed to power Menace COB LEDs from a wide range of RC model battery voltages. It converts your model’s main battery supply into the correct regulated current required by the LEDs, ensuring stable brightness, efficient power conversion, and reliable operation.
The cobDRIVER supports flexible LED configurations, allowing 2, 4, 6, or up to 8 COB LEDs to be driven from a single board, depending on battery voltage and LED colour combination. This makes it suitable for navigation lighting, orientation lights, night flying, and high-visibility setups across aircraft, drones, cars, boats, and other electric RC models.
A dedicated EN (enable) pad allows simple on/off control. The driver can be left permanently on, switched via a flight controller output, or controlled from a radio receiver using a compatible RC switch module. This makes it easy to integrate with Betaflight, iNav, or fixed-wing flight controllers, as well as traditional RC systems.

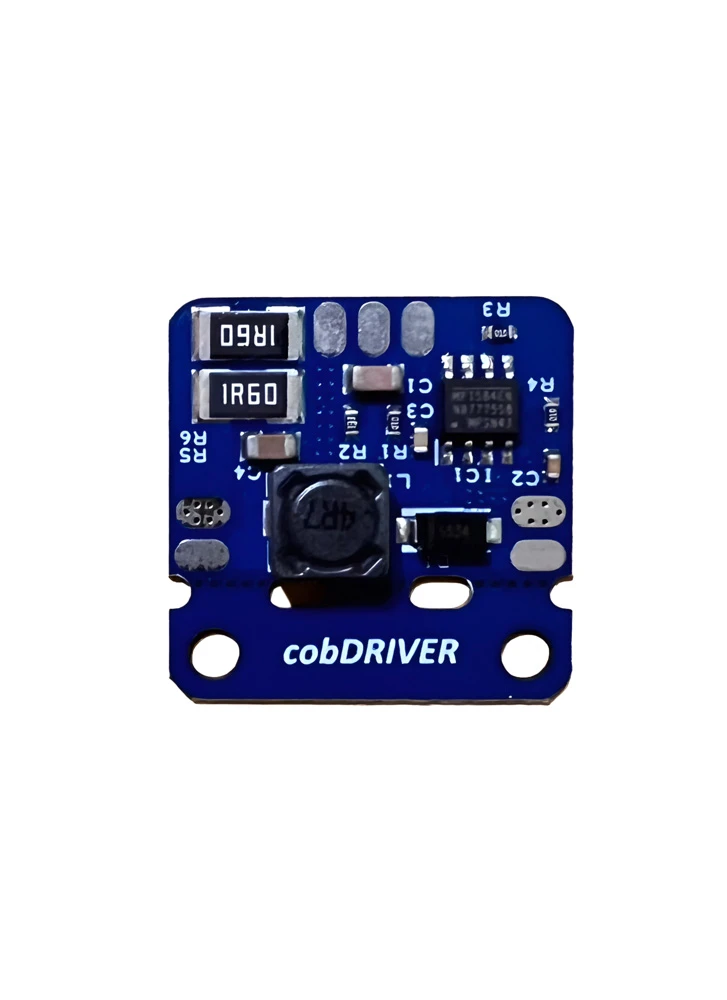

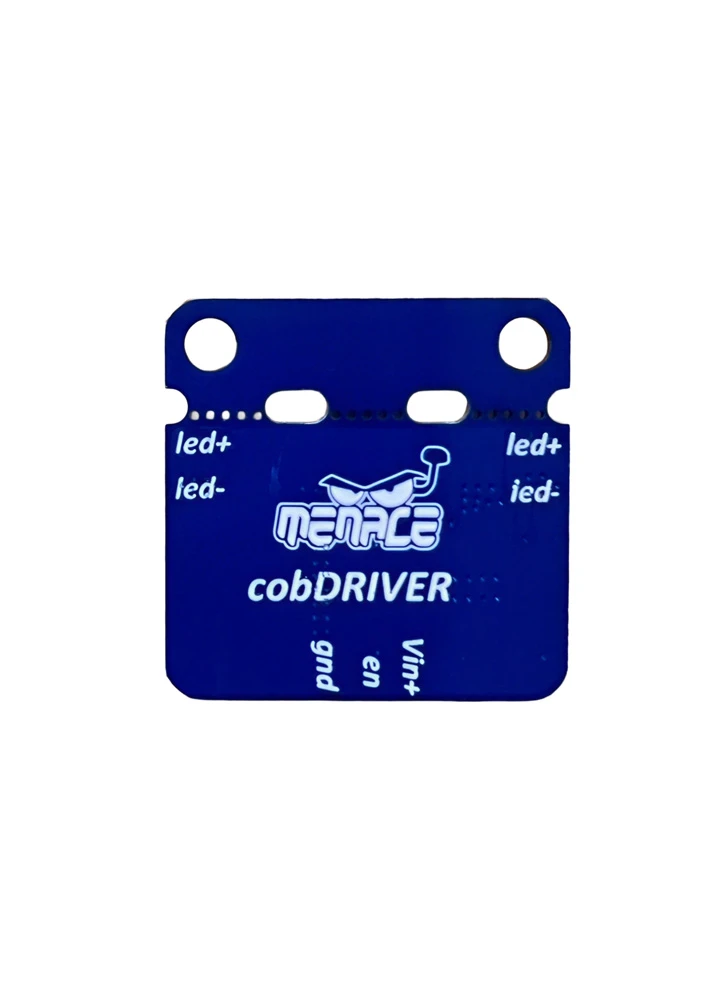

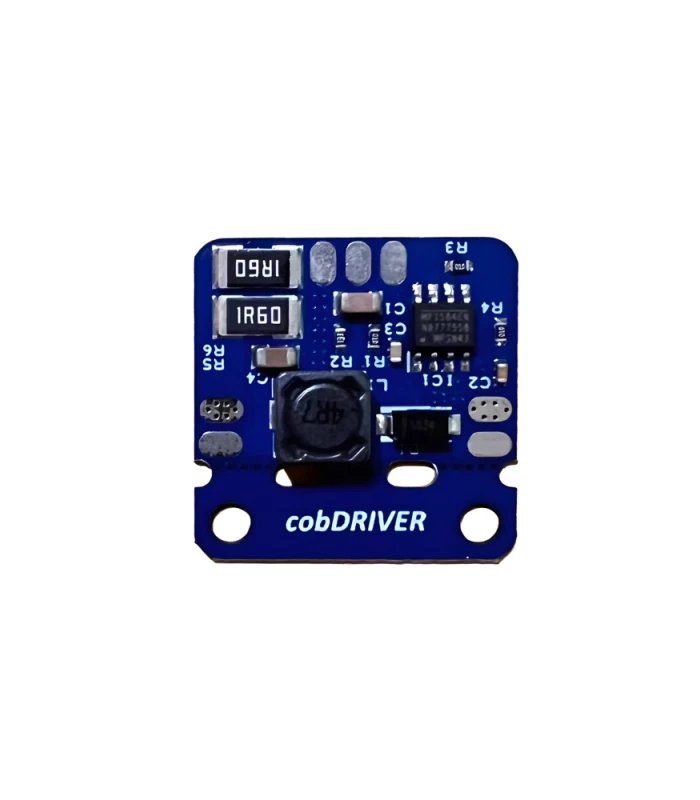

The board layout is optimised for easy installation, with clearly marked pads and optional stack mounting. Two mounting holes allow installation in a 20 × 20mm stack, or the mounting tab can be removed to reduce size for tighter installations.
Please note
COB LEDs are not included and must be purchased separately.
Always refer to the Menace cobLED & cobDRIVER manual for supported battery voltages, LED counts, and mixed-colour configurations.
Incorrect LED or voltage combinations may damage the LEDs or driver.
- Input voltage: 7–26V (2–6S LiPo, see manual for configurations)
- LED support: 2 / 4 / 6 / 8 Menace COB LEDs
- Control: EN pad (logic enable / disable)
- Dimensions: 26 × 26 × 5.7mm
- Weight: approx. 2.6g
Included
- 1 × Menace RC cobDRIVER
Questions and answers of the customers
There are no questions yet. Be the first to ask a question about this product.
How to light your multirotor: Lighting is obviously a necessity for nighttime flying, however it’s also really helpful when flying in daylight. Unlike helicopters, multicopters typically lack defining features to help with orientation; lighting is therefore a great solution. It makes most sense to employ a navigational lighting setup – Red on the Port (left) side, Green on the Starboard (right) side and a white strobe astern. When it comes to selecting your lights there are lots of options: LEDs, HPLEDs (High power LEDs), Strip lights and Strobes. Regular LEDs are inexpensive and come in an array of colours. While they consume little power, LEDs are best suited to nighttime applications as they are usually too dim to be seen in bright daylight. Alternatively the next generation of LEDS, namely HPLEDs and CREE LEDs are much brighter. They can be driven by much greater currents meaning that some can emit over 1000 lumens. At night they can be seen for miles, but more importantly they are visible in bright daylight. Since overheating is destructive, HPLEDs must be mounted on a heat sink to allow for heat dissipation. Both regular and HP LEDs are easy to wire up – however note that LEDs will only light up with correct electrical polarity and that they have a maximum current rating which must not be exceeded. To limit the amount of current through an LED a suitable resistor should be used. Strips lights are fun when it comes to night flights and are fantastic for orientation purposes. Some can be powered/controlled with an LED RGB Driver to cycle between different modes and colours. LEDs of all types can be turned into a strobe by using a suitable controller, strobes have the added bonus of low power consumption. The key to all lighting installations is to think about voltage and current requirements, a voltage regulator/UBEC will usually be necessary to help meet this requirements. Finally it is advisable to power lights from a separate battery to your flight battery.
