Strobon C-2 Dual CREE Drone Strobe with USB Type-C

£19.90 Inc. VAT

Strobon C-2 is a standalone navigation strobe solution containing a pair of super bright CREE LEDs.

Version	Clear

0 People watching this product now!

Description

This product is compatible with the latest FAA and CAA anti-collision lights rules for drones. It can be seen from at least 3 miles at night.

Strobon™ C-2 is our first Dual Cree® USB-C charging navigation strobe solution for the enclosed drones like:

DJI (Mini 2, Mini, Spark, Mavic Air, Mavic Mini, Phantom, Inspire and others)
Parrot
senseFly
Xiaomi
Walkera and others…

We designed this Strobon™ model specifically for DJI Mini and DJI Mini 2 drones as they come with USB-C charging plugs/cables and our provided 15mm 3M Dual-Lock fasteners can fit under the rear motor mounts.

Strobon™ C-2 is less than 4 grams and DJI Mini (1/2) drones can carry 2 of them without any balance problem and still remain under 250 grams.

No cable, no fuss

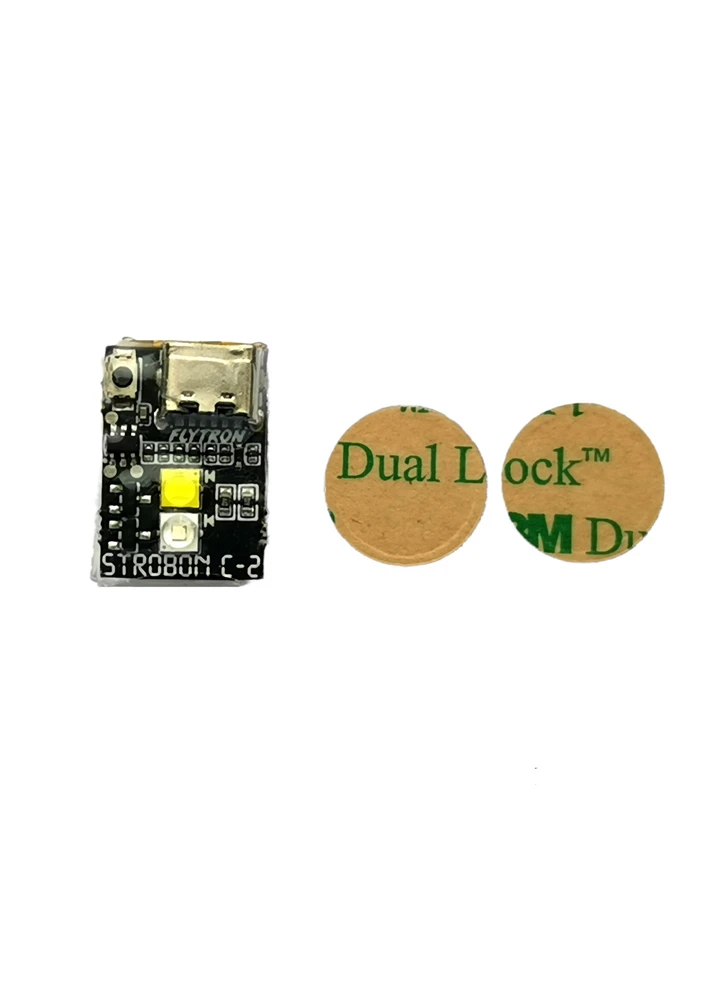

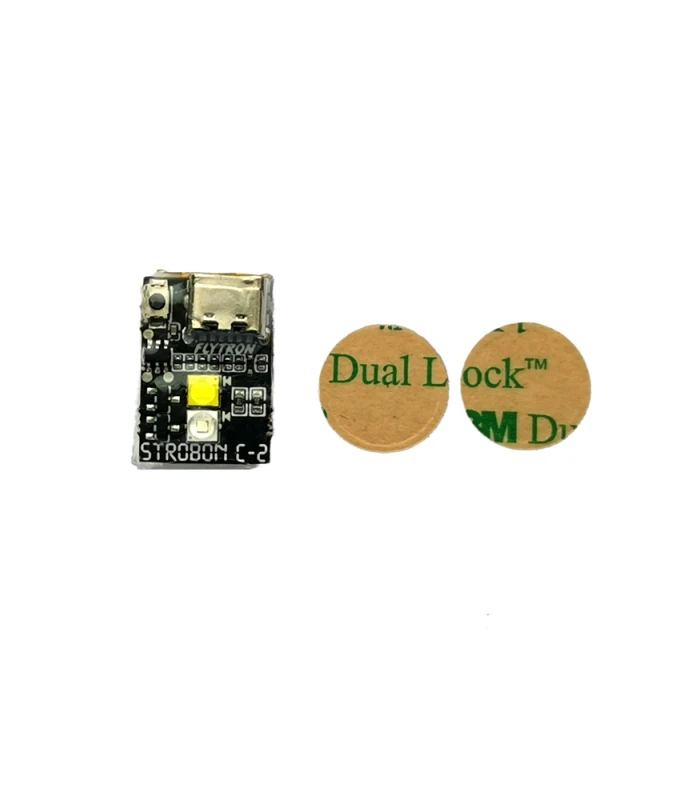

Just attach it to your drone or model aeroplane by using our new 15mm 3M Dual Lock fasteners, your favourite glue or velcro, press the button to turn it ON. That’s all. Our 15mm 3M Dual Lock fasteners (included) are providing an easy, vibration and dust-proof attachment solution.

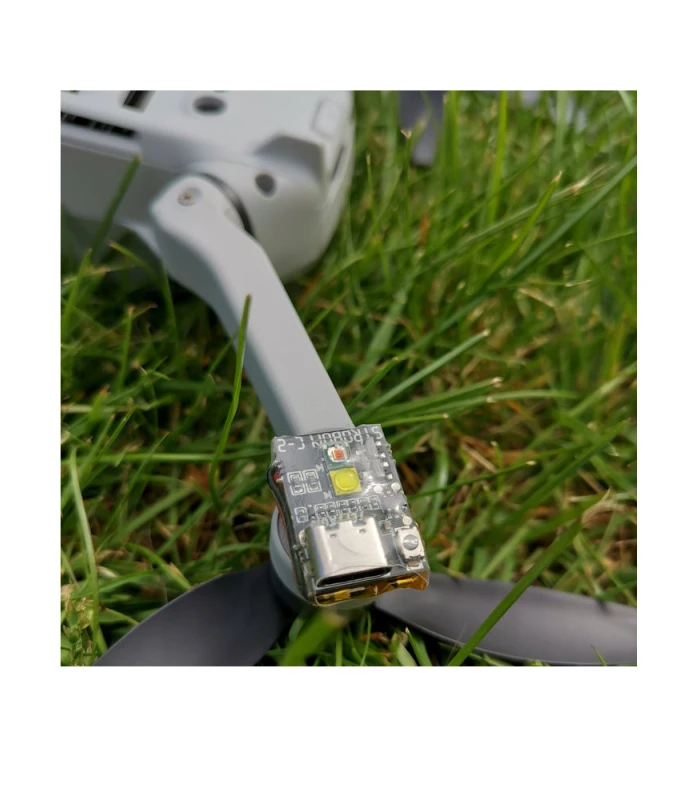

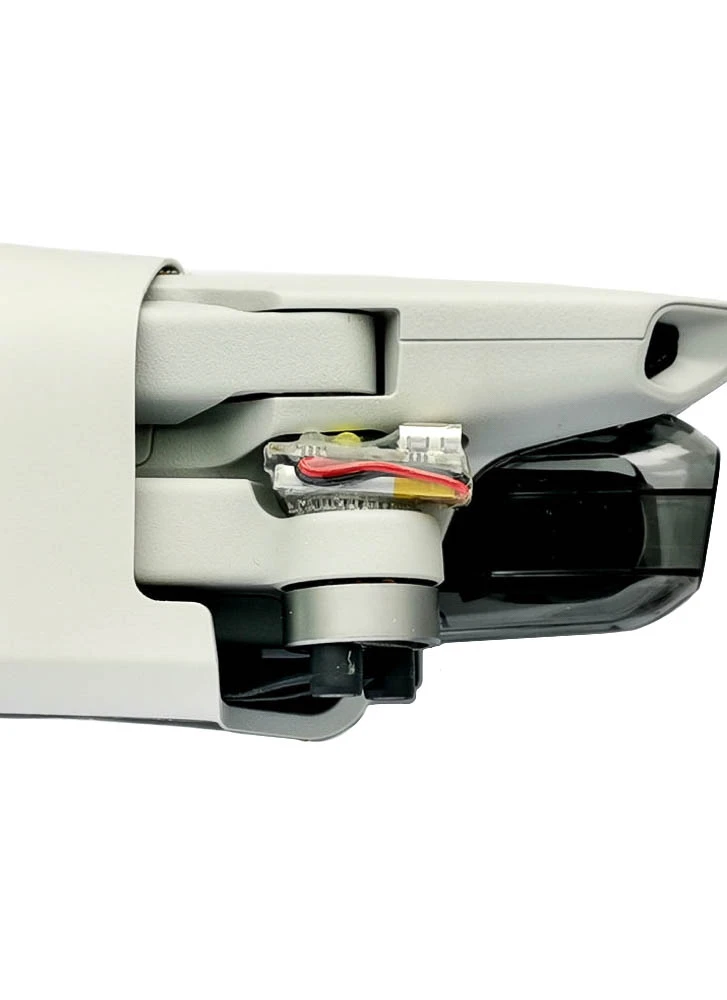

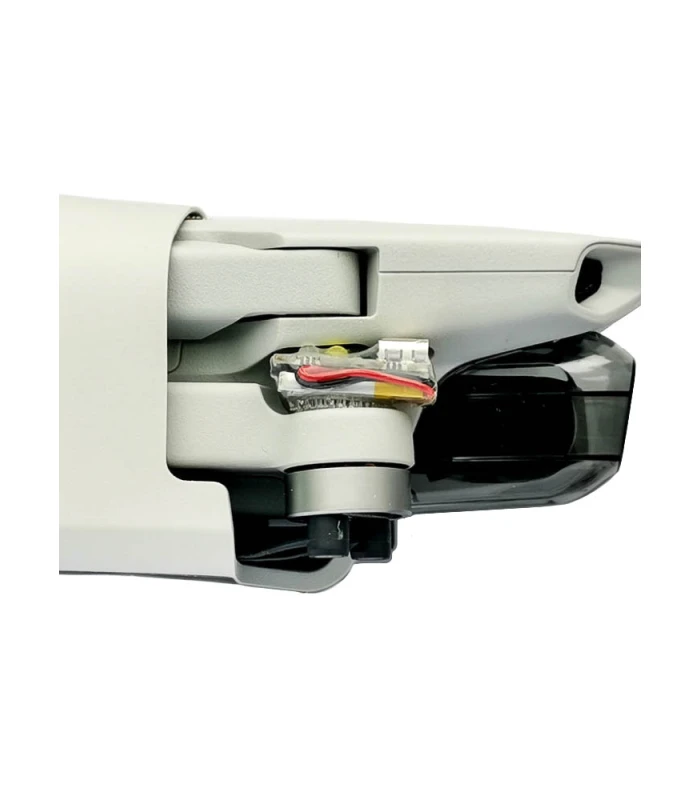

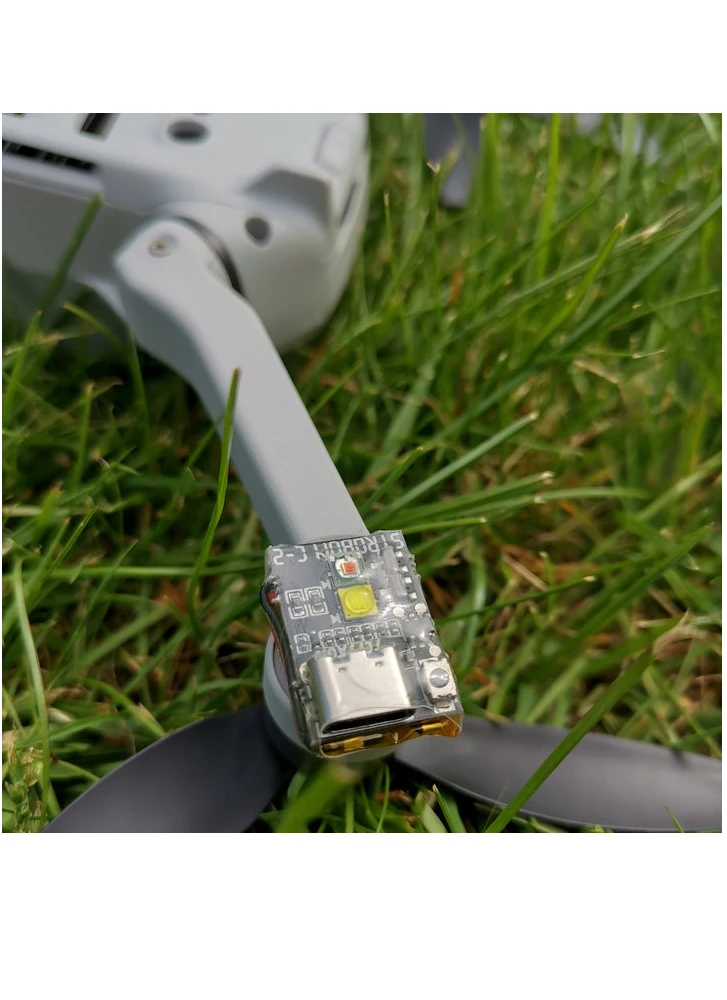

Fits between DJI Mini 2 Body and the rear motor mount when folded.

Drone top installation for warning the near aircraft.

FEATURES

Powerful 2x Cree® LEDs
1.5+ hours continuous operation with onboard battery.
DJI Mini (1/2) drones can carry 2 of them and still remain under 250 grams.
No Cabling required
Easy to use single button interface.
Onboard battery status and charge indicator system.
Compatible with all 5V USB Type-C cables and chargers. (the cable is not included)
Battery with internal overcharge and discharge protection.

Colour Selection: The Strobons are available in four dual colours options. All flash in a strobing pattern.

Because of human eye’s limitations, Every colour has different visibility and energy transfer rate. Also every LED colour has different chemical compounds and effciency.
According our experience in years;
WHITE: The best visibility and efficiency.
RED: 2th in the visibility, efficiency is same as white but the best for warning.
GREEN: 3th in the visibility and efficiency. Best for Standard RED/GREEN (Left/Right) navigation usage.
BLUE: 4th in visibility and also efficiency. We are not suggesting this colour for warning or navigation but special usage.

Bottom line: White and Red is the best option if you need long range visible strobes. And you can use the green to identify your flying platform direction. Blue is only for special applications.

Usage:

BATTERY STATUS: Press the button then release to learn battery status when it is OFF.
(1 blink: Need Charge, 2 blink: It’s OK, 3 blink: Fully Charged)
ON/OFF: Press and hold the button for 3 seconds to turn ON or OFF
CHARGE: Plug it to any micro USB charger or computer port when charging required.
– The LED will blink with very short bursts when charging.
– The LED will blink with 1 second ON / 2 seconds OFF pattern when the battery is fully charged.
It takes 2 hours for empty batteries.

Warning, these lights are seriously bright, we wouldn’t recommend looking directly at them close-up, they are blinding!

Notice: The battery contains its own PCM module. This module protects the battery from overcharging and discharging for long life. If there is no life indication when you press the button, discharge protection has been activated, possibly due to low battery voltage. Charge to turn on.

Specification

Dimensions: 20mm x 16mm x 8mm
Weight: ~4gr
Current Consumption: <30mA per hour
Charge Port: USB Type-C
Charge Current: 40mA max.
Charge Time: ~2 hours
Battery Type: 100mA LiPo Battery with safe and reliable PCM circuit.

Q&A

Questions and answers of the customers

There are no questions yet. Be the first to ask a question about this product.

Advice

How to light your multirotor: Lighting is obviously a necessity for nighttime flying, however it’s also really helpful when flying in daylight. Unlike helicopters, multicopters typically lack defining features to help with orientation; lighting is therefore a great solution. It makes most sense to employ a navigational lighting setup – Red on the Port (left) side, Green on the Starboard (right) side and a white strobe astern. When it comes to selecting your lights there are lots of options: LEDs, HPLEDs (High power LEDs), Strip lights and Strobes. Regular LEDs are inexpensive and come in an array of colours. While they consume little power, LEDs are best suited to nighttime applications as they are usually too dim to be seen in bright daylight. Alternatively the next generation of LEDS, namely HPLEDs and CREE LEDs are much brighter. They can be driven by much greater currents meaning that some can emit over 1000 lumens. At night they can be seen for miles, but more importantly they are visible in bright daylight. Since overheating is destructive, HPLEDs must be mounted on a heat sink to allow for heat dissipation. Both regular and HP LEDs are easy to wire up – however note that LEDs will only light up with correct electrical polarity and that they have a maximum current rating which must not be exceeded. To limit the amount of current through an LED a suitable resistor should be used. Strips lights are fun when it comes to night flights and are fantastic for orientation purposes. Some can be powered/controlled with an LED RGB Driver to cycle between different modes and colours. LEDs of all types can be turned into a strobe by using a suitable controller, strobes have the added bonus of low power consumption. The key to all lighting installations is to think about voltage and current requirements, a voltage regulator/UBEC will usually be necessary to help meet this requirements. Finally it is advisable to power lights from a separate battery to your flight battery.
