Name: Matek 2.4GHz R24-V ELRS Vario Receiver with 7 PWM Channels - Flying Tech
Brand: Matek Systems
SKU: RX-MTELRS-R24-V
Price: 28.90 GBP
Availability: InStock

Description

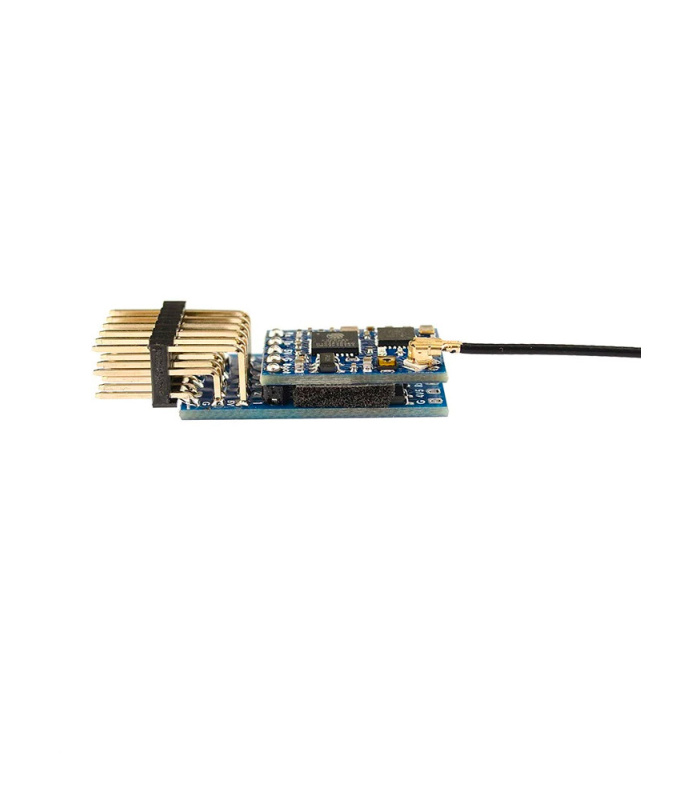

ExpressLRS is rapidly becoming the choice control link for those looking for ultra-low latency and long-range. The Matek ELRS-R24-V is a 2.4GHz ExpressLRS receiver with 7x PWM outputs. It’s perfect for those looking to connect servos directly, without needing to run them through a flight controller. The receiver also features a built in variometer for use with gliders and other fixed wing aircraft. The receiver accepts 3.5-9V DC input voltage and it has a telemetry voltage sensor that can sample up to 36V via the vBat pad.

Specific for the Gliders and other fixed-wings. Small in form factor, It can be installed in gliders with restricted payload bays such as DLG’s and high-performance slopers. Not needing to install an additional altimeter/variometer also saves room and weight.
The built-in barometer provides vertical speed telemetry. The variometer sounds both ascending and descending tones, so you will know whether you are in lift or sink without having to look at your transmitter.
With ExpressLRS firmware and CRSF protocol, this will also give you other telemetry data like battery voltage, current, and GPS related.

Please note, the header pins are included but don’t come soldered.

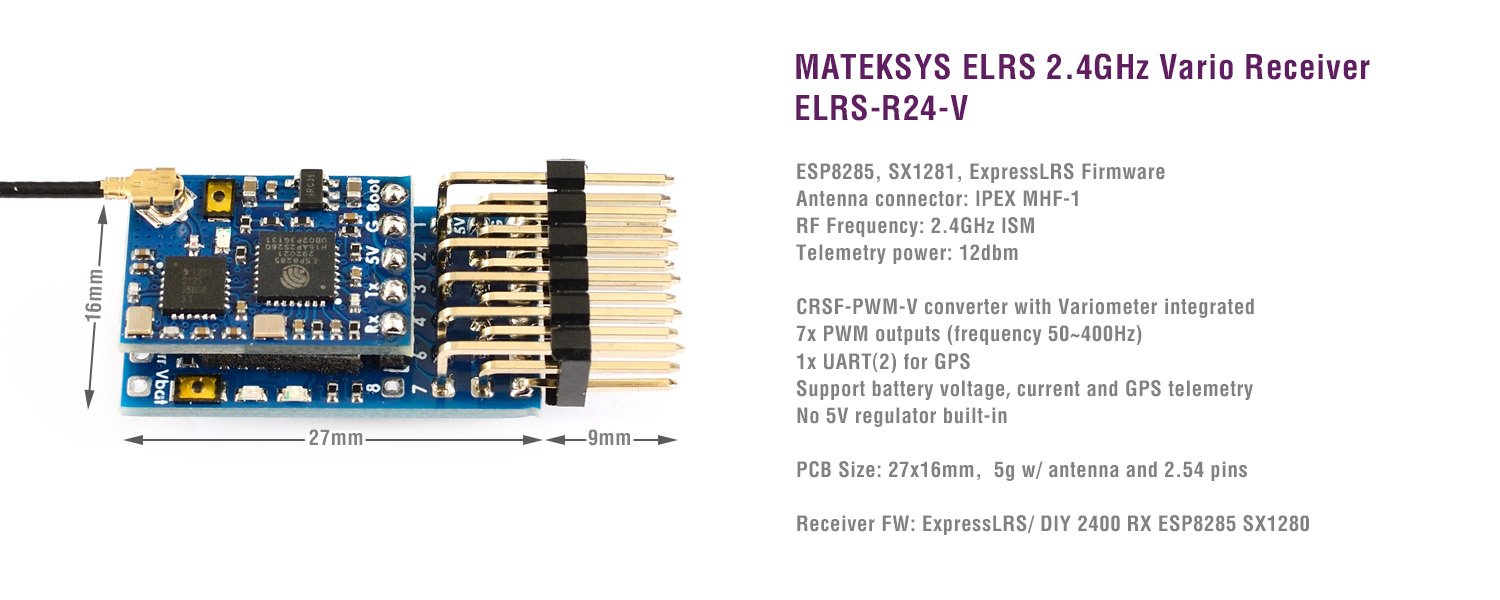

Specification

ESP8285, SX1281, ExpressLRS Firmware
RF Frequency: 2.4GHz ISM (2400~2480MHz)
Antenna connector: IPEX MHF-1
Telemetry power: 12dbm
CRSF-PWM-V converter with barometer integrated
7x PWM outputs (6x with power rails, PWM8 is just a signal pad)
PWM frequency: 50, 100, 160, 330, 400Hz configurable
PWM resolution: 4x 1024 position + 3x 128 position(ExpressLRS 2.0 Wide switch mode)
1x UART(2) for GPS
36V Max. battery voltage sense (1K:10K voltage divider built-in)
Compatible with external Current sensor (0~3.3V)
RxBt,Curr,Capa,Bat%,GPS telemetry and VSpd(Vario)
Rated voltage: 3.5~9V @5V pad, 0~36V @Vbat, 0~3.3V @Curr
Power dissipation: 50mA(binding), 90mA(wifi mode)
No 5V regulator built-in, Servos must be powered via 5V pad on CRSF-PWM-V board by external 5V source.
Failsafe value configurable
Firmware upgradeable
Physical:
- PCB Size: 27x16mm,
- Weight: 5g w/ antenna and 2.54 pins

Included:

1x Matek ELRS-R24-V 2.4GHz Receiver (Includes CRSF-PWM-V and Receiver)
1x IPEX MHF1 Antenna
2.54mm straight and 90 degrees 3×6 Dupont Pins
