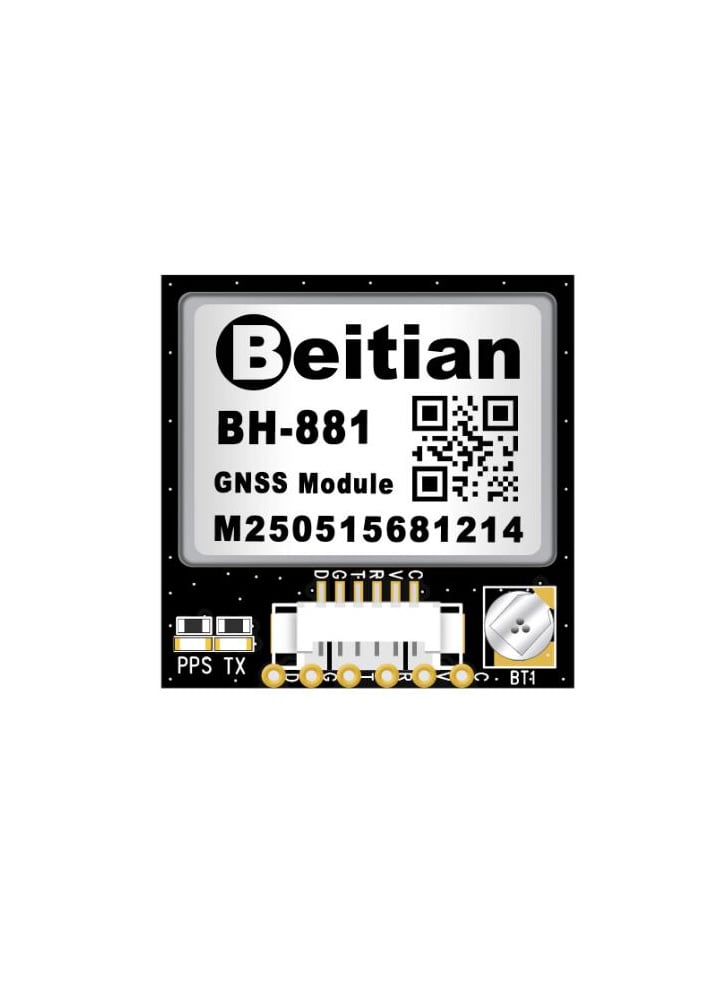

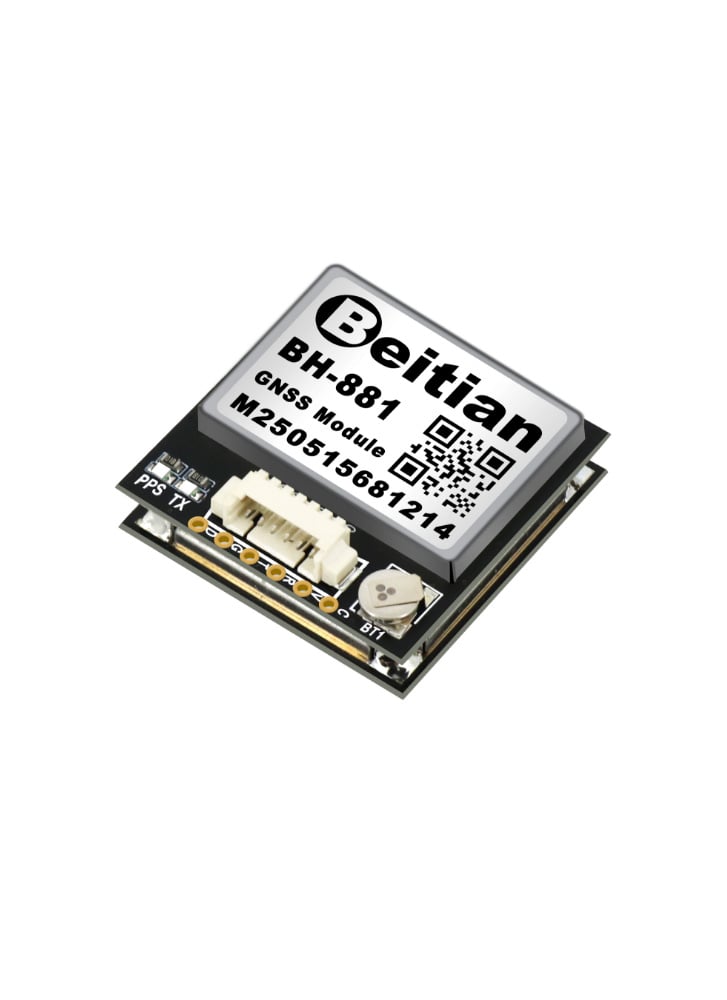

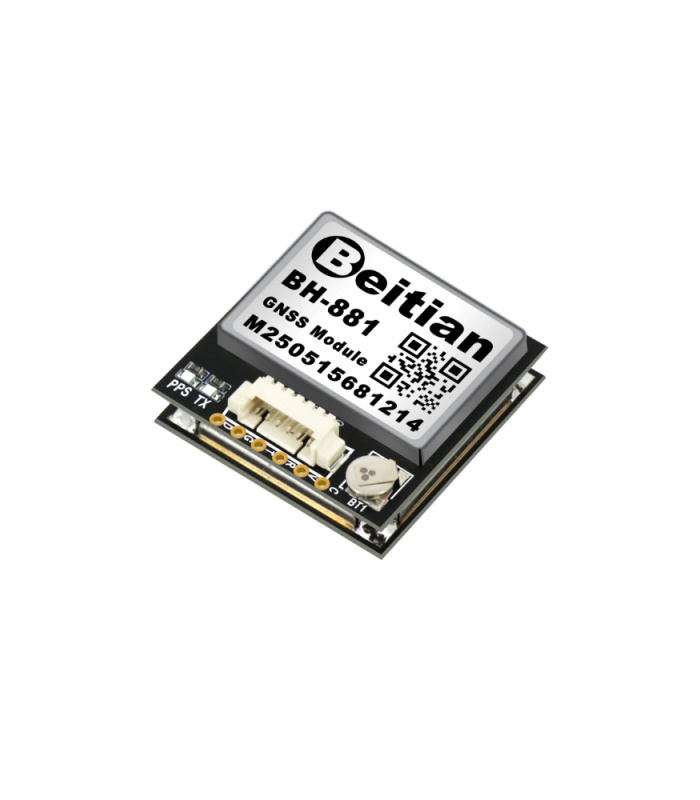

Beitian BH-881 GPS & Compass Module for iNav & Betaflight
£19.90 Inc. VAT
The updated successor to the BN-880, with faster fixes and a modern digital compass.
In stock
The BH-881 is an updated version of the popular BN-880, offering the same dependable GPS and compass functionality with newer hardware and a modern digital magnetometer. It’s a great option for fixed-wing and multirotor builds, and works well with iNav, Betaflight (for GPS Rescue), and other autopilot firmware that supports the UBlox protocol used by most Beitian GPS modules.
The module combines a high-sensitivity multi-GNSS receiver with the QMC5883P I2C compass for accurate heading and fast 3D satellite fixes. Like the original BN-880, it includes onboard flash memory for storing configuration, but for most applications it works straight out of the box. With iNav, simply select UBlox and set your baud rate for automatic configuration; Betaflight users can enable GPS and Rescue mode as normal.
For best performance, mount the module with the antenna facing upwards and keep it clear of interference sources such as VTX antennas, ESCs, and power wiring. This helps ensure the quickest satellite lock and the most stable compass readings.
Features:
- GPS Module with Patch Antenna
- With electronic compass IC QMC5883P
Pinout:
- SDA I2C Data
- GND Ground
- TX Transmit (3.3V logic)
- RX Transmit (3.3V logic)
- VCC 3.3 or 5V DC, 50mA
- SCL I2C Clock

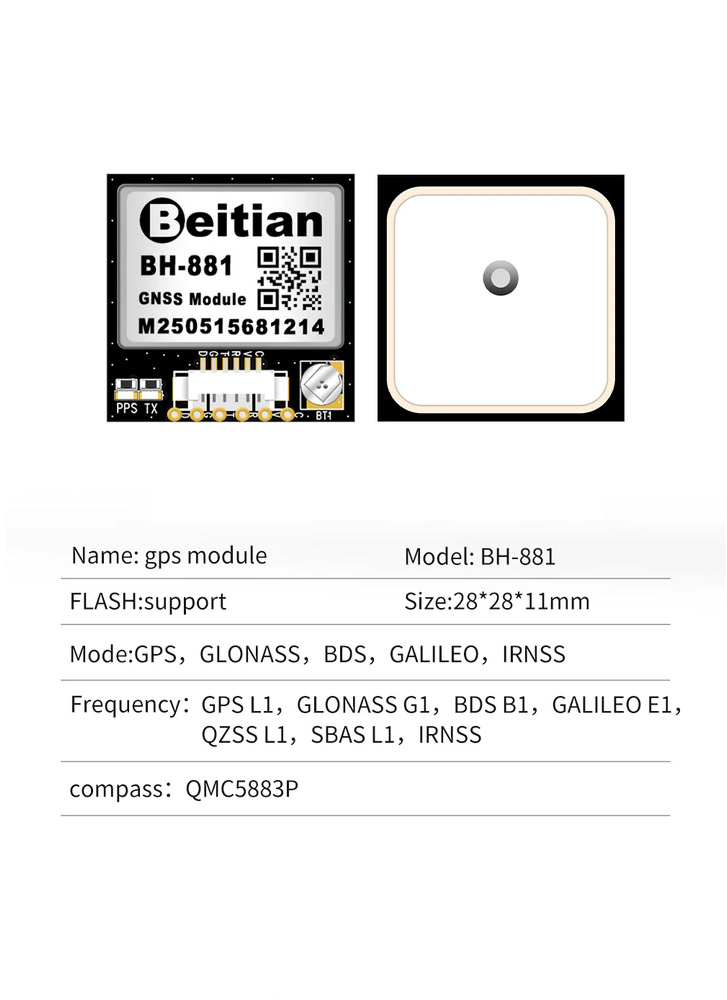

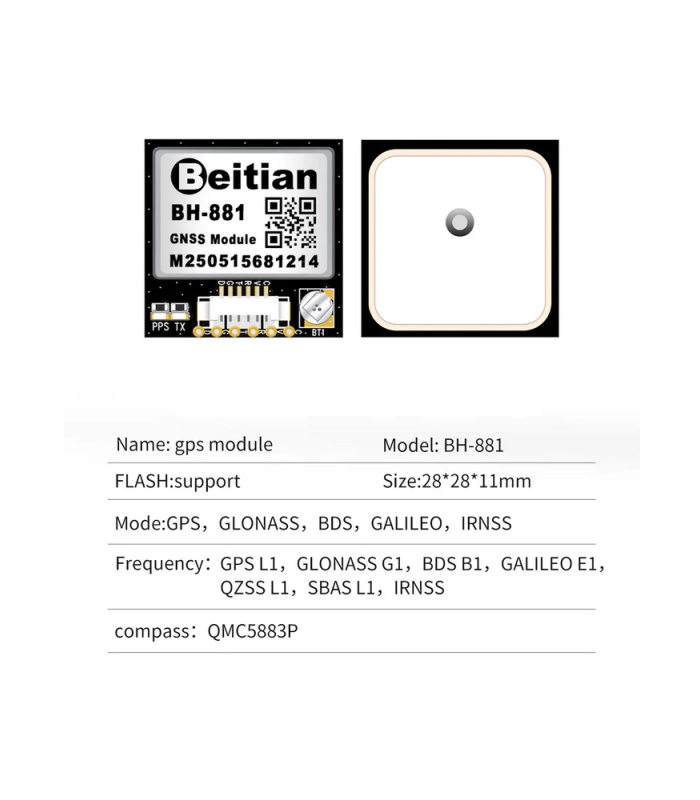

Power Supply: DC 2.8V–6.0V, typical 3.3V or 5.0V
Power Consumption: ~50mA @ 5V
GNSS Systems: GPS, GLONASS, Galileo, BeiDou, QZSS, SBAS
Channels: 72 tracking/searching channels
Sensitivity:
-
Tracking: –167dBm
-
Acquisition: –148dBm
Positioning Time:
-
Cold Start: ~26s (typical)
-
Warm Start: ~25s (typical)
-
Hot Start: ~3s (typical)
Horizontal Position Accuracy: ~2m (open sky)
Update Rate: 1Hz–10Hz (default 1Hz)
Speed Accuracy: 0.1 m/s
Acceleration Accuracy: 0.1 m/s²
Dynamic Performance:
-
Max Altitude: 18,000m
-
Max Speed: 5,153m/s
-
Max Acceleration: 4G
Compass: QMC5883P 3-axis digital magnetometer
Compass Interface: I²C (SDA / SCL)
Module Pinout: SDA, GND, TX, RX, VCC, SCL
UART Baud Rate: 4800bps–115200bps (default 38400bps)
Operating Temperature: –40°C to +85°C
Storage Temperature: –40°C to +85°C
Dimensions: 28mm × 28mm × 10mm
Weight: ~10g
Included:
- 1× BH-881 GPS Module
- 1× 15cm Cable
- 1× 3M double-sided tape square
