HolyBro Nano Ublox M8 5883 GPS Module

£19.90 Inc. VAT

A lightweight micro UBlox M8 GPS module with 3D-printed case.

Out of stock

This product is currently sold out.

No worries! Enter your email, and we'll let you know as soon as it's back in stock.

0 People watching this product now!
Description

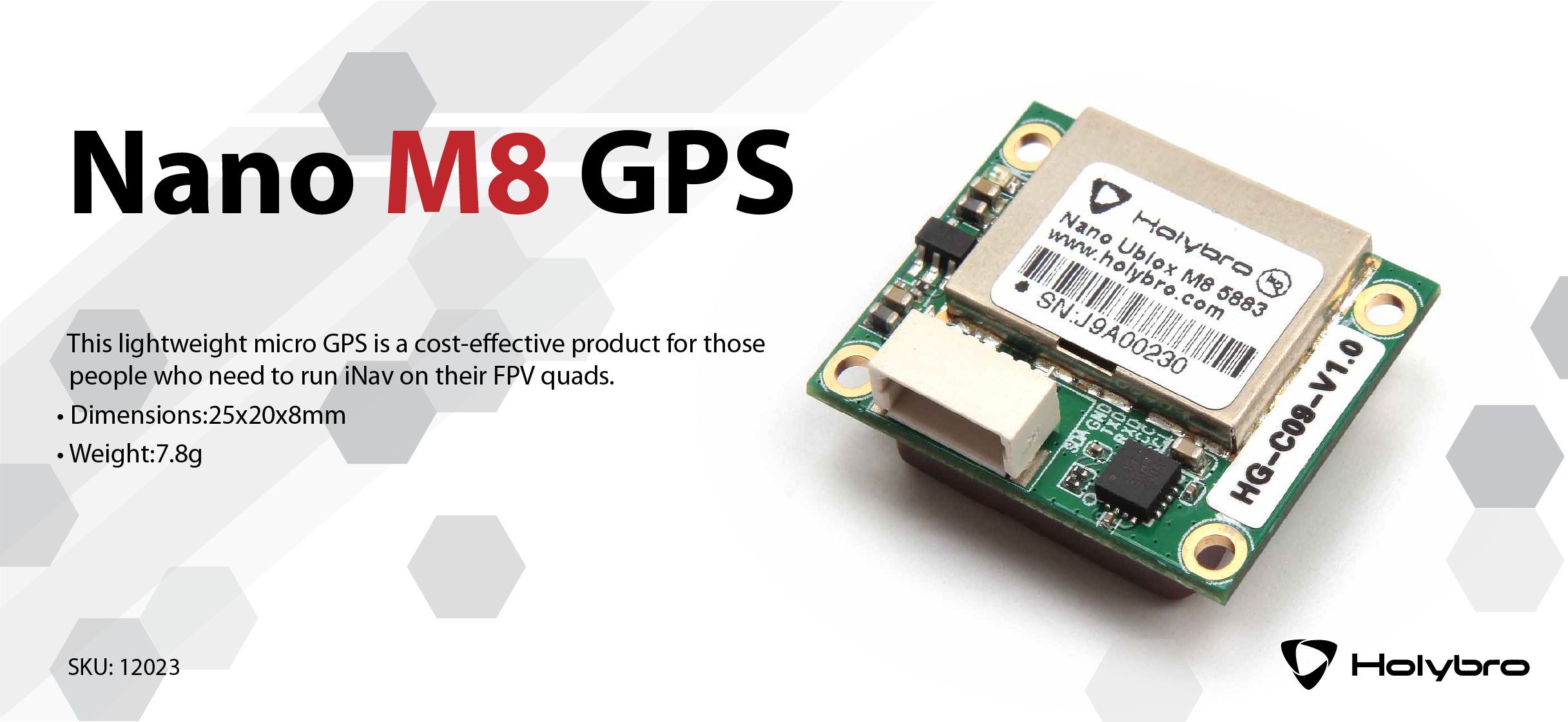

12023 Nano M8 GPS web


Here we have a tiny GPS that integrates the highlyย accurate M8Q module. Itโ€™s a great option for fixed wings running iNav or to unlock the GPS Rescue Mode for Quads running BetaFlight.

Featuring a single die solution, low power consumption and low costs,ย the Nano M8 5883_L is a multi-GNSS (GPS BDS , GLONASS ,SBAS and QZSS) positioning module developed to meet the requirements of an extensive range of applications. Based on the high performance M8 position engine,ย its combined receivers provide exceptional sensitivity and acquisition times. Interference suppression measures enable reliable positioning even in difficult signal conditions.

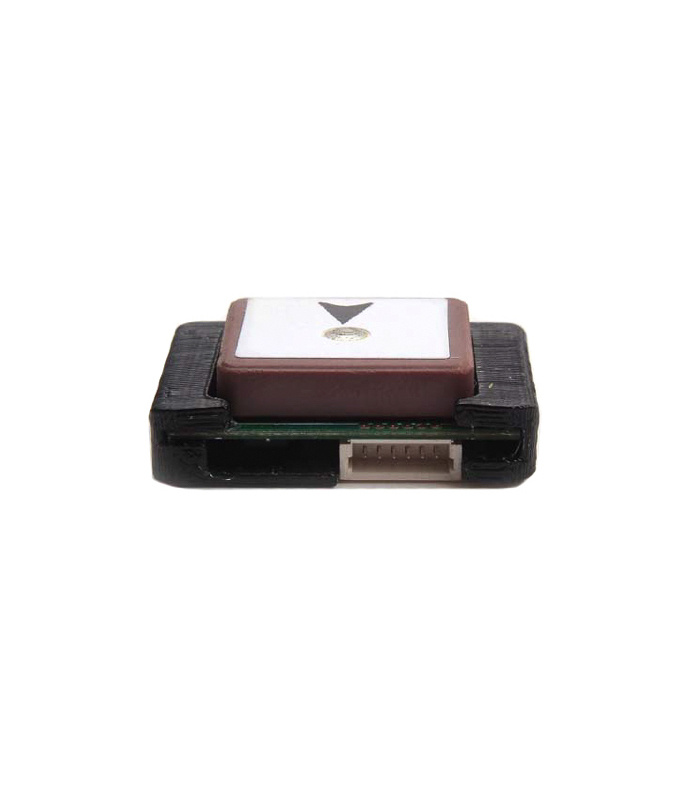

The GPS comes with a 3D-printed case and 6P cable.

Features:

  • M8ย high performance GPS/GNSS Chips
  • Over 2 million effective correlators
  • 72 channels in Search mode
  • Cold start acquisition sensitivity of -148 dBm and -167 dBm tracking sensitivity
  • Up to 10 Hz navigation update rate
  • Supports GPS, QZSS, GLONASS , BDS and is ready for Galileo
  • Supports AGPS
  • Integrated TCXO,LNA,SAW,RTC
  • Support standard NMEA 0183,UBX
  • This module can be useย with QMC5883ย Magnetometer

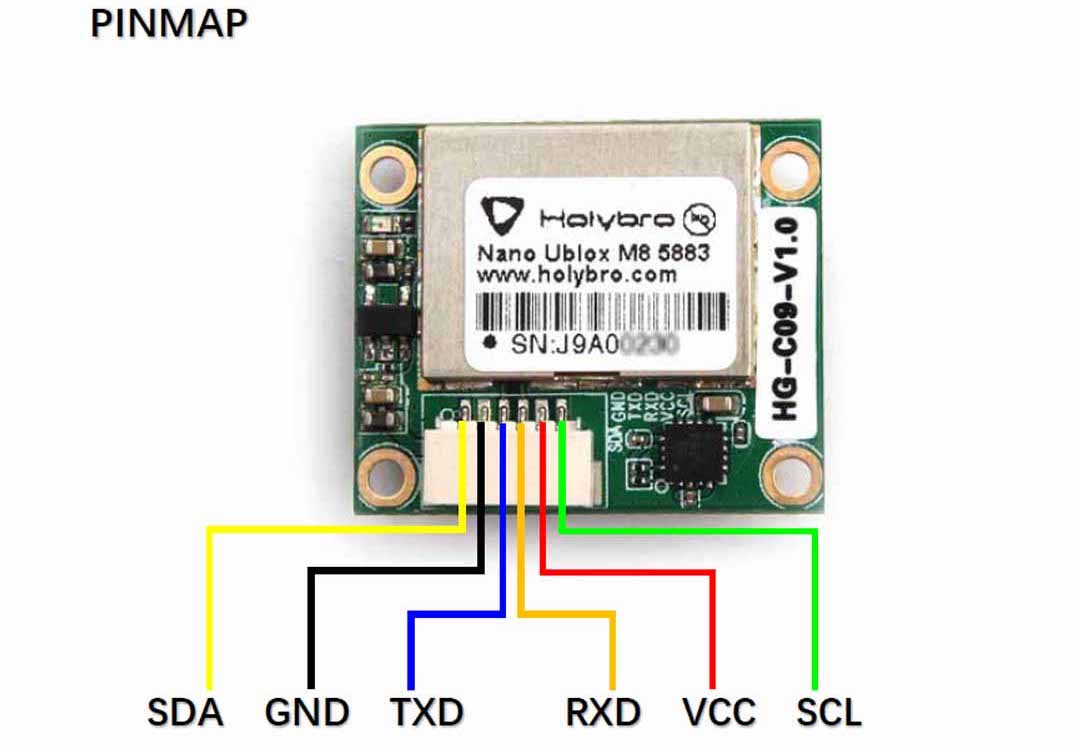

PINMAP GPSM8 5883

Specification

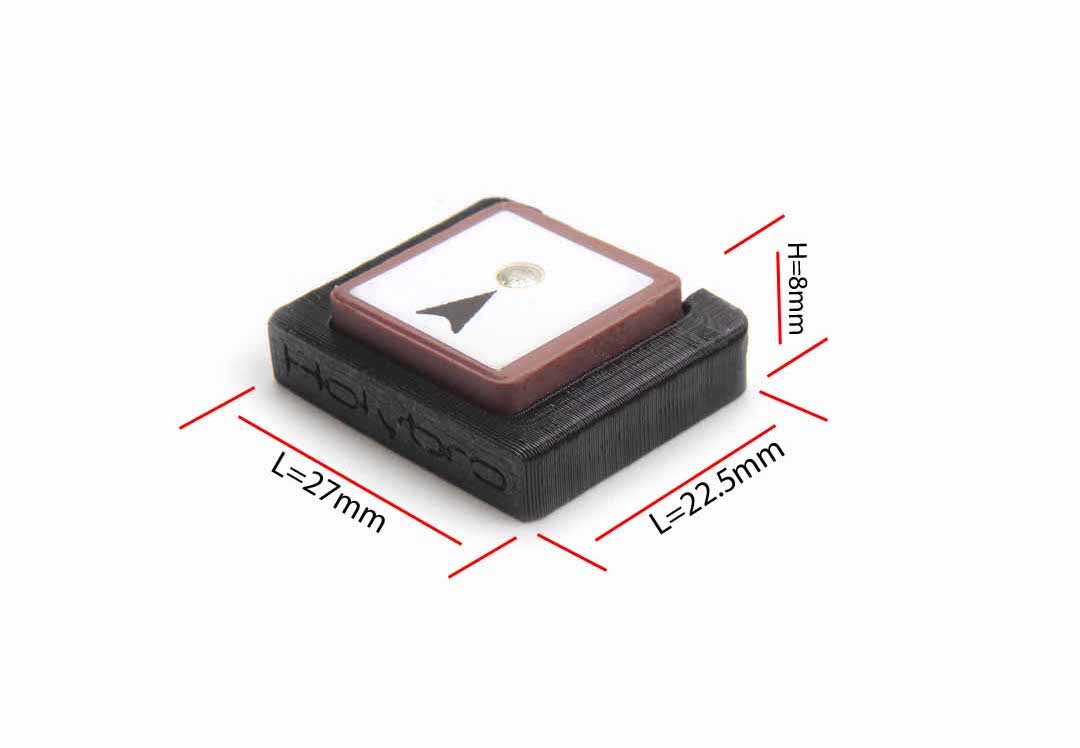

  • Size: ฯ†23.88mm x19.98mmx8.80mmยฑ0.5mm –ย suitable for space-sensitive application
  • Weight 7.8 grams without TPU Protective Case Shell

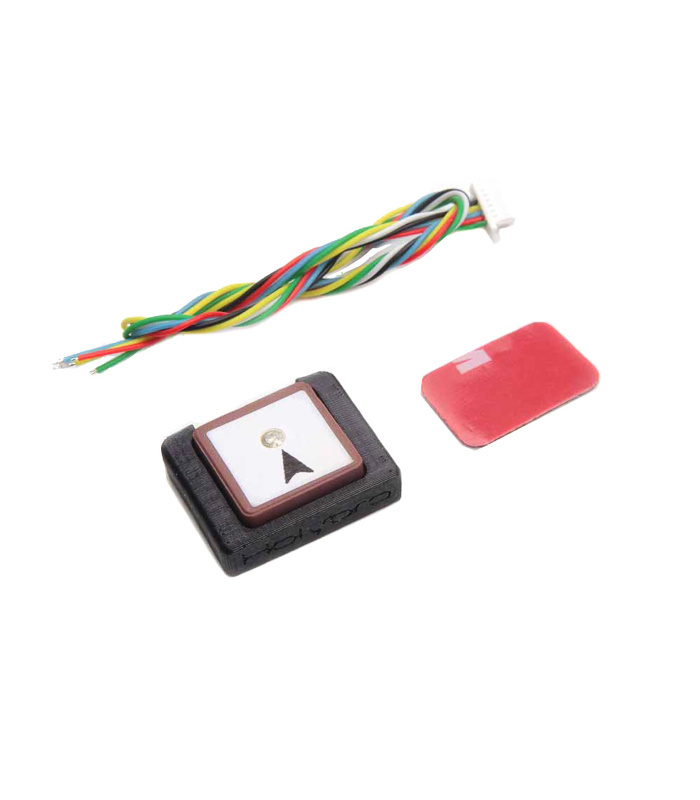

Included:

  • 1x Nano M8 5883 GPS Module
  • 1x JST 6P Cable
  • 1x TPU Protective Case Shell
Downloads
Datasheet (pdf, 581KB)
