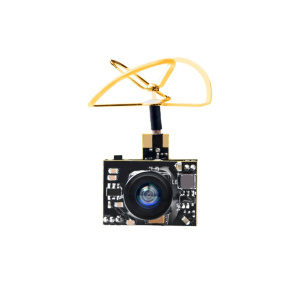

Discontinued: All-in-One Mini FPV Camera VTX 5.8Ghz 25mW / 200mW 40CH

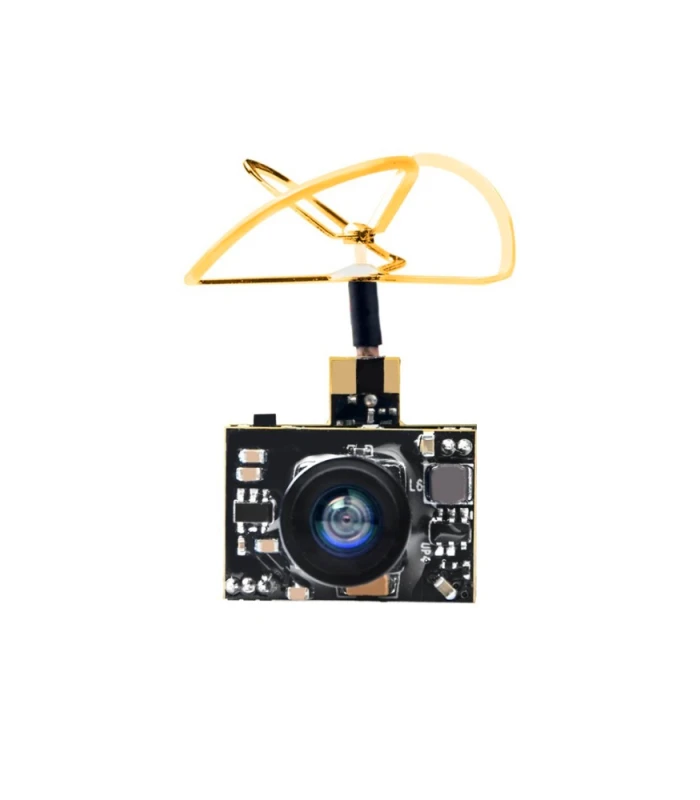

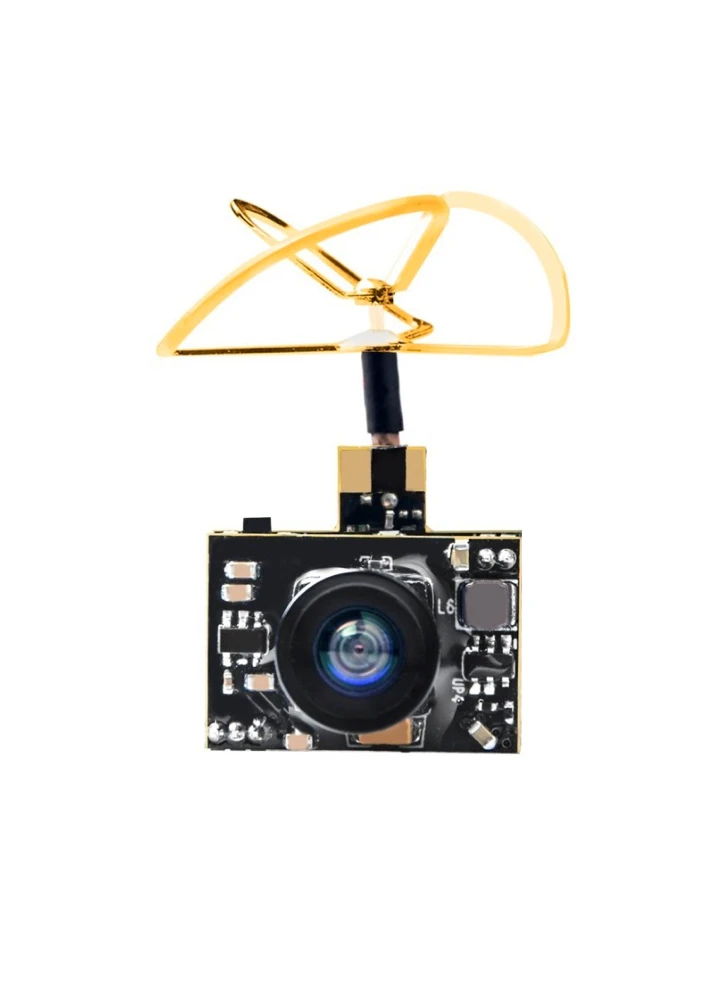

A tiny all-in-one camera transmitter unit. It can be powered from a 1S LiPo battery.

This product is currently sold out.

No worries! Enter your email, and we'll let you know as soon as it's back in stock.

I have read and accept the privacy policy

0 People watching this product now!

Description

Discontinued, for an alternative please see LST-S2 AIO Camera / VTX

FPV setups needn’t be complicated, proven by this tiny little all-in-one camera transmitter unit. Simply provide power and attach it to your model to get a live video stream. To view the image, we recommend using something like the Hawkeye FPV monitor – between the two that’s a complete FPV setup for under £115.

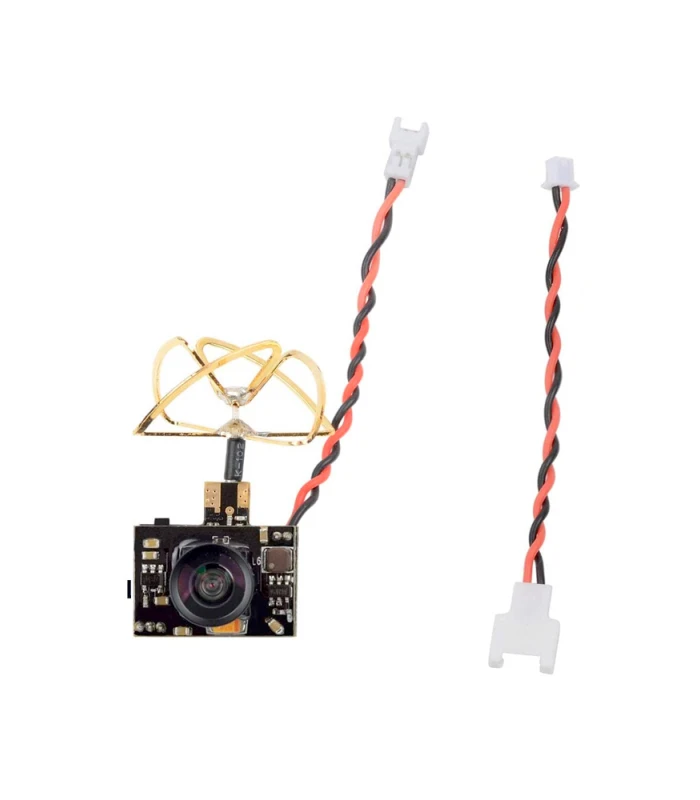

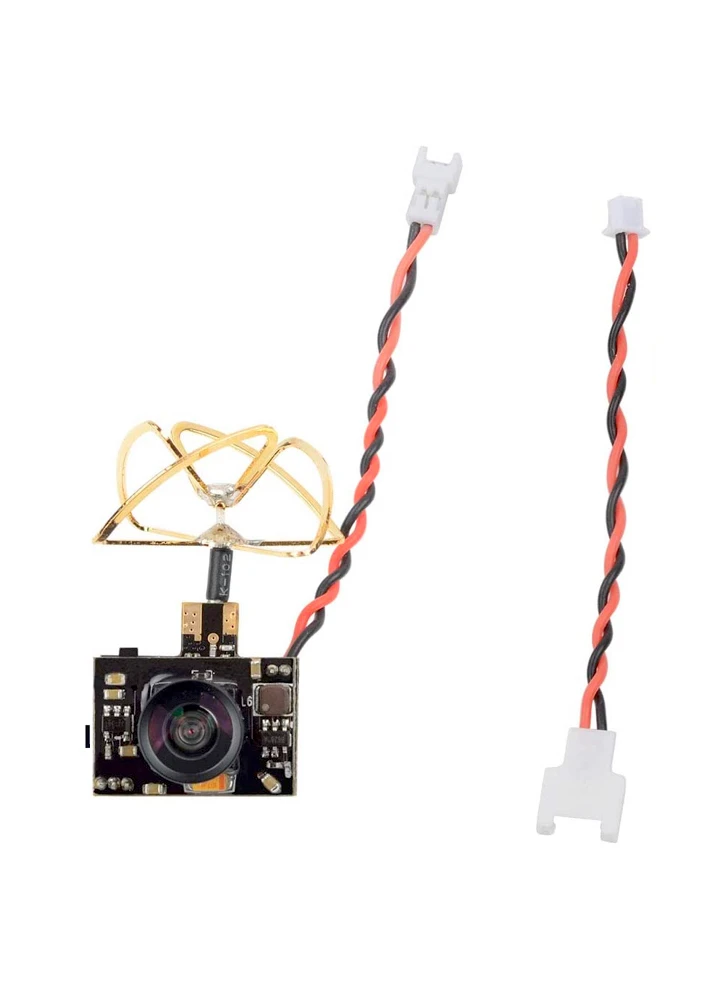

The unit requires a 3.2-5v power input, so it’s easily powered from a 1S LiPo battery; it’s very much plug and play. The transmitter has a switchable 25mW / 50mW / 200mW output, so you can use it legally in the UK without a licence on 25mW. It also has 40 channels, including RaceBand frequencies making it compatible with most FPV gear out there. The channels are easily selected via a pushbutton.

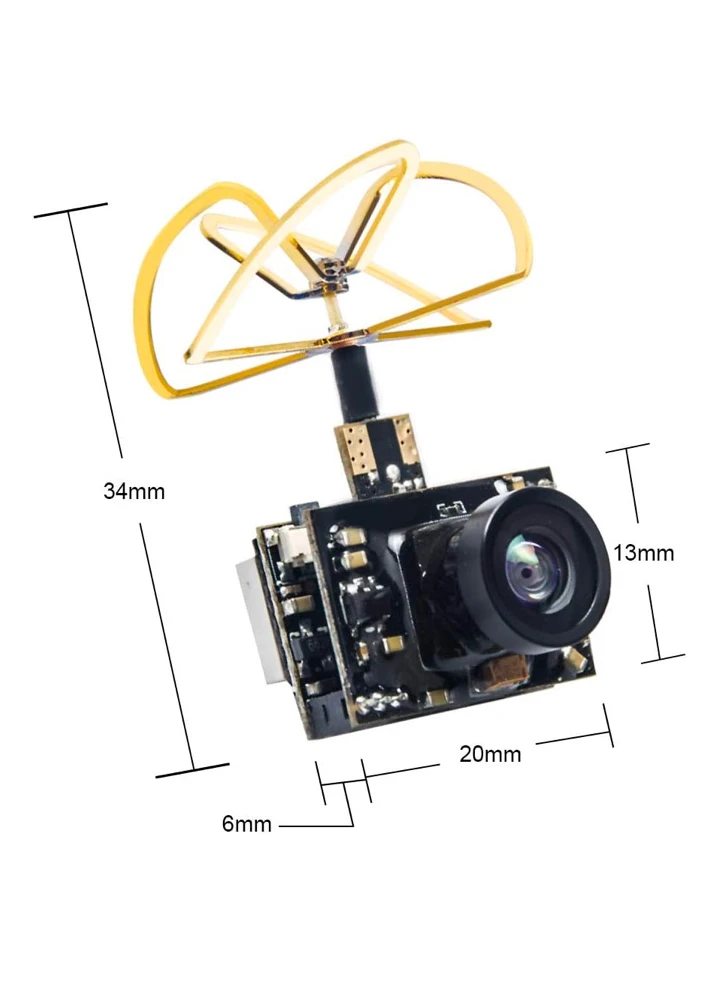

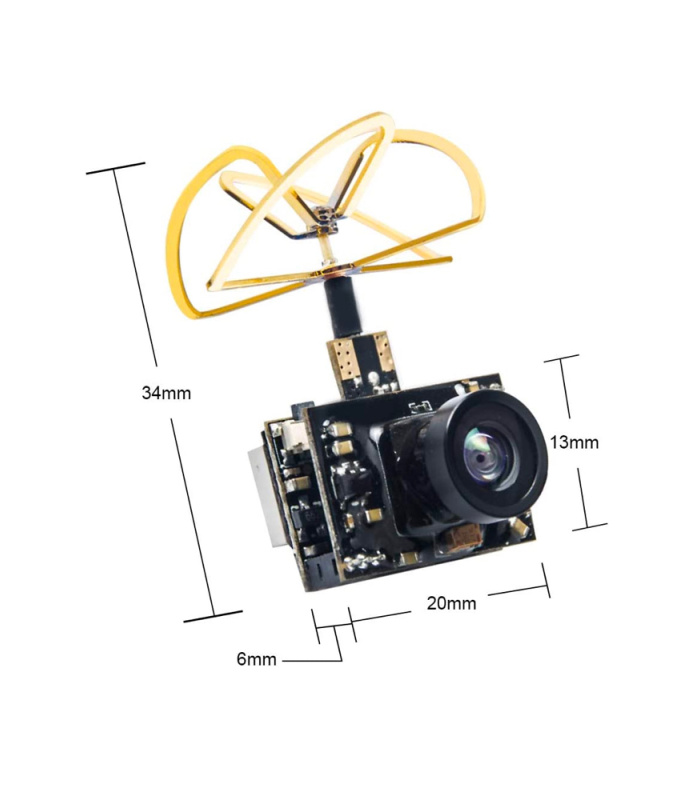

As the camera/transmitter unit is extremely small and lightweight, it could be installed on almost anything. To attach it you could use something as simple as Velcro. Lots of people are using them on micro quads like the Blade Inductrix to race FPV around their house. It’s also particularly suited to some of the ‘FPV Ready’ aircraft coming to market such as the Hobbyzone Champ S+.

Features:

Micro sized and lightweight
Easy install, plug and play
40 channel 25mw / 50mW / 200mW VTX w/ Raceband
Push button control channel selection
Compatible with NTSC systems

Specification

Operating voltage: 3.2-5.5V
Operating current: 25mW: 250mA-510mA /50mW: 270mA-640mA /200mW: 330mA-740mA
Video out: NTSC Switchable
Transmitting power: 0/25mW/50mw/200mw switchable
Channels: 5.8G 40CH supports RaceBand
Camera: 600TVL
Minimum illumination: 1LUX
Sensor: 1/3 inch Colour CMOS
Field of view: 120°-150°
Weight: 5.7g

Included:

1x All-in-One Mini FPV Camera / Transmitter
