3D & 2D Multiview 4-Channel Picture-In-Picture FPV Video System
£89.00 Inc. VAT

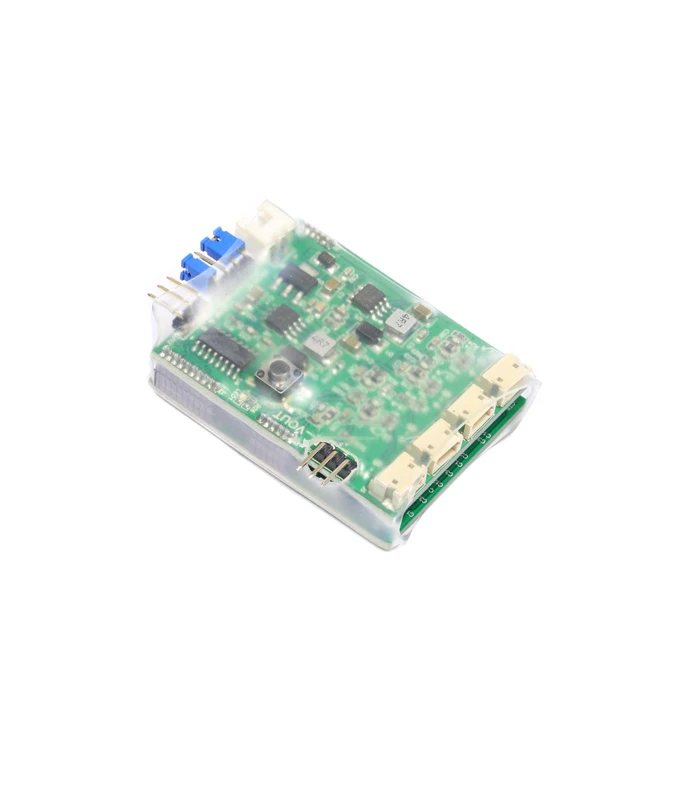

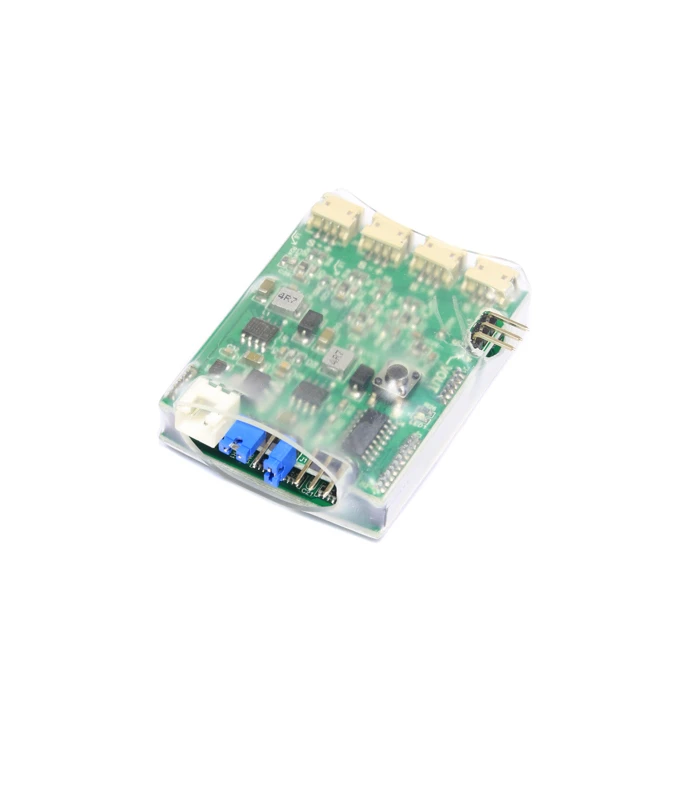

This useful camera control board supports SBS 3D video output or in 2D mode it can switch between 4 camera inputs.
In stock
The 3D & 2D Multiview Video System is the way to go if you’re wanting 3D viewing on your goggles or want to watch multiple 2D cameras on the same screen. Just a jumper change to switch between 3D and 2D modes. The system can use PAL or NTSC.
This system gives you the ability to provide 3D (side by side) input for your goggles. This gives you a better, more lifelike, view of the world. Combine it with our 3D Camera System to get the best views. This system can be used with FatShark Dominator HD V2 or FatShark Dominator V3 or other goggles that do SBS 3D (side by side).
In 2D mode the system supports up to four cameras to give multiple views (via Picture in Picture) at the same time, or you can move from one camera to the next via a switch on your radio receiver. Great for when you install multiple cameras on your drone or plane.
Features:
- Runs in either 3D or 2D mode
- 3D Side by Side (SBS)
- 2D mode. with Multiview multi-camera (Picture in Picture) or
- Supports up to 4 cameras in 2D mode
- Switch cameras via your radio receiver
- PAL or NTSC
3D / 2D Controller with the 3D Camera System
Picture in Picture and Multichannel Viewing Modes
- Video type: PAL/NTSC support
- Voltage: 7-12V (2-3S)
- Current: 0.27A @7.4v ~ 2W

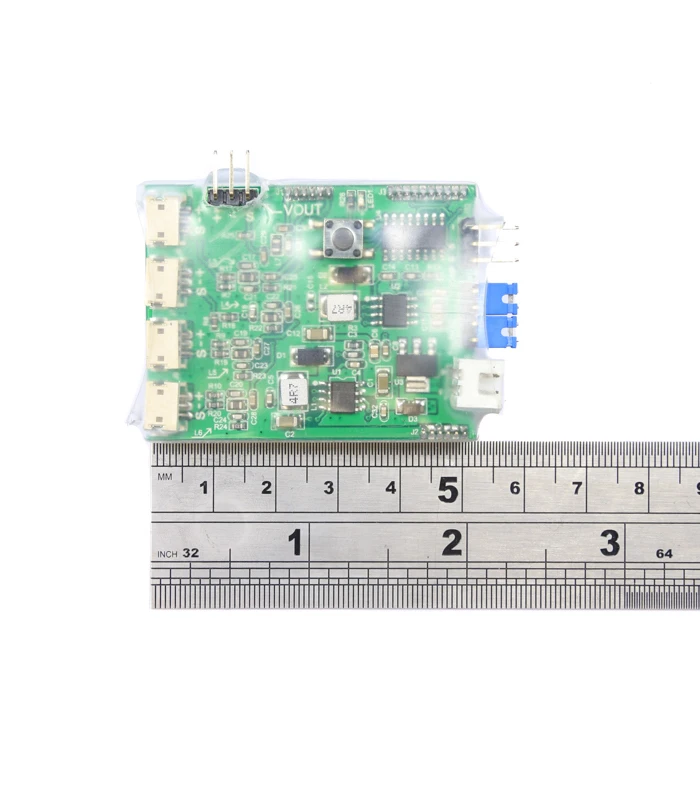

- Measures: 52x41x12mm
- Weight: 30g

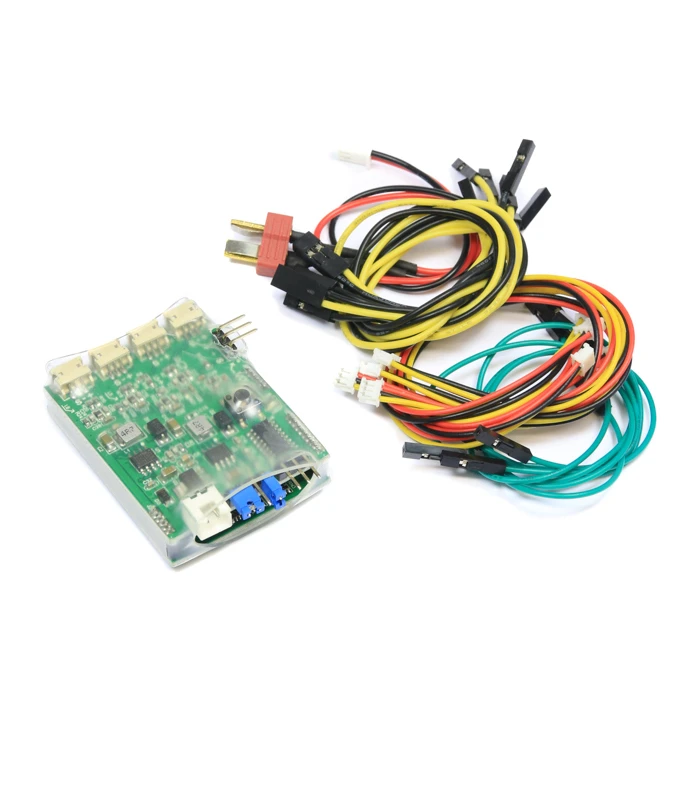

Includes:
- 1 x 3D & 2D FPV Multiview video system
- 1 x Set of cables (Color may vary)
Questions and answers of the customers
-
What is the country of origin for this product?
-
A
China.
To confirm, in MV (2D mode), does this board perform the PiP function? In other words, does this board do the traditional PiP function, where one video feed is the main background, and a secondary video feed(s) are scaled and positioned over (inset into) the main scene? Thanks, Phil
-
Q To confirm, in MV (2D mode), does this board perform the PiP function? In other words, does this ...... Read more answer nowA
Hi, yes in 2D Mode these are the PiP output options - HERE.
Which transmitter is on the image? I bought this a while go but still did not get it to work, so I want to try the same setup as shown in the images here. I have the Video System and the dual cameras, but not a transmitter. The transmitter I bought looks way different and has way different connectors than the ones shown in the picture so I blame myself for not doing product research.
-
Q Which transmitter is on the image? I bought this a while go but still did not get it to work, so ...... Read more answer nowA
Sure, the VTX pictured is the X50.
