Ublox Neo-M8N GPS with HMC5883L Compass for Pixhawk / APM

Drone Ublox Neo-M8N GPS with Magnetometer

Click to enlarge

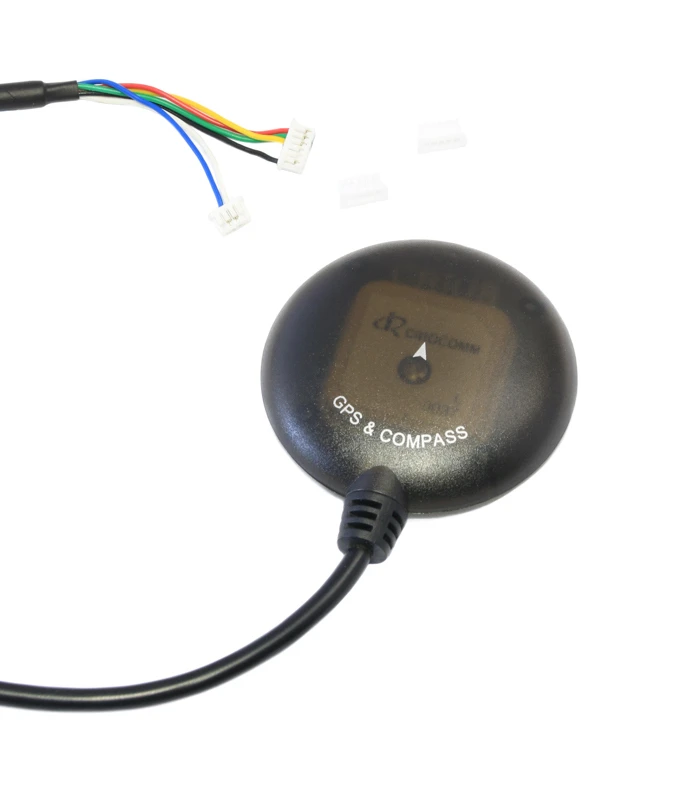

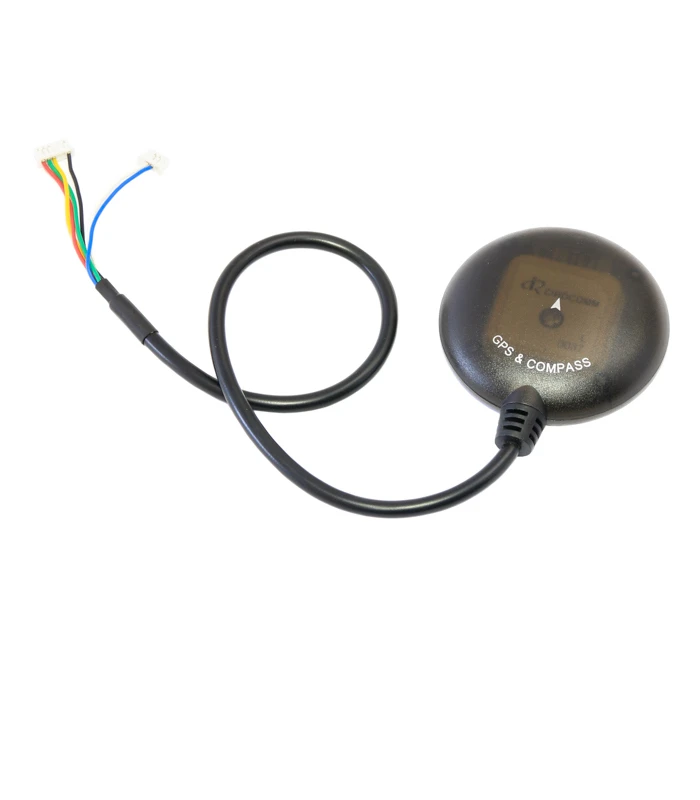

Ublox Neo-M8N GPS HMC5883L Compass for Pixhawk / APM

Name: Ublox Neo-M8N GPS HMC5883L Compass for Pixhawk / APM - Flying Tech
SKU: GPS-NEO-M8N
Price: 39.90 GBP
Availability: InStock

Original price was: £59.90.Current price is: £39.90. Inc. VAT

Ublox Neo-M8N GPS & Compass module, plug and play with Pixhawk & APM FCs.

In stock

Add to compare

0 People watching this product now!

SKU: GPS-NEO-M8N Categories: Standard GPS Modules, Electronics, GPS & Compass Modules, Pixhawk & APM Accessories Tags: APM, Compass, FC, GPS, Magnetometer, NEO, NEO-M8N, Pixhawk, Pixhawk GPS, U-blox

Description

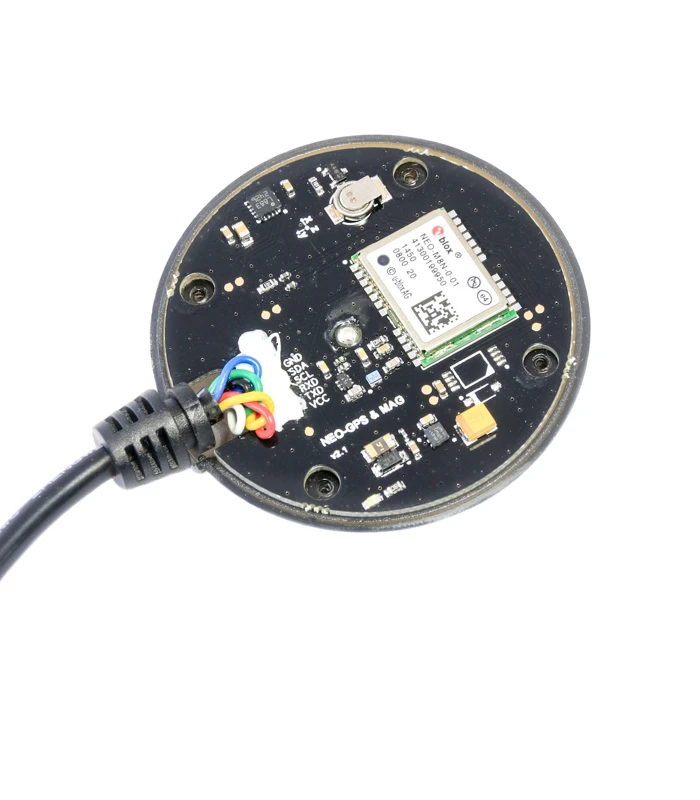

If you are looking for the best GPS available today, the next generation Ublox Neo-M8N is it. It utilises the NEO-M8 chip, which is a 72-channel, high sensitivity engine that boasts a Time-To-First-Fix (TTFF) of less than 1 second. It supports multiple constellations, namely GPS, GLONASS, Galileo, QZSS, SBAS and it’s even Galileo ready. Its sophisticated RF-architecture and interference suppression mitigates multipath effects and ensure maximum performance even in GNSS-hostile environments. During tests we have seen the M8N reliably find up to 18 satellites with an hdop of 0.7. This is in comparison to older generation modules, such as the NEO 6M which found as little as 5 satellites with a high HDOP. It also incorporates Honywell’s latest high precision 3-axis digital magnetometer (HMC5883L), which provides a convenient method of mounting the compass away from sources of interference that may be present in the vicinity of your multirotor’s flight controller.

The GPS comes pre-configured for the Pixhawk / APM flight controllers. Change the 1.25-6P plug shell to the included 5P shell to fit APM.

Specification

Ublox Neo-M8N GPS module (72-channels)
HMC5883L Magnetometer
Industry leading –167 dBm navigation sensitivity
Navigation update rate up to 10 Hz
Cold starts: 26s
LNA MAX2659ELT+
25 x 25 x 4 mm ceramic patch antenna
LNA and SAW chip
Rechargeable 3V lithium backup battery
• Low noise 3.3V regulator
UART (TTL) port with EMI protection
Power and fix indicator LEDs
Protective case
Dimension: 50 x 57
Cable length: 25cm
Weight: 30g

Included:

NEO-GPS & MAG V2.1 (M8N) x 1
1.25-6P / 1.25-4P cable 270mm x1
1.25-5P plug shell x2

Downloads

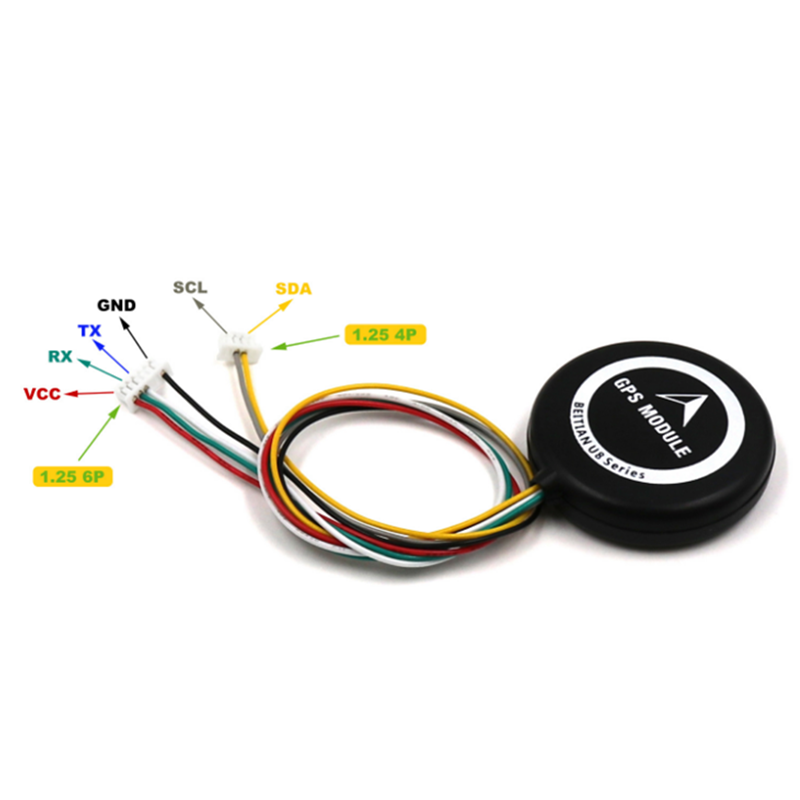

Connections (png, 186KB)
