Team BlackSheep TinyWhoop Micro Battery Charger V2 – LiPo / LiHv

£24.90 Inc. VAT

TBSย Tiny Whoop Charger for Micro Drone Batteries.

In stock

Frequently Bought With

12V 2Amp Mains AC/DC Power Supply Plug - 5.5mm

12V UK 3-Pin wall plug power adapter.

0 People watching this product now!
Description

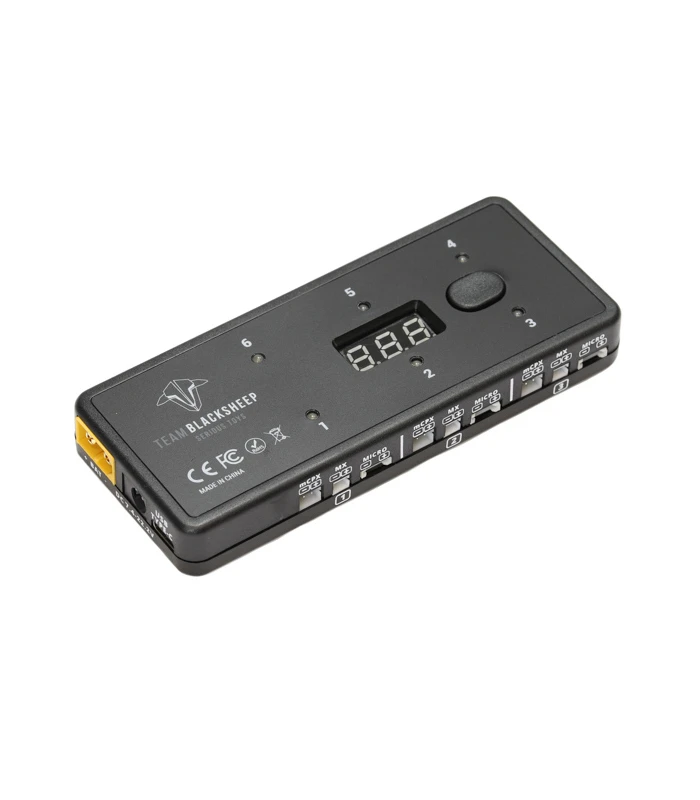

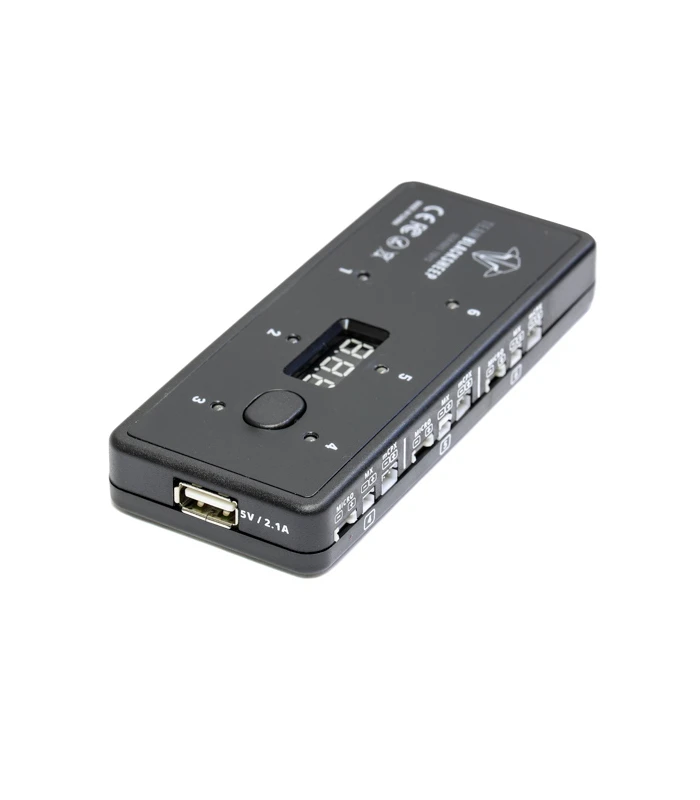

This is the ultimate TinyWhoop battery charger. It boasts 6 independent outputs,ย with a choice of the most common micro battery connectors (mCPX, MX & Micro).ย It can be powered from a range of power supplies including anย XT60 2-S LiPo battery, DC power plug or a USB Type C input. There’s even a USB output should you want to charge your phone or some other USB device when you are out and about by using one of your flight batteries to power it.

SLEEK AND POWERFUL

SLEEK

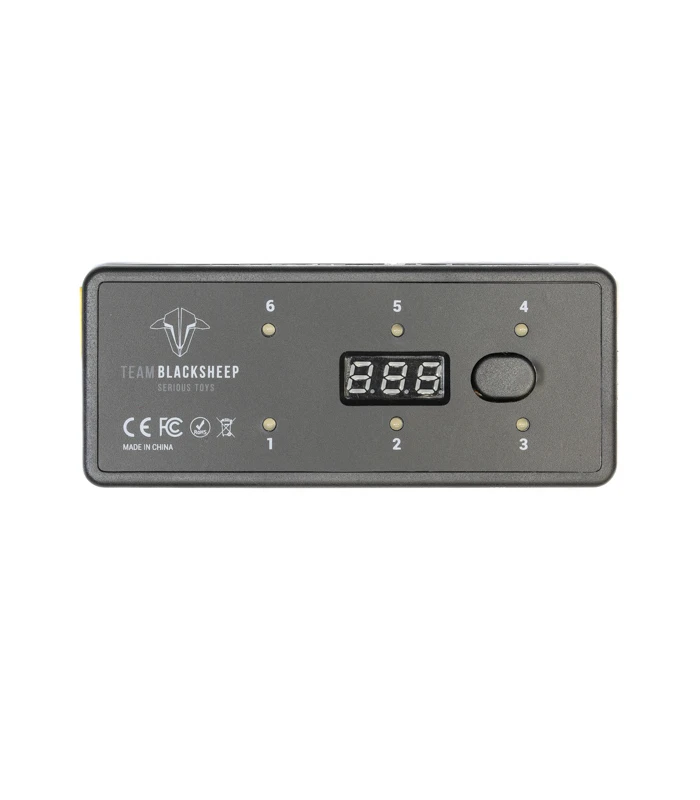

The charger comes in a thin and small form factor. It is designed to slide into your backpack without taking too much space. The ease of use of this charger is also a great selling point, simply power it up and plug-in the batteriesย you want to get charged. With itsย singleย buttonย you can switch between charging LiPo or LiHv. The charger indicates the voltage of the power supply and also the voltage of the charging batteries.

POWERFUL

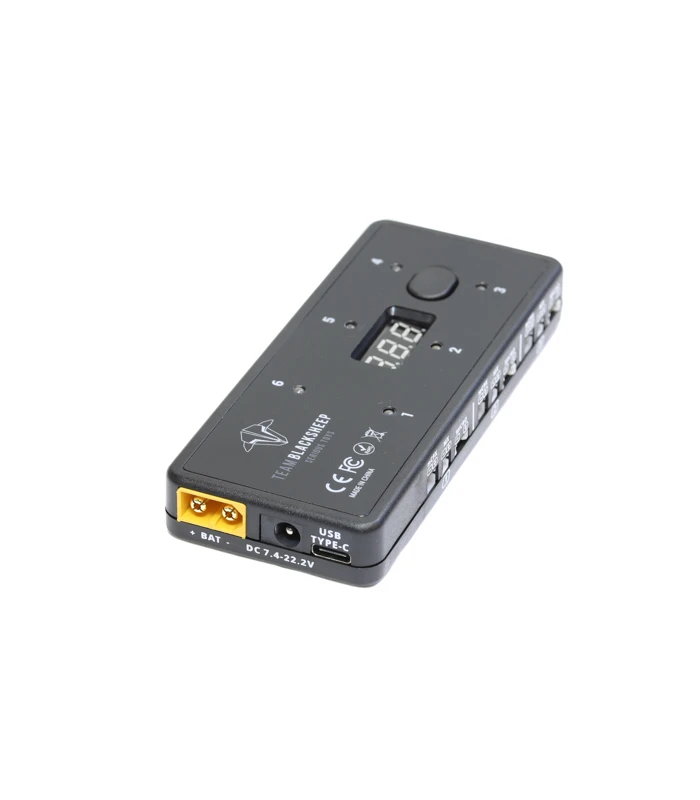

With up to 6 x 1-cell micro battery charging capability and 1A per port, charging your HV batteries has never been easier! It is compatible with PowerWhoop and all common micro battery connectors.ย You can power it from a 3-6S LiPo battery (XT60), a USB Type Cย input or a DC power adapter (sold separately).

How to use it:

1. Plug in your chosen power supply, you will hear a beep and the green led will flash from port 1-6.

2. Short press to change battery type:ย (O-P = 4.2v) /ย (O-H = 4.35v). Long hold till you hear 3 beeps to save.

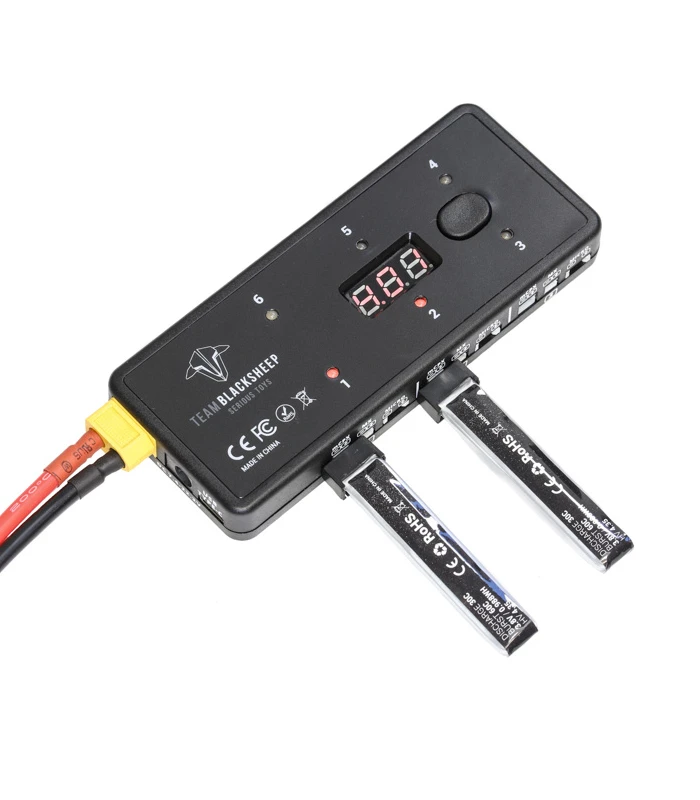

3. Plug-in the LiPos and it will automatically start charging. Red = Charging /ย Green = Charged.

DO NOT use the 0-Hย 4.35V charge mode for a normal 1S LiPo. Doing so will overcharge the battery and pose a fire risk. Only charge 1S LiHV batteries to 4.35V.

Specification
  • Type:ย Lipo / LiHv
  • Cell Count:ย 1S x 6
  • Charge Current:ย 1A (ยฑ10%)
  • Circuilt Power: 24W (4W x 6)
  • Charge Port Type:ย mCPX, MX, Micro
  • Dimensions: 120 x 50 x 16.5mm
  • Weight: 70g

Included:

  • 1x TBS Micro Battery Charger V2
Q&A

Questions and answers of the customers

There are no questions yet. Be the first to ask a question about this product.

Advice

lipo fire risk

Lithium Polymer (LiPo) Battery Safety Guidelines

PLEASE READ AND KEEP FOR REFERENCE

Lithium Polymer (LiPo) batteries can be extremely dangerous if not handled correctly. A lithium fire can reach extremely high temperatures, is unpredictable and difficult to extinguish.

A standard four-cell 1500mAh LiPo battery at full charge stores a massive 25Wh (watt hours) of energy!

Please take these risks seriously. We advise following the guidelines below to safely use and maintain your LiPo batteries.

Disclaimer

This information sheet is provided to help our customers understand LiPo battery safety. However, you use this information at your own risk. Following good practices will also help to ensure the longevity of your battery packs.

By purchasing LiPo batteries or charging equipment from our store, you accept all risks related to their use. If you disagree, please contact us immediately to arrange a return before using the product.


1. Charging Safety

  • Use a proper charger: Always charge LiPo batteries with a LiPo-compatible charger.
  • Set the correct parameters: Charge at the recommended voltage and current settings specified by the manufacturer. Many fires occur due to incorrect charge settings. In most cases, the safest charge rate is 1C.
  • Double-check connections: Ensure that charging leads are connected correctly. Reverse charging can lead to cell damage or a fire.
  • Charge in a safe environment: Charge batteries on a non-flammable surface, in a fireproof container, and away from flammable materials.
  • Monitor while charging: Never leave charging batteries unattended. Stop charging immediately if the battery becomes hot or swollen.
  • Avoid overcharging: Never exceed 4.2V per cell (4.35V for LiHV Lithium-ion Polymer High-Voltage batteries).

2. Storage Safety

  • Storage voltage: For long-term storage, maintain a โ€˜storage chargeโ€™ voltage of 3.7V to 3.85V per cell.
  • Store in a cool, dry place: Always store your LiPo pack in a safe and non-flammable container away from flammable objects. A LiPo sack or metal/ceramic storage container is best. Avoid direct sunlight or high temperatures (above 60ยฐC/140ยฐF). The ideal storage temperature is 10ยฐC to 25ยฐC (50ยฐF to 77ยฐF).
  • Avoid full discharge: Never store batteries at full charge or with a low voltage (below 3.3V per cell).

3. Handling and Usage

  • Inspect regularly: Check batteries for any damage, swelling, or leaks before use.
  • Avoid physical damage: Protect batteries from impacts, punctures, and exposure to moisture or water.
  • Never short-circuit: Avoid contact between battery terminals. Do not store or transport batteries where they can come into contact with sharp or conductive materials (e.g., metal objects).
  • Use within limits: Stay within the manufacturerโ€™s recommended discharge rate and capacity ratings for safe operation.
  • Monitor during use: Use voltage alarms or onboard monitoring to prevent over-discharging (below 3.3V per cell).
  • Crashes: If a battery is damaged in a crash or shows changes in appearance (including swelling or gassing), move it to a safe place to observe, and discard it. Never attempt to charge a battery with physical damage, regardless of how minor the damage may seem.

4. Disposal

  • Lifespan: Rechargeable LiPo batteries do not last forever. Batteries that have lost 20% of their initial capacity should be removed from service and disposed of.
  • Dispose properly: Never throw LiPo batteries in the general waste. Dispose of them at certified recycling centres.
  • Prepare for disposal: Fully discharge batteries before disposal and tape the terminals to prevent short circuits.

5. In Case of Fire

  • Fire containment: If a LiPo battery catches fire, use a Class D fire extinguisher or sand to smother the fire. Avoid inhaling fumes and vacate the area immediately.
