VIFLY WhoopStor V3 1S LiPo Battery Charger / Discharger (PH2 / BT2.0)

Name: VIFLY WhoopStor V3 1S LiPo Battery Charger / Discharger (PH2 / BT2.0) - Flying Tech
Brand: VIFLY
SKU: LIPO-VIFWHST1S
Price: 27.90 GBP
Availability: OutOfStock

£27.90 Inc. VAT

One of the best chargers for 1S Tiny Whoop batteries. Supports both LiPo/LiHV & PH2.0/BT2.0.

Out of stock

This product is currently sold out.

No worries! Enter your email, and we'll let you know as soon as it's back in stock.

I have read and accept the privacy policy

Add to compare

0 People watching this product now!

SKU: LIPO-VIFWHST1S Categories: Tiny Whoop 1S Chargers, Charging Equipment, Battery Chargers Tags: 1S, BT2.0, Charger, JST-PH2.0, LiHV, LiPo, PH 2.0mm, Tiny Whoop

Description

V3 Edition – Updates

Added memory feature to remember last used settings, no need to set the charge current every time you turn it on!
VIFLY WhoopStor 3 added the buzzer to beep when one charging circle finished, if you don’t like beeping, you can turn the buzzer off manually.

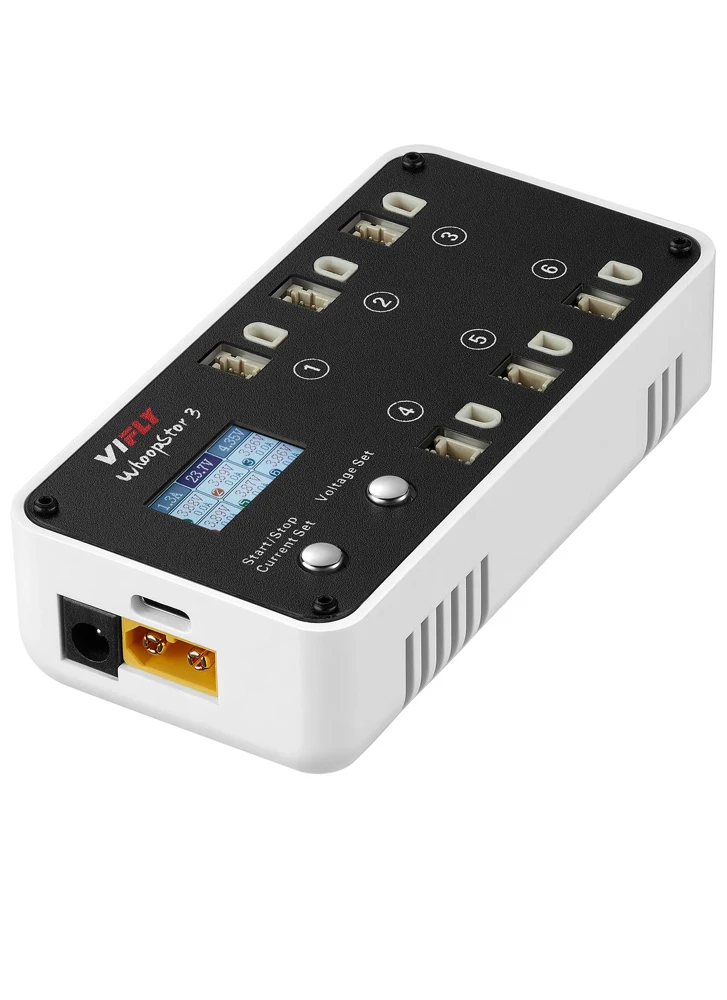

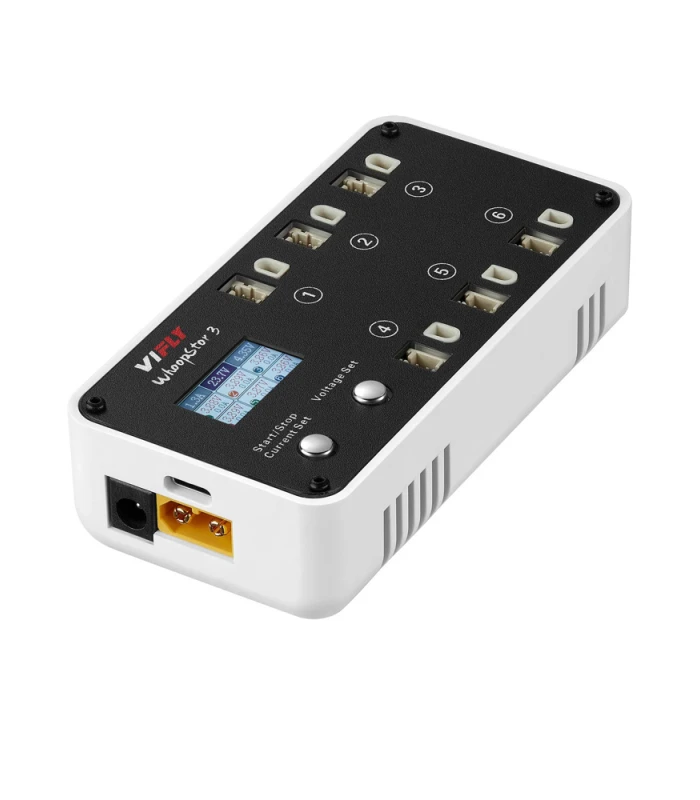

The VIFLY WhoopStor is a 1S LiPo/LiHV battery charger that can charge up to 6 batteries at once, being compatible with both PH2.0 and BT2.0 batteries. It can also storage charge 1S cells. The charger can be powered from DC, USB Type-C (PD3.0, QC2.0,BC1.2) or direct from an 2-5S XT60 battery.

Features

1S Battery Charger and Discharger
6 Individual Ports, PH2.0 and BT2.0 Compatible
Multiple Power Inputs: Type-C, XT60 and DC Input
Regular and HV Battery Supported
Colorful OLED screen display (battery voltage, charge current, etc.)
Start charge or discharge automatically
Heat Sink to Cool the Unit
Buzzer new in V3
Memory new in V3

Functions:

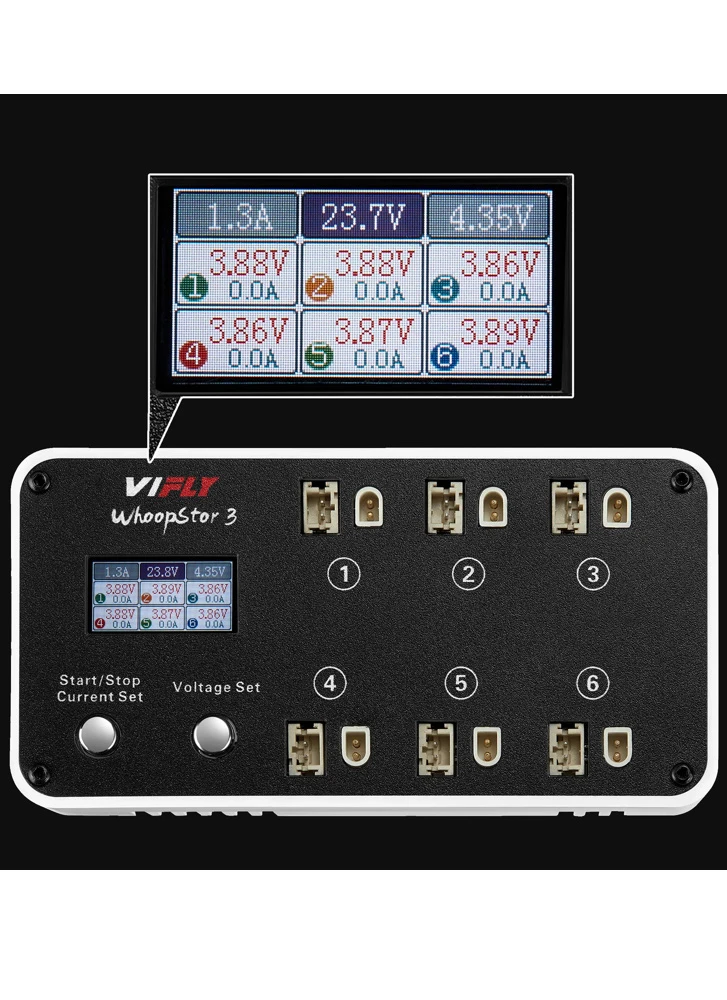

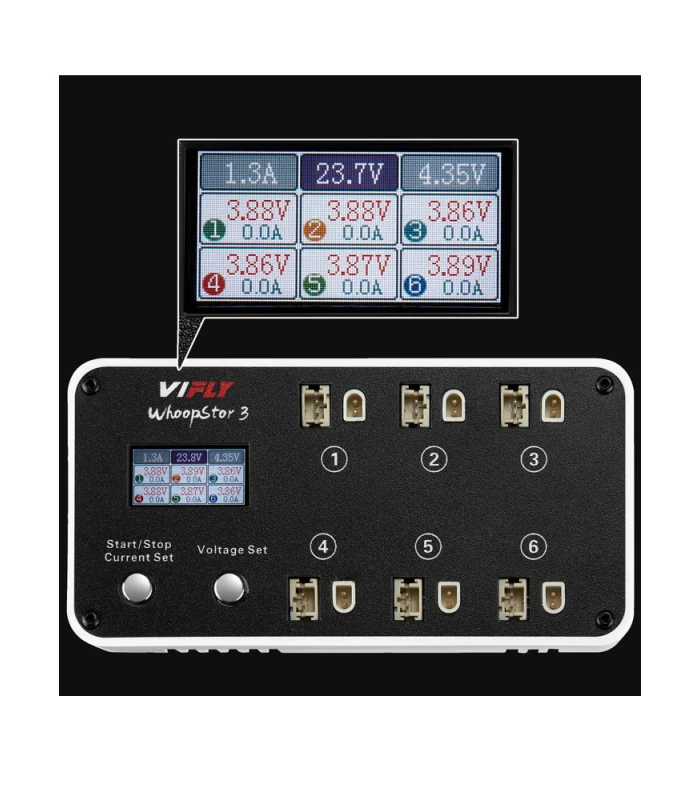

Storage Charger and Discharger with OLED Display
VIFLY WhoopStor is the first 1S whoop battery charger with a storage charge mode. It includes both charging and discharging functions. Just select your target voltage, it will do it for you automatically. The charging status, voltage, charger current etc. is displayed clearly on the OLED screen so you can see in realtime the status of the charge.

6 Individual Ports, PH2.0 and BT2.0 Compatible
VIFLY WhoopStor can charge 6 batteries at the same time. It has 6 individual charging channels, so you don’t have to worry about making sure the batteries are all the same voltage and same capacity as you would if you use the parallel charging method. You also can unplug one that’s done and plug in another while the others are still charging. It is compatible with both PH 2.0 and BT 2.0 connectors and you can mix charge BT2.0 and PH2.0 batteries at the same time.

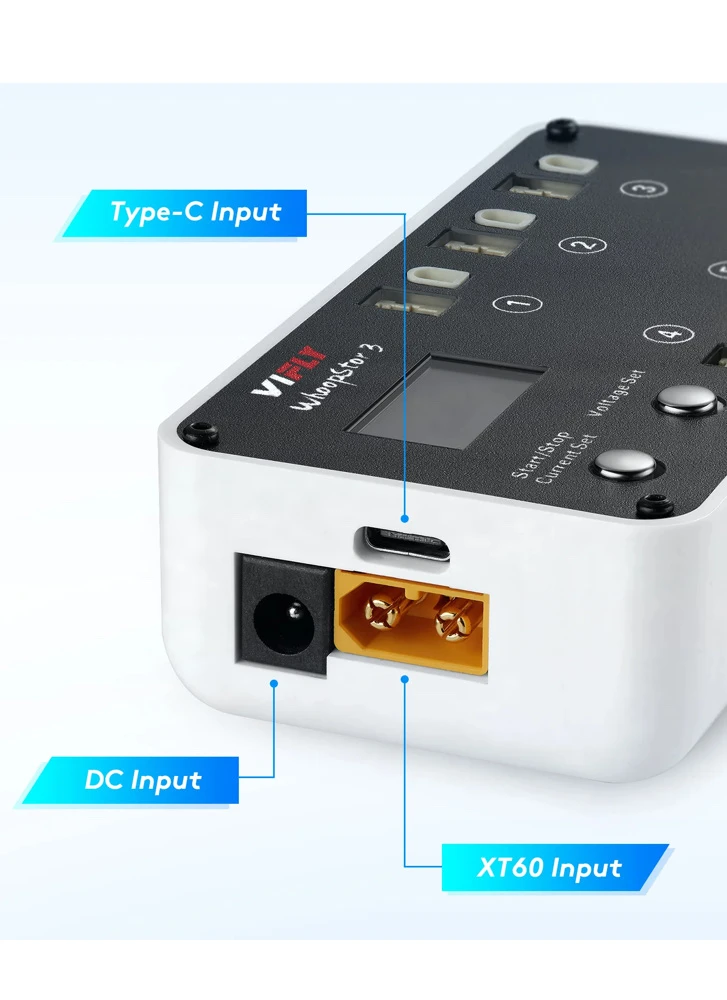

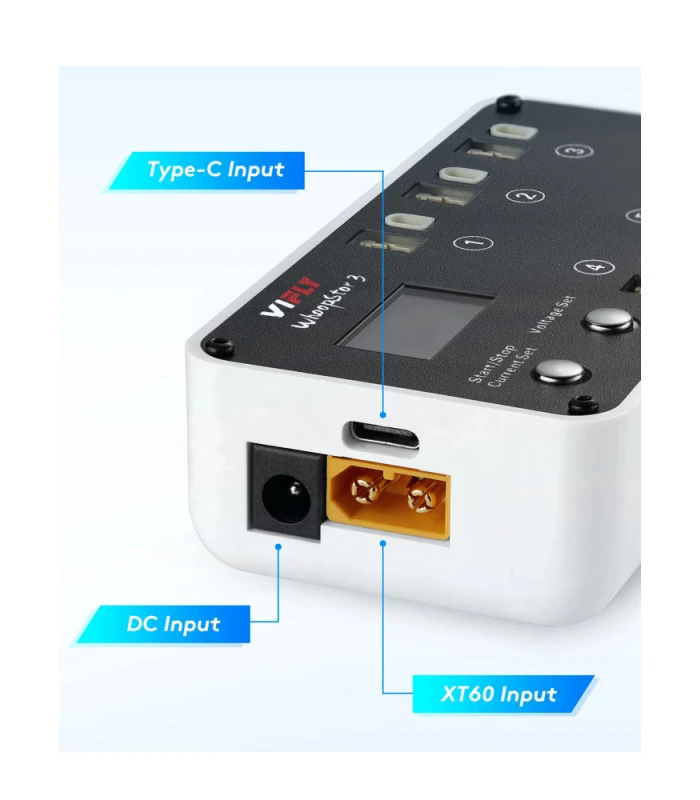

Type-C, XT60 and DC Input
VIFLY WhoopStor supports Type-C, XT60 and DC power input. Type-C PD and QC protocol supports fast charge at 9V and 12V, it also supports regular 5V USB charge.

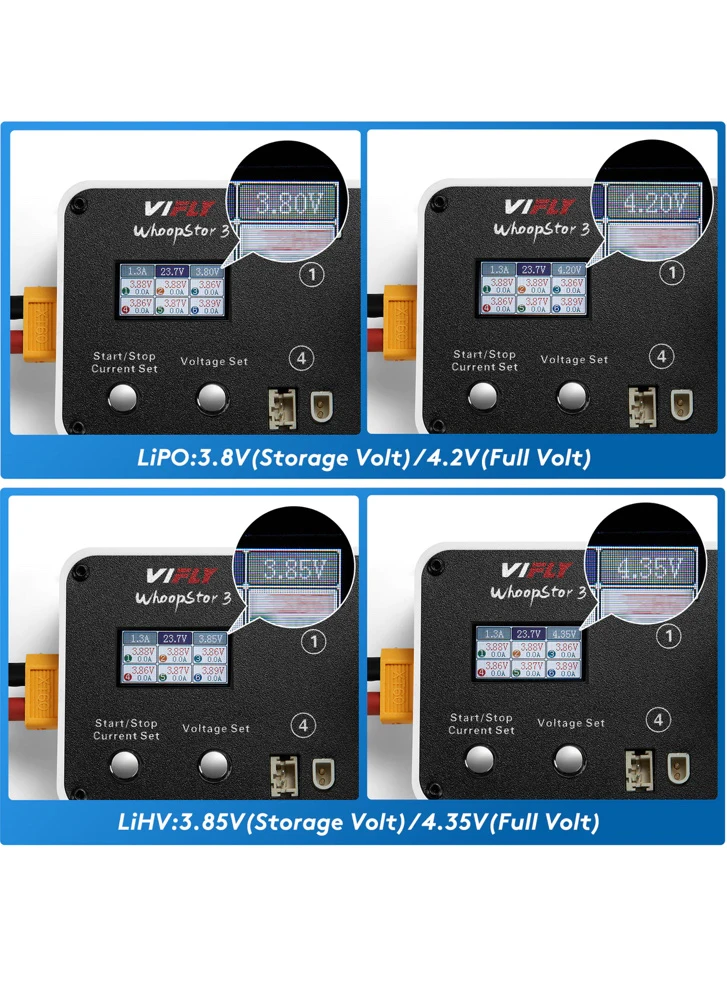

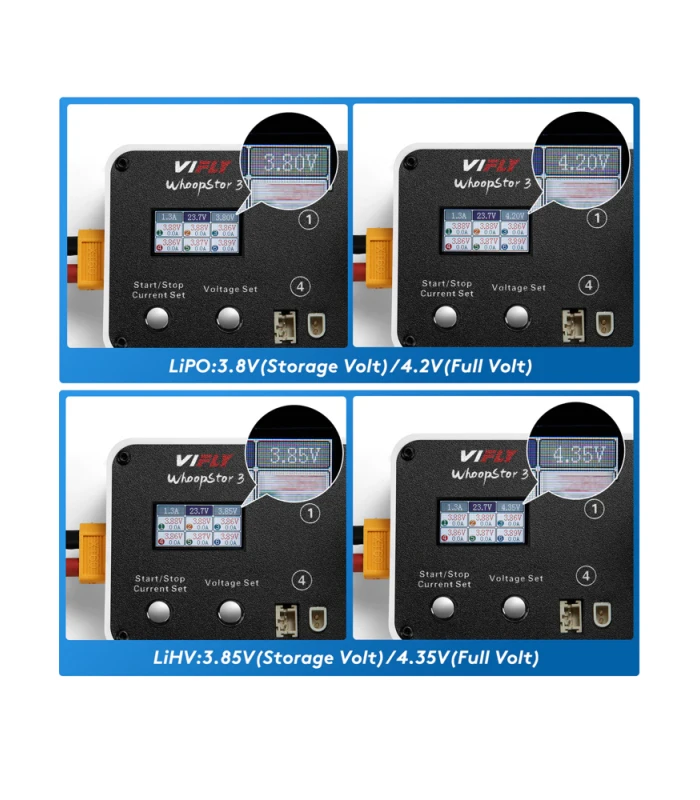

Regular and HV Battery Supported
VIFLY WhoopStor 1S charger supports both regular battery at 4.2V and high voltage battery at 4.35V.

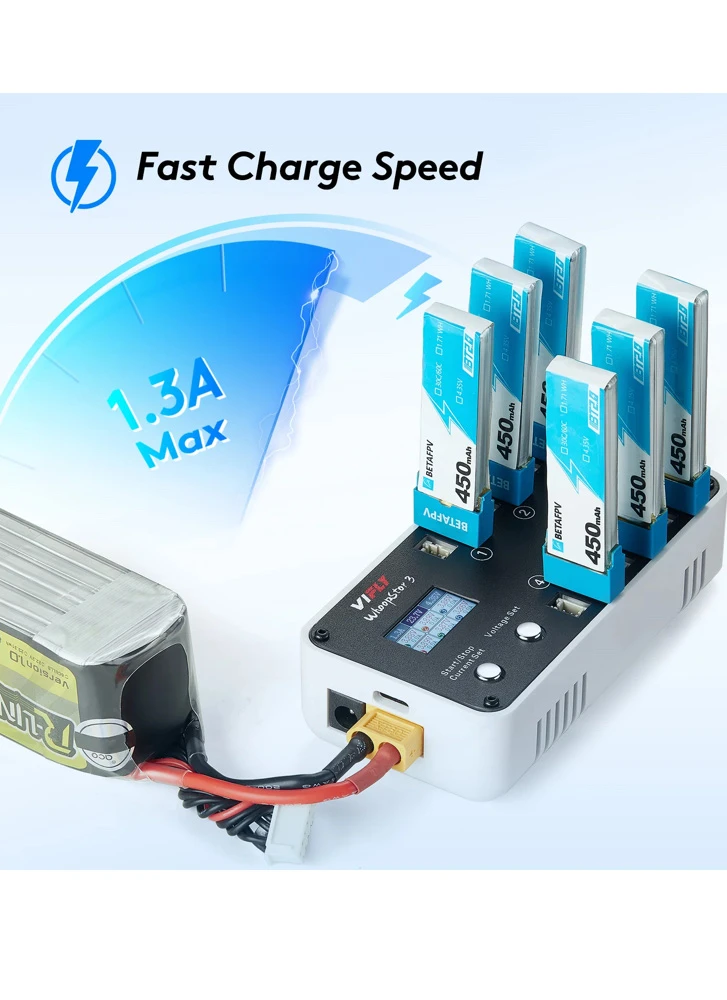

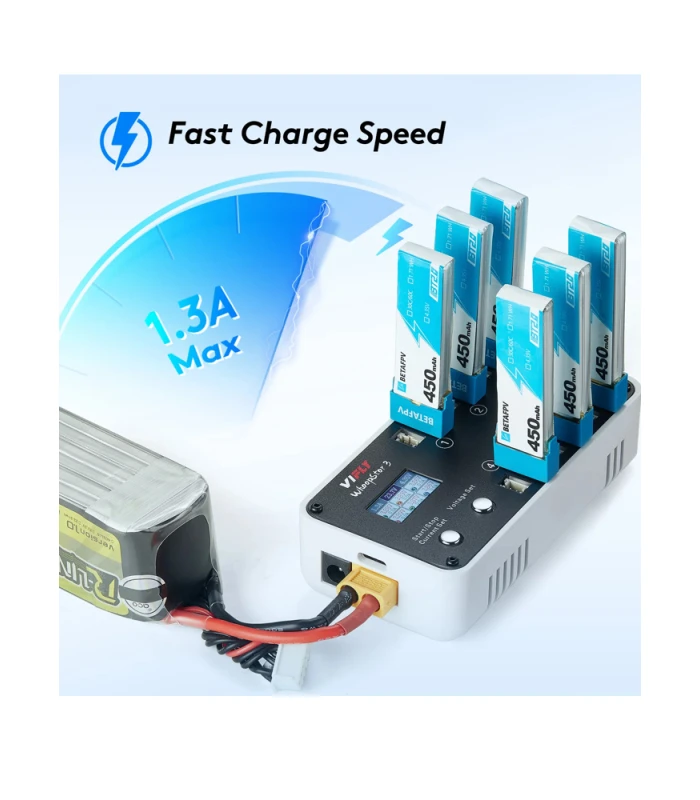

Fast Charge Speed

The charge current range is from 0.3A to 1.3A, you can choose different charge current for different size batteries, it is better to charge the battery with 2C rate.

DO NOT use the 0-H 4.35V charge mode for a normal 1S LiPo. Doing so will overcharge the battery and pose a fire risk. Only charge 1S LiHV batteries to 4.35V.

Specification

Dimensions 108x55x30mm
Weight 140g
Input connector XT60, DC(5.5*2.1mm), USB-C(PD3.0)
Input voltage range 6V-26V (XT60 2S-6S Battery, DC), 9V-20V (USB-C)
Minimum input power 40W
Max charging current 1.3A/port
Support battery connector PH2.0 & BT2.0
Battery type LiPO 4.20V(±0.05V) / LiHV 4.35V (±0.05V)
Storage voltage 3.80V (±0.05V) / 3.85V (±0.05V)
Max discharge power 1.1W/port

Includes:

1x VIFLY WhoopStor V3 6-Port 1S Battery Charger and Discharger – LiHV/LiPo

Q&A

Questions and answers of the customers

There are no questions yet. Be the first to ask a question about this product.

Advice

Lithium Polymer (LiPo) Battery Safety Guidelines

PLEASE READ AND KEEP FOR REFERENCE

Lithium Polymer (LiPo) batteries can be extremely dangerous if not handled correctly. A lithium fire can reach extremely high temperatures, is unpredictable and difficult to extinguish.

A standard four-cell 1500mAh LiPo battery at full charge stores a massive 25Wh (watt hours) of energy!

Please take these risks seriously. We advise following the guidelines below to safely use and maintain your LiPo batteries.

Disclaimer

This information sheet is provided to help our customers understand LiPo battery safety. However, you use this information at your own risk. Following good practices will also help to ensure the longevity of your battery packs.

By purchasing LiPo batteries or charging equipment from our store, you accept all risks related to their use. If you disagree, please contact us immediately to arrange a return before using the product.

1. Charging Safety

Use a proper charger: Always charge LiPo batteries with a LiPo-compatible charger.
Set the correct parameters: Charge at the recommended voltage and current settings specified by the manufacturer. Many fires occur due to incorrect charge settings. In most cases, the safest charge rate is 1C.
Double-check connections: Ensure that charging leads are connected correctly. Reverse charging can lead to cell damage or a fire.
Charge in a safe environment: Charge batteries on a non-flammable surface, in a fireproof container, and away from flammable materials.
Monitor while charging: Never leave charging batteries unattended. Stop charging immediately if the battery becomes hot or swollen.
Avoid overcharging: Never exceed 4.2V per cell (4.35V for LiHV Lithium-ion Polymer High-Voltage batteries).

2. Storage Safety

Storage voltage: For long-term storage, maintain a ‘storage charge’ voltage of 3.7V to 3.85V per cell.
Store in a cool, dry place: Always store your LiPo pack in a safe and non-flammable container away from flammable objects. A LiPo sack or metal/ceramic storage container is best. Avoid direct sunlight or high temperatures (above 60°C/140°F). The ideal storage temperature is 10°C to 25°C (50°F to 77°F).
Avoid full discharge: Never store batteries at full charge or with a low voltage (below 3.3V per cell).

3. Handling and Usage

Inspect regularly: Check batteries for any damage, swelling, or leaks before use.
Avoid physical damage: Protect batteries from impacts, punctures, and exposure to moisture or water.
Never short-circuit: Avoid contact between battery terminals. Do not store or transport batteries where they can come into contact with sharp or conductive materials (e.g., metal objects).
Use within limits: Stay within the manufacturer’s recommended discharge rate and capacity ratings for safe operation.
Monitor during use: Use voltage alarms or onboard monitoring to prevent over-discharging (below 3.3V per cell).
Crashes: If a battery is damaged in a crash or shows changes in appearance (including swelling or gassing), move it to a safe place to observe, and discard it. Never attempt to charge a battery with physical damage, regardless of how minor the damage may seem.

4. Disposal

Lifespan: Rechargeable LiPo batteries do not last forever. Batteries that have lost 20% of their initial capacity should be removed from service and disposed of.
Dispose properly: Never throw LiPo batteries in the general waste. Dispose of them at certified recycling centres.
Prepare for disposal: Fully discharge batteries before disposal and tape the terminals to prevent short circuits.

5. In Case of Fire

Fire containment: If a LiPo battery catches fire, use a Class D fire extinguisher or sand to smother the fire. Avoid inhaling fumes and vacate the area immediately.
