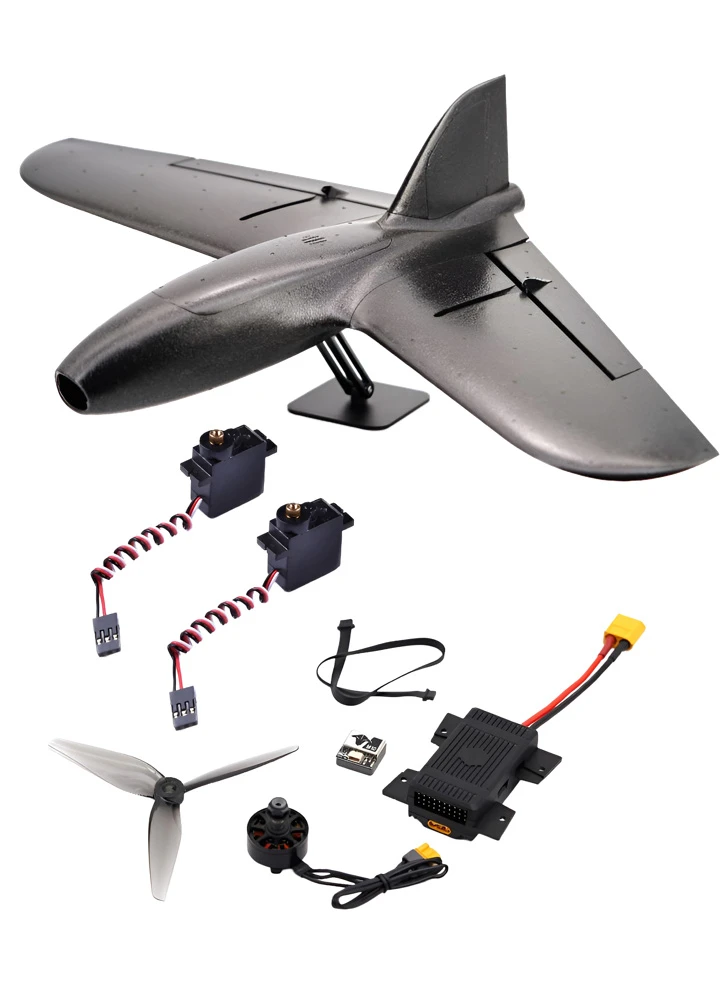

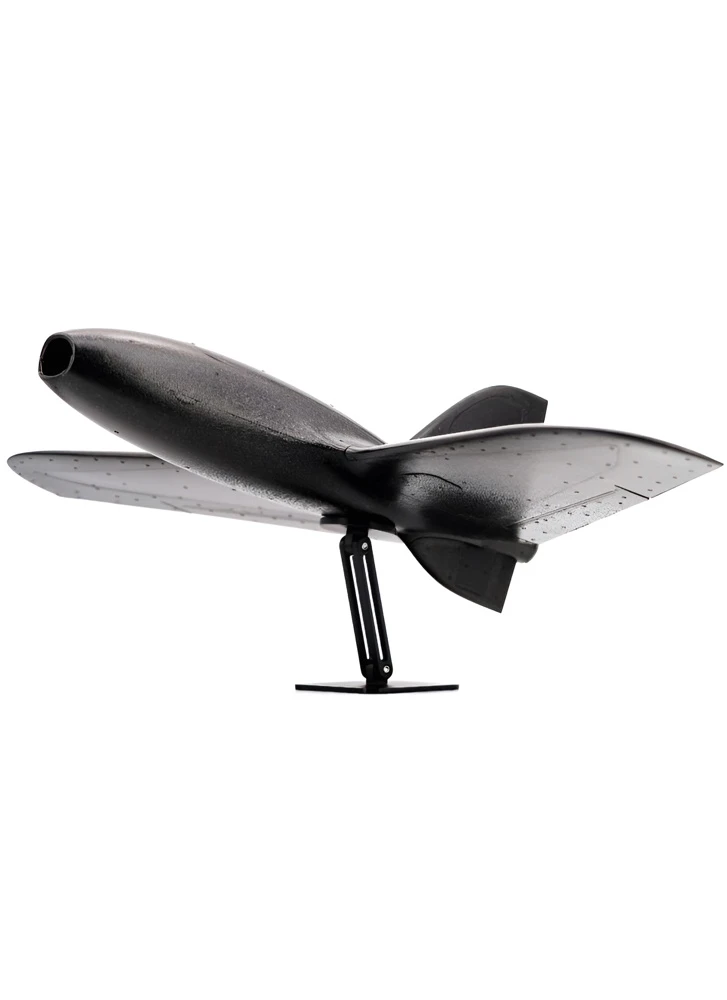

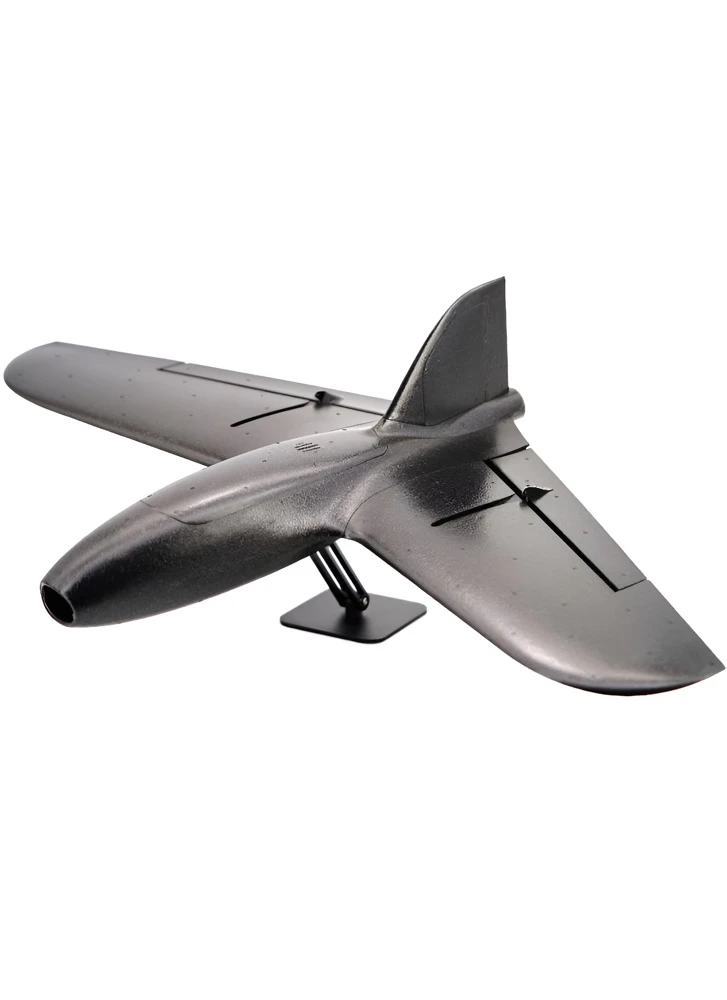

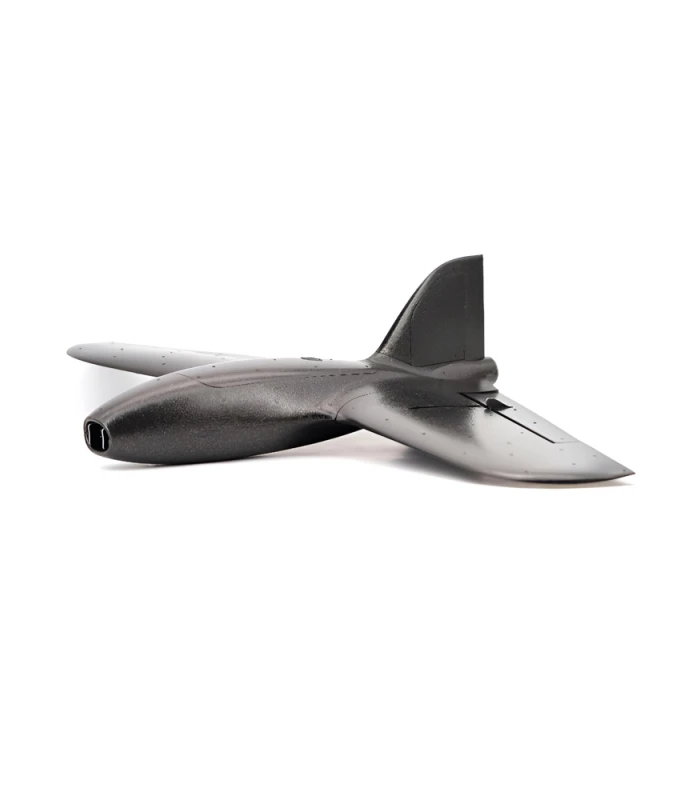

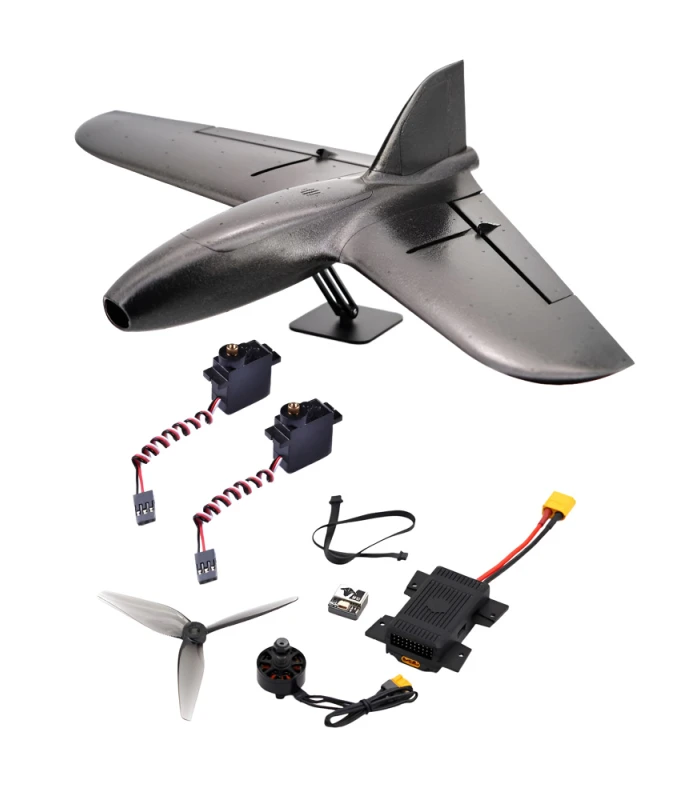

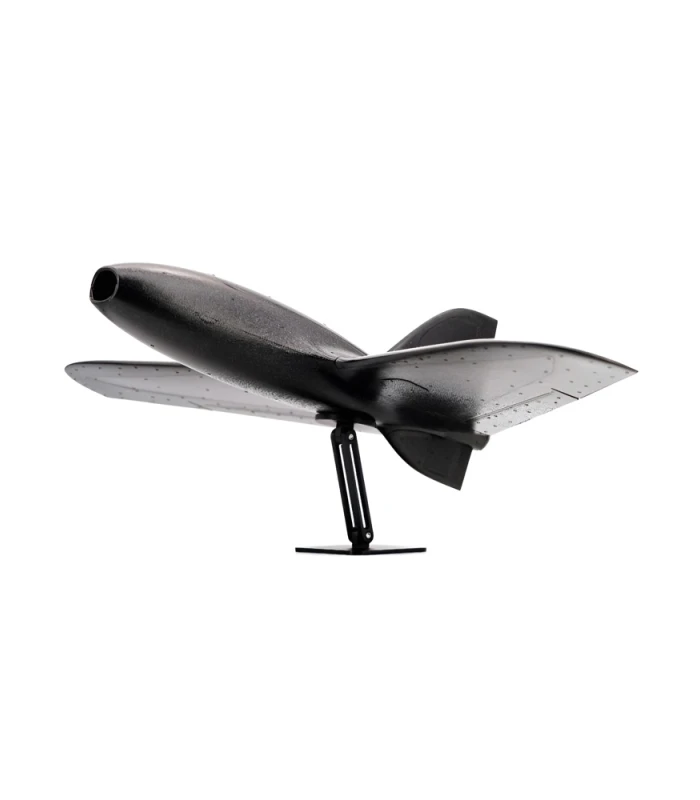

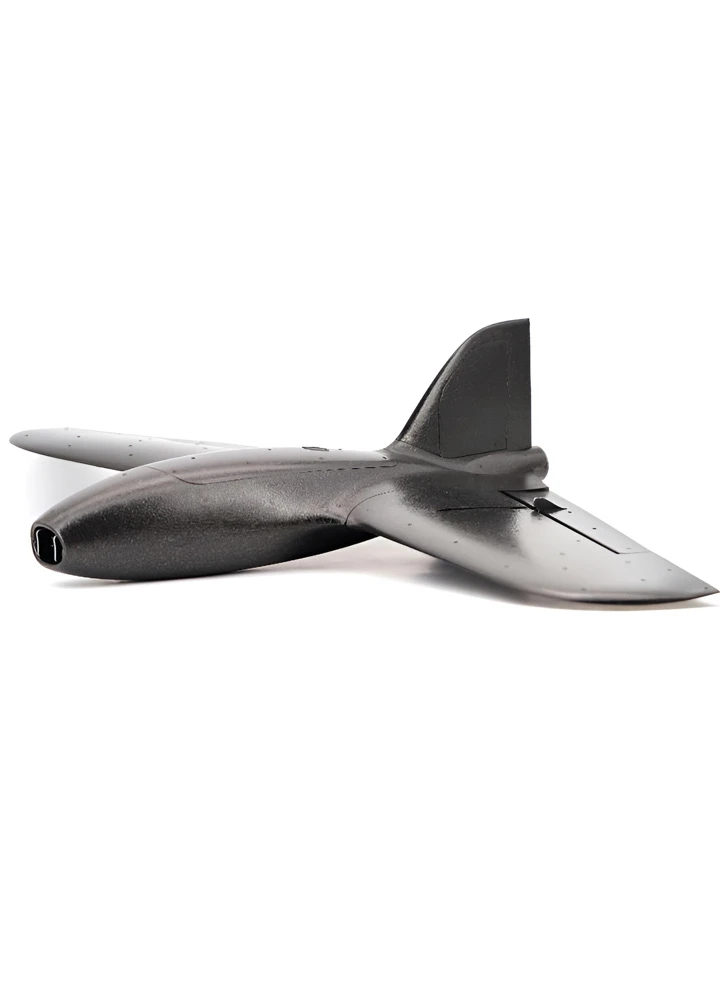

TBS Chupito Set – FPV Flying Wing

The TBS Chupito is a compact forward-swept FPV flying wing platform that stays true to its heritage of the TBS Mojito. We gently eased off the focus on efficiency and toned the complexity down a notch or two to make it more approachable and easier to fly for casual pilots. The cruise speed is still a respectable 70km/h, while the top speed on the stock setup will allow 160km/h. It will give you a comfortable 20mins/15km of casual flying on a 1300mAh 6S battery, and it’s quiet enough not to bother your neighbors. Keep the plane in a travel-friendly 3 piece confguration or fully glue everything down for a basher-friendly rocketship that is easily strapped to the back of a FPV backpack, or on a spare seat of your car.

The wing is built for both analog and digital video links, and we’ve also designed 3D printable customizations that make it the perfect wing to experience and document your FPV adventures!

Note on Price:

We know the price of the Chupito Wing is higher than the official RRP. This is due to the very high cost of airfreight for large, bulky items. Sea freight would be cheaper, but take months — we chose air so you can get it now.

Fun factor

The Chupito was engineered to provide the maximum amount of accessibility and fun while keeping the performance and flight envelope beyond any other wing in its size and weight class. It is the perfect bring-along wing for small (or large) trips, or just as a casual long range flyer. With the small size and precise response to inputs, you can shoot tight gaps. On 6S, unlimited vertical flight allows for maneuvers limited only by your imagination. The battery compartment gives you enough space to install a power system that covers 5km vertical, or 30km horizontal distance – with margin to spare.

Build and appearance

The set comes disassembled, but with everything you need to get rup and running – minus R/C, FPV and battery. If you are starved for speed, we recommend laminating the wings, and speeds of 230km/h will be achievable using the right propellers (bi-blade, high pitch). In the air it’s visually hard to differentiate from a Mojito, but when you place them side-by-side the smaller size become apparent. All in all, this wing subscribes to the 80/20 rule, giving you the most bang-for-buck, and an insanely fun all-around wing.

Features

• Easy to fly forward-swept FPV wing with huge performance envelope
• Black EPP material with glass fiber camera and motor mounts
• Pre-cut camera, servo, battery, R/C receiver and receiver antenna slots

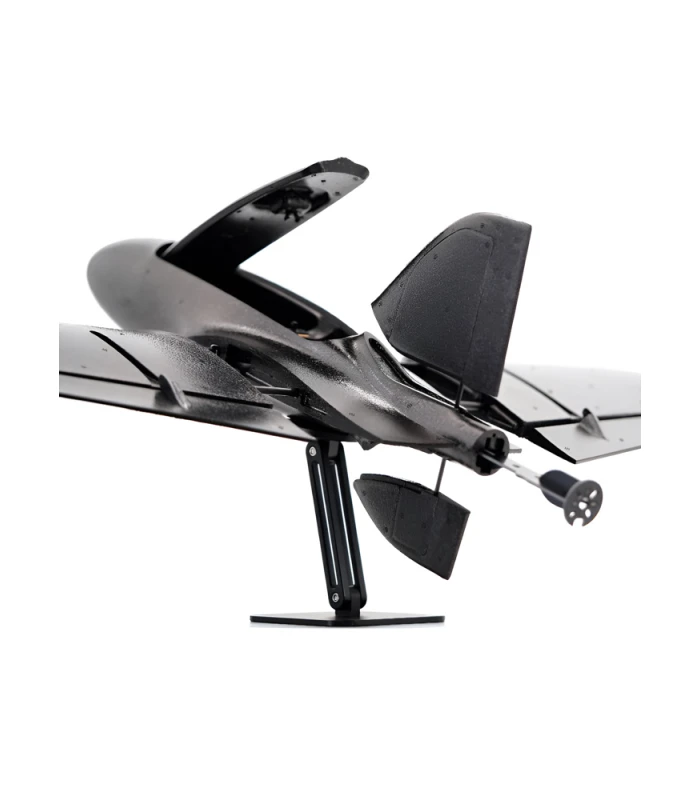

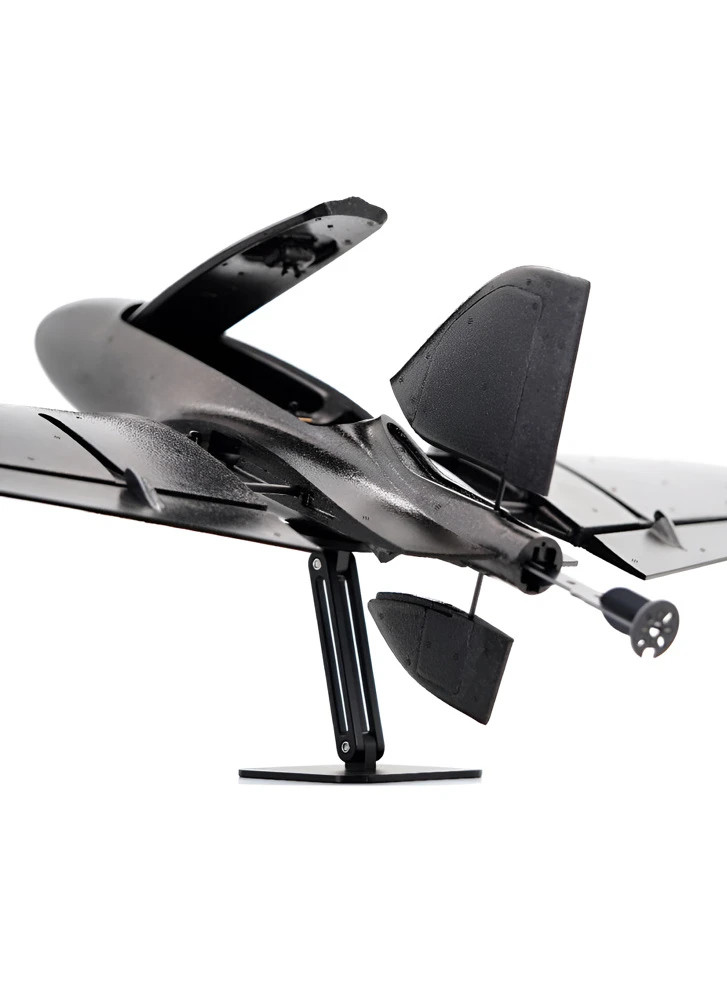

• Push-to-open equipment bay for R/C and FPV electronics

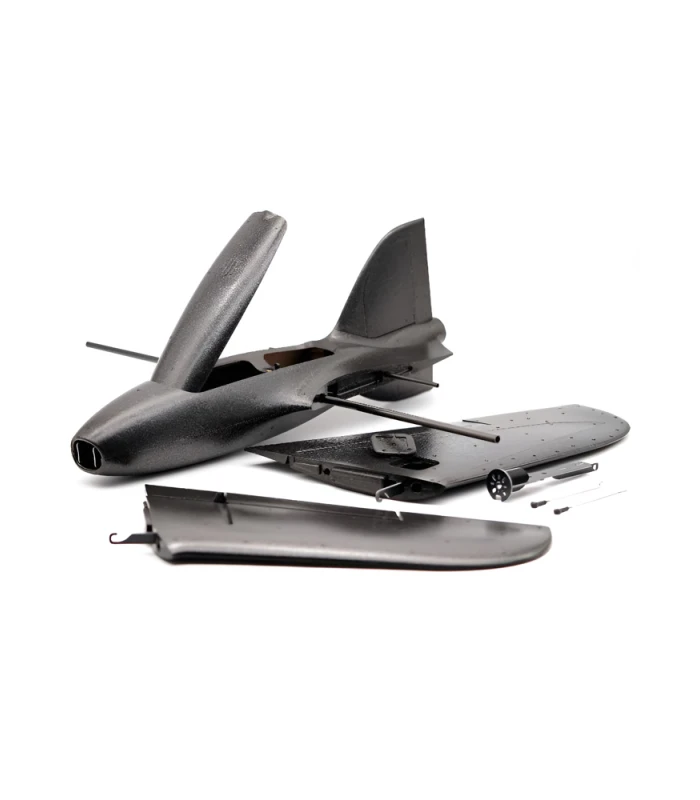

• Travel-friendly disassembly or fully glued basher configuration possible
• Over dimensioned pushrods and wing spars for great durability

Specifications

• 31.5in / 80cm wingspan!
• 23oz / 650g AUW or more
• 20min casual flying time
• 18mi / 30km endurance
• Battery (4S-6S)
  • Max dimensions 50 x 50 x 150 mm. 800 – 1800mAh 6S
  • Battery max weight: 270g.

Recommended FPV and Radio equipment

• FPV: DJI O3 or O4, Walksnail or any analog video system
• R/C: TBS Crossfire Nano RX Pro or TBS Crossfire Nano RX

Downloads

• Manual
• 3D File for Pan FPV mount
• iNav CLI suggestions
