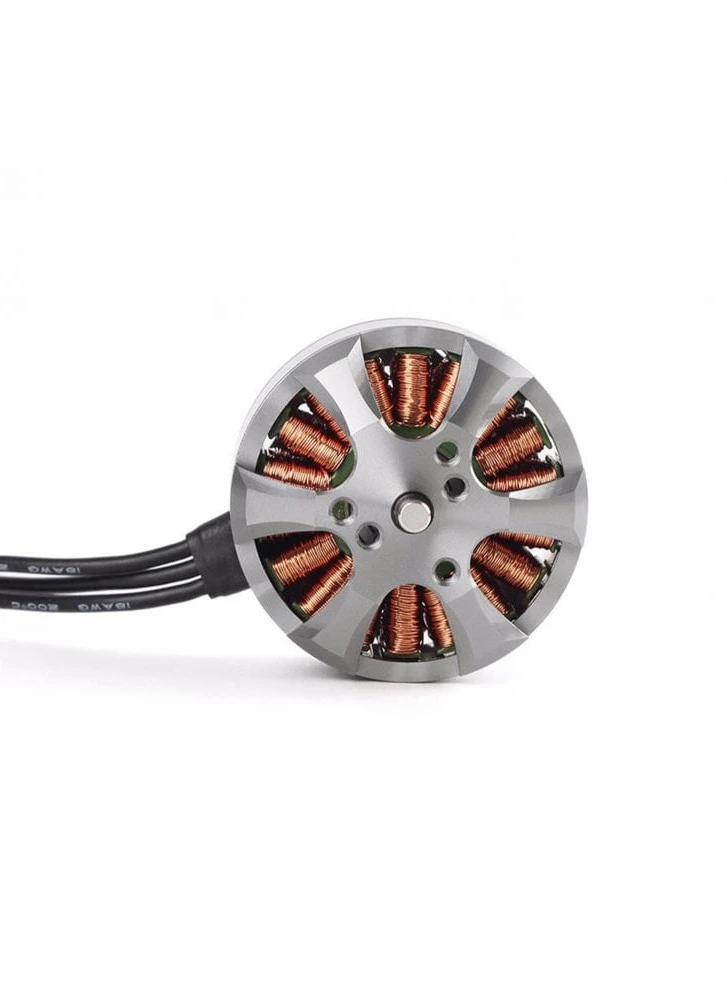

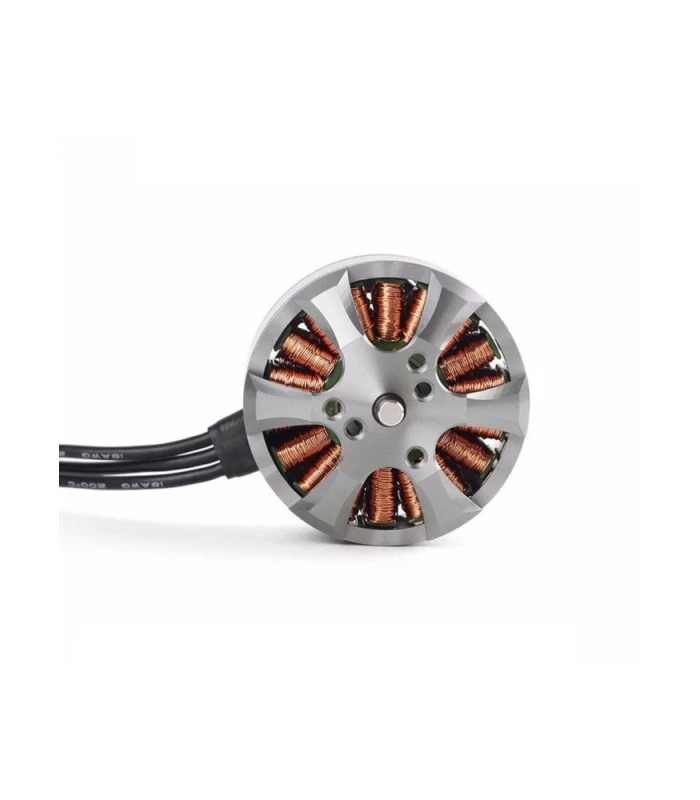

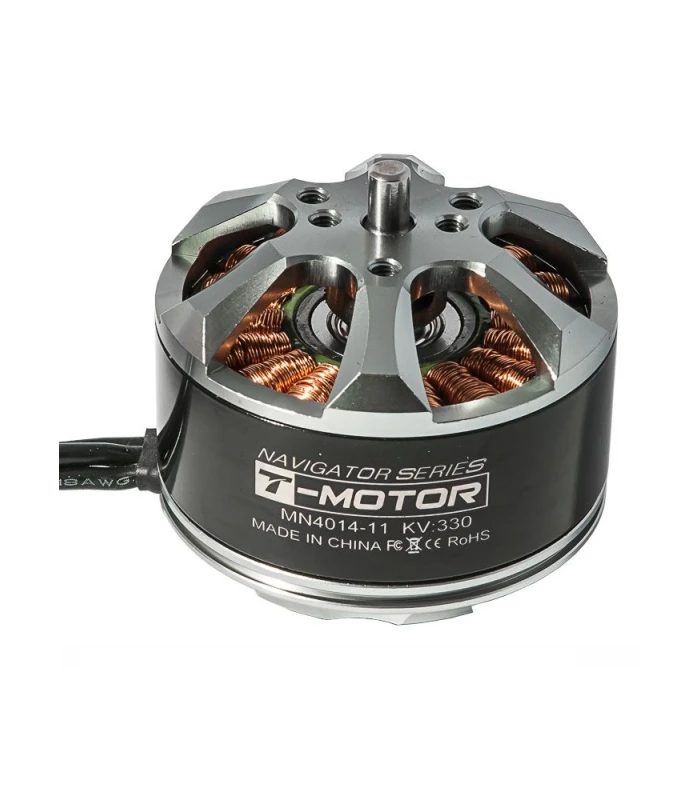

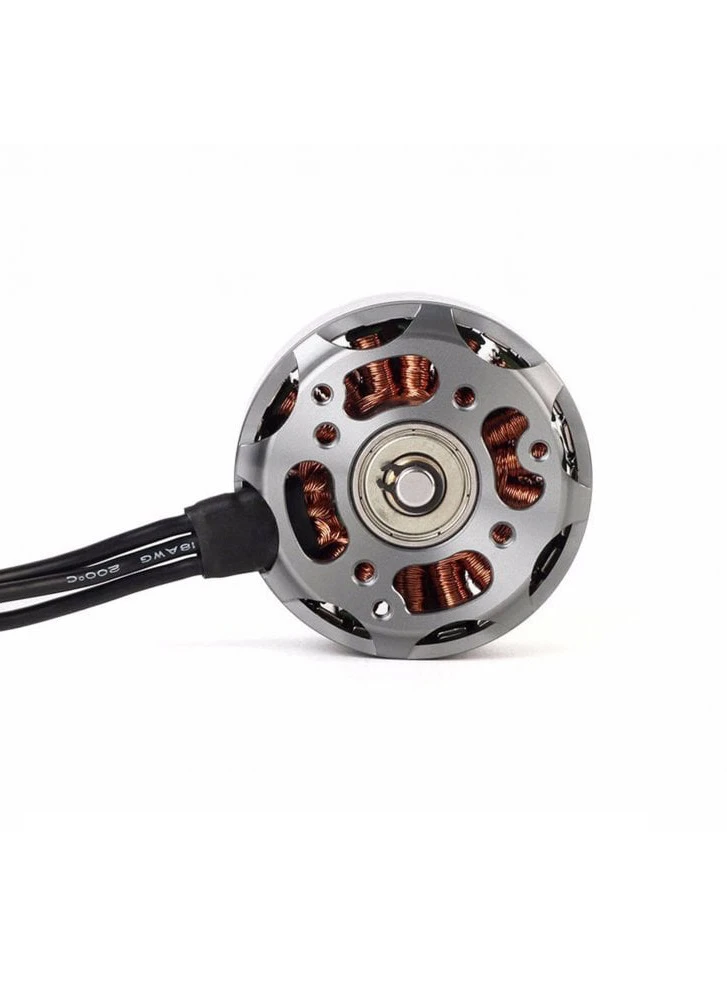

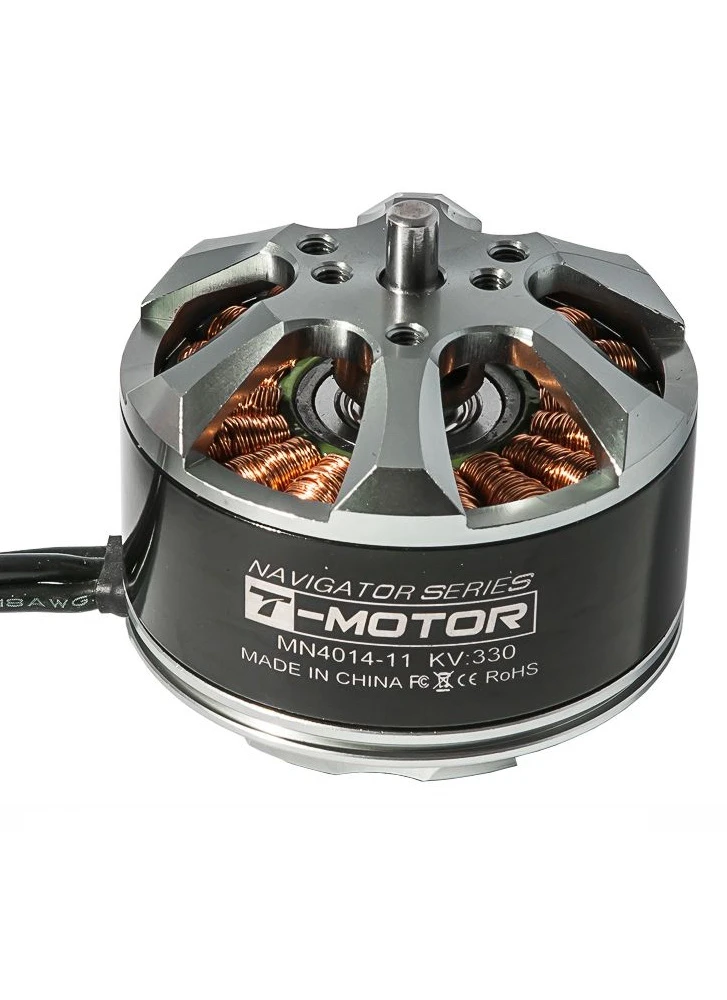

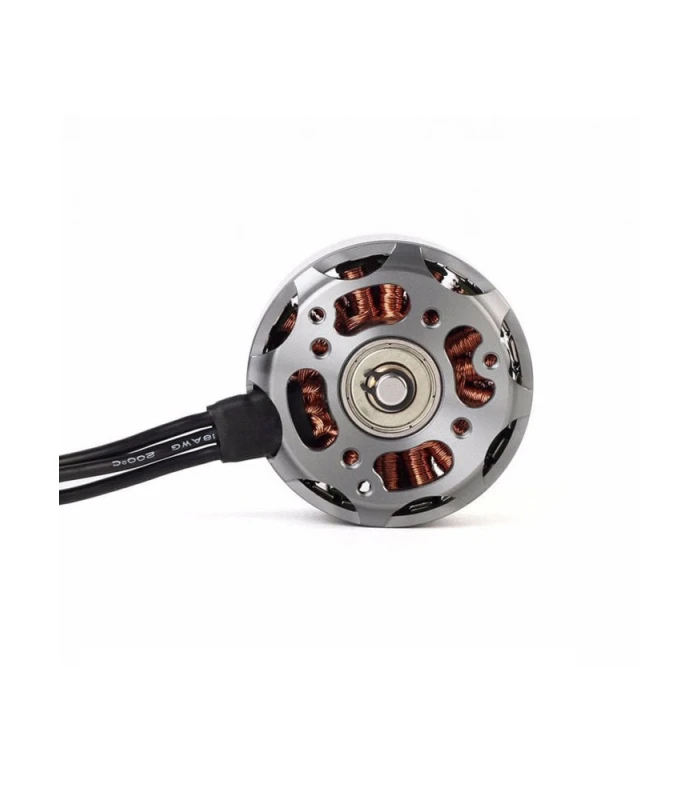

T-Motor MN4014 330KV Brushless Motor for Holybro X650 CW / CCW

T-Motor MN4014 330KV Brushless Motor for Holybro X650 CW / CCW - Image 3

T-Motor MN4014 330KV Brushless Motor for Holybro X650 CW / CCW - Image 4

T-Motor MN4014 330KV Brushless Motor for Holybro X650 CW / CCW

£93.90 Inc. VAT

Designed for the Holybro X650 multirotor. Suited for 3-5.5KG quadcopters / 15-17inch prop.

Version

Clear

Add to compare

0 People watching this product now!

Description

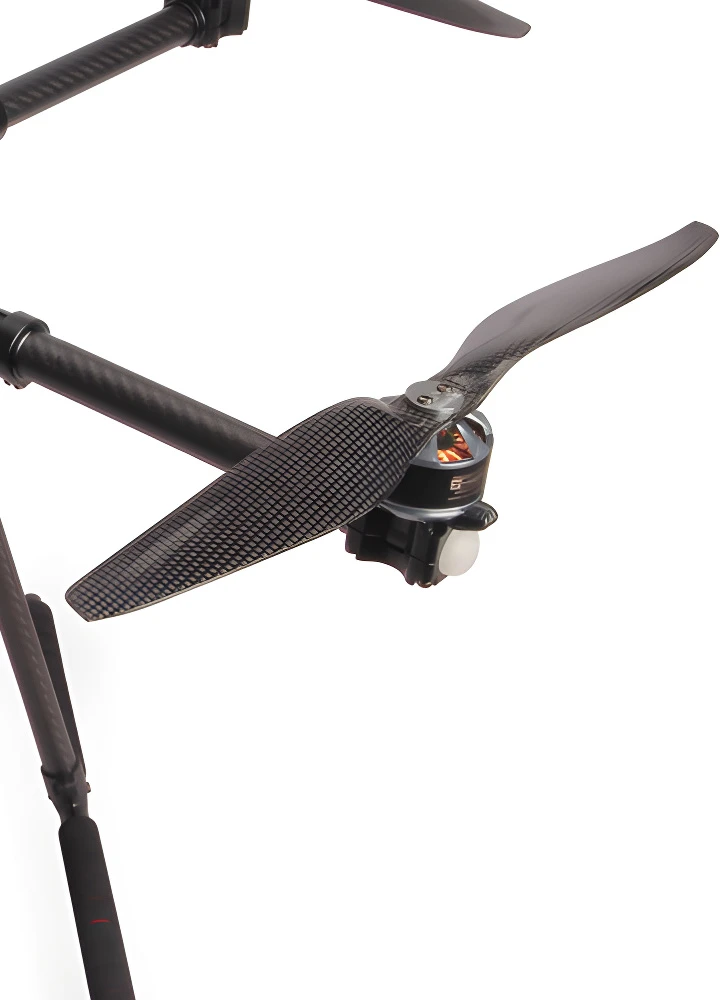

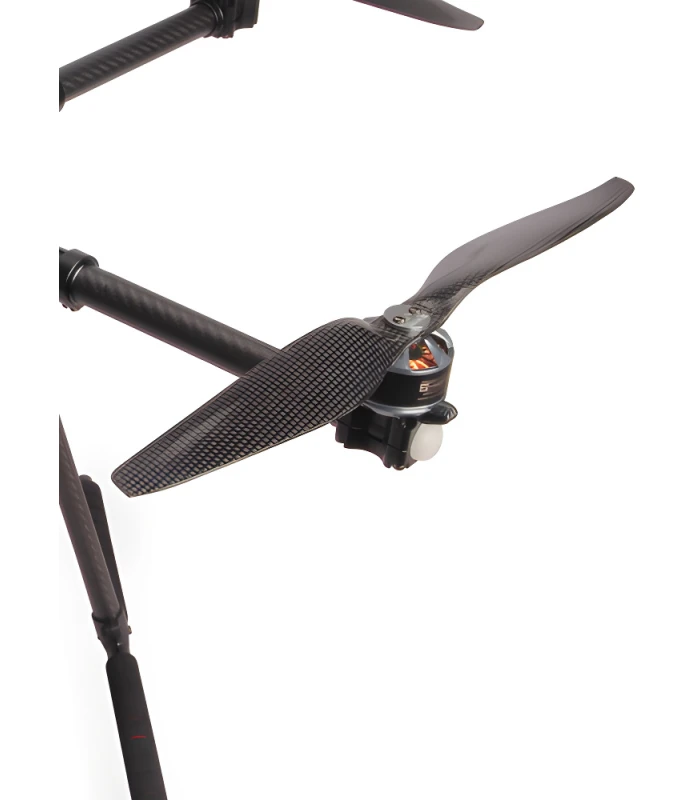

This is a versatile motor with a high thrust to weight ratio. It’s a fantastic choice for medium sized quadcopters / hexacopters and designed for use with Holybro’s X650 frame. The motor can be matched with a 15×5.5 prop.

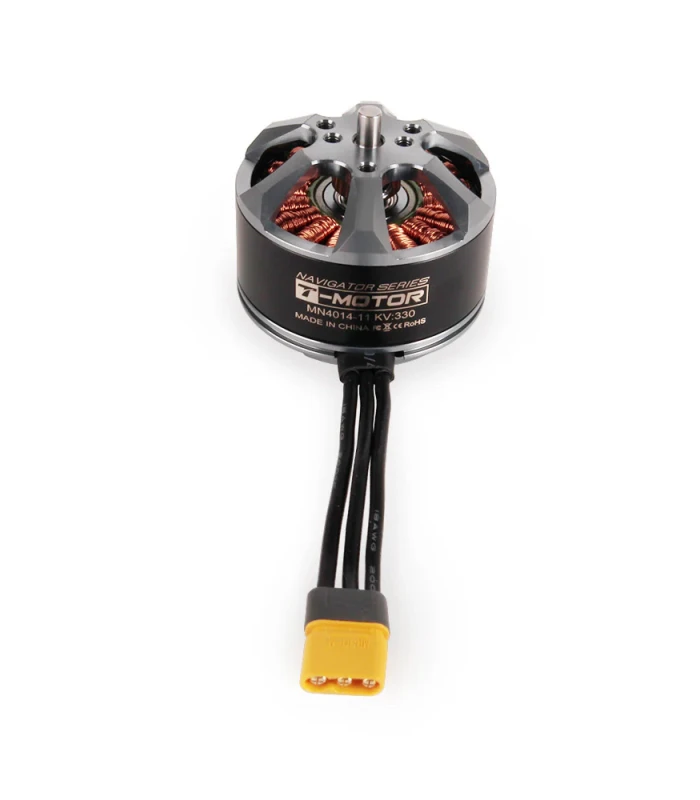

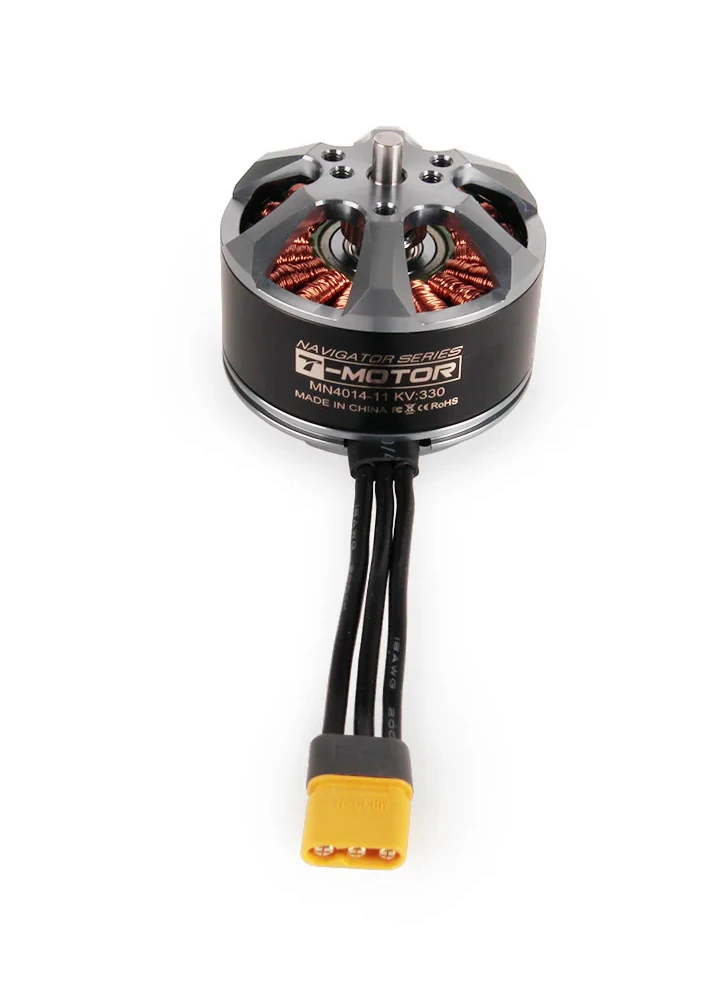

The motor comes with pre-soldered with a MR30 connection ready to plug straight into compatible ESC’s. Fixing screws not included (size M3).

Features:

Ideal to 3kg to 5.5kg quadcopter
Can be used with 4-8S
Recommended prop for Holybro X650 15×5.5 (compatible with 15-17inch)

Specification

KV………………………………………………………………………………………………….330

Configu ration………………………………………………………………………..18N24P

Stator Diameter………………………………………………………………………..40mm

Stator Length……………………………………………………………………………14mm

Shaft Diameter……………………………………………………………………………4mm

Motor Dimensions(Dia.*Len)…………………………………….Φ44.8×34.5mm

Weight (g)……………………………………………………………………………………149g

ldle current(10)@10v(A)……………………………………………………………….1.1A

No.of Cells(Lipo)…………………………………………………………………………4-8S

Max Continuous current(A)180S…………………………………………………..25A

Max Continuous Power(W)180S……………………………………………….750W

Max. efficiency current…………………………………………………….(3-10A)>84%
internal resistance…………………………………………………………………….85mΩ

Downloads

Datasheet (jpg, 649KB)

Download
