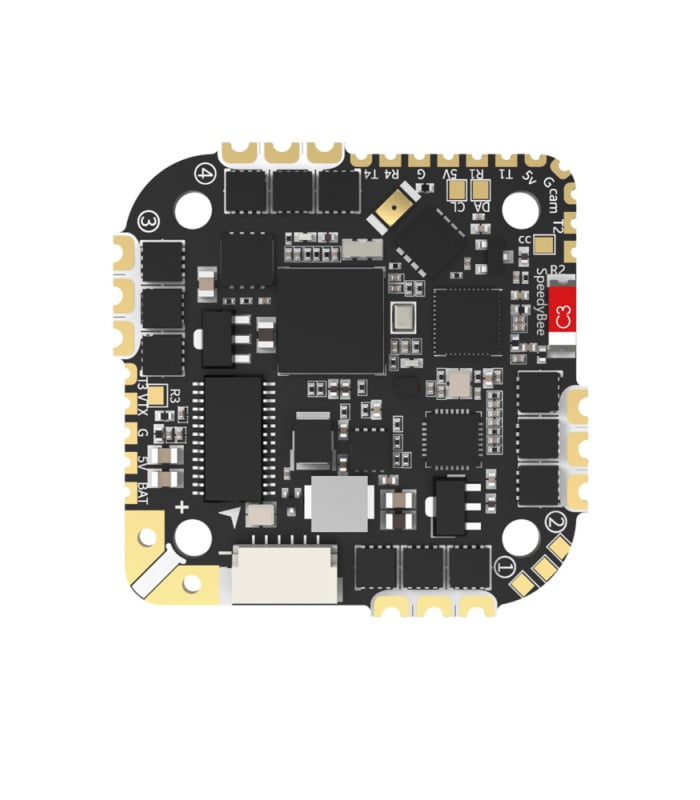

Discontinued: SpeedyBee F745 35A BLS 25.5×25.5 AIO Flight Controller

A high quality AIO FC for 3.5″ to 5″ cinewhoops/long-range or lightweight quads.

This product is currently sold out.

No worries! Enter your email, and we'll let you know as soon as it's back in stock.

0 People watching this product now!
Description

Product Discontinued: For other AIO controllers see HERE.

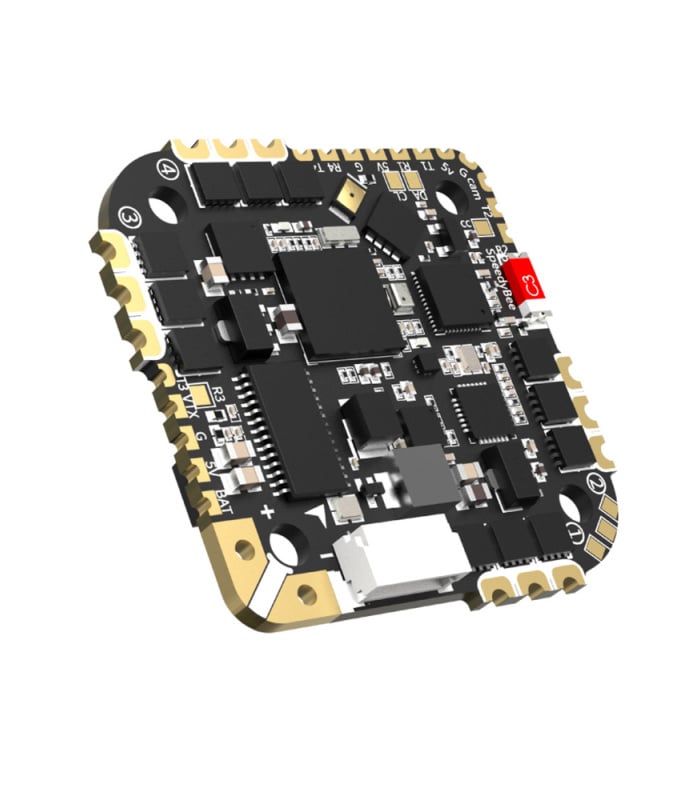

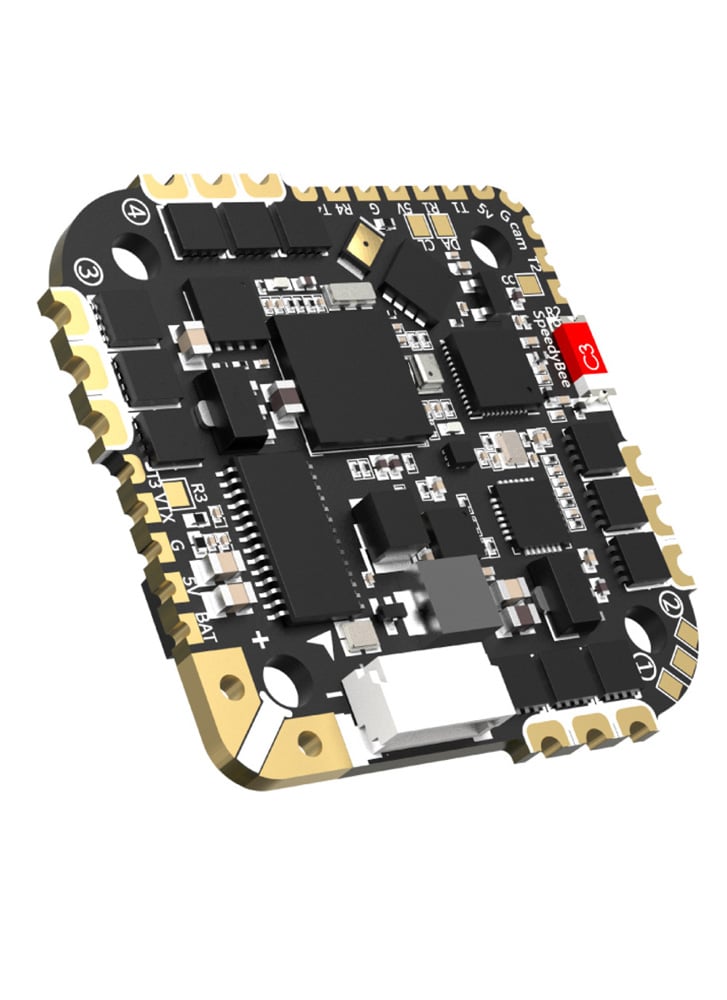

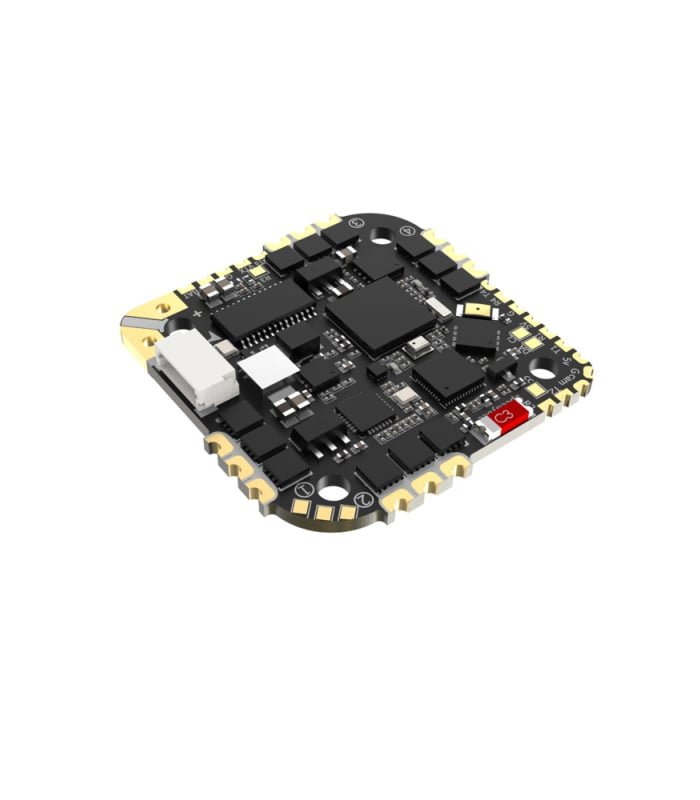

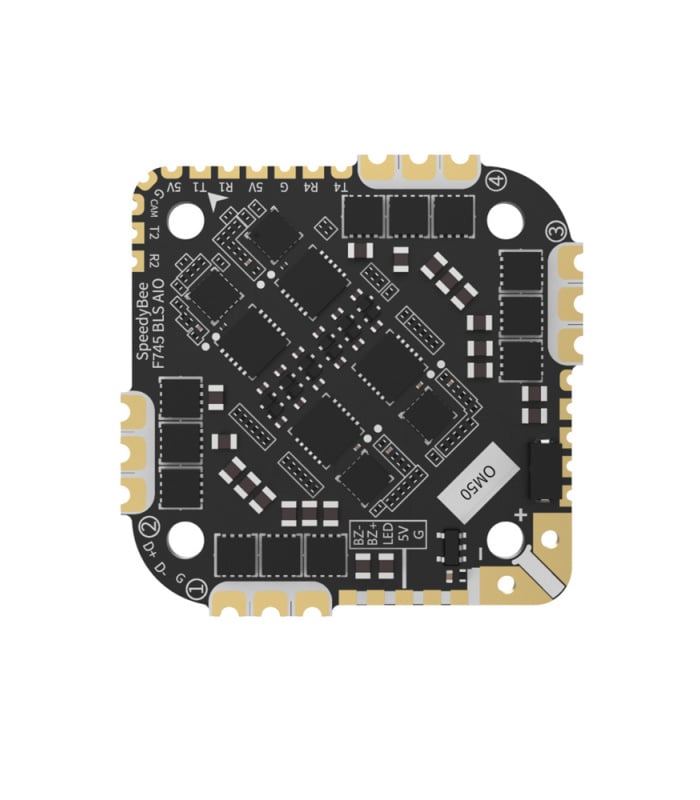

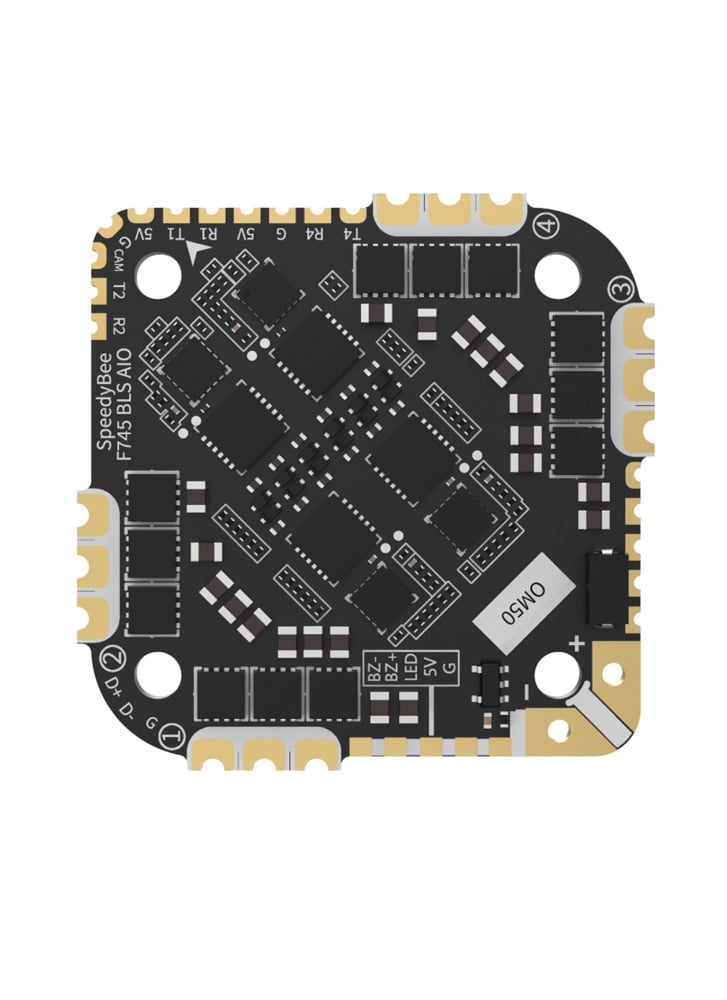

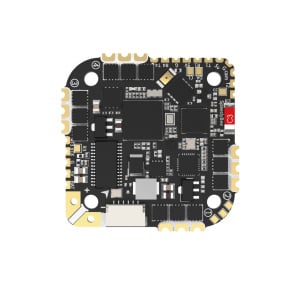

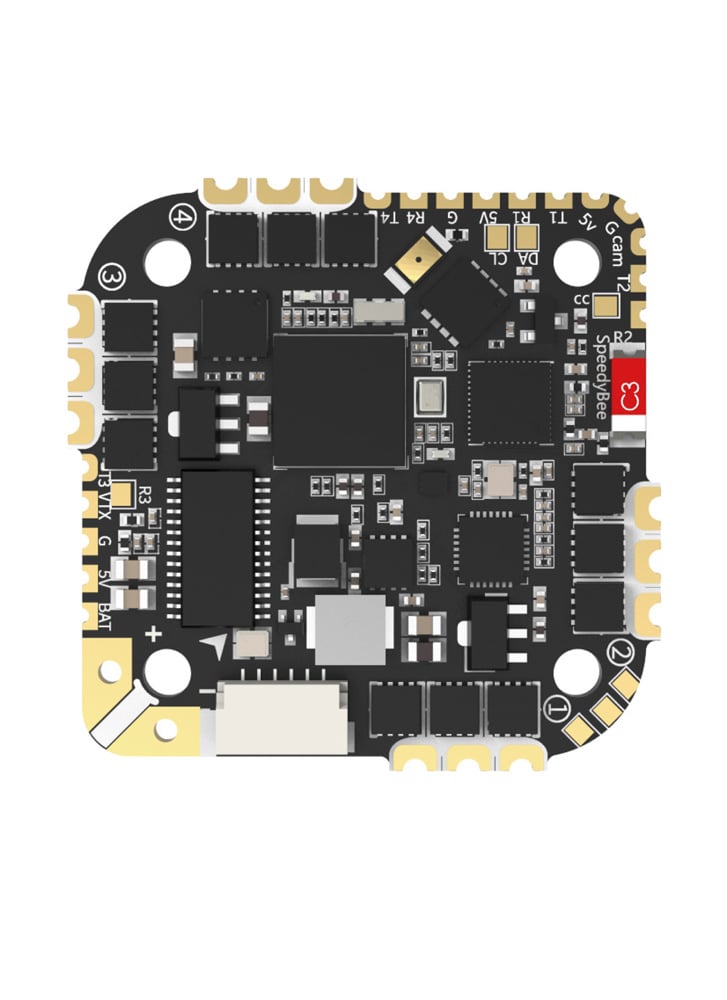

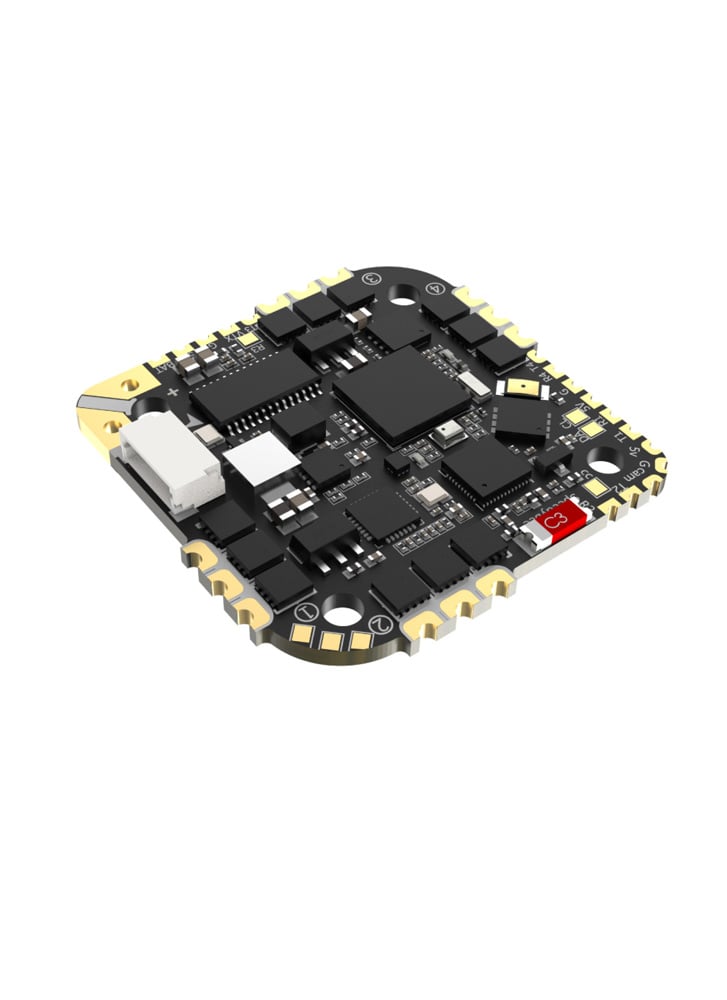

Theย SpeedyBee F745 35A BLS AIOย is a single board solutionย for lightweight builds in the 3.5″ to 5″ range. It combines a powerful F745 MCU withย 35A 6S compatible ESCs, which use high quality Toshiba MOSFETs. Further spec includesย MPU600 Gyro,ย onboardย BMP280 barometer andย 8mb blackbox flash. There’s alsoย wireless support for both the flight controller and ESC through the Speedy Bee App, makingย configuring Betaflight and BLHeli_S settingsย in the field a doddle.

Features

  • Wireless ESC firmware flashing + full BLHeli_S configuration
  • Wireless FC firmware flashing + full Betaflight configuration
  • Powerful and Durable 35A 6S ESC with TOSHIBA MOSFETs
  • 4 UARTS + Barometer + I2C pads + 8MB BlackBox flash
  • Change motor directions wirelessly
  • DJI plug for simpler digital build
  • Powerful F745 FC + 35A ESC

IMPORTANT NOTES

  • Make sure the AIO’s slightly bigger size can fit your own quad! The size of this AIO is 36.5(L)*36.5(W)*7.0(H)mm. We suggest you use this AIO on your 3.5″ to 5″ cinewhoops/long-range or lightweight quads. For quads below 3.5″, you should carefully check if your quad has enough room for this AIO.

SpeedyBee AIO FC Banner ASpeedyBee AIO FC Banner B

Specification
  • Dimensions: 36.5mm(L) x 36.5mm(W) x 7mm(H), recommended for quads at 3.5″ or above
  • MountinPattern:ย  25.5 x 25.5mm, 3mm hole diameter
  • Power Input:ย  3S – 6S Lipo
  • Weight: 10.1g

FLIGHT CONTROLLER

  • USB Connection: Need to solder a USB TYPE-C module to D+, D-, GND pads.
  • 5V Output: 4 groups of 5V output. The total current load is 2.5A.
  • SmartPort: Use any TX pad of UART for the SmartPort feature.
  • BLE Bluetooth: Supported. Used for parameter configuration
  • UART: Full UART * 4(UART1, UART2, UART3, UART4)
  • 3.3V Output: Supported. Up to 500mA current load.
  • Supported Flight Controller: BetaFlight(Default)
  • Firmware Target Name: SPEEDYBEE F745AIO
  • Buzzer: BZ+ and BZ- pad used for 5V Buzzer
  • BetaFlight Camera Control Pad: Yes(CC pad)
  • Flash FC Firmware Wirelessly: Supported
  • Download/Analyze Blackbox: Supported
  • BOOT Button: Used to enter DFU mode
  • Current Sensor: Supported. Scale=256
  • DJI Air Unit 6-pin Connector: Built-in.
  • LED Pad Used for WS2812 LED
  • ESC Telemetry UART: None
  • RSSI Input: Not supported
  • Flash(for BlackBox): 8MB
  • ESC Signal Pads M1 – M4
  • IMU(Gyro): MPU6000
  • Barometer: BMP280
  • MCU: STM32F745
  • 9V Output: None
  • OSD: Supported
  • I2C: Supported.

ESC

  • Current Sensor: Supported(Sacle=256)
  • ESC Protocol: DSHOT300/600
  • Firmware: BLHeli_S JH40
  • Continuous Current: 35A
  • Burst Current: 45A(5S)
  • Power Input: 3-6S LiPo
  • Power Output: VBAT

Included:

  • 1x SpeedyBee F745 AIO Flight Controller – F745 FC + 35A BLHeli_S 3-6S ESC
  • 1x External USB Port module (Wire Length: 5mm)
  • 5x M2 6.6mm Anti-vibration Silicone Grommets
  • 1x XT30 Power Cable (Length: 7cm)
  • 1x Manual & App Download Card
  • 5x M2 12mm (Length) Screw
  • 1x 6pin DJI Air Unit cable
  • 1x 35V 470uF Capacitor
  • 5x M2 Silicone O-Ring
  • 5x M2 Nylon Hex Nut
