Description

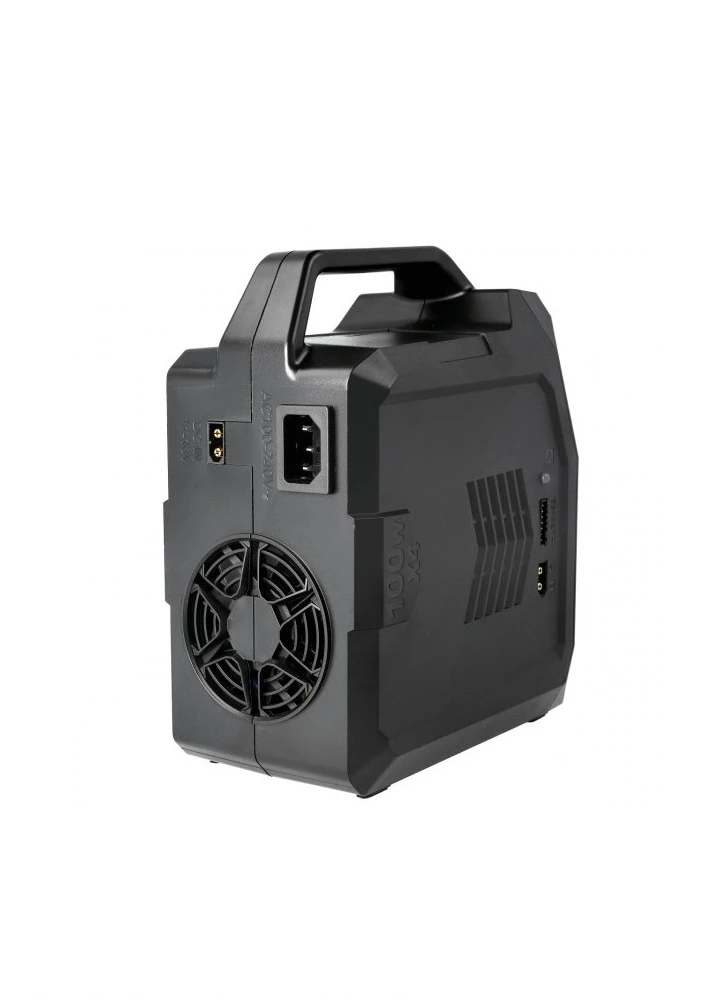

The T400Q is a four channel, AC / DC input battery charger that covers all of the bases.

Like any good multi charger the T400Q is compatible with all of the main battery chemistries including LiPo, Li-Ion, LiFe, NiMH, NiCD, and Pb (lead acid) new high LiHV LiPo batteries with a 4.35V end voltage. The charger also offers all the usual charge and discharge modes such as: Charge, Balance-Charge, Fast-Charge, Storage and Discharge modes. With it you can also check individual cell voltages and test the health of your batteries by measuring their internal resistance. For expert users, the charger also allows you to customise the terminal voltage for more flexibility. Additionally, the charger also can charge AGM and Pb battery under a low temperature in the AGM and Cold charge modes.

With 100 Watt charging power per channel the T400Q provides more than sufficient charging power for most applications. Furthermore as both of its charging circuits are independent, you can charge different battery types at the same time.

Operating the charger is very straight forward made easy with a clear backlit LCD screen and a simple set of buttons to navigation its functions. The menu structure happens to be the same as used by many other SkyRc chargers, so if you have had another SkyRC product before then the T400Q will be familiar to use. Even if this is your first charger, you’ll find it easy to learn as the operation is very intuitive.

Another great selling point of the charger is its portability. It’s really compact and with its integrated carry handle it’s super easy to move about. Also thanks to its universal voltage input, it doesn’t matter whether you power it using mains AC 240V at home or a DC 11-18V input say from a LiPo battery out in the field.

Lastly the T400Q features built in safety functions and was designed, tested and approved to meet worldwide safety standards.

Features:

Four Channel Balance Charger
AC / DC Input
4 Independent Charging Channels
4x 100W Charging Power and Maximum 12.0A Charging Current
10 Battery Memories
XT60 Connector on Charging Outputs
Supports Multiple Battery Chemistries: LiPo/LiHV/LiFe/Lilon/NiMH/NiCd/PB
Battery Internal Resistance Meter
Terminal Voltage Control
Over-temperature Protection, Overcapacity Protection, Polarity Protection

NO CABLES INCLUDED – Direction connection via XT60 cable + balance cable supported. For non-XT60 applications you would need a custom charge cable.

IMPORTANT: Never charge batteries unattended! Constant supervision is required as batteries can be dangerous when mishandled. We recommend charging your batteries inside a protective charging bag.

Specification

Size and Weight

Case Material: Plastic
Case Size: 186x103x209mm
Weight: 1610g

Display

Display Type: 2×16 LCD
Display Backlight: Blue

Power

DC Input Voltage: 11-18V
AC Input Voltage: 100-240V 50/60HZ
Charge Wattage: 100W X 4
Discharge Wattage: 10W

Battery

Battery Types/Cells:
LiPo/LiHV/LiFe/LiIon: 1-6S
NiMH/NiCd: 1-15S
Pb: 2-20V

Battery Capacity Range:

NiMH/NiCd: 100-50000mAh
LiPo/LiIon/LiFe/LiHV: 100-50000mAh
Pb: 100-50000mAh

Charge and Discharge

Charge Voltage
NiMH/NiCd: Delta peak detection
LiPo: 4.18-4.25V/S
LiFe: 3.58-3.7V/S
Pb: 1.8-2.0V/SLiIon: 4.08-4.2V/S
LiHV: 4.25-4.35V/S
Discharge Cut-off Voltage
NiMH/NiCd: 0.1-1.1V/S
LiPo:3.0-3.3V/S
LiFe:2.6-2.9V/SLiIon: 2.9-3.2V/S
LiHV: 3.1-3.4V/S
Charge Voltage Range: 0.1-26.1V/cell
Charge Current: 0.1A-12.0A
Discharge Current: 0.1A-2.0A
Balance Current: 500mA Max.
Safety Timer: 1～720min & OFF(default: 120mins)

Working and Storage

Operating temperature: 0℃-40℃
Working humidity: 0%-75%
Storage temperature: -10℃-70℃
Storage humidity: 0%-75%

Supplied with UK 240v input lead.

Downloads

Manual

Download File

Q&A

Questions and answers of the customers

There are no questions yet. Be the first to ask a question about this product.

Advice

Lithium Polymer (LiPo) Battery Safety Guidelines

PLEASE READ AND KEEP FOR REFERENCE

Lithium Polymer (LiPo) batteries can be extremely dangerous if not handled correctly. A lithium fire can reach extremely high temperatures, is unpredictable and difficult to extinguish.

A standard four-cell 1500mAh LiPo battery at full charge stores a massive 25Wh (watt hours) of energy!

Please take these risks seriously. We advise following the guidelines below to safely use and maintain your LiPo batteries.

Disclaimer

This information sheet is provided to help our customers understand LiPo battery safety. However, you use this information at your own risk. Following good practices will also help to ensure the longevity of your battery packs.

By purchasing LiPo batteries or charging equipment from our store, you accept all risks related to their use. If you disagree, please contact us immediately to arrange a return before using the product.

1. Charging Safety

Use a proper charger: Always charge LiPo batteries with a LiPo-compatible charger.
Set the correct parameters: Charge at the recommended voltage and current settings specified by the manufacturer. Many fires occur due to incorrect charge settings. In most cases, the safest charge rate is 1C.
Double-check connections: Ensure that charging leads are connected correctly. Reverse charging can lead to cell damage or a fire.
Charge in a safe environment: Charge batteries on a non-flammable surface, in a fireproof container, and away from flammable materials.
Monitor while charging: Never leave charging batteries unattended. Stop charging immediately if the battery becomes hot or swollen.
Avoid overcharging: Never exceed 4.2V per cell (4.35V for LiHV Lithium-ion Polymer High-Voltage batteries).

2. Storage Safety

Storage voltage: For long-term storage, maintain a ‘storage charge’ voltage of 3.7V to 3.85V per cell.
Store in a cool, dry place: Always store your LiPo pack in a safe and non-flammable container away from flammable objects. A LiPo sack or metal/ceramic storage container is best. Avoid direct sunlight or high temperatures (above 60°C/140°F). The ideal storage temperature is 10°C to 25°C (50°F to 77°F).
Avoid full discharge: Never store batteries at full charge or with a low voltage (below 3.3V per cell).

3. Handling and Usage

Inspect regularly: Check batteries for any damage, swelling, or leaks before use.
Avoid physical damage: Protect batteries from impacts, punctures, and exposure to moisture or water.
Never short-circuit: Avoid contact between battery terminals. Do not store or transport batteries where they can come into contact with sharp or conductive materials (e.g., metal objects).
Use within limits: Stay within the manufacturer’s recommended discharge rate and capacity ratings for safe operation.
Monitor during use: Use voltage alarms or onboard monitoring to prevent over-discharging (below 3.3V per cell).
Crashes: If a battery is damaged in a crash or shows changes in appearance (including swelling or gassing), move it to a safe place to observe, and discard it. Never attempt to charge a battery with physical damage, regardless of how minor the damage may seem.

4. Disposal

Lifespan: Rechargeable LiPo batteries do not last forever. Batteries that have lost 20% of their initial capacity should be removed from service and disposed of.
Dispose properly: Never throw LiPo batteries in the general waste. Dispose of them at certified recycling centres.
Prepare for disposal: Fully discharge batteries before disposal and tape the terminals to prevent short circuits.

5. In Case of Fire

Fire containment: If a LiPo battery catches fire, use a Class D fire extinguisher or sand to smother the fire. Avoid inhaling fumes and vacate the area immediately.
