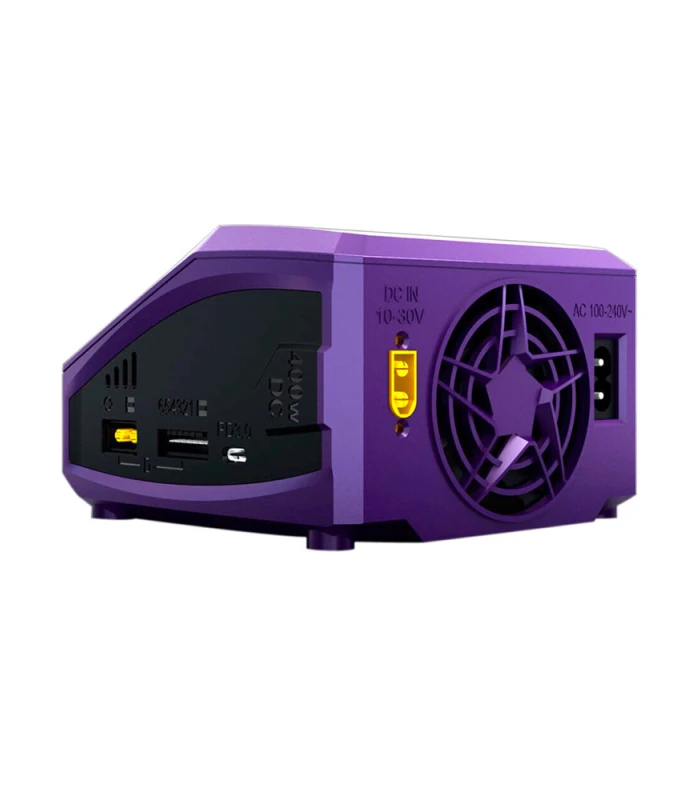

Name: SkyRC Q200 Neo AC/DC 4x Output Battery Charger - Flying Tech
Brand: SkyRC
SKU: LIPO-SKYRCQ200N
Price: 127.90 GBP
Availability: InStock

Description

The Q200 Neo is the replacement for the original SkyRc Q200 charger. As before, it is a four-channel charger with independent circuits, which can charge four different kinds of batteries simultaneously. All areas of the charger have been updated and improved. What’s more it’s 60% smaller than its predecessor.

It can charge up to 6S LiPo/LiHV/LiFe/LiIon, 15S NiMH/NiCd and 12S Pb batteries at up to 10A per port. It has a maximum power of 200W on AC input dynamically distributed to each port and 400W on DC input, divided among the four channels of the charger (4x 100W). The DC power source could be another battery or dedicate external Power Supply Unit (PSU), within the range of 10V to 30V. Additionally, it accelerates the balancing process among battery cells with an 800mA balancing current per cell, significantly enhancing the overall charging efficiency. The built-in high-precision balancer ensures exceptional accuracy with a remarkable voltage equalisation optimisation of ±0.02V. Its quad outputs offers great flexibility as it’s like having four separate chargers. You can charge four completely different types of batteries, with varying voltages. You can even be discharging one battery while charging another.

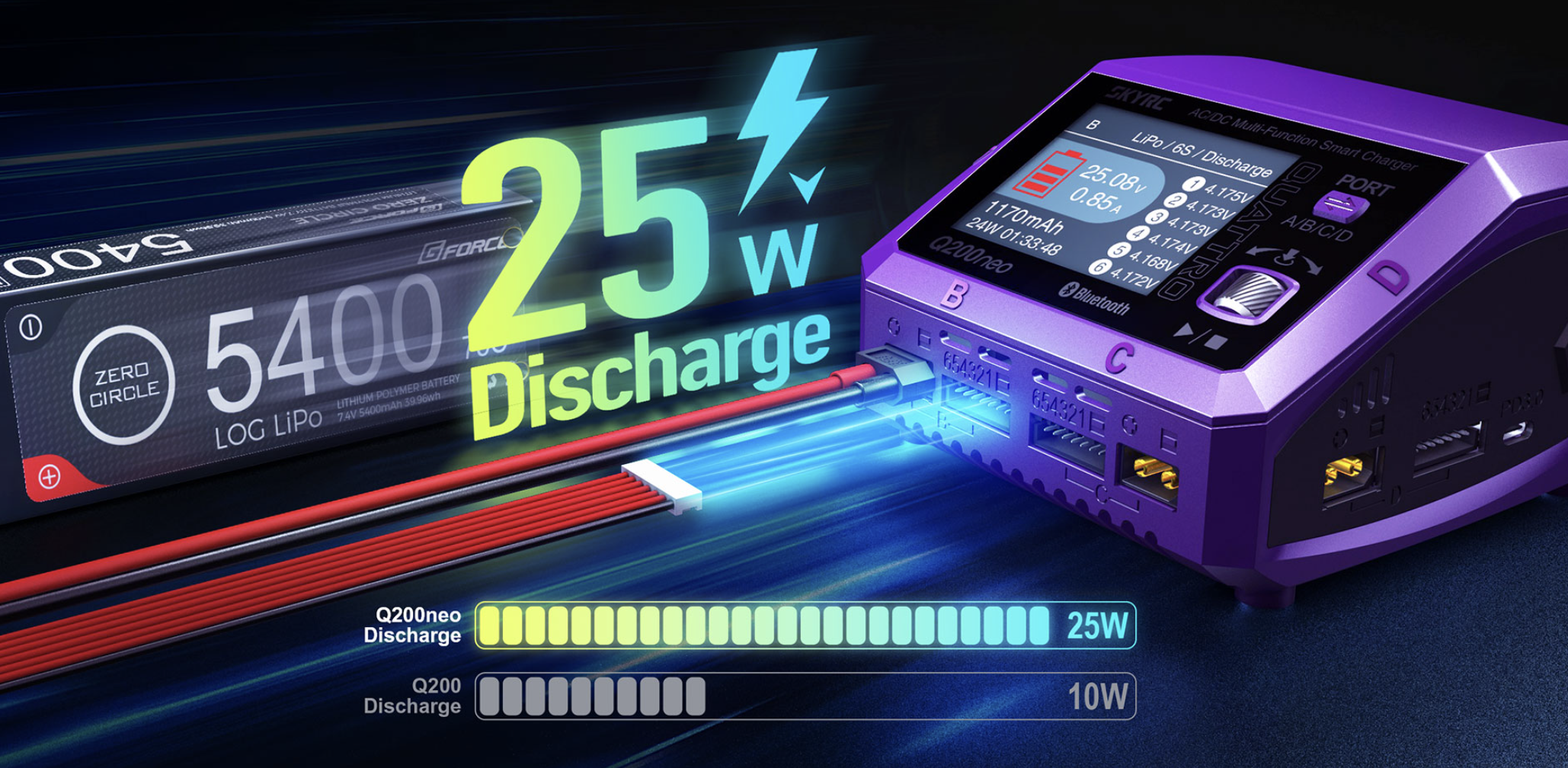

Speaking of discharging, this cutting-edge charger not only offers efficient charging but also provides impressive discharging functionality. The built-in balance port enables the Q200neo to discharge faster, allowing it to discharge at up to 25W when used in conjunction with the main port. In contrast, the discharge rate when using the main port alone is limited to 5W. This advanced discharging feature allows you to maintain the health and longevity of your batteries by precisely controlling the discharge process.

In addition to the XT60 sockets, there is a USB-C port which serves for firmware updates and is used for SkyRC’s data logging software. It can also be used to charge USB devices such as your phone, tablet or camera. The port offers 20W of power and PD/QC3.0 fast charging.

The Q200neo isn’t just a charger, it also functions as a digital power supply too. It offers a configurable 1.0-30.0V output with 0.1V increments and 1.0-10.0A current setting, with a precision of 0.1A.

This charger also benefits from a user-friendly interface with a colour LCD display and a scroll button control. Furthermore with the SkyCharger app and the Charger Master software, you can control and monitor the charging process via Bluetooth or USB connection.

The SKYRC Q200neo charger is designed with safety and reliability in mind. It has a smart ventilation fan, a precision aluminium unibody enclosure, and multiple protection features such as short circuit, overload, reverse polarity, over temperature and over voltage.

Features:

Much more powerful than the Q200
200W AC charging power
400W DC charging power
Operates as a power supply.
Large LCD color display
Re-peak mode for NiMH/NiCd batteries
With PD/QC3.0 fast charge
Compatible with SkyCharger App and Charger Master

IMPORTANT: Never charge batteries unattended! Constant supervision is required as batteries can be dangerous when mishandled. We recommend charging your batteries inside a protective charging bag.

Specification

Size and Weight:

Case Material: PC-ABS V0
Case Size: 123 x 119 x 78 mm
Weight: A feather-light 680g

Display:

Display Type: TN
Size: 2.8 inches of pure clarity
Panel Active Area: 43.20 x 57.60 mm
Resolution: 240×320 Pixels
Number of Colors: 262K

Power Input:

DC Input Voltage: 10-30V
AC Input Voltage: 100-240V

Charging & Discharging Power:

AC Charger Power: 200W MAX
DC Charger Power: 400W MAX
Discharge Power Main Port: 5W
Discharge Power Balance Port: 25W MAX (LiPo/6S)

USB-C Power Delivery:

QC3.0: 5V⎓3A, 9V⎓2A, 12V⎓1.5A (18W)
PD: 5V⎓3A, 9V⎓2.2A, 12V⎓1.67A (20W)

DC Power Supply:

Output Voltage: 1.0-30.0V
Output Current: 0.1-10.0A
Output Power: Max. 100W per single port

Battery Types & Compatibility:

LiPo/LiHV/LiFe/LiIon: 1-6 cells
NiMH/NiCd: 2-15 cells
Pb: 3S/6S/12S

Charge and Discharge:

Charge Current: LiPo/LiFe/LiIon/LiHV/NiMH/NiCd/Pb: 0.1-10.0A
Discharge Current: LiPo/LiFe/LiIon/LiHV/NiMH/NiCd/Pb: 0.1-2.0A
Balance Current: LiPo/LiFe/LiIon/LiHV: 800mA MAX

Operation Modes:

LiPo/LiFe/LiIon/LiHV: Balance CHG, Charge, Storage Discharge
NiMH/NiCd: Charge, Re-Peak, CYCLE_C_D, CYCLE_D_C, Discharge
Pb: Charge, AGM Charge, Cold Charge, Discharge

Included:

SkyRC Q200neo Charger
UK Mains Plug

Downloads

Manual

Download File

Q&A

Questions and answers of the customers

There are no questions yet. Be the first to ask a question about this product.

Advice

LiPo Battery Charging Tips:

Always use a charger made to charge LiPo packs.
Double check that the settings for the lithium polymer charger are correct for the pack being charged. This includes the cell count, as well as the current settings. In general, most lithium polymer batteries should be charged to no more than 4.2 volts per cell or depleted to less than 3.0 volts per cell.
Ensure that charging leads are connected correctly. Reverse charging can lead to cell damage or a fire or explosion.
Always charge LiPo batteries on surfaces that won’t catch on fire such as cement, steel, ceramic or stone. Wooden tables and carpeted floors are not recommended charging surfaces.
Do not charge batteries near flammable products or liquids.
Never charge a LiPo battery while inside your model or other electronic device. If it catches fire it can lead to total destruction of the item it is being charged in.
LiPo batteries should be charged within a temperature range of 0C to 50C. Batteries charged outside this temperature range may experience leakage, heat generation or cell damage.
Never leave a charging lithium polymer battery pack unattended.
If unsure of the charge rating, never charge a lithium polymer battery pack at a rate over 1C (1 x the battery packs rated capacity).
Never charge a LiPo pack that has ballooned or swelled due to over / under charging or from a crash.
Never charge a lithium polymer battery pack that has been punctured or damaged in a crash.
Never, under any circumstances let the positive and negative battery leads touch each other. It can lead to cell ballooning, cell damage or fire or an explosion.
Have a fire extinguisher near the charging area or a large bucket of dry sand. Do not try to extinguish with water.
If you notice your LiPo battery pack is swelling, stop the charging process immediately, put the battery in a safe container and observe it for 15 minutes.
Always charge your Lipo battery packs in a Lipo charging safe bag.

LiPo Battery Handling & Storage Advice:

Keep LiPo battery packs out of reach of children.
Do not put battery packs in pockets or bags where they can short circuit.
Do not store or transport batteries where they can come into contact with sharp or metallic objects.
Do not store your LiPo pack in extreme temperatures below 0C or above 50C.
Always store your LiPo pack in a safe and non flammable container away from flammable objects. A LiPo Sack or metal / ceramic storage container is best.
The speed at which a LiPo battery ages during storage is based on both storage temperature and state of charge. For optimum battery life always store your LiPo’s partially charged at room temperature. This will maintain their performance levels over time and there’s no need to cycle them unless stored for periods longer than 3-6 months. .
Never store a RC LiPo in a hot car fully charged for an extended period of time, this will cause damage.
When storing batteries for extended periods, store at a half charged state.

Finally, always follow the manufacturer’s safety instructions and charging guidelines for lithium polymer battery packs. These are there for not only the longevity of the battery pack, but also your safety.
