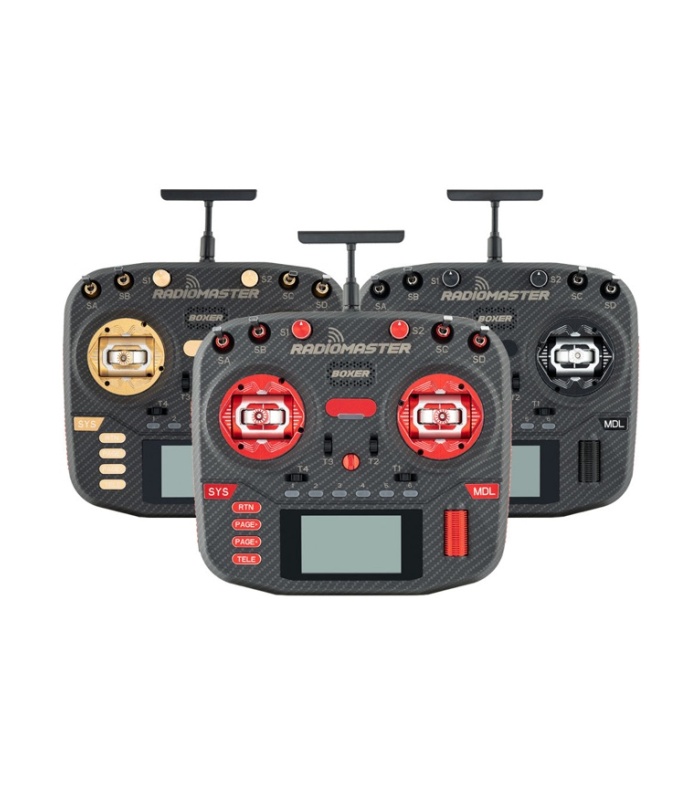

Radiomaster Boxer MAX Transmitter (ELRS)
£259.99 Inc. VAT
This ultimate edition of the Boxer radio comes with AG01 metal hall gimbals as standard.
The RadioMaster Boxer Max improves an already stellar radio. This ultimate edition now comes with a carbon fibre pattern case and the AG01 metal hall gimbals. Other upgrades includes CNC Roller & Buttons, an adjustable CNC metal folding kickstand, upgraded leather grips and Radiomaster neck strap to provide a comfortable user experience. Enjoy the superior performance with the Boxer Max Radio!
Features

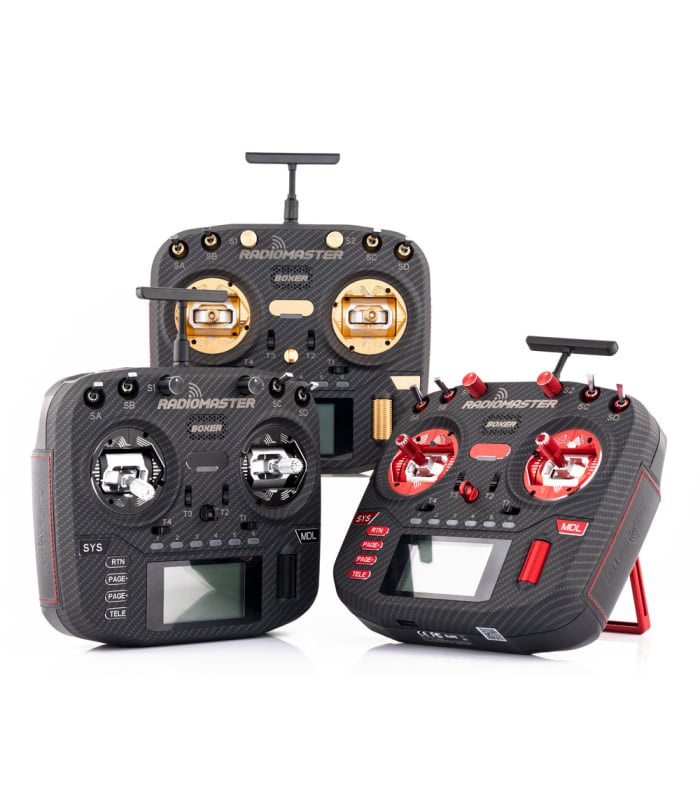

- Optional 3 colors – Black/Red/Gold
- AG01 hall gimbals installed
- Carbon fiber pattern case
- CNC buttons and roller as standard
- Adjustable length CNC metal folding stand
- Upgraded black leather grips
- Available with built-in ExpressLRS RF modules
- Featuring a powerful STM32F407VGT6 with 1MB Flash and 192KB RAM
- Preinstalled EdgeTX firmware
- Internal ELRS module capable of 1,000Hz refresh rate
- Adjustable ELRS RF output
- QC3.0 fast charging support 2.0A MAX
- Compact design with excellent ergonomics
- New low-profile latching SE switch and momentary SF switch
- Oversized battery compartment- Space for a 2S 6200mAh pack, up to 20-hour duration (Batteries not included)
- Standard JR module compartment
- Internal module cooling fan built in (ELRS version)
- RadioMaster standardized button layout
- Versatile 6-position switch for flight mode access
- Adjustable and Removable T-shape Antenna
- Industry first fabric handle for improved portability
- Changeable, ergonomic grips
- Redesigned SD card slot with new and improved 512mb pre-loaded SD card included
- External module power slots in battery cover
- RadioMaster signature carry case and gimbal protector are included as standard to ensure your radio stays safe while on the move
Recommended (Not Included)
- Transmitter Battery: Radiomaster 2S LiPo Transmitter Battery for Boxer – 6200mAh
- The Boxer takes two 18650 Li-ion batteries (not included) – they can be recharged internally via the USB-C connector
EdgeTX Operating System and ExpressLRS RF system pre-installed
Preinstalled with EdgeTX and ExpressLRS, the BOXER has cutting edge software fit for its class-leading hardware. RadioMaster works closely with the EdgeTX and ExpressLRS teams to develop features and optimize the user experience. We will continue to contribute and support projects like EdgeTX and ExpressLRS, ensuring the concepts of open standards are carried forward into the future.
This version of the BOXER runs ELRS, it supports 2.4GHz ExpressLRS protocol ONLY. It does have a JR size module bay and can work with external modules i.e. a multi-protocol module or long range module.
- Item: BOXER Max Radio
- Color: Black/Red/Gold
- Size: 235*178*77mm
- Weight: 532.5g
- Frequency: 2.400GHz-2.480GHz
- Internal RF: ELRS 2.4GHz
- Supported protocols: Module dependent
- Cooling fan: Built in (ELRS version)
- Voltage Range: 6.6-8.4V DC
- Radio Firmware: EdgeTX (Transmitter) / ELRS (RF module)
- Channels: Max 16 channels (Receiver dependent)
- Battery: 7.4V 2-cell Lithium-Polymer / Two 3.7V 18650 Lithium-Ion cells (batteries not included)
- Display: 128*64 Monochrome LCD display
- Gimbal: AG01 CNC Hall Gimbal
- External module: JR / FrSKY / Crossfire compatible
- Upgrade Method: USB / SD card & EdgeTX Companion PC software
- BONUS: Radiomaster neck strap and CNC adjustable stand
Included:
- 1 x BOXER Max Radio
- 1 x Signature Carry Case
- 1 x T Antenna
- 1 x USB-C Cable
- 1 x Gimbal Protector
- 1 x 1.5mm Allen Key
- 2 x M4*4 Screws
- 4 x Low Tension Springs
- 1 x Stickers
- 1 x Manual
- 1 x 18650 Battery tray (Batteries not included)
- 1 x RadioMaster Neck Strap
- 1 x Boxer KeyChain
- 1 x Screen Protector
