Plug and Play FPV CCD Board Camera and Transmitter Kit
Price range: £49.99 through £79.99 Inc. VAT
Plug-n-Play analog FPV setup including camera and transmitter. No soldering required.
Please note the camera now included with all options is the Sony Super HAD II HS1177 600TVL CCD Camera
Please note the 25-600mW option now uses the VT5804 BAT Long Range FPV Video Transmitter
FPV (first person view) can be quite technical and confusing, especially for those just setting out in the hobby. To get you FPV flying in no time, we’ve put together this FPV bundle. It’s all plug and play and fully compatible, so there’s no soldering or guesswork.
The kit is designed for those that already have a ground station: receiver and display, either a monitor or goggles. The bundle includes a FPV camera matched with a compatible video transmitter (Tx) of your choice. The camera is a high quality Sony CCD 700TVL board camera, which actually works in changeable light levels unlike many cheap CMOS cameras that ‘black out’ when pointing at the sun. The FPV transmitters to choose between are the FT915 UK legal 25mW Tx, good for at least 200m in open space; the FT952 200mW Tx, good for 500m line of sight and finally the professional FT956 Tx which has a variable power output ranging from the UK legal 25mW limit to a massive 800mW for a very long range. All of the equipment operates on 12V DC (3S LiPo) and have JST female power plugs. We sell a useful adapter that lets you power the setup directly from your 3S LiPo’s balance lead
More information about each of the bundle items can be found on their dedicated product pages.
Features:
- Plug-n-Play Setup, No Soldering Required
- High Quality 700TVL CCD Sony FPV Board Camera
- Choice of Video Transmitters – FT951/2 Micro Sized for Mini Quads
IMPORTANT: Do not turn the transmitter on before attaching the antenna, doing so will permanently damage the board!
Note: Please check with your local authorities regarding the operation of this equipment before you purchase. Regulations on power output, usable frequencies and licenses’ to operate vary from region to region.

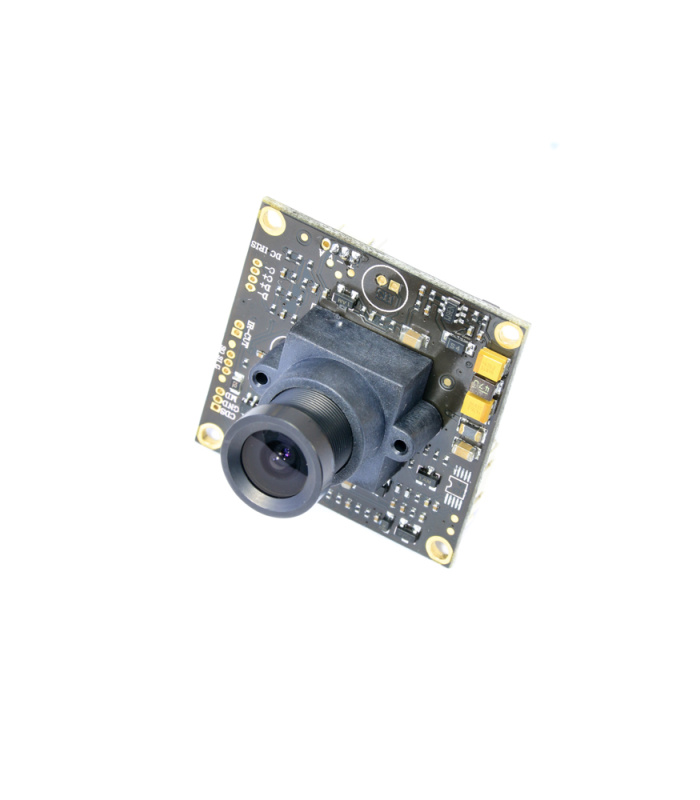

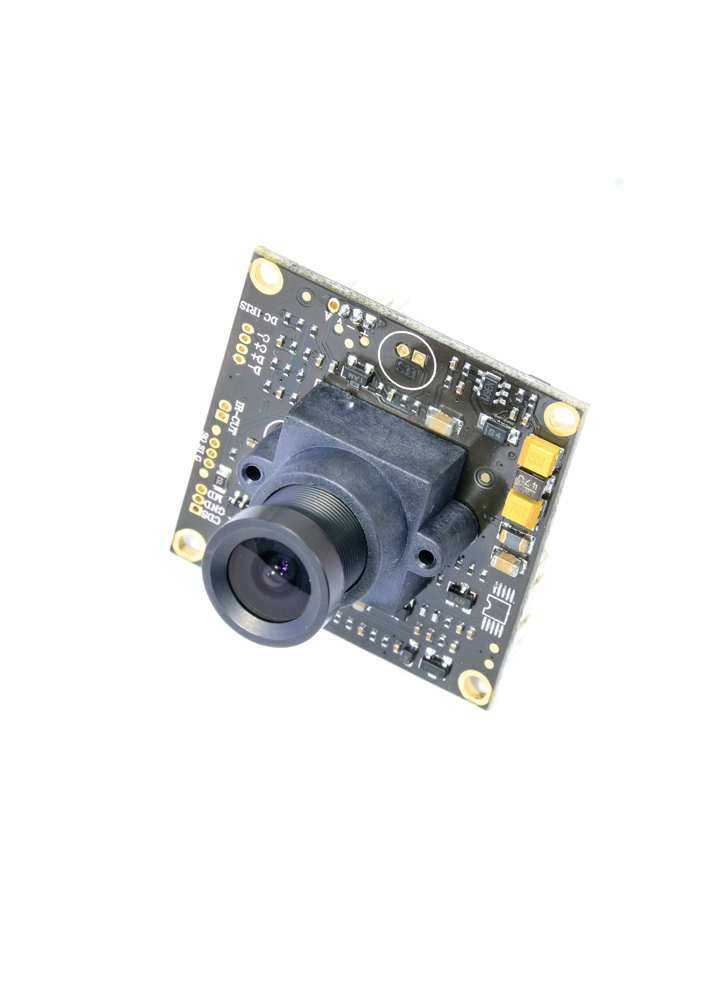

Camera Specifications:
- Lens: 2.8mm IR coated
- FOV: 112°
- Power Supply: 12V
- Type: PAL / NTSC
- Current: 60mA@11.1V

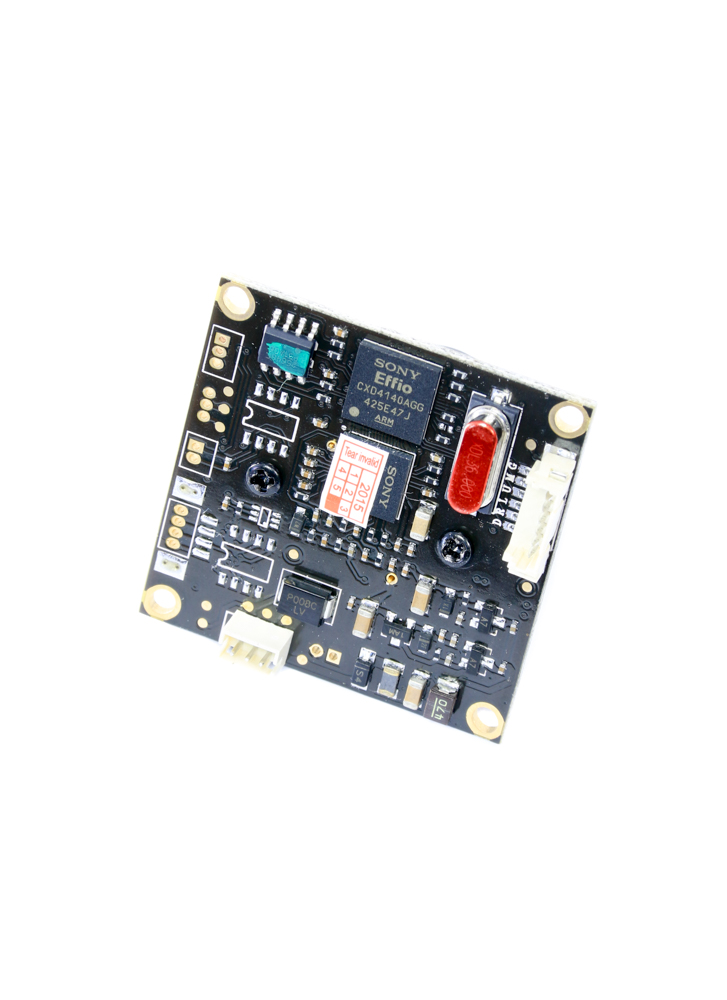

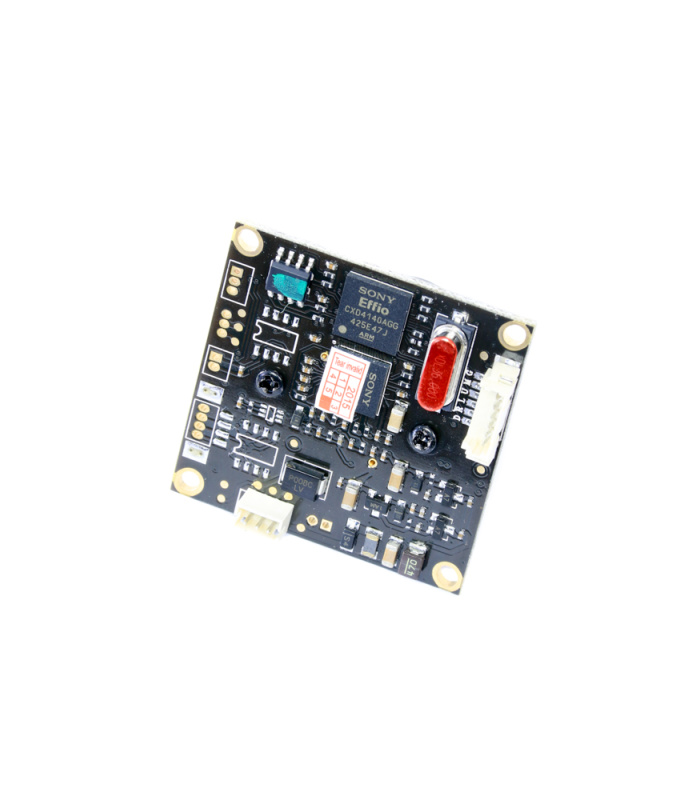

- Sensor: 1/3″ Sony Effio-e(4140+811)
- Resolution: 700TVL
- Effective Pixels: PAL 976×582 / NTSC 976×494
- Shutter Speed: 1/60-1/15000 (second)
- Back Light Compensation: Auto
- White Balance: Auto
- OSD: Supported
- Camera Size: 38 X 38 X 1mm
- Weight: 14g
Video Transmitter Specifications:
- Input voltage: 6-30V (2-7S)
- TX Freq: ISM 5.726~5.875 22ch
- Transmitting current: 50mA @ 12V
- Transmitting power: 25mW (14dbm)
- TV System: PAL/NTSC/SECAM auto
- Certification ID: 2ACS9-FT95
- Connector: SMA
- Size: 30x20x8mm
- Weight: 7g
Channels:
- Band A: 5865, 5845, 5825, 5805, 5785, 5765, 5745
- Band B: 5733, 5725, 5771, 5790, 5809, 5828, 5847, 5866
- Band D: 5740, 5760, 5780, 5800, 5820, 5840 ,5860
Included:
- 1 x 25mW FT951 Transmitter (TX)
- 1 x 5.8Ghz 2db Antenna
- 1x 1/3″ Sony Effio-e FPV Camera
- 1x wiring harness with JST female power connection
