Complete FPV Setup - Camera, Transmitter, Monitor/Receiver

Description

Please note the 25-600mW option now uses the PandaRC VT5804 video transmitter.

Please note the camera used in these bundles has been changed to this 700TVL CCD Camera.

This great value first person view (FPV) bundle put together by Flying Tech, is designed to take the confusion out of creating a FPV setup. It’s all plug and play and fully compatible, so no soldering or guesswork is required. The kit combines everything your need to create a full FPV setup. It includes our favourite FPV monitor, the DYS-7 02 with inbuilt 32 channel diversity receiver; a high quality Sony CCD 700TVL camera, which actually works in changeable light levels unlike many cheap CMOS cameras that ‘black out’ and finally a choice of 5.8Ghz video transmitters (please select as required). The FPV transmitters on offer are the FT915 UK legal 25mW Tx, good for at least 200m in open space; the FT952 200mW Tx, good for 500m line of sight and finally the professional FT956 Tx which has a variable power output ranging from the UK legal 25mW limit to a massive 600mW for a very long range. All of the gear operates on 12V DC (3S LiPo) and have JST female power plugs. We sell a useful adapter that lets you power the setup directly from your 3S LiPo’s balance lead.

Features:

Plug-n-Play Setup, No Soldering Required
7-inch Diversity Monitor with Foldable Screen Shroud
High Quality 700TVL CCD Sony FPV Board Camera
Choice of Video Transmitters – FT951/2 Micro Sized for Mini Quads

More information about each of the bundle items can be found on their dedicated product pages.

IMPORTANT: Do not turn the transmitter on before attaching the antenna, doing so will permanently damage the board!

Note: Please check with your local authorities regarding the operation of this equipment before you purchase. Regulations on power output, usable frequencies and licenses’ to operate vary from region to region.

Specification

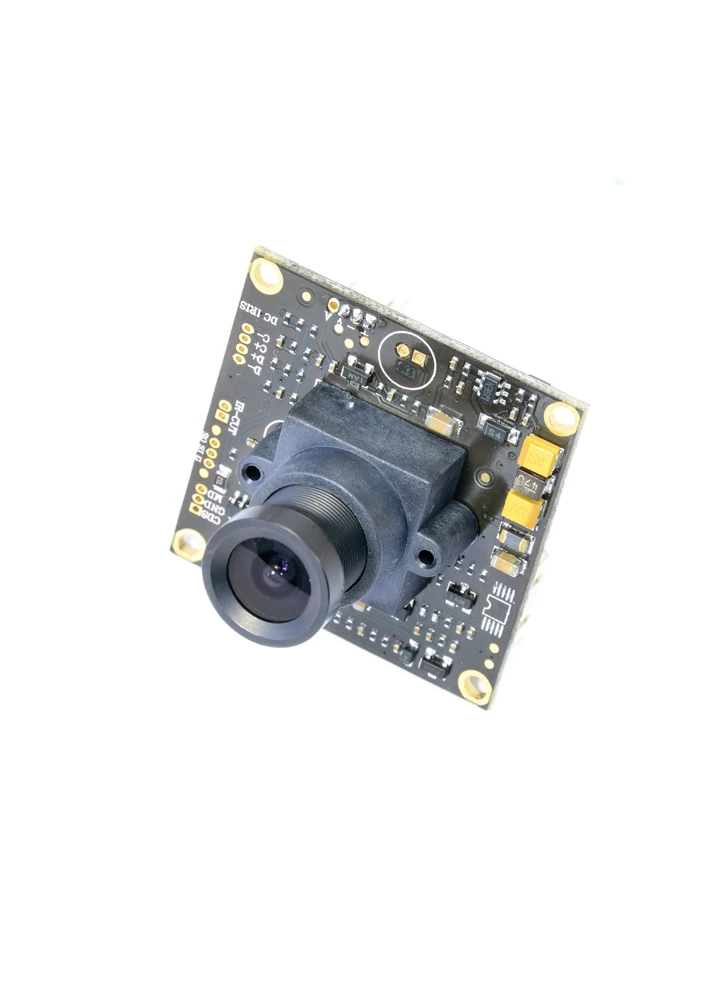

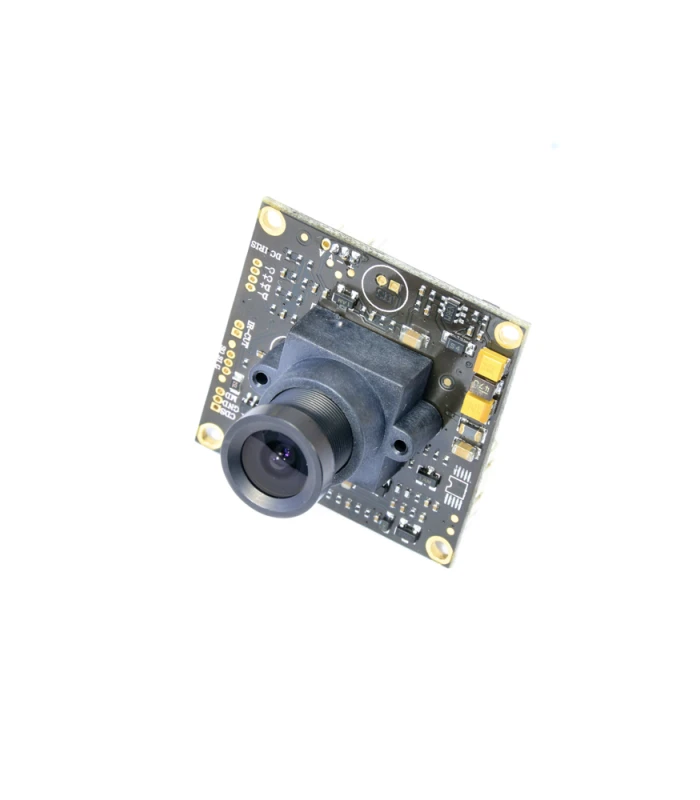

Camera Specifications:

Lens: 2.8mm IR coated
FOV: 112°
Power Supply: 12V
Type: PAL / NTSC
Current: 60mA@11.1V
Sensor: 1/3″ Sony Effio-e(4140+811)
Resolution: 700TVL
Effective Pixels: PAL 976×582 / NTSC 976×494
Shutter Speed: 1/60-1/15000 (second)
Back Light Compensation: Auto
White Balance: Auto
OSD: Supported
Camera Size: 38 X 38 X 1mm
Weight: 14g

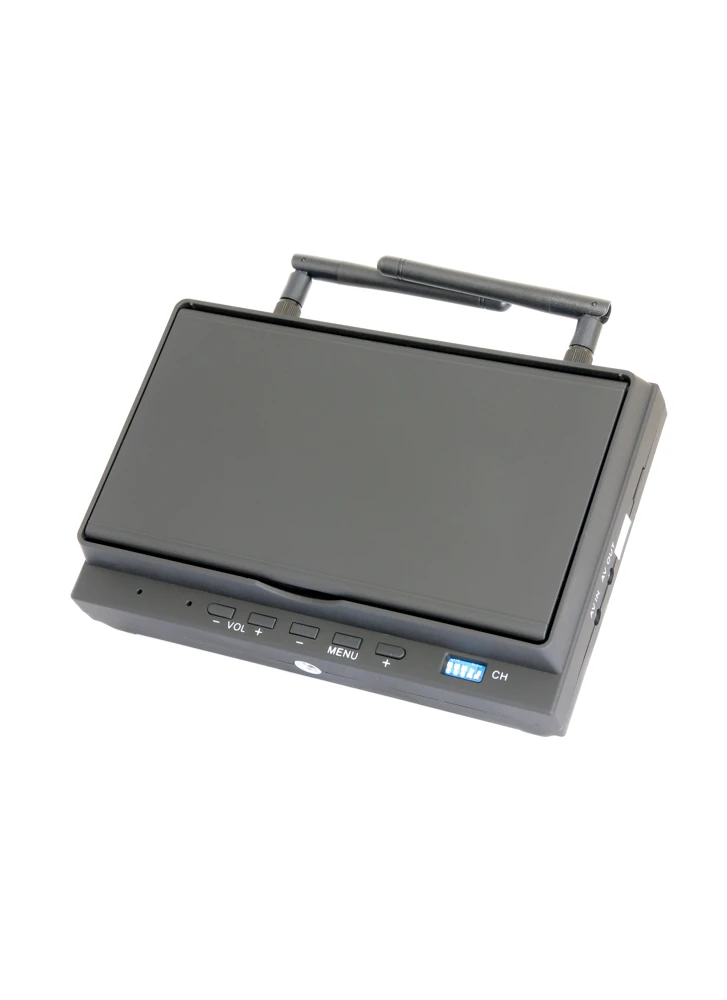

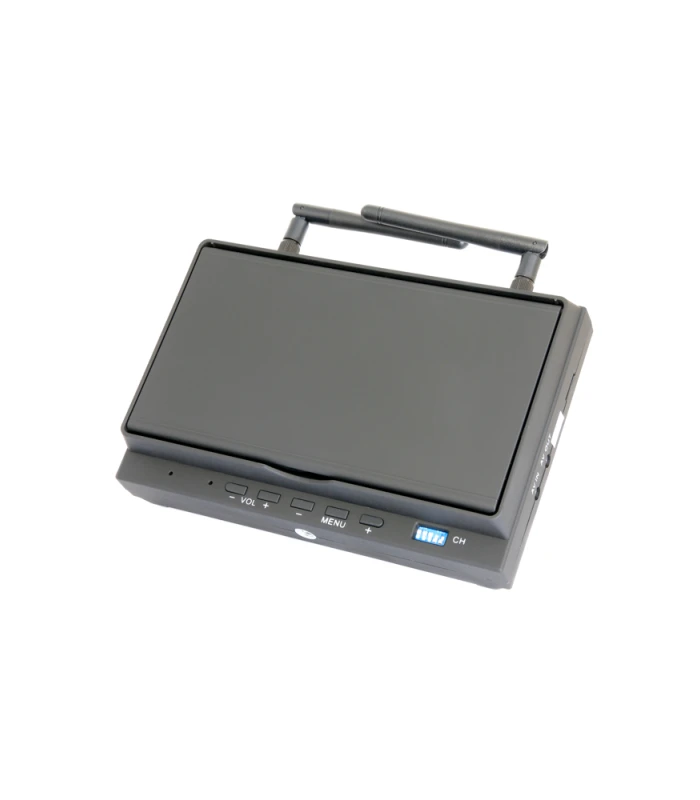

Monitor/Receiver Specifications:

Panel Size: 7.0 inch
Panel Type: TFT LCD
Resolution: 800×480 pixels
Display Ratio: 16:9
Brightness: 450cd/m²
Contrast Ratio: 500:1
Backlight: LED
Viewing Angle: 140 / 120degree
Working Voltage: DC 7.6 ~ 12.6V (2s-3s compatible)
Power Consumption: ≤ 8W
Supported Video Format: NTSC/PAL (manually selectable in menu)
Antenna Connection: SMA (center hole)
Receiver: Built-in 5.8Ghz dual diversity receiver
Ports: 1CH A/V output and 1CH A/V input
Mounting: 1/4″- 20 thread (tripod) and VESA mounting socket (75mm)
Working Temperature: -10°C ~ +65°C
Weight: 503g
Dimensions: 180mm x 133mm x 28mm

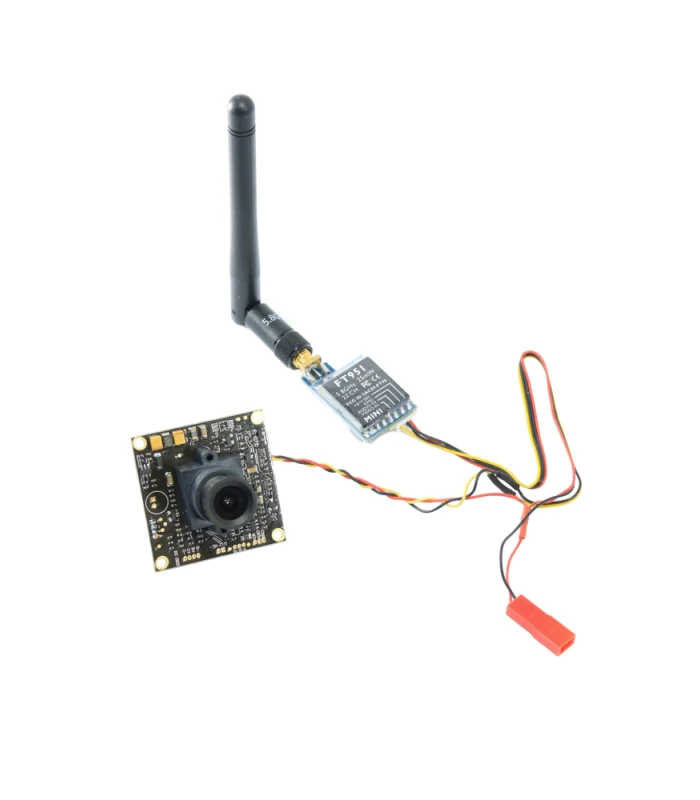

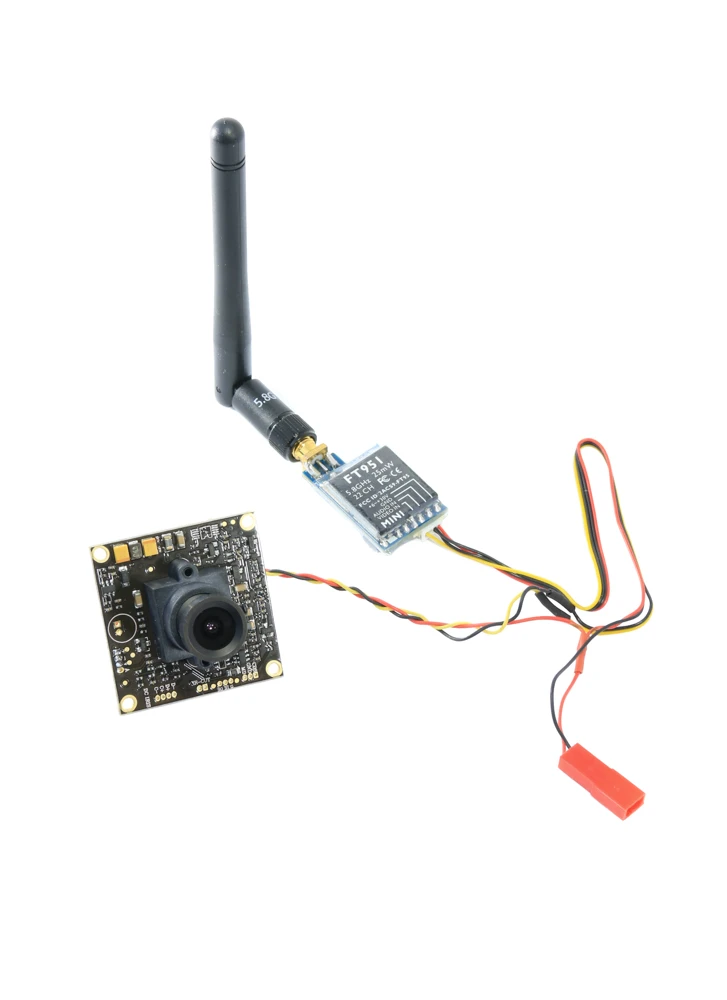

Video Transmitter Specifications:

Input voltage: 6-30V (2-7S)
TX Freq: ISM 5.726~5.875 22ch
Transmitting current: 50mA @ 12V
Transmitting power: 25mW (14dbm)
TV System: PAL/NTSC/SECAM auto
Certification ID: 2ACS9-FT95
Connector: SMA
Size: 30x20x8mm
Weight: 7g

Channels:

Band A: 5865, 5845, 5825, 5805, 5785, 5765, 5745
Band B: 5733, 5725, 5771, 5790, 5809, 5828, 5847, 5866
Band D: 5740, 5760, 5780, 5800, 5820, 5840 ,5860

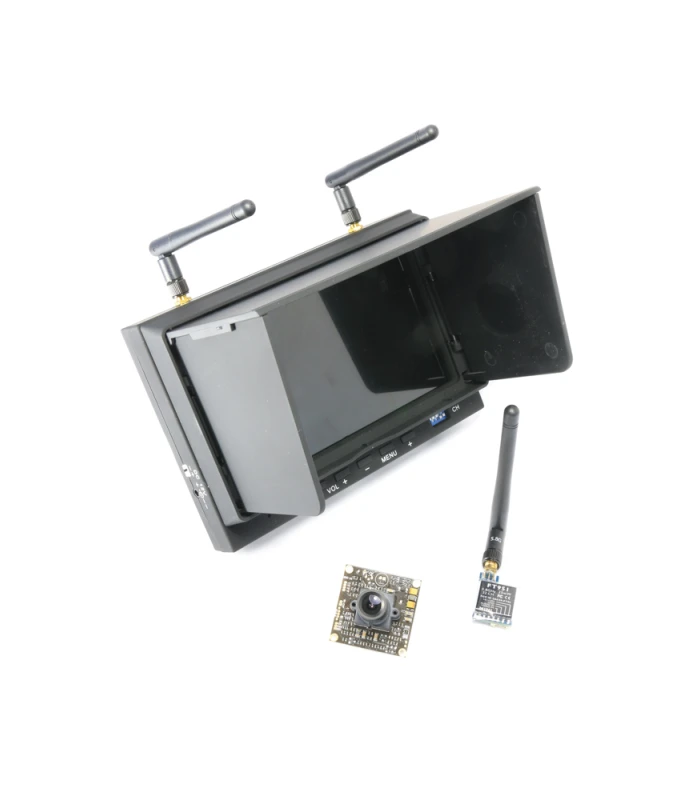

Included:

1 x 25mW FT951 Transmitter (TX)
7.0 inch Monitor/Receiver
Outdoor Screen Shroud
3 x 5.8Ghz 2db Antenna
1x 1/3″ Sony Effio-e FPV Camera
1x wiring harness with JST female power connection
1x RX power cable
1x RCA cable connector set for video output

Q&A

Questions and answers of the customers

can this be used with the dji phantom 2?

0 votes

Q can this be used with the dji phantom 2? answer now

A
Hi, afraid it's not compatible with DJI.
