Plug and Play FPV Bundle – Camera, Transmitter, Receiver
Price range: £69.00 through £99.00 Inc. VAT
Plug-n-Play analog FPV setup including camera, transmitter and video receiver. No soldering required.
Please noteย the camera used inย these bundles has been changed to this 700TVL CCD Camera.
Please noteย the 25mW optionย now uses theย PandaRC VT5805ย video transmitter.
FPV (first person view)ย can be quite technical and confusing, especially for those just setting out in the hobby. To simplify things,ย we’ve put together this FPV bundle. Itโs all plug and play and fully compatible, so no soldering or guesswork is required.

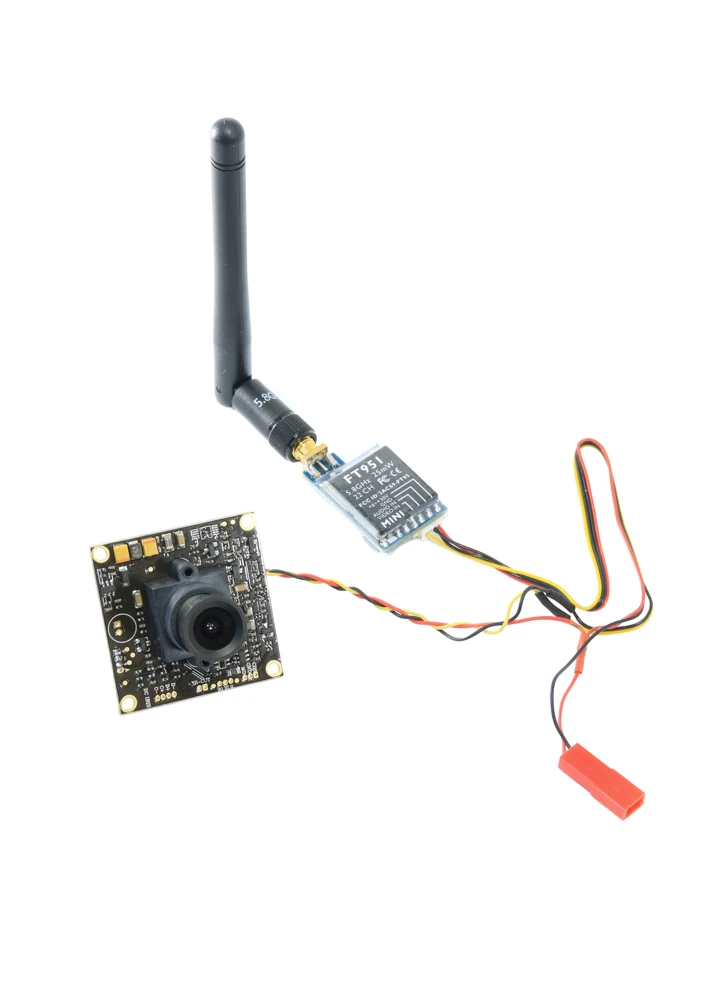

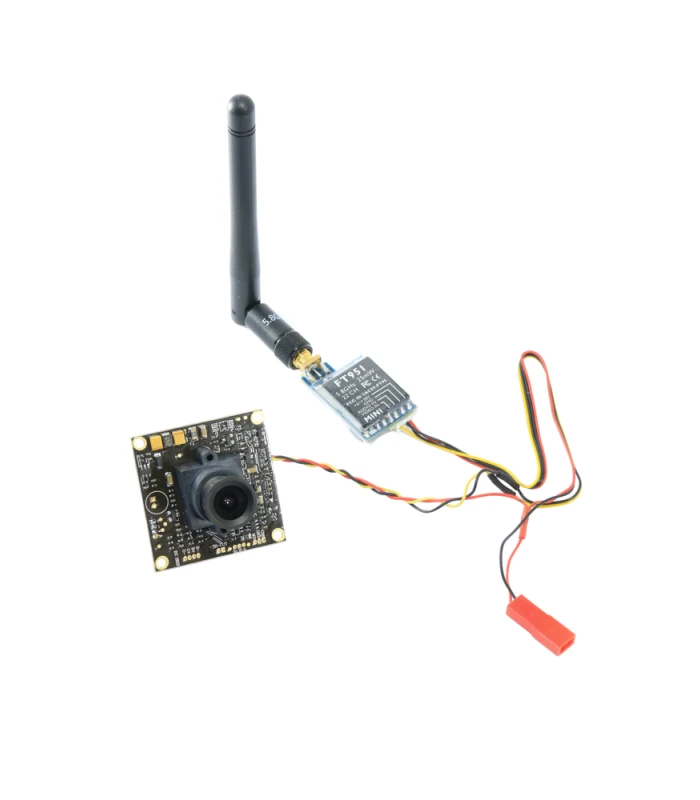

The kit comes with everything you need to get up and running except for a display – for that youโll need something like a 7inch FPV monitor or goggles. The kitย includesย a FPV camera, video transmitter (Tx) and video receiver (Rx). The camera is aย high quality Sony CCD 700TVL board camera, which actually works in changeable light levels unlike many cheap CMOS cameras that ‘black out’ when pointing at the sun. The receiver is the easy to operate Boscam RC832. It boasts 40-channels over 5 bands, making it compatible with most FPV gear on the market. Finally the kit offers a choice of 5.8Ghz video transmitters (please select as required). The FPV transmitters to choose betweenย are theย FT915ย UK legal 25mW Tx, good for at least 200m in open space; theย FT952ย 200mW Tx, good for 500m line of sight and finally the professionalย FT956ย Tx which has a variable power output ranging from the UK legal 25mW limit to a massive 800mW for a very long range. All of the gear operates on 12V DC (3S LiPo) and have JST female power plugs. We sell a usefulย adapterย that lets you power the setupย directly from your 3S LiPo’s balance lead.
More information about each of the bundle items can be found on their dedicated product pages.
Features:
- Plug-n-Play Setup, No Soldering Required
- 40 Channel, Dual AV Output FPV Receiver
- High Quality 700TVL CCD Sony FPV Board Camera
- Choice of Video Transmitters – FT951/2 Microย Sized for Mini Quads
IMPORTANT: Do not turn the transmitter on before attaching the antenna,ย doing so will permanentlyย damage the board!
Note:ย Please check with your local authorities regarding the operation of this equipment before you purchase. Regulations on power output, usable frequencies and licensesโ to operate vary from region to region.

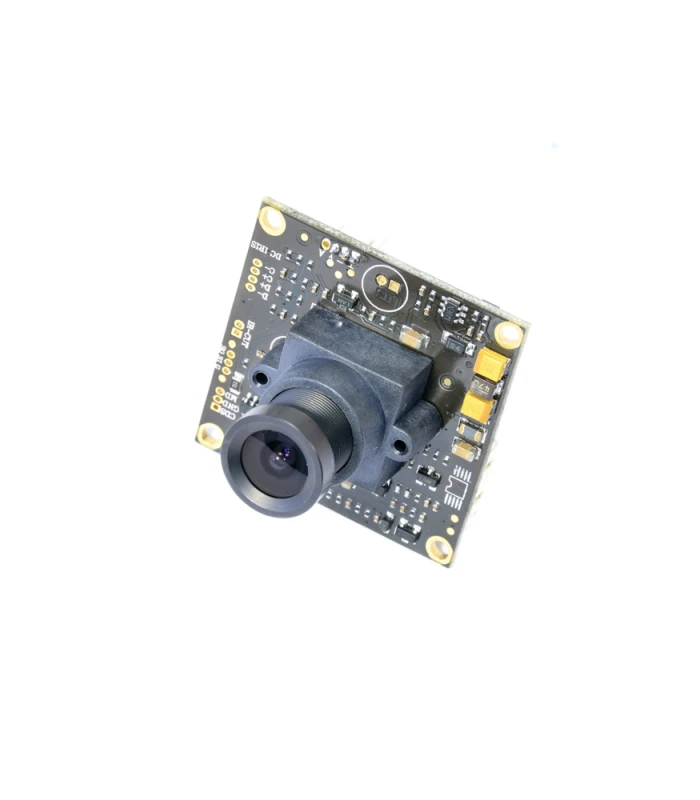

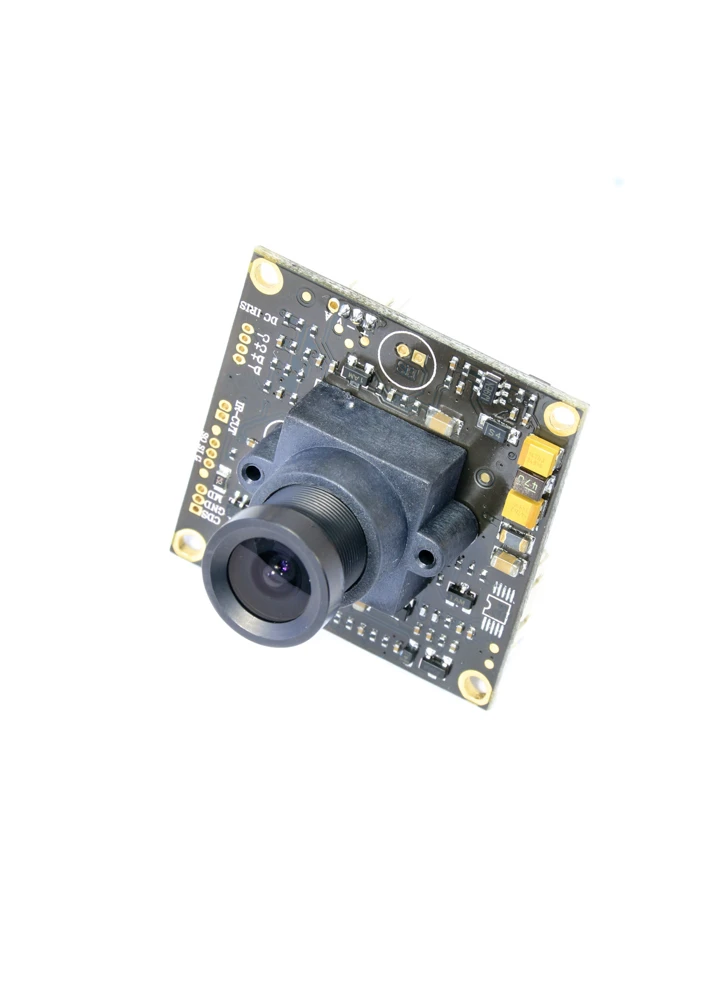

Camera Specifications:
- Lens: 2.8mm IR coated
- FOV: 112ยฐ
- Power Supply: 12V
- Type: PAL / NTSC
- Current: 60mA@11.1V
- Sensor: 1/3″ Sony Effio-e(4140+811)
- Resolution: 700TVL
- Effective Pixels: PAL 976×582 / NTSC 976×494
- Shutter Speed: 1/60-1/15000 (second)
- Back Light Compensation:ย Auto
- White Balance: Auto
- OSD: Supported
- Camera Size: 38ย X 38ย X 1mm
- Weight: 14g

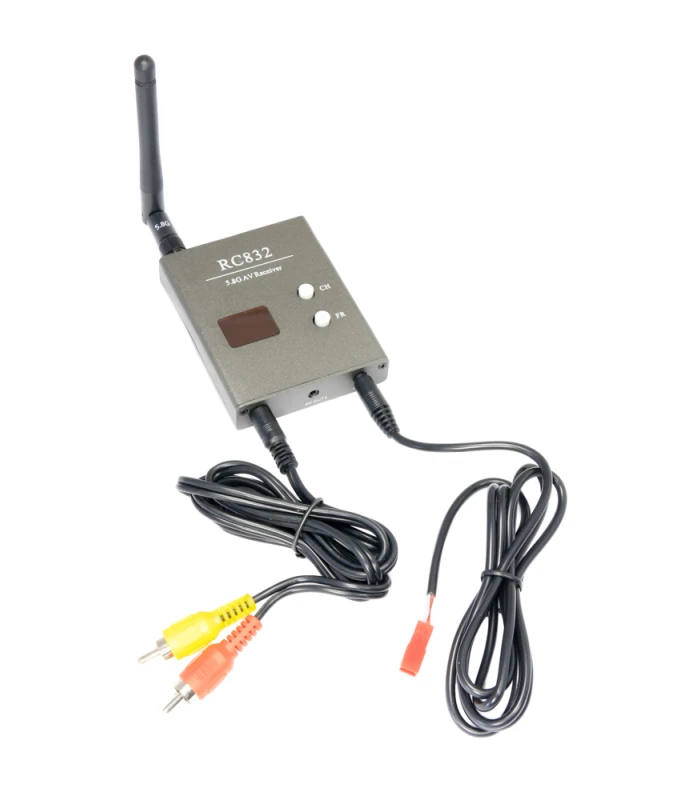

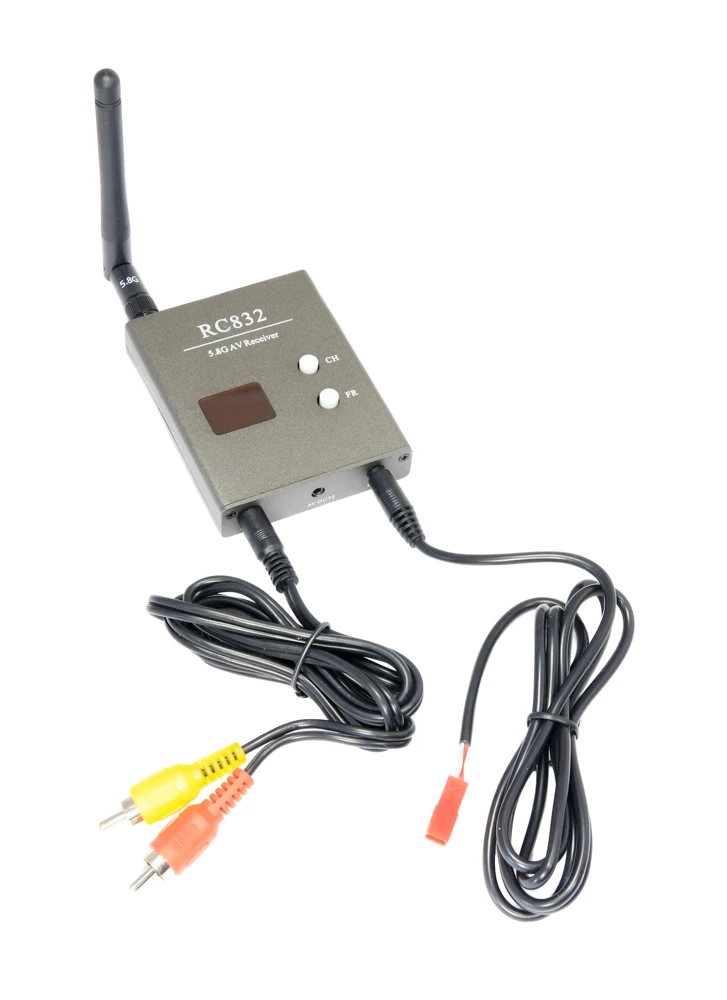

Video Receiverย Specifications:
- Receiving Frequency: 5.8GHz
- Channels: 40ย (5ย Bands A,B,E,F,R)
- Video format supported:ย NTSC/PAL
- Antenna connection:ย RP-SMA
- Power input: 7.4V~13V (2S – 3S LiPo)
- Working current:ย 200mA max
- Antenna impedance:ย 50ฮฉ
- Antenna gain:ย 2db
- Rxย sensitivityย -90dBm
- Video impedance:ย 75ฮฉ
- AV output: 2CH (3.5mm plug)
- Dimension:ย 80x 65 x15mm
- Weight:ย 85g
Video Transmitter Specifications:
- Input voltage:ย 6-30V (2-7S)
- TX Freq:ย ISM 5.726~5.875 22ch
- Transmitting current: 50mA @ 12V
- Transmitting power: 25mW (14dbm)
- TV System:ย PAL/NTSC/SECAM auto
- Certification ID:ย 2ACS9-FT95
- Connector:ย SMA
- Size:ย 30x20x8mm
- Weight: 7g
Channels:
- Band A: 5865, 5845, 5825, 5805, 5785, 5765, 5745
- Band B: 5733, 5725, 5771, 5790, 5809, 5828, 5847, 5866
- Band D: 5740, 5760, 5780, 5800, 5820, 5840 ,5860

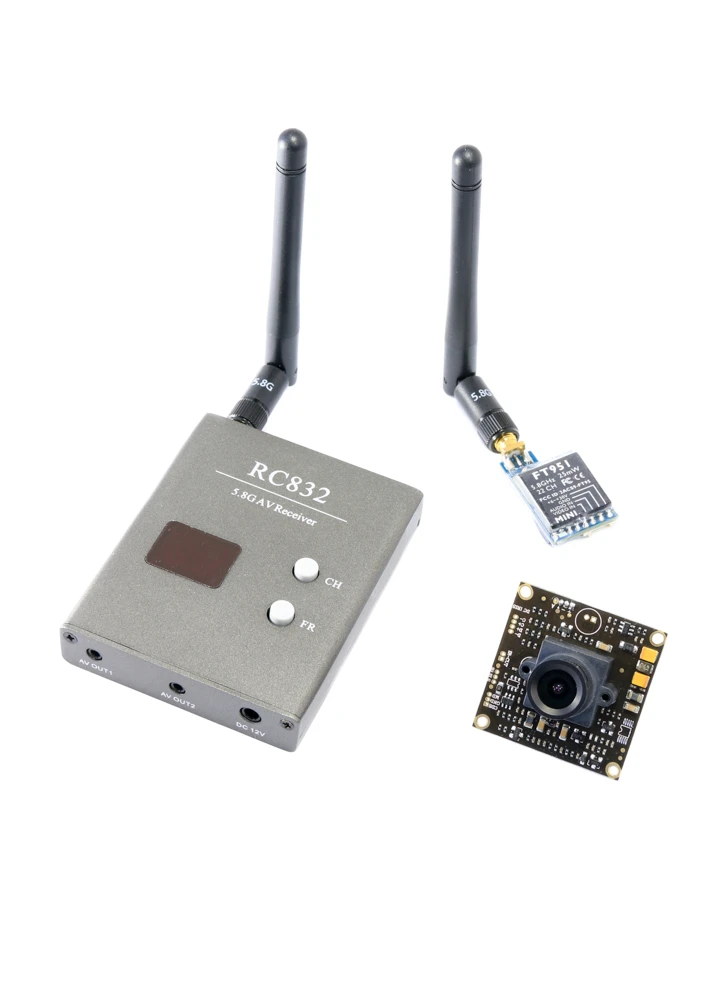

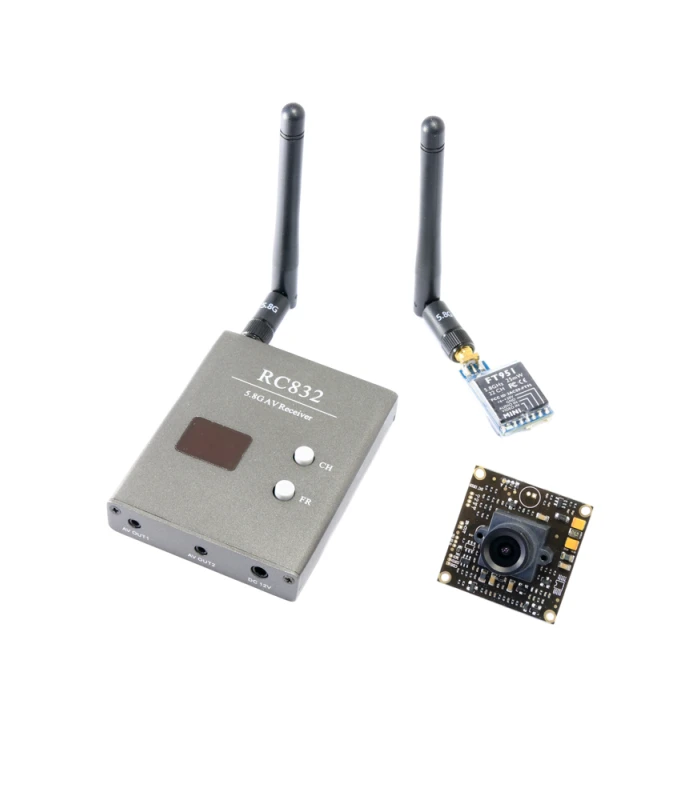

Included:
- 1 x 25mW FT951 Transmitter (TX)
- 1x 40-channel RC832 Receiver (RX)
- 2 x 5.8Ghz 2db Antenna
- 1xย 1/3″ Sony Effio-e FPV Camera
- 1x wiring harness with JST female power connection
- 1x RX power cable
- 1x RCA cable connector set for video output
