Multirotor Full Range Futaba FASST Compatible SBUS Receiver

Click to enlarge

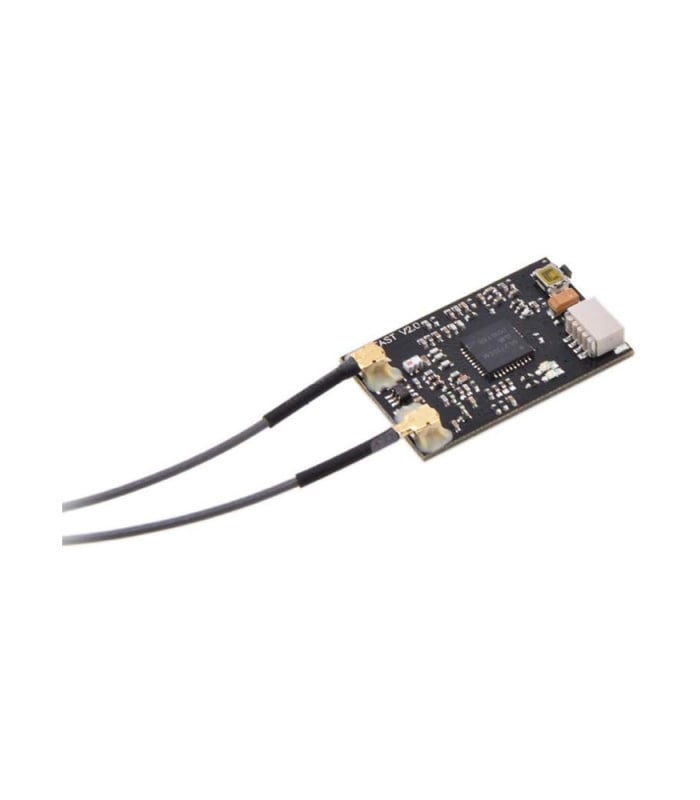

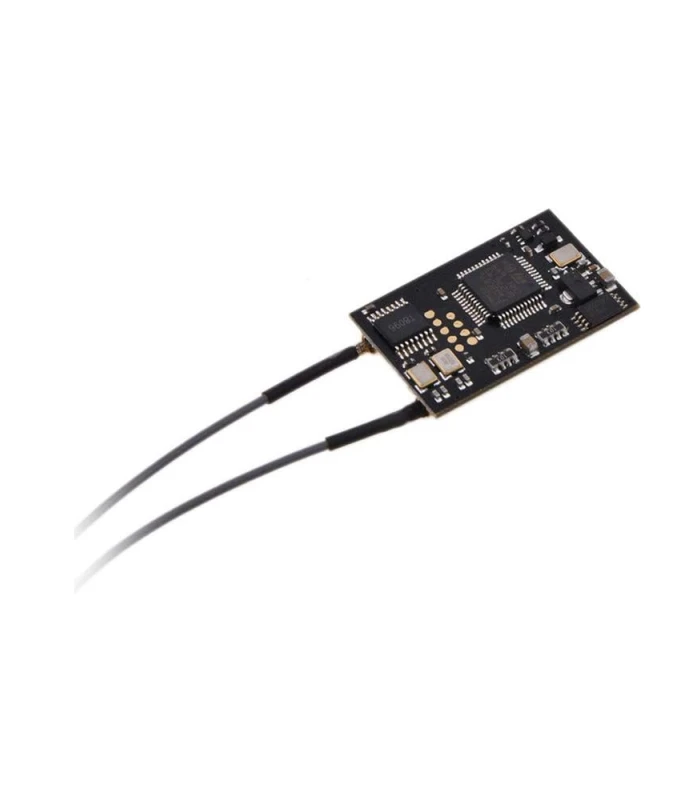

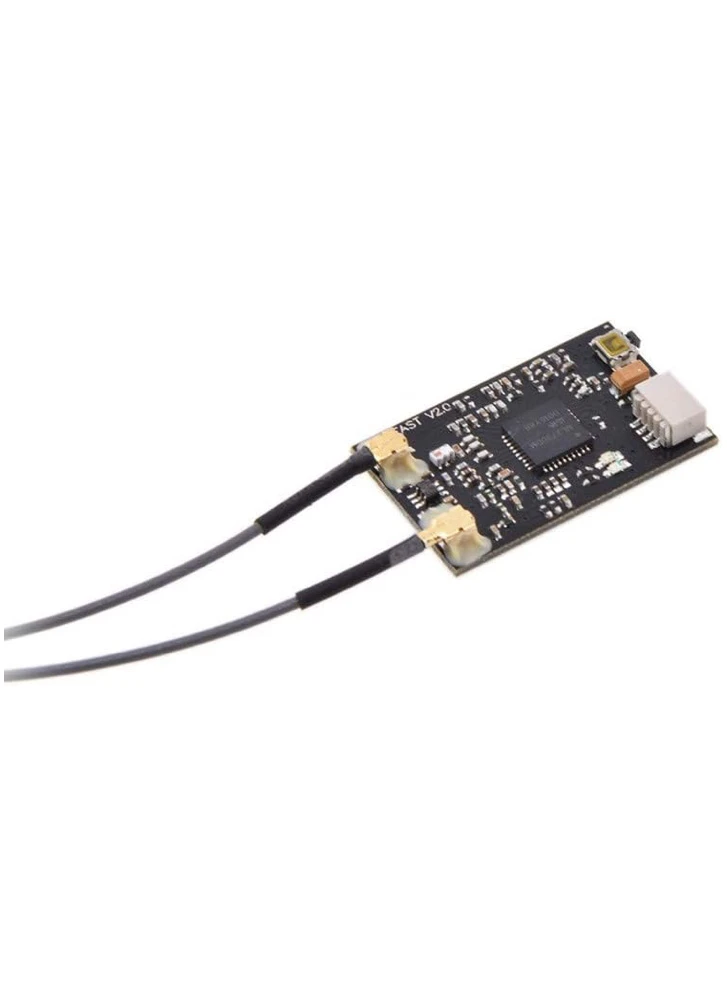

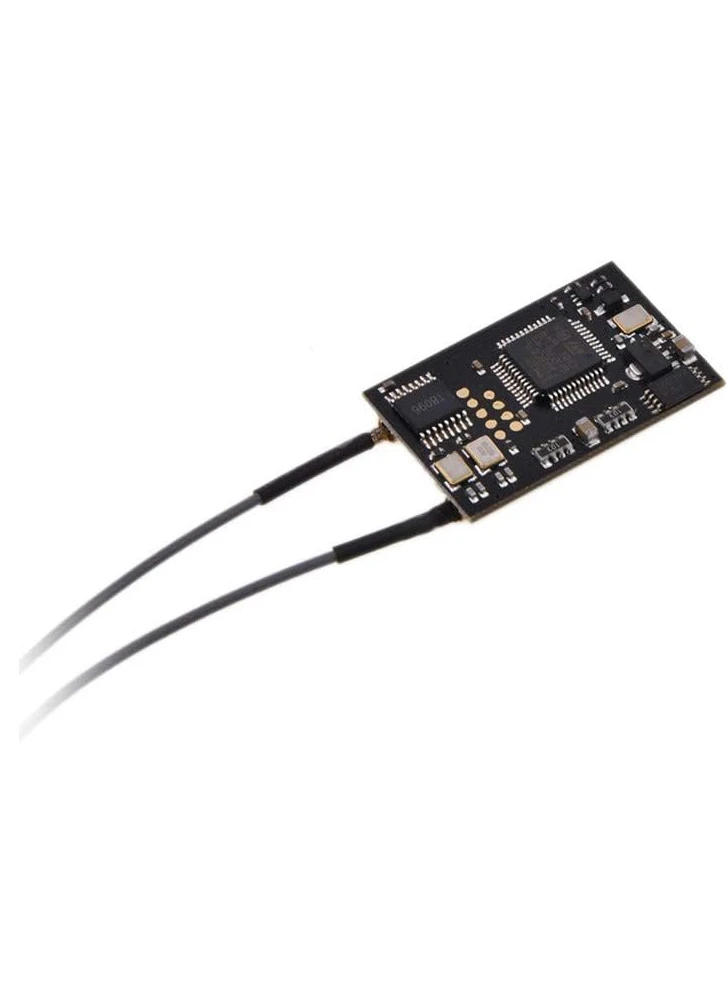

MRFS01 Micro 2.4Ghz 16CH Futaba FASST Compatible SBUS Receiver

MRFS01 Micro 2.4Ghz 16CH Futaba FASST Compatible SBUS Receiver - Image 3

MRFS01 Micro 2.4Ghz 16CH Futaba FASST Compatible SBUS Receiver

Name: MRFS01 Micro 2.4Ghz 16CH Futaba FASST Compatible SBUS Receiver - Flying Tech
SKU: RX-MRFS01
Price: 31.99 GBP
Availability: InStock

£31.99 Inc. VAT

The Micro SBUS Rx is compatible with 2.4Ghz FASST radios.

In stock

Add to compare

0 People watching this product now!

SKU: RX-MRFS01 Categories: 2.4GHz Radio Receivers, Radio Control, Electronics Tags: 2.4GHz, FASST, Futaba, Radio, Receiver, SBUS

Description

The MRFS01 is a micro 2.4GHz receiver compatible with Futaba’s FASST protocol, offering up to 16 channels via SBUS. Its lightweight, compact design makes it ideal for tight builds like racing drones and micro aircraft. It features a high-quality power amplifier for excellent reception sensitivity, dual antennas for reliable signal coverage, and RSSI output (PWM) for real-time signal strength monitoring. With direct SBUS output to flight controllers, the MRFS01 delivers streamlined wiring and dependable performance in a compact package.

Compatibility:

The Rx is compatible with 2.4Ghz FASST radios: 6EX, 7C, TM-7, TM-8, T8FG, T10C, TM-10, T10CG, T12Z, T12FG, TM-14, T14MZ, T18MZ etc

Binding with a transmitter:

1. Turn on Transmitter.

2. Connect the battery to the receiver while pressing receiver is F/S button.

3. The LED on the receiver will change to solid green, it indicates the binding is completed and successful

How to switch between HS mode and FS Mode:

HS:High Speed
FS:Fast Speed

Turn the transmitter off, connect the battery to the receiver, press the F/S button of receiver for 6 seconds and then release. The red LED will flash fast in HS Mode and slow in FS Mode. Repeat to alternate modes.

WARNING: HS mode is only applied for high-speed digital servos. Other servos should select FS mode.

Specification

Output Channel: 16CH
Receiving mode: FASST
Output signal: S-BUS(16CH) + RSSI(PWM
Servo frame rate: 14ms(FS-normal speed mode) / 7ms(HS-high speed mode)
Suitable for: Futaba 6EX / 7C / TM-7 / TM-8 / T8FG / T10C / TM-10 / T10CG / T12Z / T12FG / TM-14 / T14MZ / 14SG transmitter
Input Voltage: 4.8V-8.4V
Working Temperature range: -10-80℃

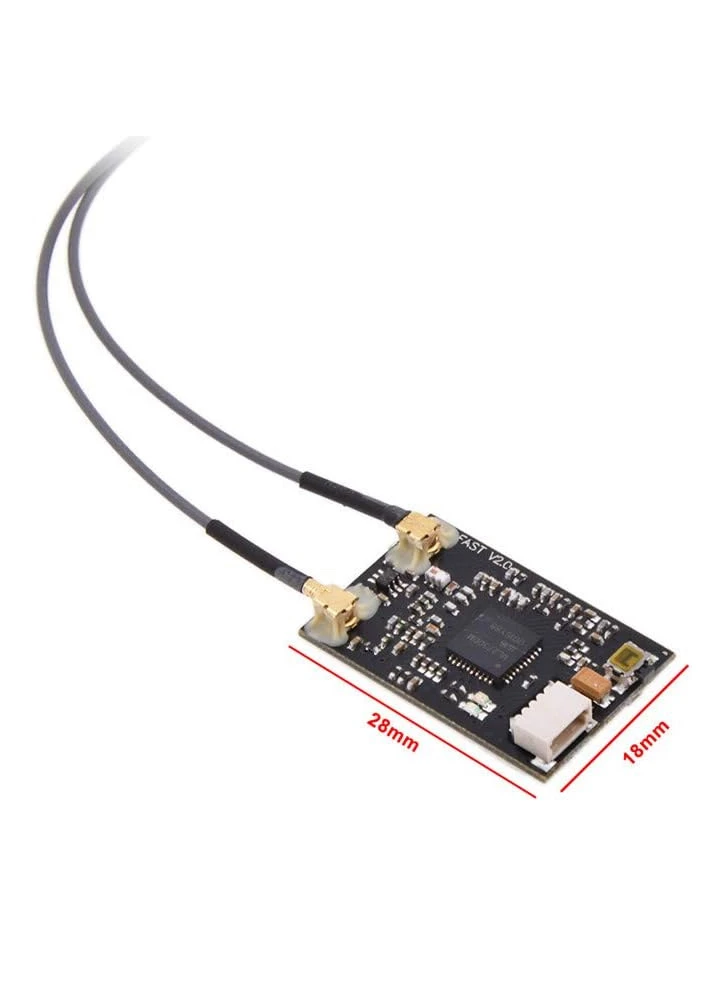

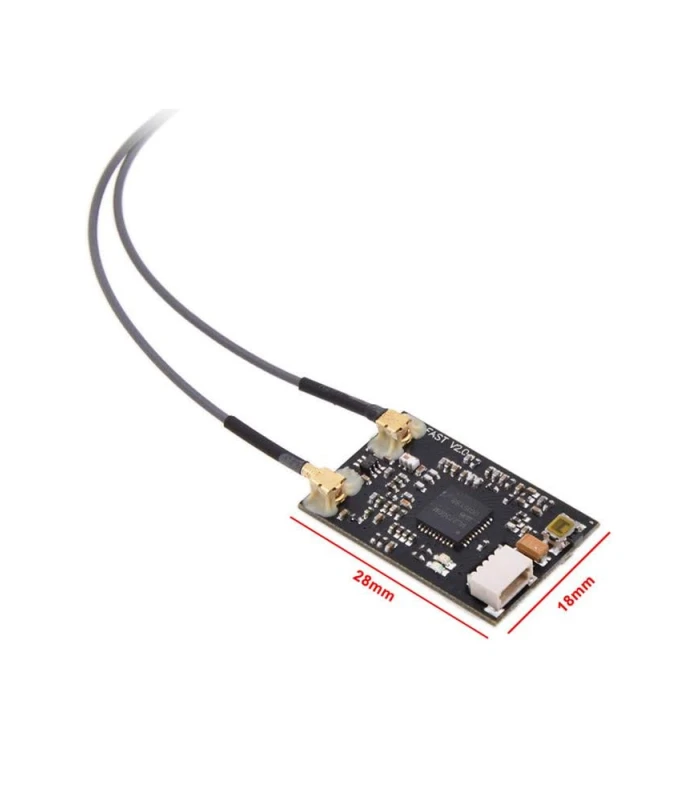

Dimension: 28x18x5mm
Weight 3.8g

Included:

1x MRFS01 receiver

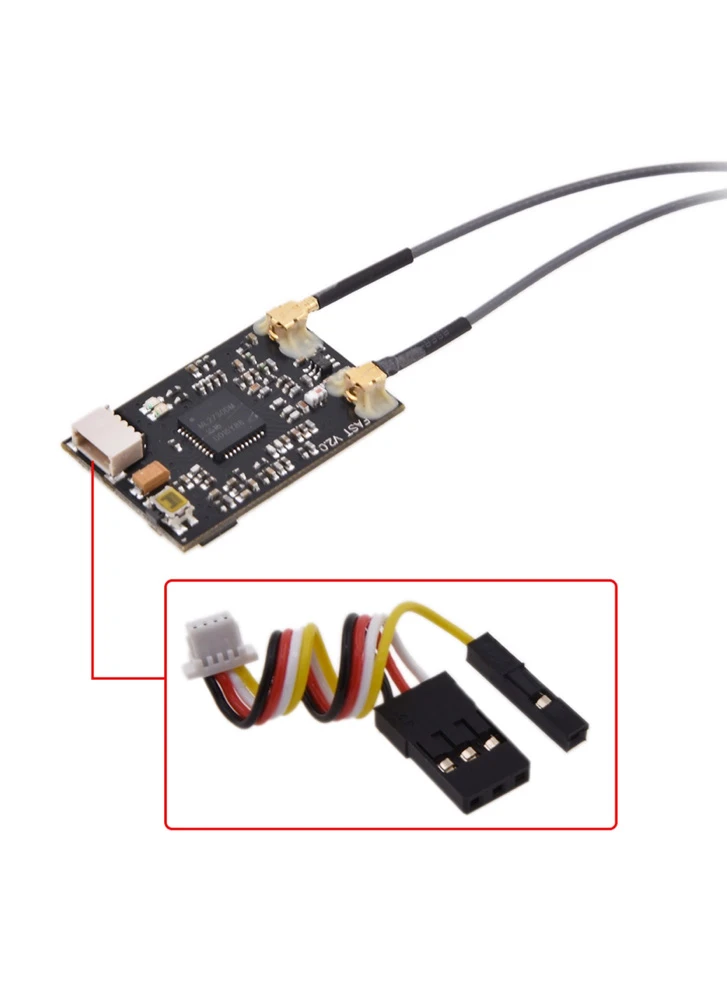

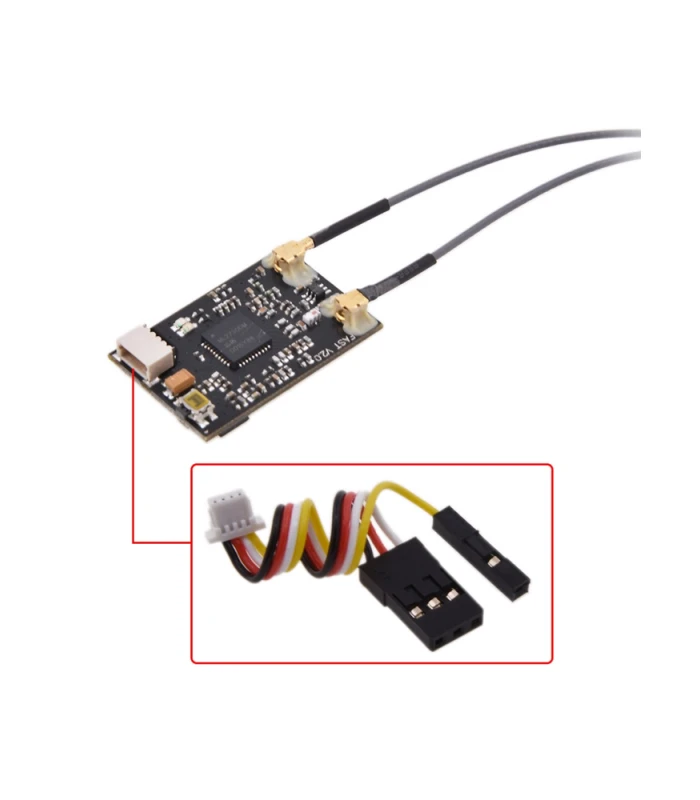

1x SBUS Cable

Downloads

LED Indicator Light (png, 46KB)

Download

Q&A

Questions and answers of the customers

There are no questions yet. Be the first to ask a question about this product.

Advice

What you need to know about 2.4G Radio Receivers:
