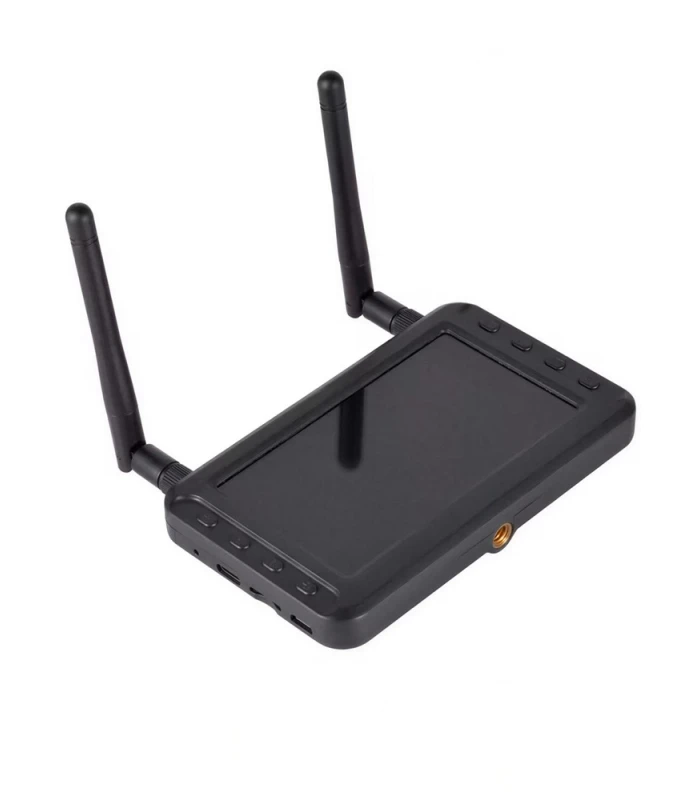

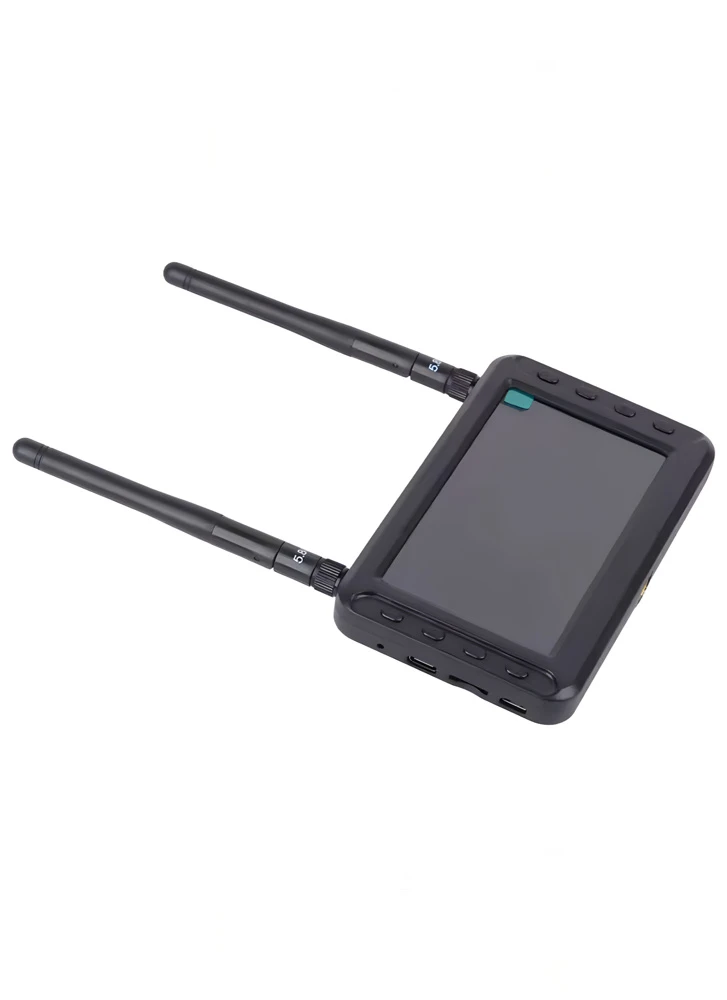

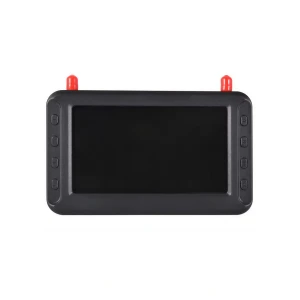

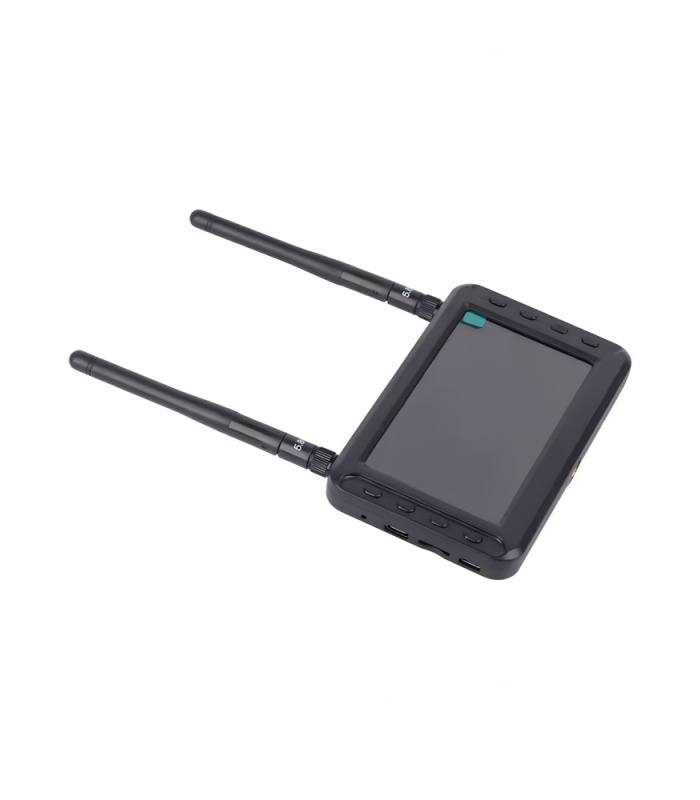

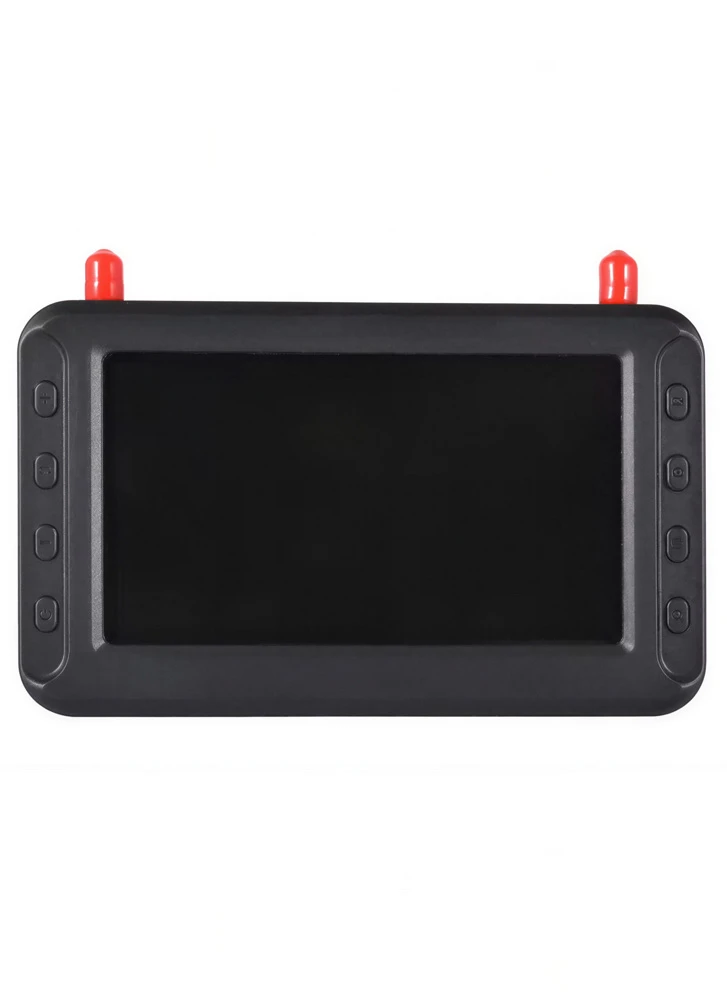

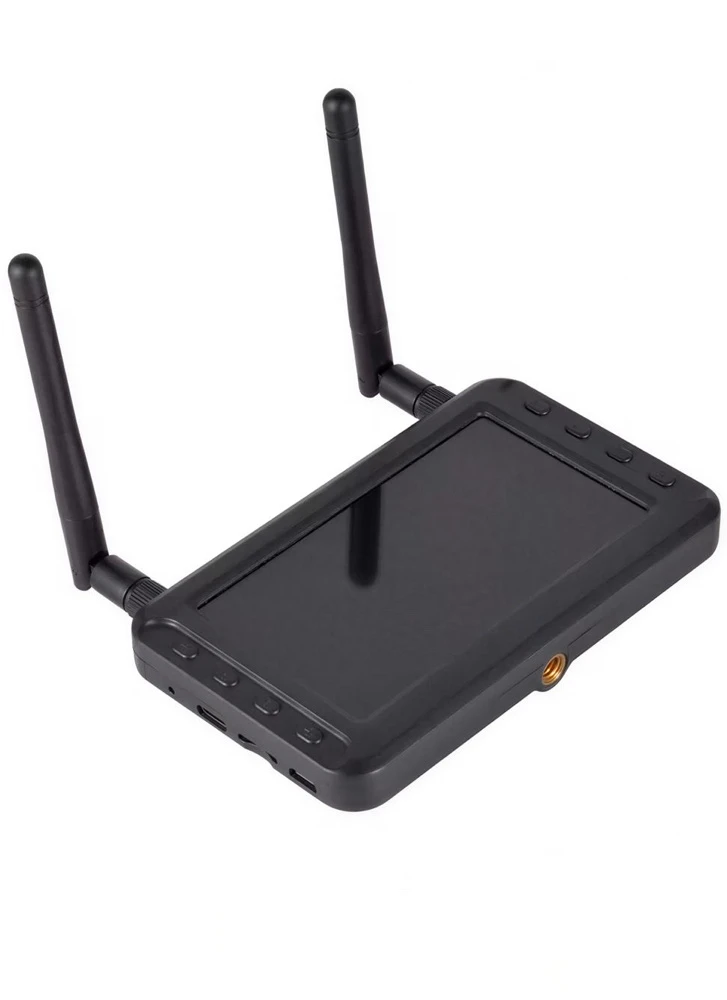

LT-DV01 4.3inch 16:9 All-in-One 5.8GHz 40CH FPV Monitor with DVR
£59.99 Inc. VAT
Compact 5.8GHz FPV display offering one-touch video and photo capture.
In stock
The LT-DV01 is a compact 5.8GHz FPV receiver and DVR with a bright 4.3-inch LCD display, offering a simple and portable way to view and record analogue FPV video. It features dual-mode channel scanning with one-key auto-search, giving you fast signal acquisition whether you’re checking a quad on the bench or monitoring a live feed in the field. The LCD panel delivers clear, high-contrast images, and its ultra-thin, lightweight design makes it easy to carry in any kit bag.
Recording is fully integrated, with one-button photo capture, video recording and playback. Footage is saved directly to a micro-SD card (up to 32GB), making it ideal for quick inspections, line-of-sight testing or gathering reference footage without needing goggles. SD card is not included. The built-in 7.4V 600mAh removable battery offers around 60 minutes of run time and can be recharged via USB-C.
The monitor supports both NTSC and PAL systems, giving broad compatibility with analogue FPV equipment. It uses a standard SMA antenna connection, allowing you to easily upgrade or swap antennas to suit your range and environment.
With low latency, clean video output and intuitive single-button controls, the LT-DV01 is a practical all-in-one solution for pilots, technicians and field engineers needing a reliable, pocketable FPV display.
Wireless Reception
-
Frequency Range: ISM 5.8GHz ~ 5.95GHz
-
Sensitivity: 92 dB
-
System: NTSC / PAL
LCD Display
-
Screen Size: 4.3 inch
-
Resolution: 800 × 480
-
Aspect Ratio: 16:9
-
Brightness: 500 cd/m²
-
Contrast: 500:1
-
Viewing Angle: 140° (horizontal) / 120° (vertical)
Video Delay
-
Latency: <20 ms
Photography / Video Recording
-
Photo Formats: JPG / JPEG / PNG
-
Video Format: MP4
-
Video Resolution: VGA / D1 / HD
-
Frame Rate: 30 fps
-
Storage: Supports TF cards up to 32GB (Class 10 recommended)
Interface
-
Charging Port: USB Type-C
-
AV Output: Video out
-
Audio Range: 20 Hz – 20 kHz
-
Antenna Connector: RP-SMA
Language Options
-
English / Chinese
Power Supply
-
Working Voltage: 3.7V – 11.1V
-
Operating Current: 400 mA @ 7.4V (max)
-
Internal Battery: 600 mAh @ 7.4V
Operating Environment
-
Temperature Range: –10°C ~ +65°C
Physical Specifications
-
Weight (without battery): 119 g ± 3 g
-
Dimensions: 126 × 76 × 17 mm (excluding antenna)

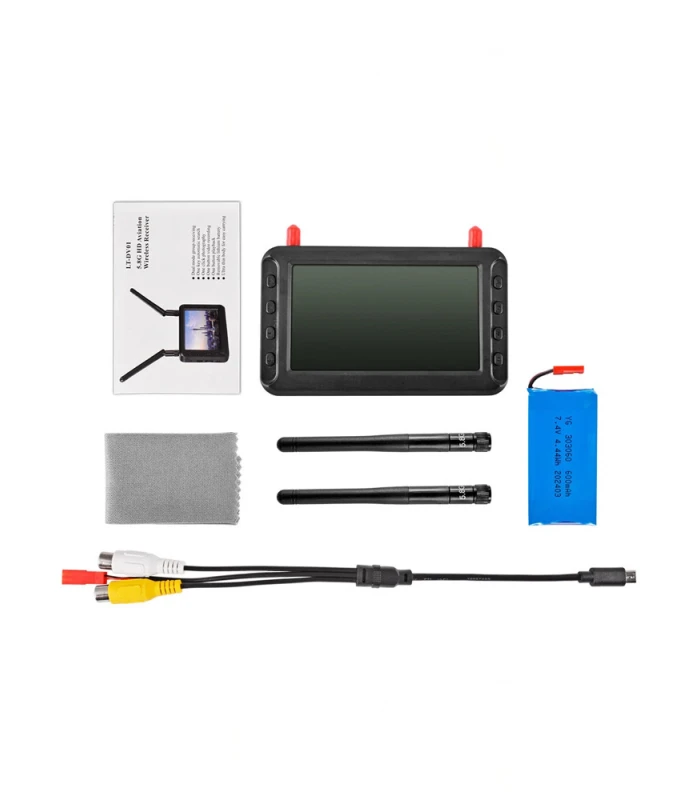

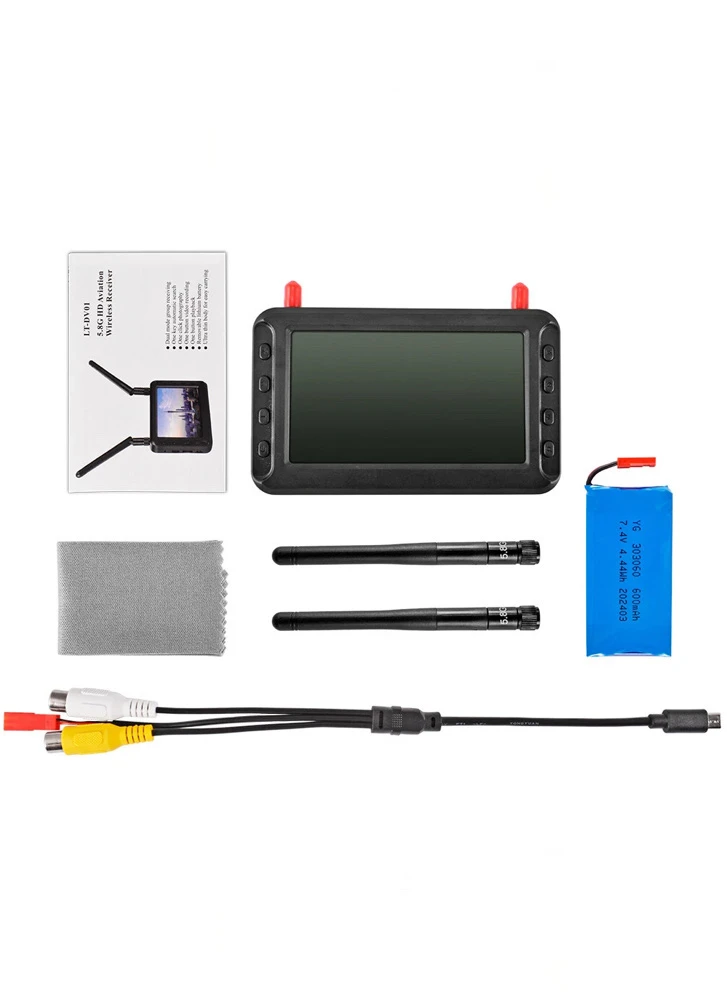

Included:
- 1 x Display
- 1 x Audio video cable
- 2 x Antenna

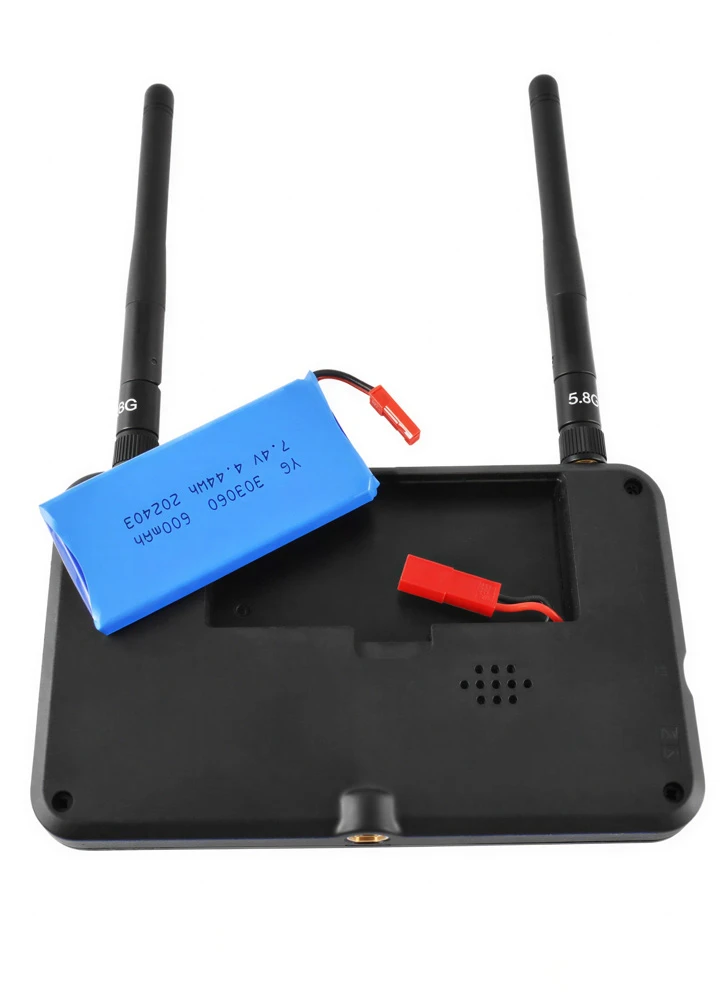

- 1 x 7.4V 600mAh Battery
