Hawkeye Flight-Master 48CH 5.8GHz FPV Monitor - 2.5 / 3.5

Version	Clear

Description

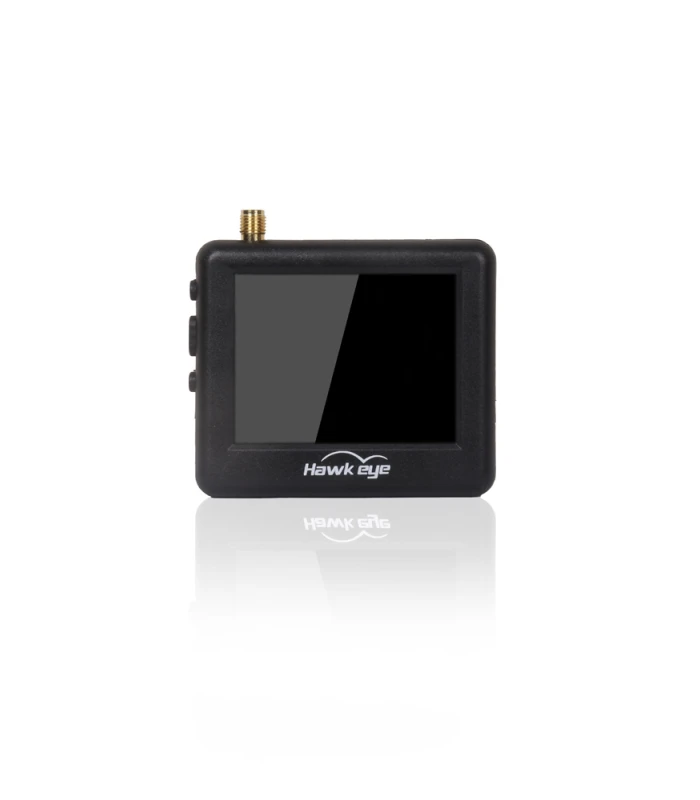

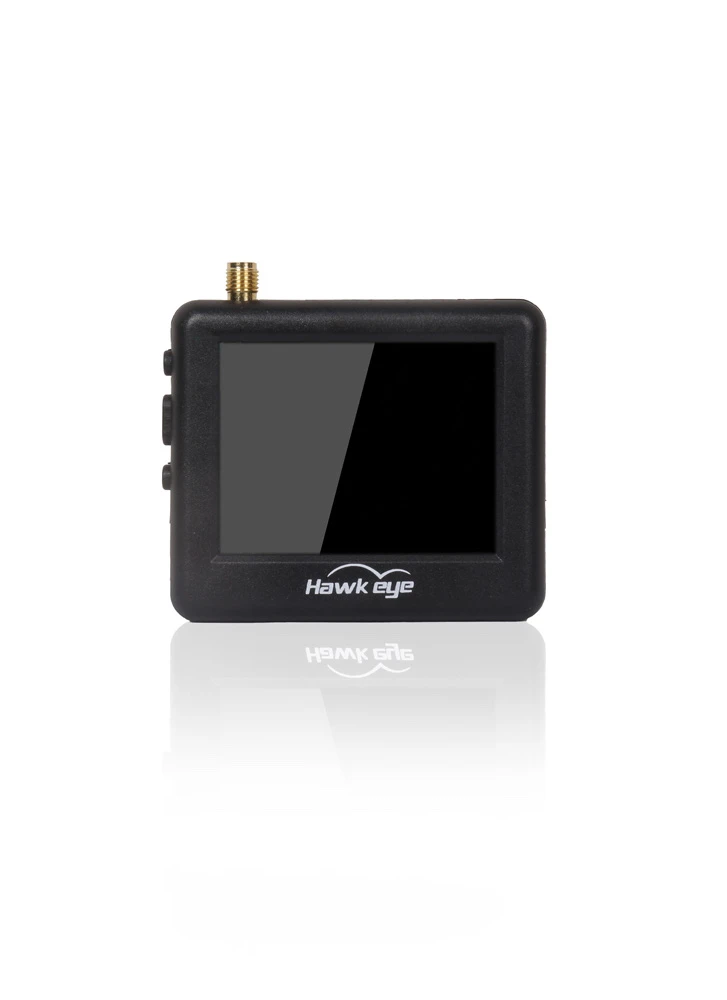

Hawkeye have added to their FPV monitor range with the very compact ‘Flight-Master’ screens. They offer two sizes of this monitor a 2.5inch and 3.5inch version. They both feature a built-in 5.8GHz 48 channel receiver and are really easy to use. The screens include a built in battery and charge over the inbuilt micro USB port.

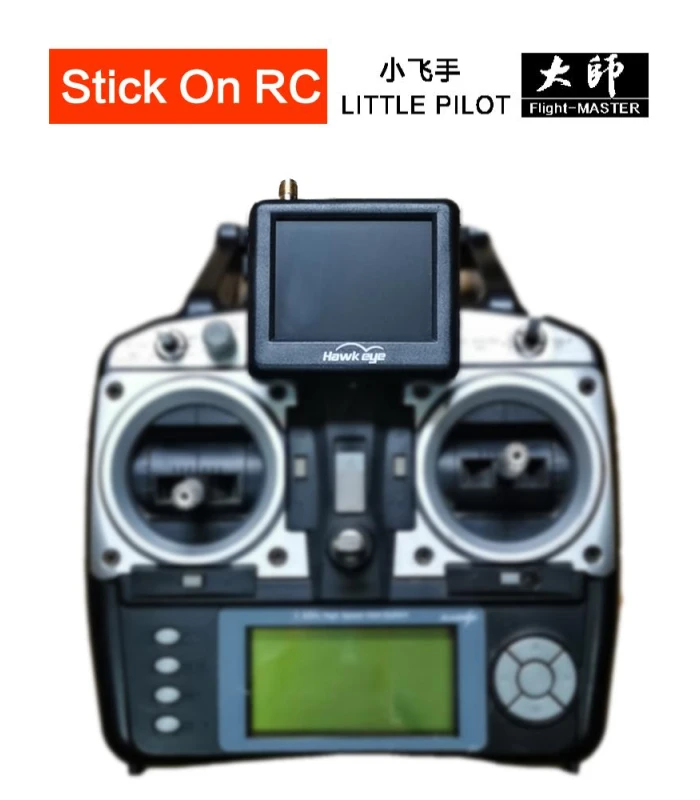

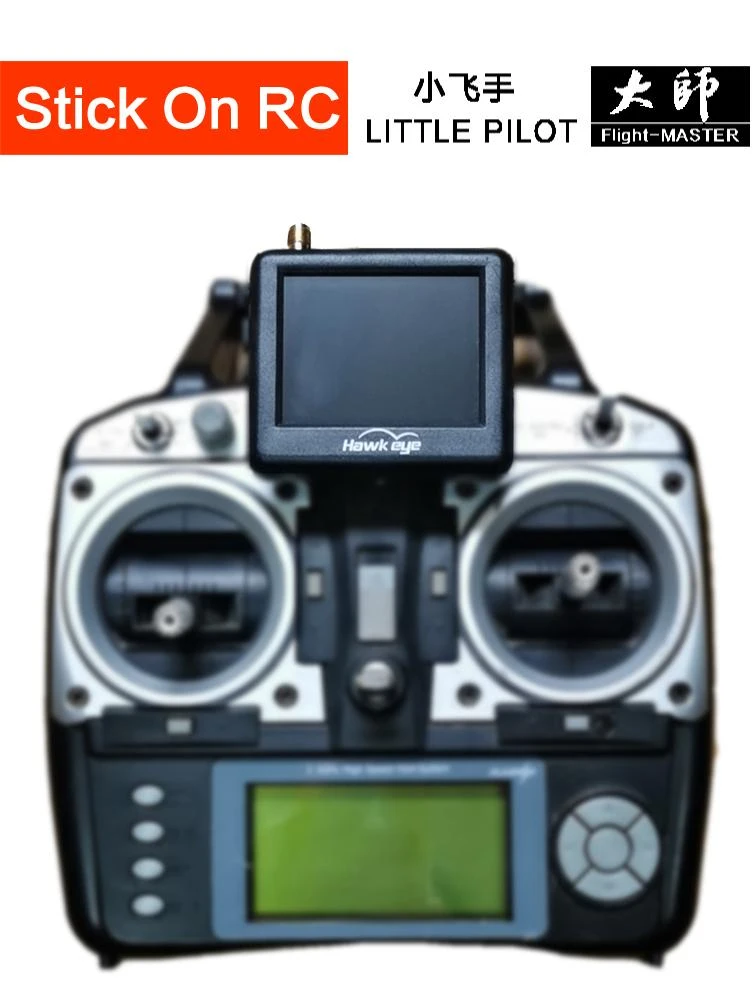

These mini FPV screens really comes into their own for quickly testing FPV setups and configuring your quad using the BF OSD without having to put your goggles on. As the screen are self-powered, they can be easily added to a radio transmitter to give the pilots FPV video at their fingertips. They are also great for sharing around amongst curious spectators to give them an idea of what FPV is all about. Finally, these monitors can act as an analogue receiver for the DJI digital goggles – they include a AV output cable that plugs directly into the DJI goggles.

NEW – There is a new version of the 3.5inch screen which includes a DVR function allowing you to record flight footage onto a MicroSD card (card not included).

Features:

On screen voltage indicator
On screen timer
On screen receiving intensity display
960 x 240 resolution
Analogue video output – ideal for adding analogue receiving capability to DJI HD FPV Goggles
Analogue video input – can be used as a small display screen

Specification

Display resolution: 960×240
Backlight: LED
Size: 2.5 Inch / 3.5 Inch
Brightness: 350 Lux
Aspect ratio: 16:9
Response time: <10ms
Color system: PAL/NTSC
Battery life: 1.5-2 hours (2.5inch) 2.5hours (3.5inch)
Signal: Video(PAL/NTSC/Auto)
Monitor size: 66×57×14mm / 90×72×17mm
Gross weight: 55g (2.5inch) 110g (3.5inch)
5.8G Sensitivity: -94dB
Matching antenna: SMA
Video Input/Output: 3.5mm interface, can be inserted into DJI Goggles directly.
LHCP/RHCP: LHCP
Channel: 48CH
Voltage: Micro USB, 5V
Color: Black

Included:

1x Hawkeye Flight-Master 48CH 5.8GHz FPV Monitor w/ Internal Battery
1x Linear Antenna
1x 3.5mm Video Cable
