LST-S4 Mini 5.8Ghz 25mW 40CH VTX / 800TVL AIO Camera
£33.90 Inc. VAT
An easy-to-install FPV camera and VTX combo with flexible mounting.
In stock

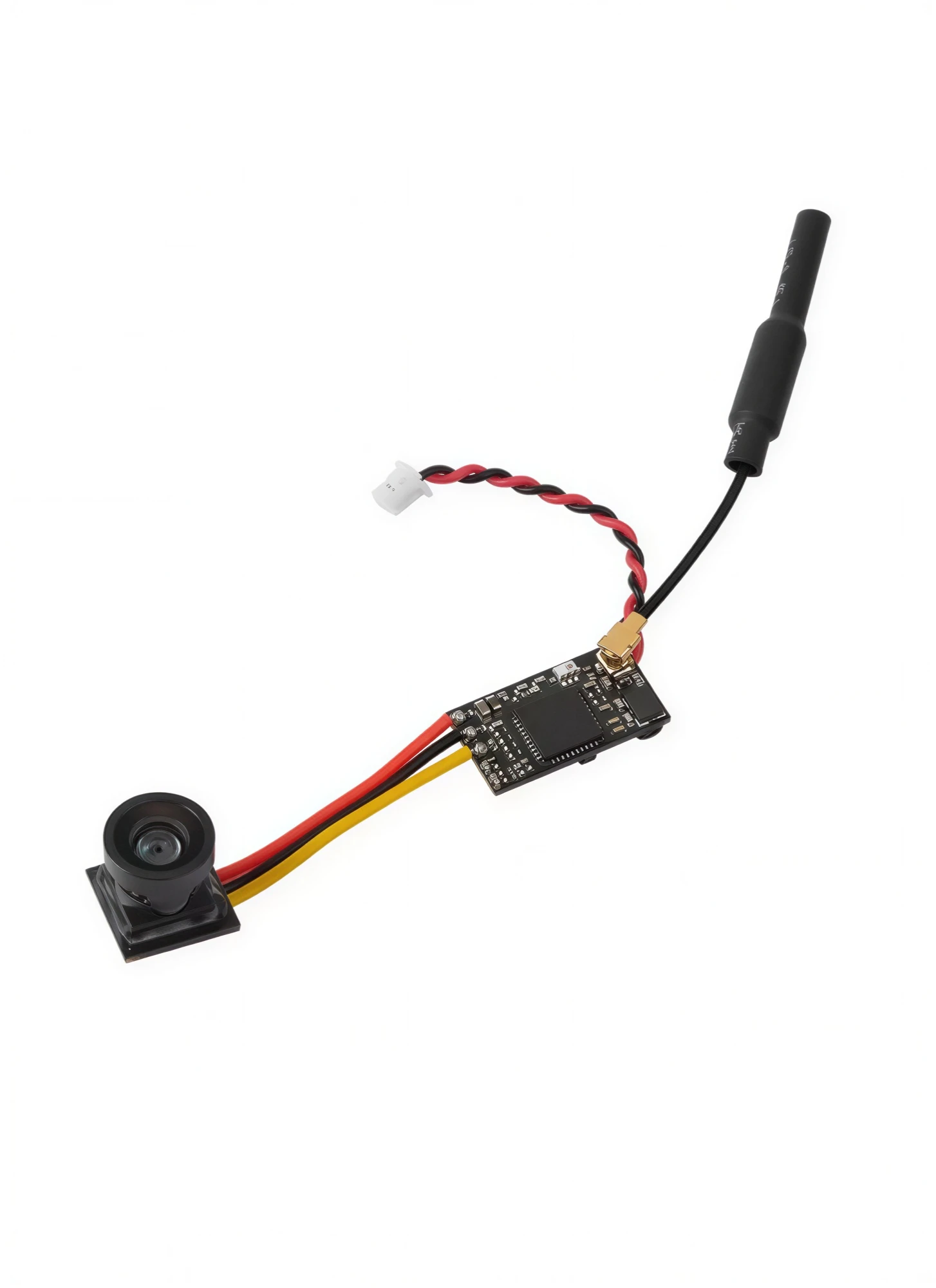

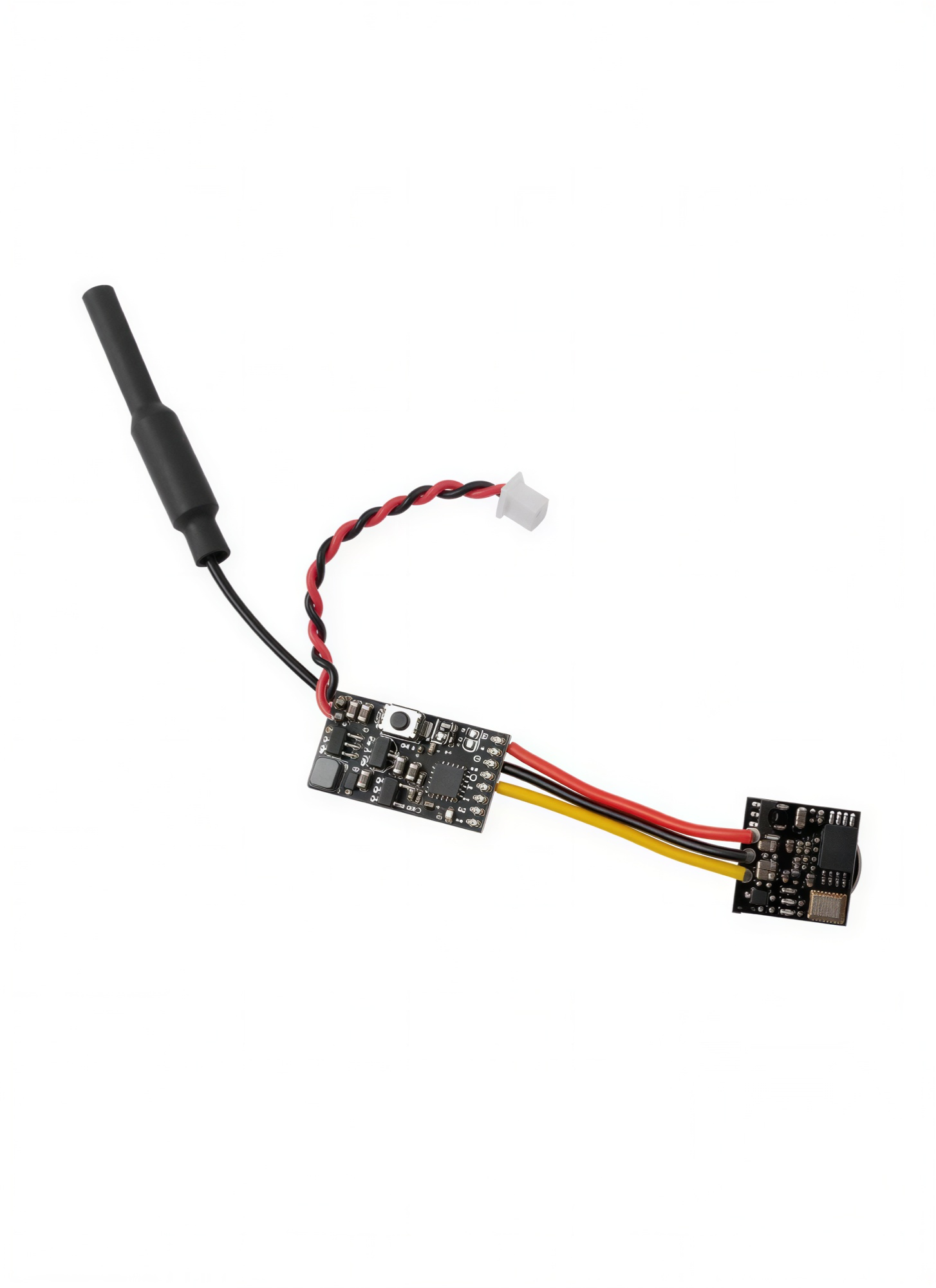

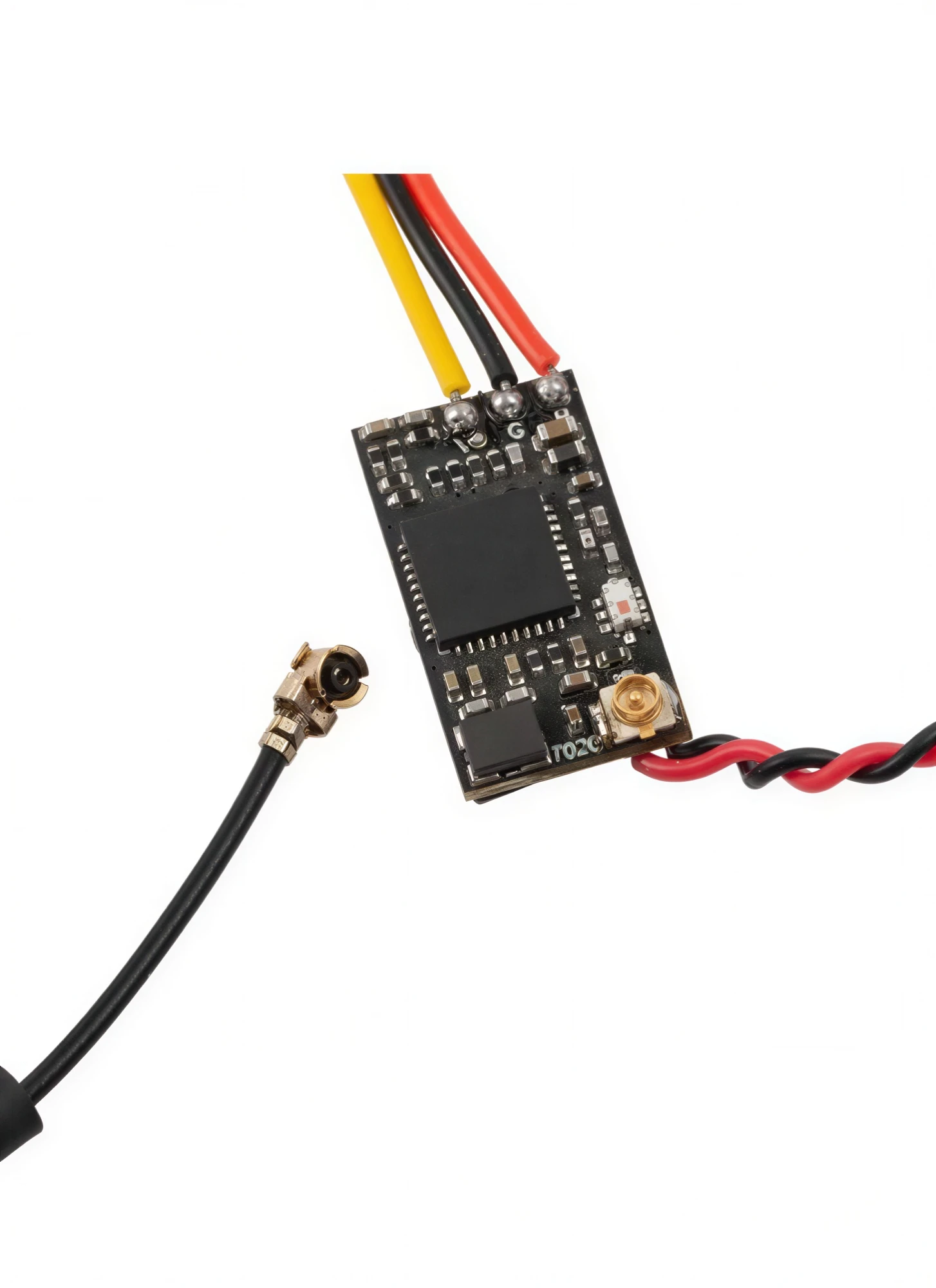

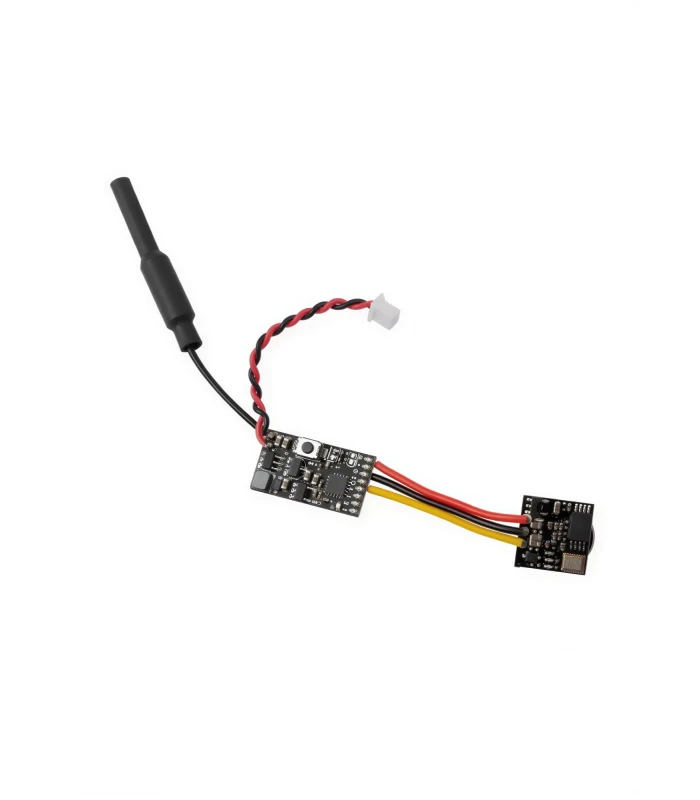

The LST-S4 combines a compact 800TVL FPV camera with a 40-channel 25mW 5.8GHz VTX, offering the same simple plug-and-play setup as the LST-S2, but with the camera separated from the VTX on a short cable. This layout makes installation more flexible, allowing easier camera positioning in tight frames while keeping the transmitter tucked away safely.
To get up and running, simply provide power. The LST-S4 can be powered from a 1S LiPo or any regulated 5V supply and is compatible with flight controllers that support FPV OSD. It includes video input and output connections, which are soldered together by default but can be separated to route video through an OSD if required.
Despite its small size, the camera delivers surprisingly good image quality, and the built-in 25mW UK-legal transmitter provides a practical range of around 100 m — ideal for micro quads, indoor builds, and lightweight FPV projects.
Features:
Micro sized and lightweight

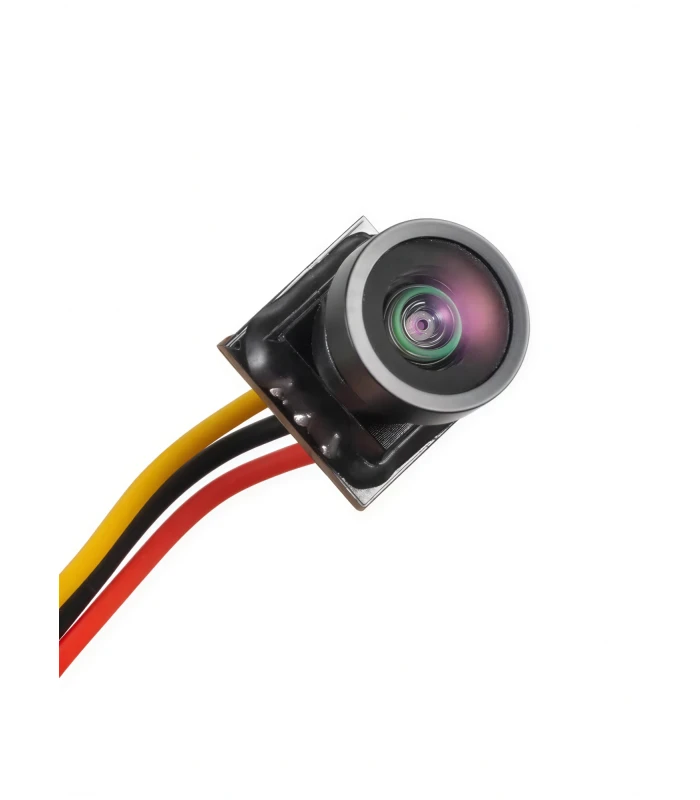

800TVL mini FPV camera on a flexible cable
40-channel 5.8GHz 25mW VTX with Raceband
Simple plug-and-play installation
Compatible with flight controller OSDs

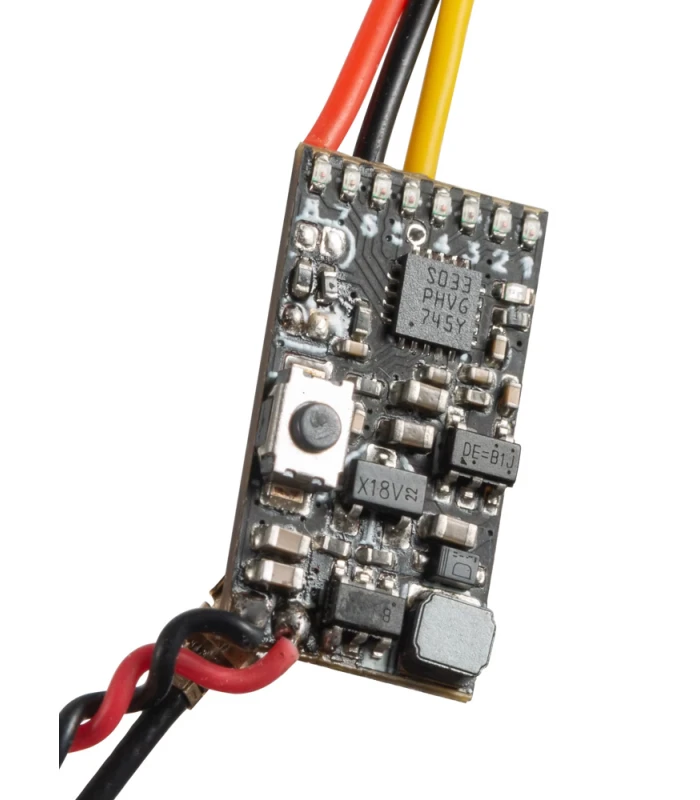

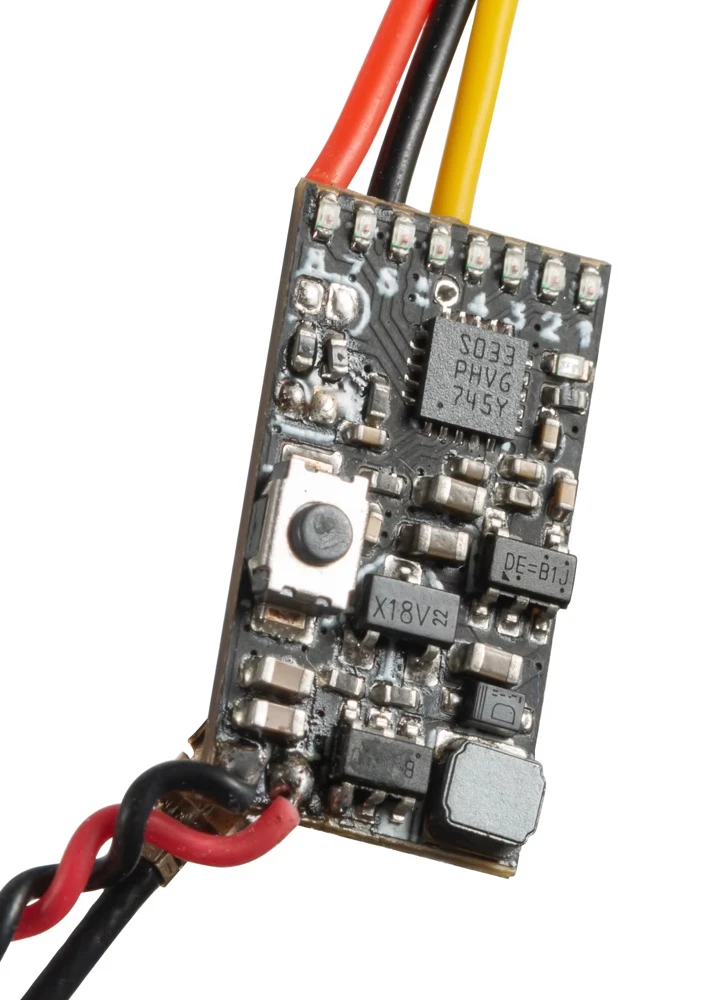

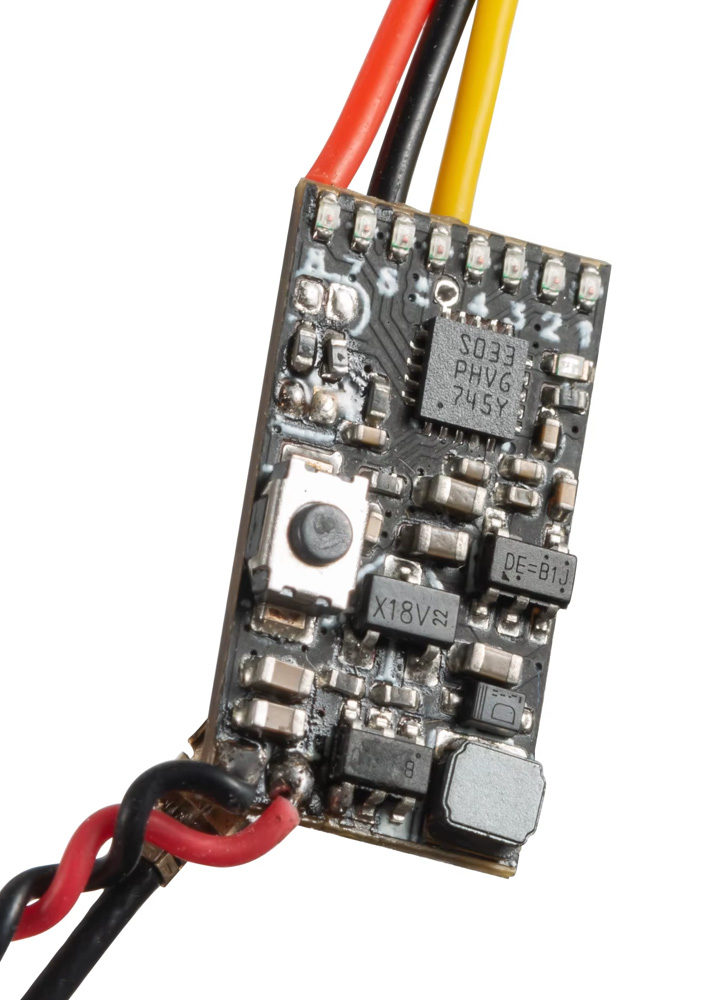

Push-button channel and band selection
1S LiPo or 5V power input
Channels:
Band F: 5740, 5760, 5780, 5800, 5820, 5840, 5860, 5880
Band E: 5705, 5685, 5665, 5645, 5885, 5905, 5925, 5945
Band A: 5865, 5845, 5825, 5805, 5785, 5765, 5745, 5725
Band R: 5658, 5695, 5732, 5769, 5806, 5843, 5880, 5917
Band B: 5733, 5752, 5771, 5790, 5809, 5828, 5847, 5866
Button function
Short press (Apr. 1 sec or less): Change channels 1-8
Long press (More than 1.5 sec): Change bands A-B-E-F-R
Long + press (More than 3 sec): Change NTSC/PAL system
NTSC or PAL (selectable; Blue LED on= NTSC; Blue LED off=PAL)
- Weight: 3.6g
- Size: 18x16x16mm (without antenna)

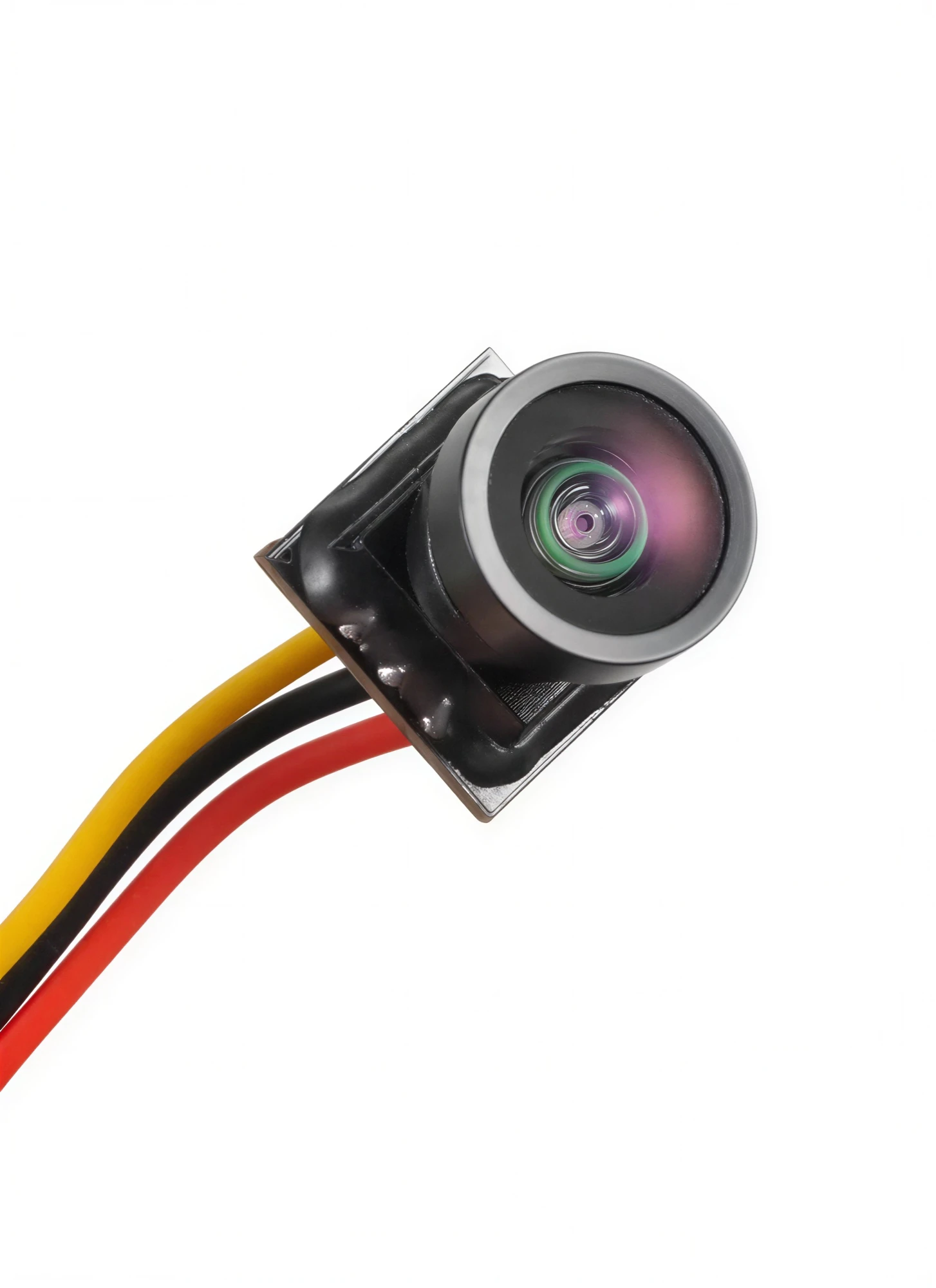

Camera:
- Sensor: 1/4 “CMOS
- Resolution: 800TVL
- Lens: 2.1MM M8
- Format: NTSC / PAL (switchable)
- Power consumption: 380mA @ 3 · 7V
- Power: 3.6-5.5V

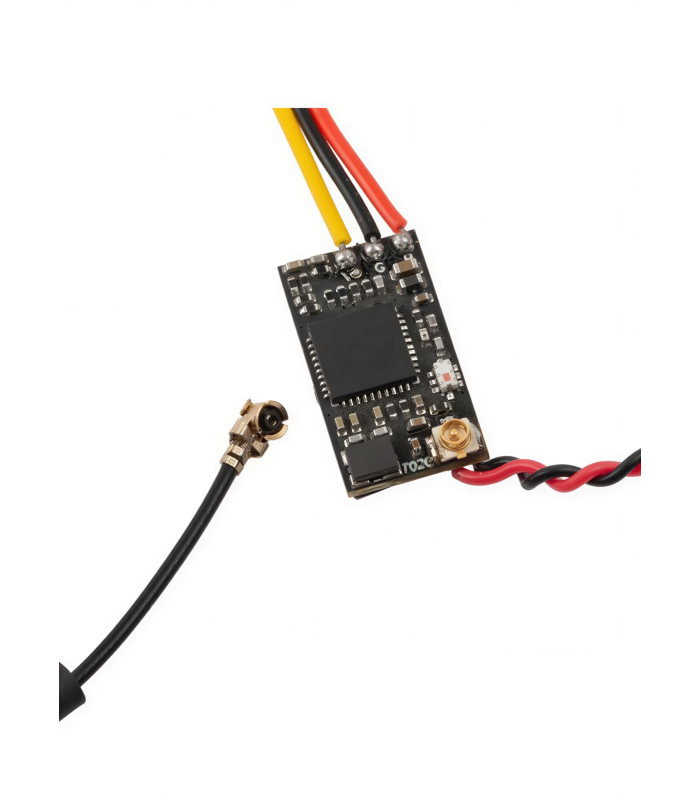

Video Transmitter
- Support video format: NTSC / PAL
- Output Impedance: 75 Ohm
- Output signal strength: 23 ~ 24dBm
- Output Power: 25mW
- Wireless Channel: 40CH
- Antenna: RHCP circular polarization clover leaf antenna
- Operating voltage: 3.6V ~ 5.5V
- Current: 100mA
- Audio carrier: 6.5MHz
Included:
- 1 X S2 AIO FPV Camera
- 1 X wire
- 1 X User Manual
