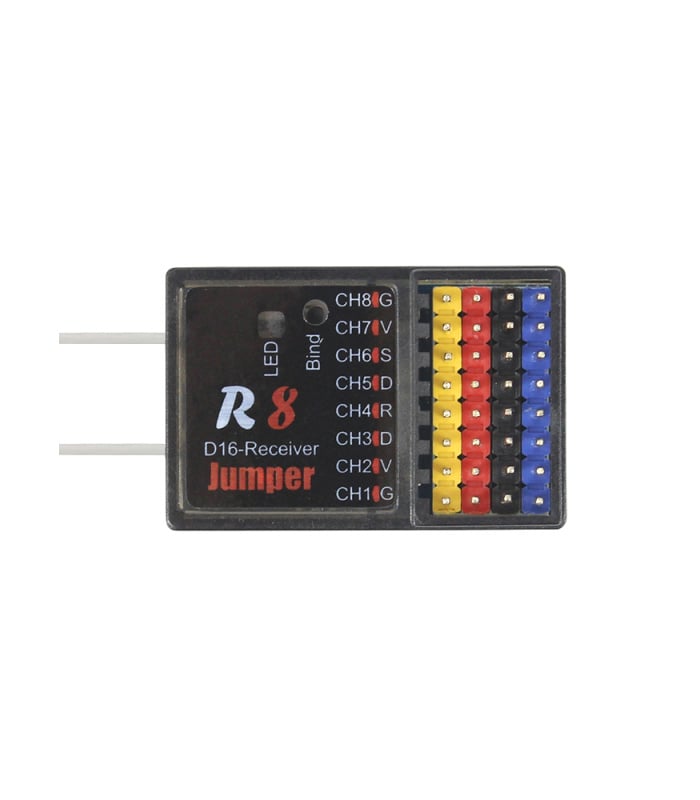

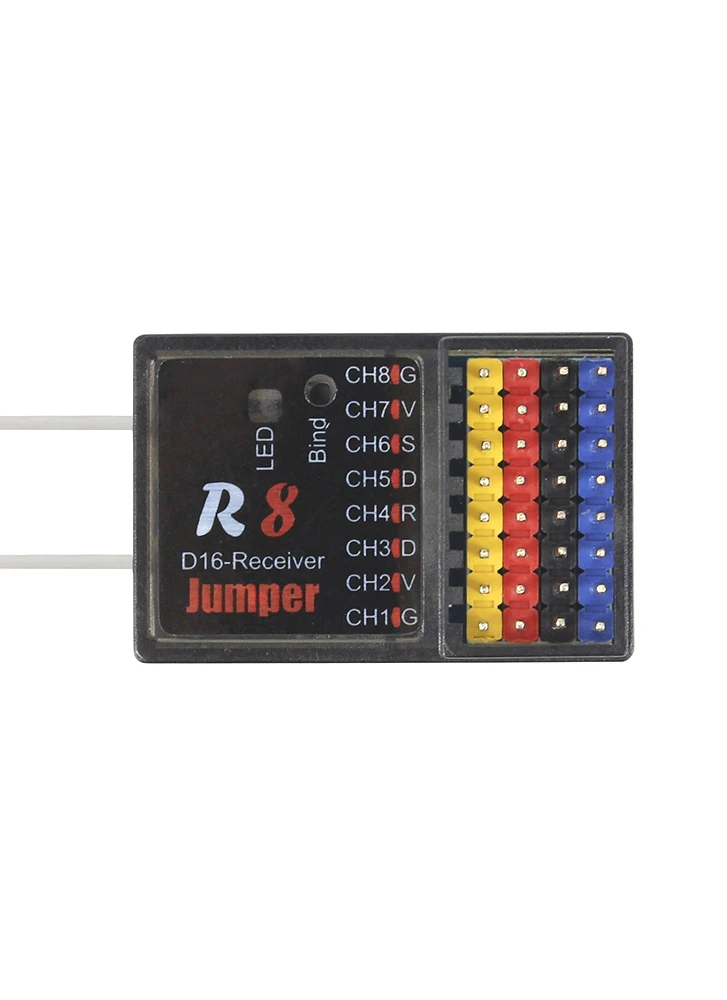

Jumper R8 II D16 SBUS Receiver Supports Pixhawk Telemetry
£25.90 Inc. VAT
The R8 has a unique feature, a TX/RX data connection for Pixhawk, enabling a telemetry display on a compatible RC.
In stock
This is the V2 Edition – it has been updated with amplified PCB Antennas.
The Jumper R8 receiver works as a conventional 8-channel PWM receiver or 16-channel SBUS Rx, for use with FrSky D16 (International Firmware). As receivers go, this one is a little different to others in that it has a unique feature! It has a TX/RX telemetry output, which allows you to connect it to a Pixhawk, PX4 or APM Flight Controller to receive a live telemetry on a compatible RC transmitter, for example the Jumper T16 or Taranis X9D. This is a super useful feature as it means you can get lots of useful information such as flight modes, battery level and error messages direct to your radio in real time without the need for a Mavlink Ground control station.
Yaapu Telemetry Script – Here
Arducopter Wiki Information – Here
- Number of Channels: 16Ch (1~16ch from SBUS channel, 1~8ch from PWM channel)
- Operating Voltage Range: 3.5V~8.4V
- Operating Current: 70mA@5V
- Operating Range: Full range
- Compatibility: FrSky X-series module & radios in D16 mode
- Dimension: 35.8×23.7×12.6mm
- Weight: <10g
Included:

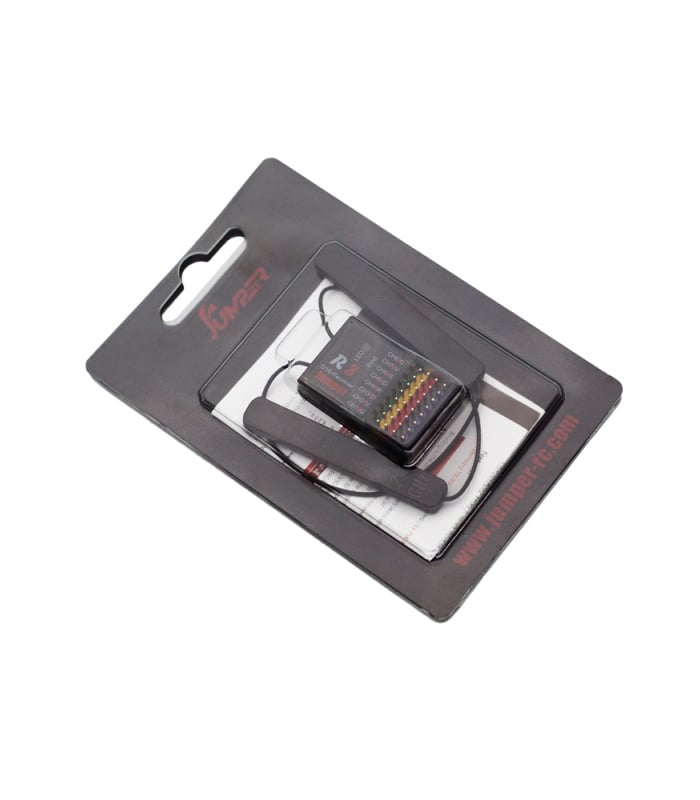

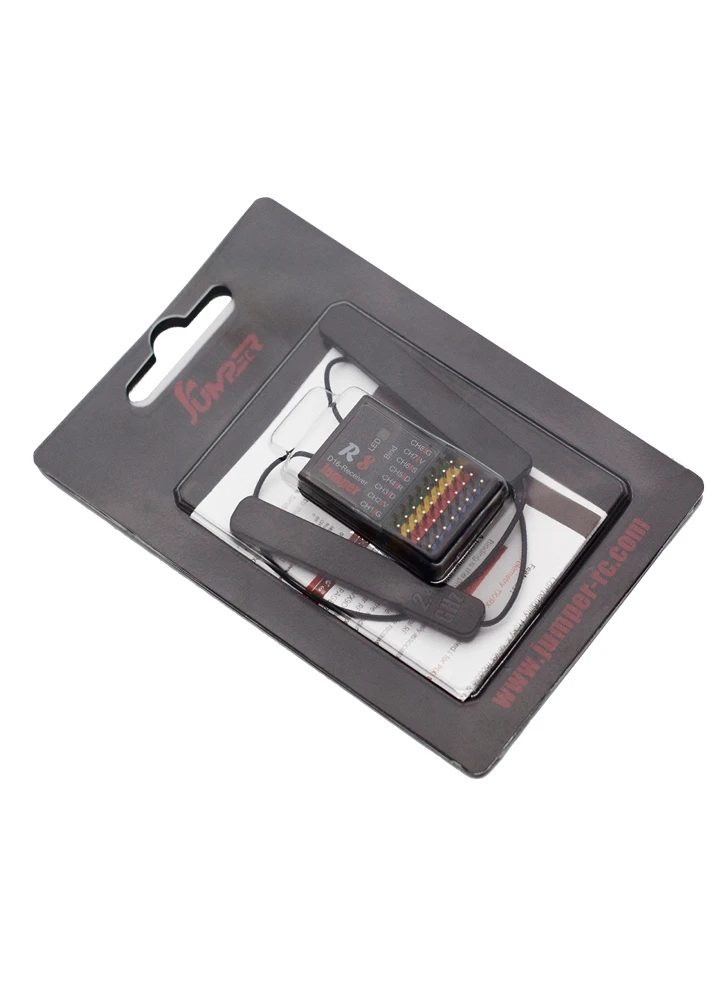

- Jumper R8 Receiver V2
- Pixhawk 1 Telemetry Cable (please select option)
Questions and answers of the customers
-
The manual is for the Jumper R8 which has different pins and connections than the advertised Jumper R8 V2 (Jumper R8II model). Can you please supply the correct manual for the Jumper R8II model
-
Q The manual is for the Jumper R8 which has different pins and connections than the advertised Jump...... Read more answer nowA
Hi, we've now uploaded this to the product page.
