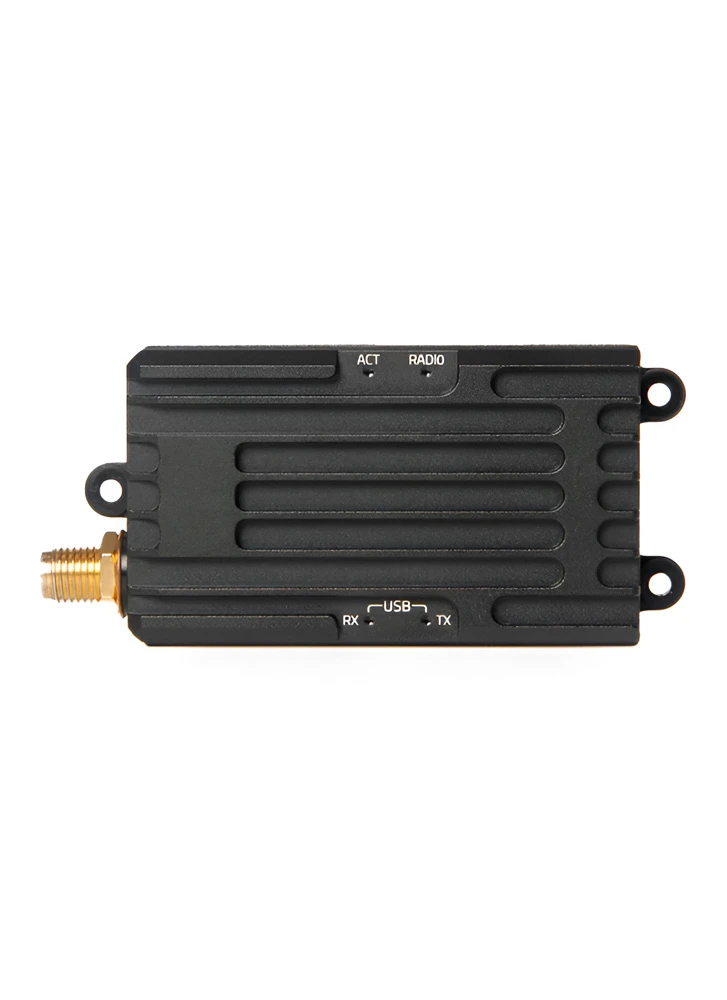

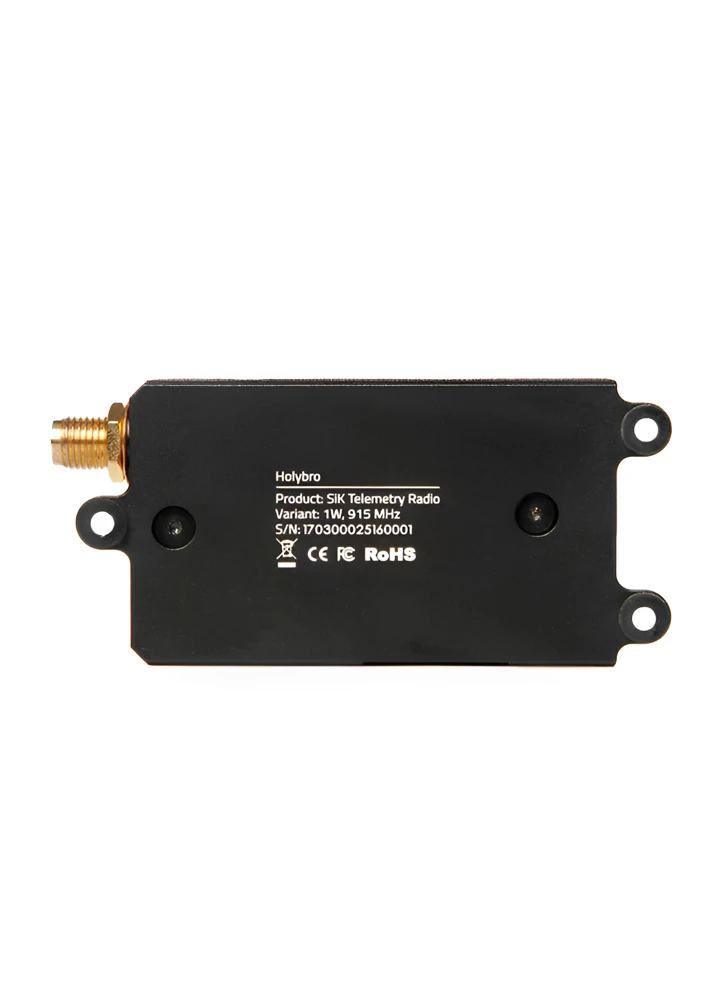

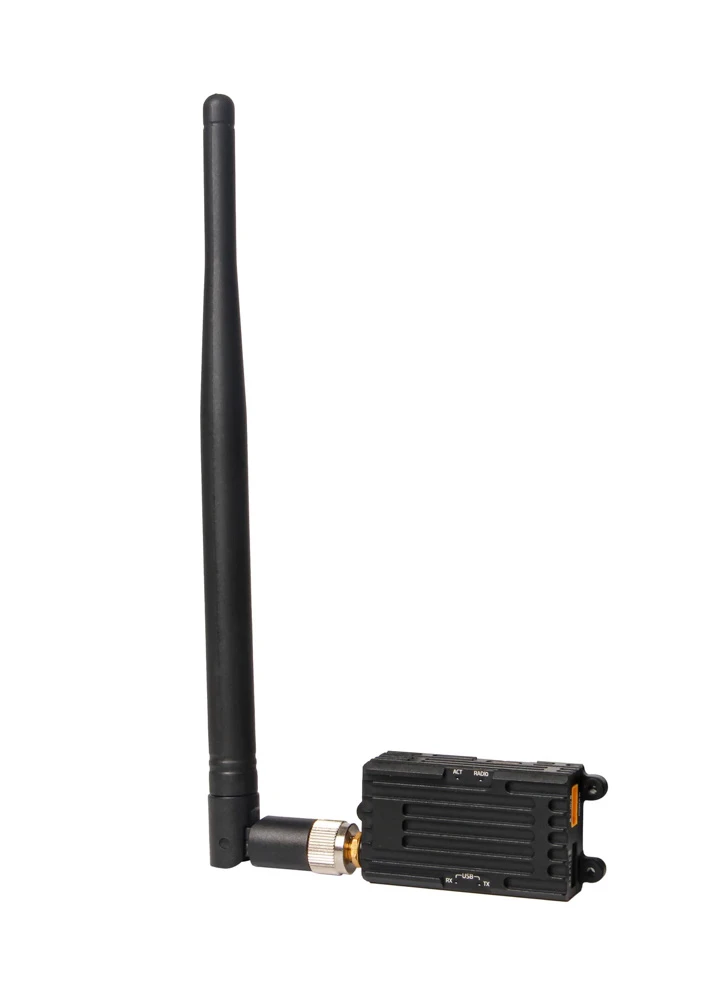

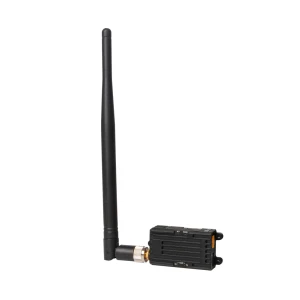

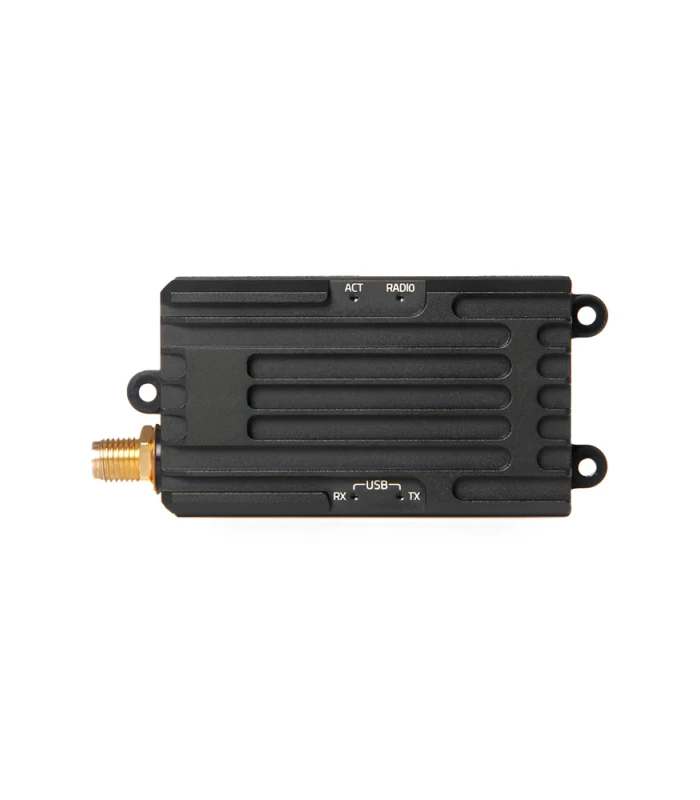

Holybro SiK Telemetry Radio 1W

Price range: £89.00 through £175.00 Inc. VAT

Easily add a two-way wireless telemetry connection between your autopilot and ground station with these Sik Radios.

Option

Clear

Frequently Bought Together

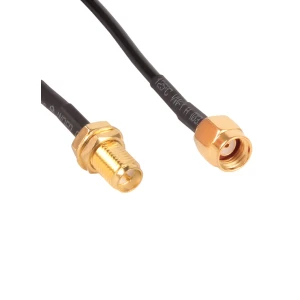

Holybro 40cm Antenna Extension Cable For Telemetry Radio (RP-SMA)

Low-loss 40cm RP-SMA cable extension for optimal antenna placement.

Add for £4.90 Inc. VAT

Out of stock

Add to compare

0 People watching this product now!

SKU: N/A Categories: Telemetry, Electronics, Flight Controller Accessories, Pixhawk & APM Accessories Tags: MAVLink, SiK Radio, Telemetry, Telemetry Radio

Description

This Holybro SiK 1W Telemetry Radio is a small, light, and inexpensive open-source radio platform with a maximum 50 kilometres range (outdoors, line-of-sight range).

This radio is plug-and-play, ready for all Pixhawk Standard and other similar flight controllers, providing the easiest way to set up a telemetry connection between your Autopilot and a ground station. It uses open-source firmware that has been specially designed to work well with MAVLink packets and to be integrated with the Mission Planner, Ardupilot, QGroundControl, and PX4 Autopilot.

The radios at interchangeable between the air and ground modules and come with connection cables.

The radios are available in 915 MHz or 433 MHz versions. Please purchase the model that is appropriate for your country/region.

Features

Open-source SIK firmware
Plug-n-play for Pixhawk Standard Flight Controllers
1W maximum RF output
The Easiest way to connect your Autopilot and Ground Station
Interchangeable air and ground radio
6-position JST-GH connector
2-way full-duplex communication through adaptive TDM UART interface
Transparent serial link
MAVLink protocol framing
Built in FT230X/FT231 USB to BASIC UART conversion IC

Ground Stations:

Mission Planner: Platform Windows, Mac OS X
QGroundControl: Platform Windows, Mac OS X, Linux, Android and iOS
Mission Maker for ArduPilot (a.k.a. “DroidPlanner 3” / “Tower”) Platform: Android Phones and Tablets

Manual:

Telemetry-Radio-V3-Quick-Start-Guide

Some Tips:

https://ardupilot.org/copter/docs/common-configuring-a-telemetry-radio-using-mission-planner.html

Specification

	SiK Telemetry Radio 100mW	SiK Telemetry Radio 500mW	SiK Telemetry Radio 1W
Max RF Power	20 dBm	27 dBm	30 dBm
Receive sensitivity	-121 dbm @2kbps RF Data Rate, -105 dbm @64kbps RF Data Rate
Line-of-sight range	300~500m (2dBi Antenna)	~ 1km (2dBi Antenna)	~ 50km (5dBi Antenna)
Antenna Gain	2dBi		5dBi
RF Data Rates	2, 4, 8, 16, 32, 64(default), 96, 128, 192, 250 kbps
Serial Interface Data Rate	1.2, 2.4, 4.8, 9.6, 19.2, 38.4, 57.6(default), 115.2 kbps
Frequency Band	902MHz – 928MHz or 414MHz – 460MHz
Interference Immunity	Frequency Hopping Spread Spectrum (FHSS) Configurable duty cycle
Address Options	Network ID: 0 –255
Channels	Up to 50 Frequency Hopping Channels
Supported Network Topologies	Point-to-point
Configuration Method	MissionPlanner or AT Commands
Data Framing	Standard or MAVLink protocol framing
Error correction	Corrects up to 25% of bit errors with open-source SIK firmware
Serial Data Connector & Interface	6-pin JST-GH connector, 3.3V-TTL
USB	Micro-USB		Type-C
SMA Connector	RP-SMA female
Power Connector	NA		XT30
Operating Temperature	40~85°C
Dimension	28 x 53 x 10.7mm (without antenna)		66.5 x 32 x 16.5mm (without antenna)
Weight	23.5g w/ antenna		67g w/ antenna
Input Voltage (DC)	5V		7~28V

Power

- Supply voltage: 7~28V DC via XT30
- Transmit current: 12V/400mA at 30 dBm
- Receive current: 12V/30mA
- Serial interface: 3.3 V UART

Included:

Single 1W
- 1W Radio modules with antennas *1
- High-gain omnidirectional antenna *1
- Male Type-C to male Type-C USB cable *1
- Male XT30 to female XT30 adapter cable *1
- Male XT30 to female XT60 adapter cable *1
- JST-GH-6P to JST-GH-6P cable *1 (for Pixhawk Standard FC)
- Rubber damping grommet *3
Pair 1W
- 1W Radio modules with antennas *2
- High-gain omnidirectional antenna *2
- Male Type-C to male Type-C USB cable *1
- Male XT30 to female XT30 adapter cable *1
- Male XT30 to female XT60 adapter cable *1
- JST-GH-6P to JST-GH-6P cable *1 (for Pixhawk Standard FC)
- Rubber damping grommet *3
