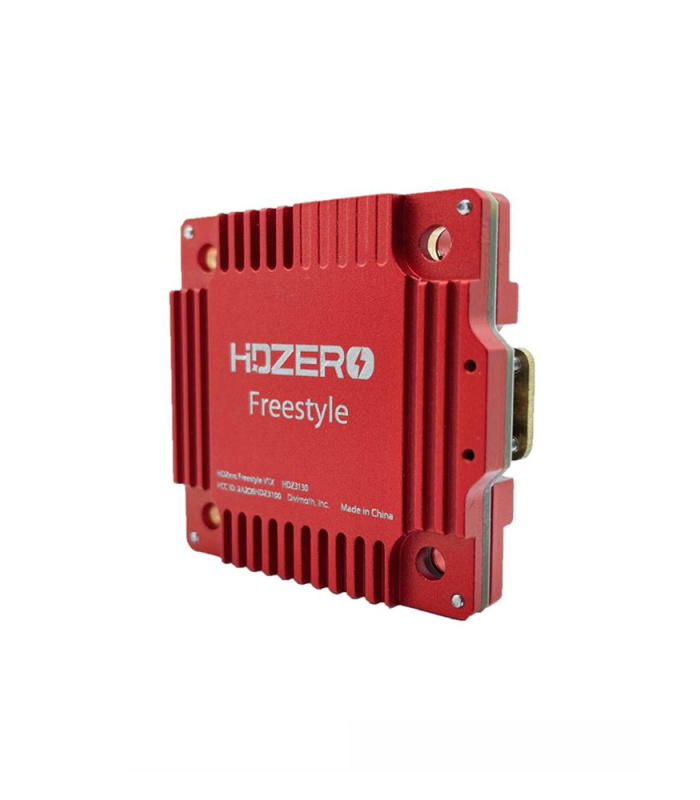

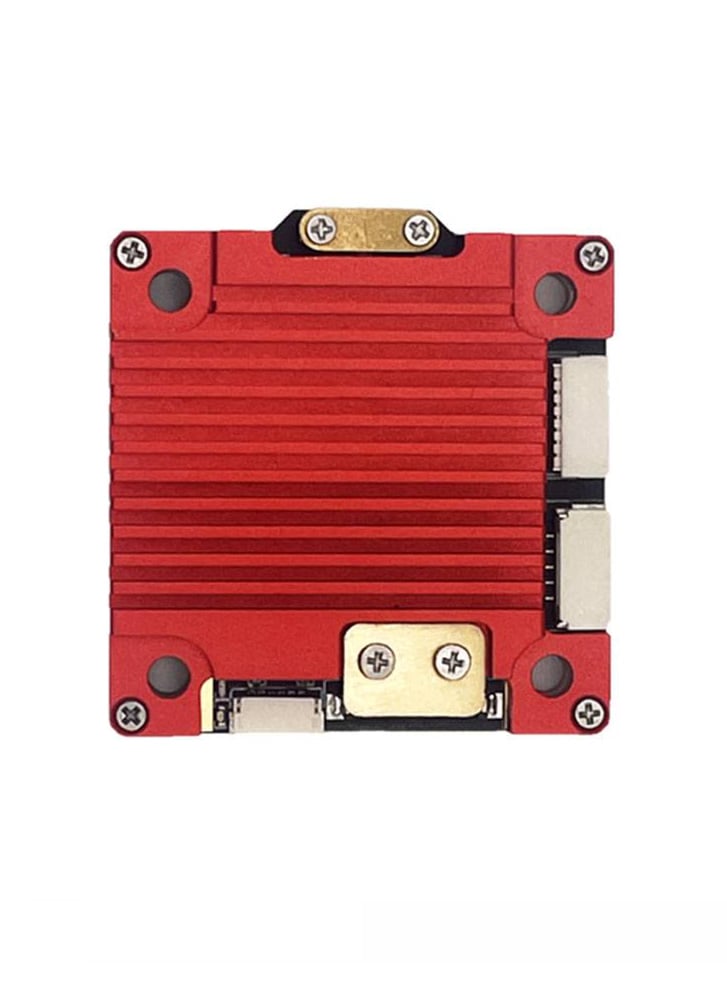

The HDZero Freestyle VTX is a digital HD 720p 60fps video transmitter capable of delivering up to 1000mw on 5.8GHz. It works with the HDZero/Shark Byte goggle module to transmit video, and with a remote controller to wirelessly control the parameters for the transmitter and camera.
The power input range is 2S โ4S. Though the VTX integrates a surge protection circuit, a large capacitor (450+uF) parallel with battery leads is mandatory to smooth the power supply of the whole quad.
The VTX includes a BEC that converts 2S-6S to fixed 5.8V with maximum 5A output current.
The VTX also includes an U.FL RHCP antenna.
Important Notes:ย
- The Freestyle VTX consumes up to 15W. If it is connected with FC that has built-in BEC output, make sure the BEC has enough current. For example, the BEC has 10V, it needs a minimum of 1.5A current output.
- Removing the heat sink is not recommended because it is part of the design.
