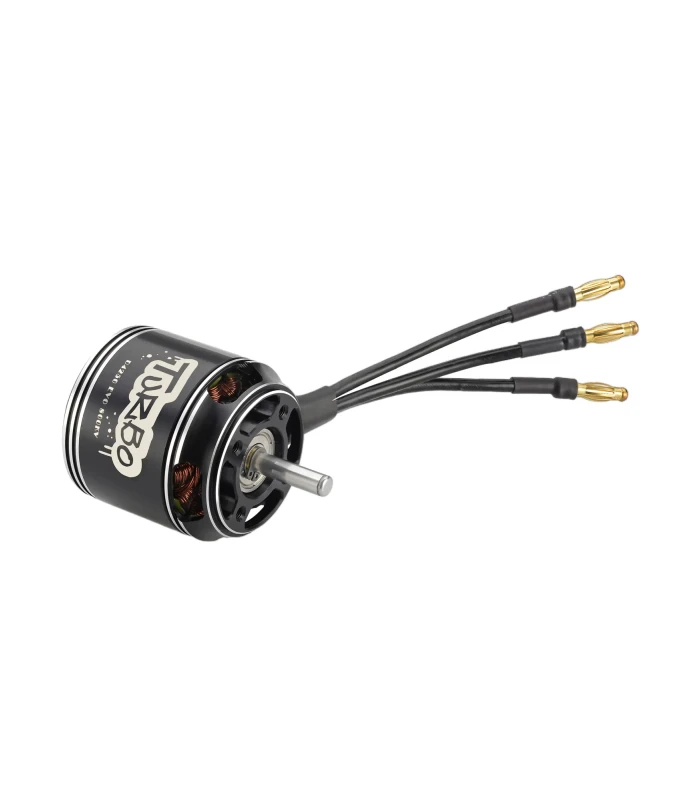

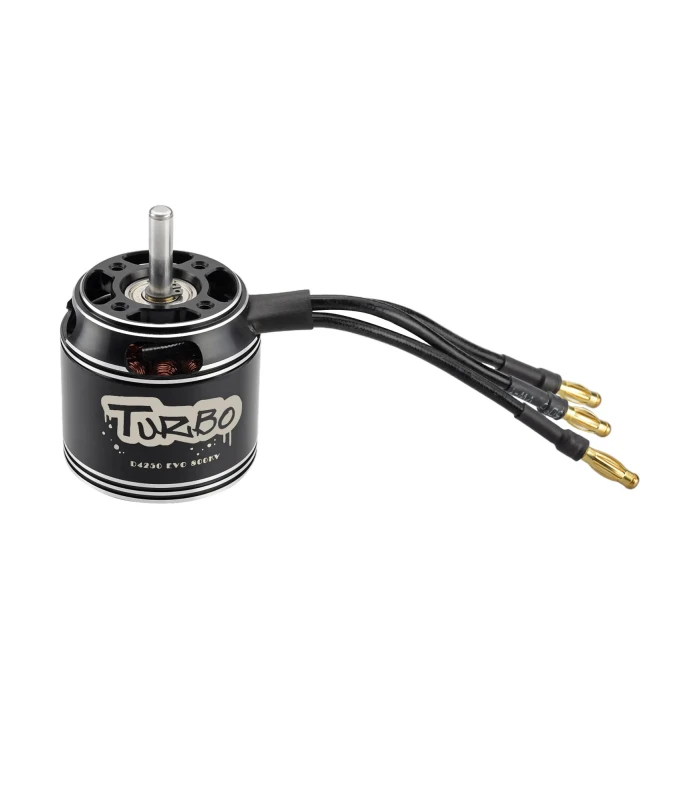

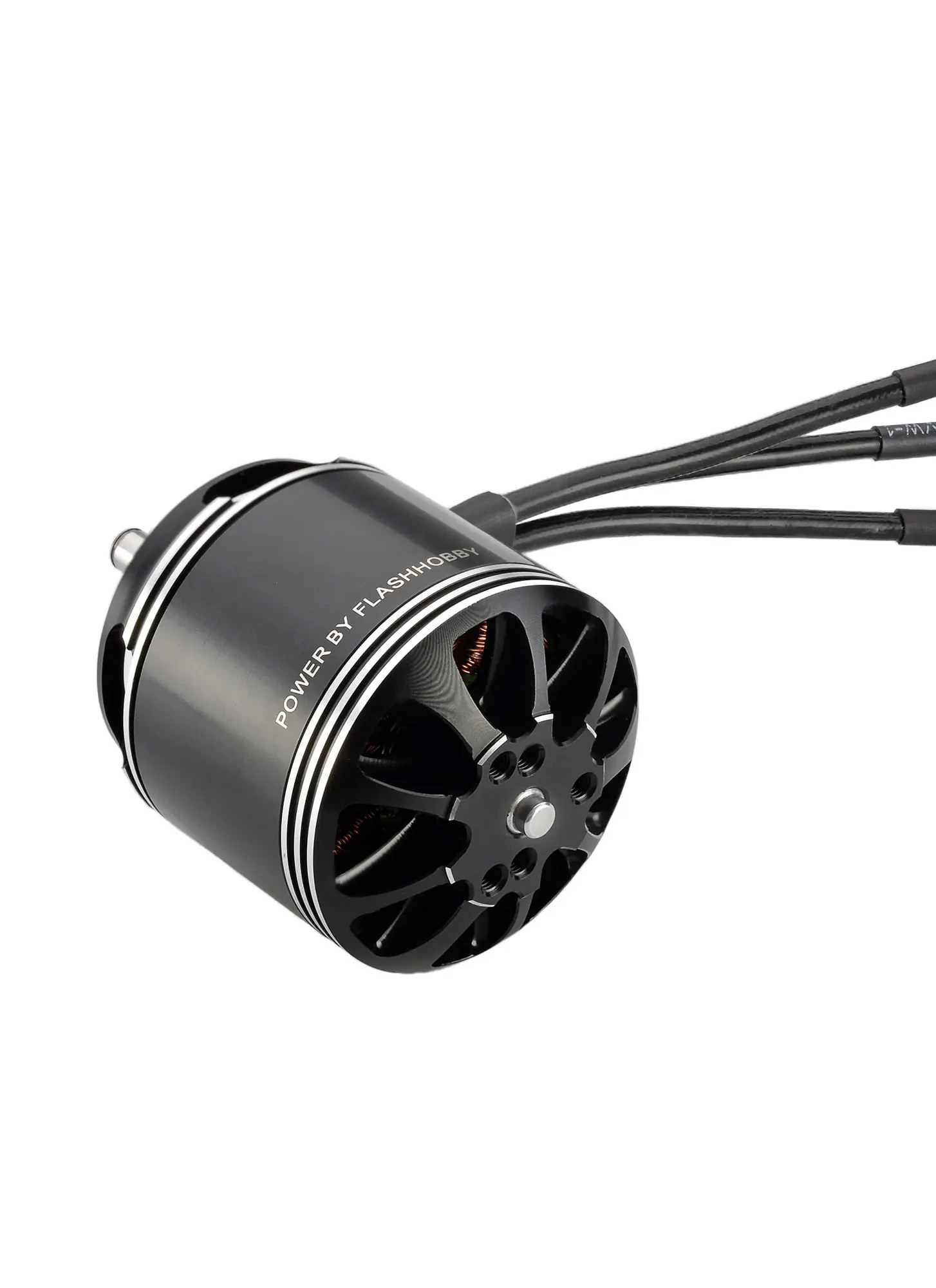

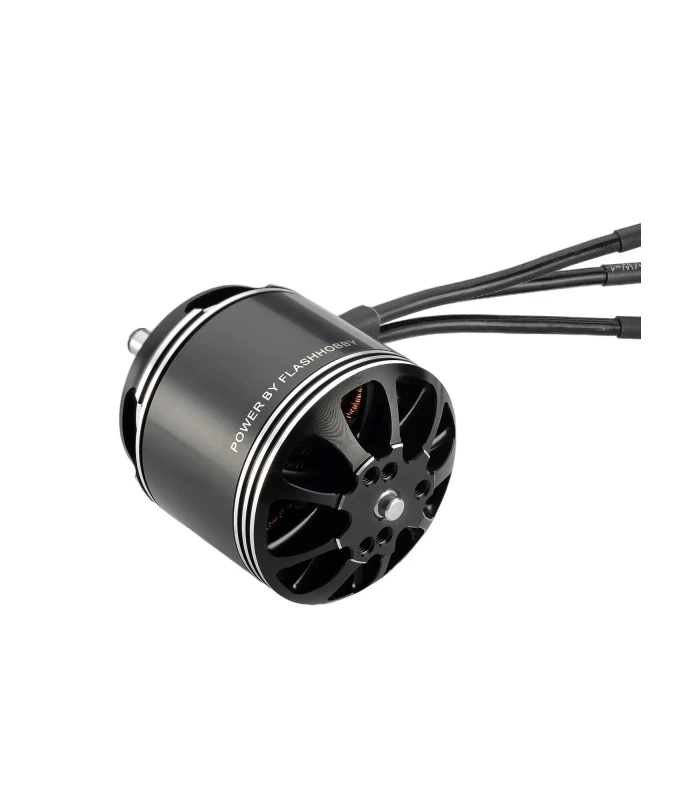

Name: Flash Hobby D4250EVO (3520) Fixed Wing Outrunner Brushless Motor 5-6S 800KV - Flying Tech
SKU: M-FH-D4250E800KV
Price: 37.90 GBP
Availability: InStock

Description

Flash Hobby’s Turbo Evo motors offer exceptional performance, quality, and reliability at an affordable price. They are ideal for use in planes and helicopters.

These motors are constructed with high-quality materials, including neodymium magnets and high-temperature copper wire, to ensure durability and long-lasting performance. NMB bearings imported from Japan, which provide longer life, quiet and stable operation of these motors. They also features a precision-balanced rotor for smooth operation and reduced vibration.

This EVO motor has a maximum power output of 1196 watts and a maximum current draw of 61 amps. We recommend using this motor with a 12×6 prop on 6S.

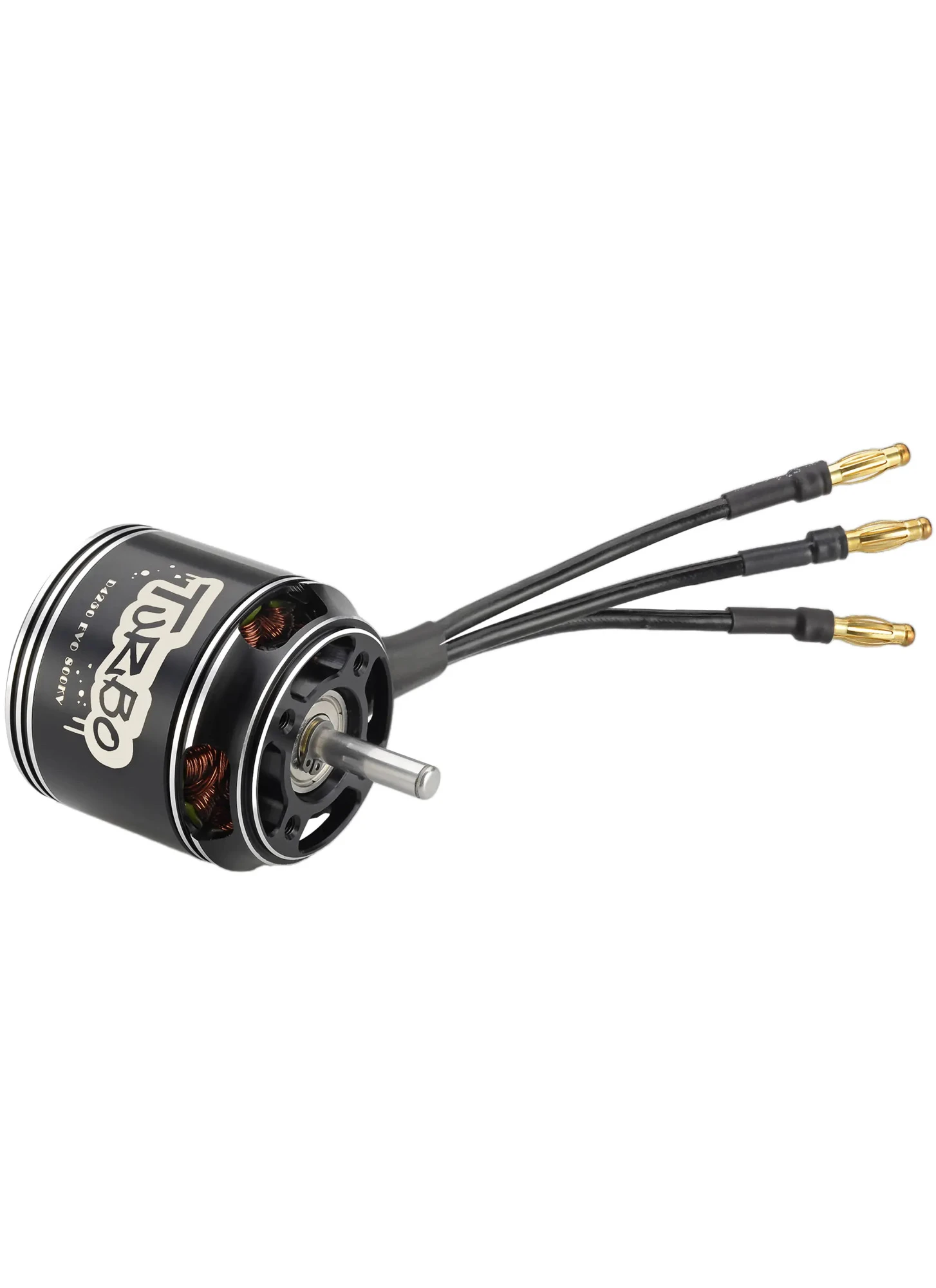

Each motor is PRE-SOLDERED with 3.5mm male gold bullet connectors, and includes an accessory pack with spinner-style prop adapter, X-mount plate and matching set of female 3.5mm bullet connectors.

Key Points:

14P12N High Torque Motor Design
CNC 6061-T6 Aluminium Bell
High RPM Imported (NSK/NMB) Bearing
High Temperature Resistant Copper Wire Winding

Specification

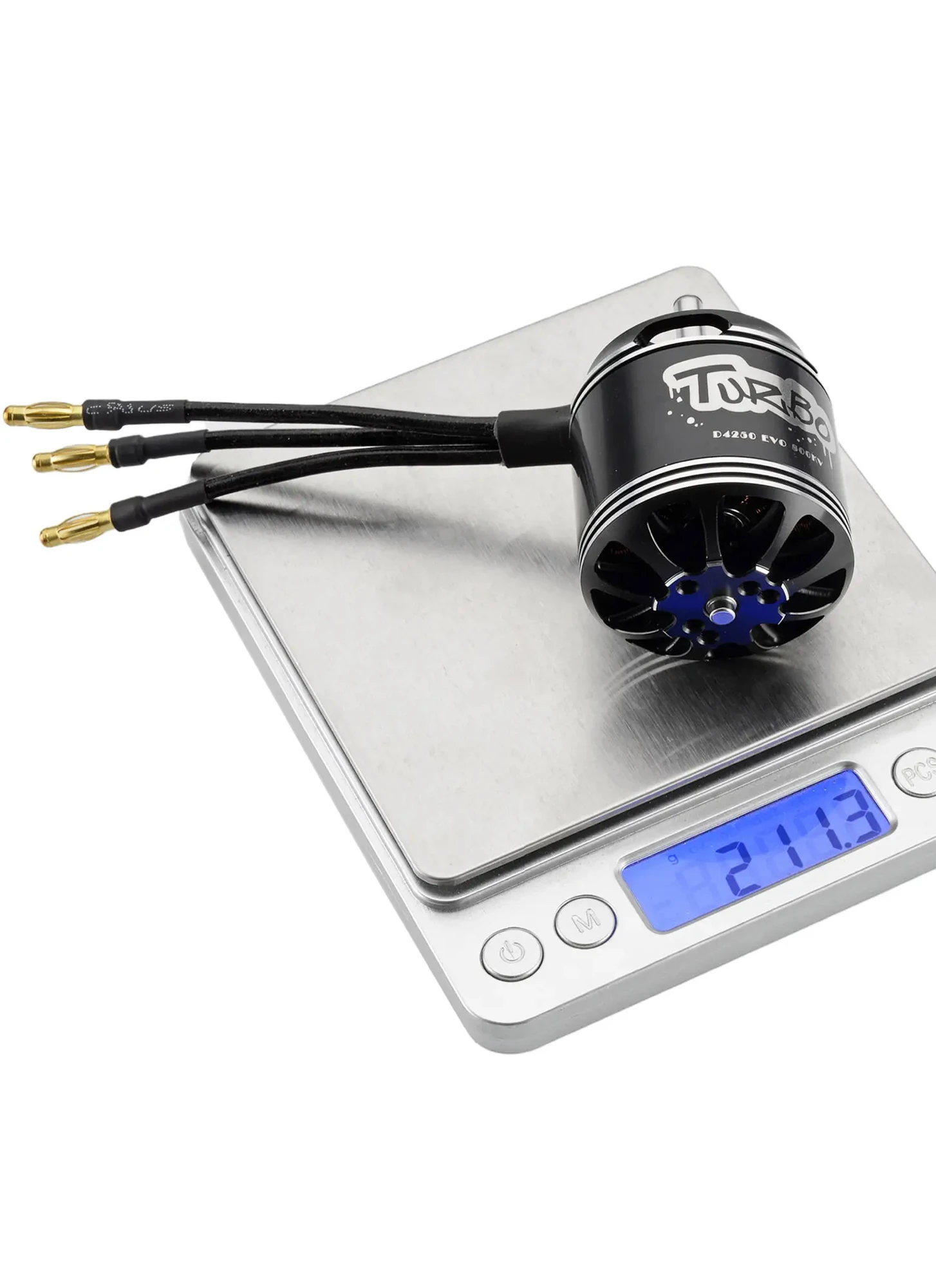

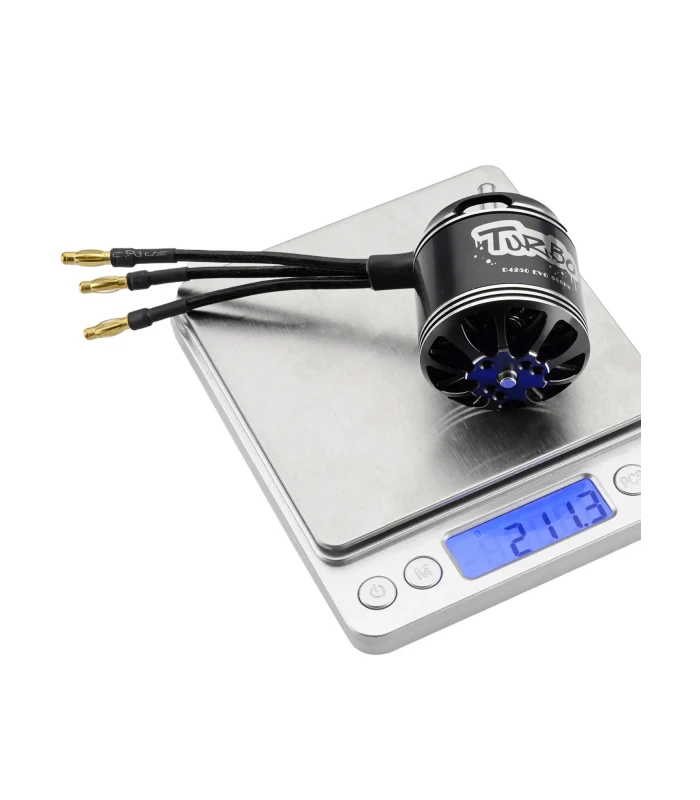

Weight: 209g (Including wires)
Motor Size: 42.8 x50mm
Shaft Size: 5.0*68.0mm
Stator Diameter: 35mm
Stator Height: 20mm
Motor Mount: 25*25mm(M3*4)
Configuration: 12N14P
Max watts: 1196.0W
Max Current: 60.74A
No Load current: 2.37A/10V
Resistance: 20.3mΩ
Battery: 5-6S Lipo
Suggested Prop: 12 inch prop

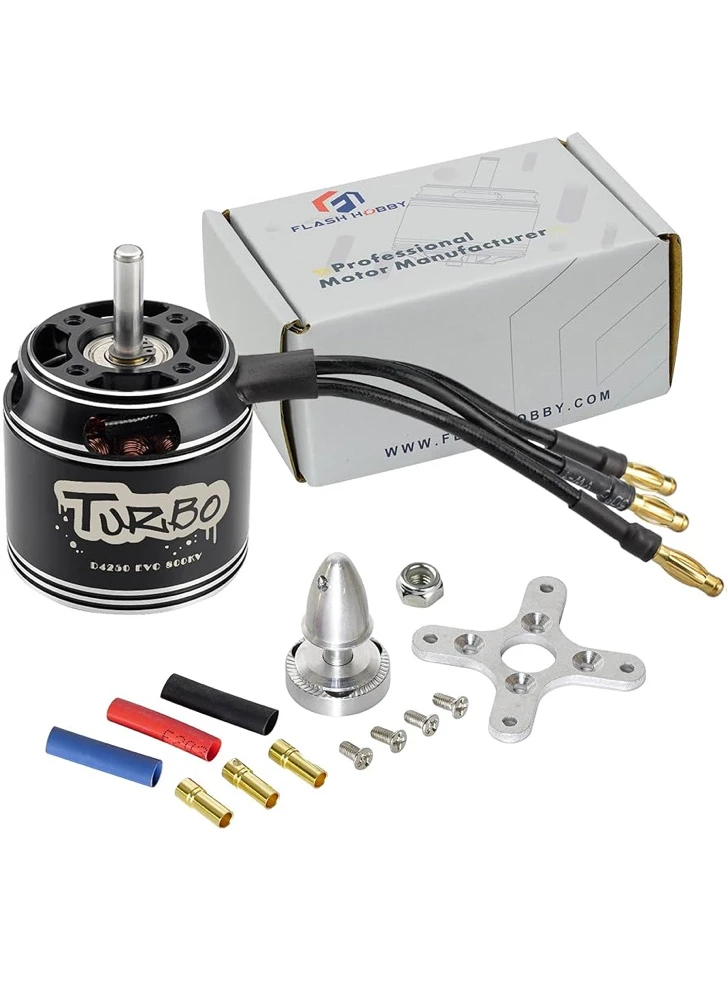

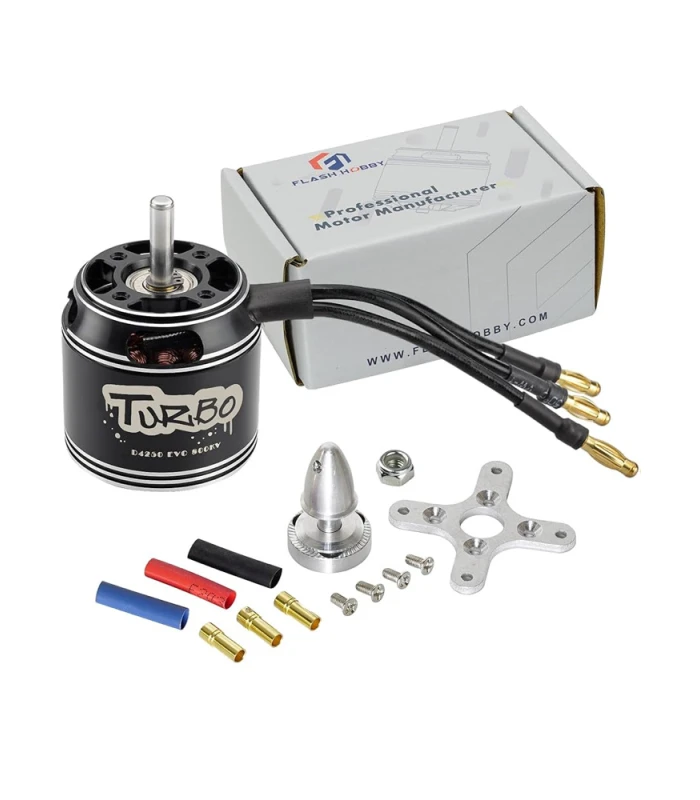

Included:

Flash Hobby D4250EVO Fixed Wing Motor
Motor Accessory Set
