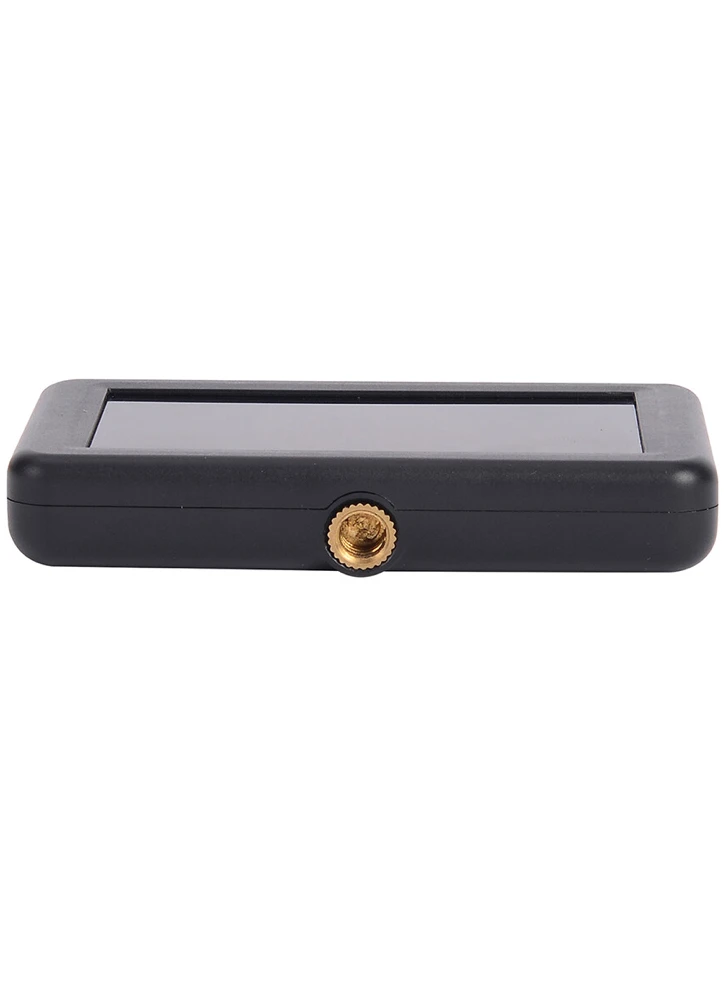

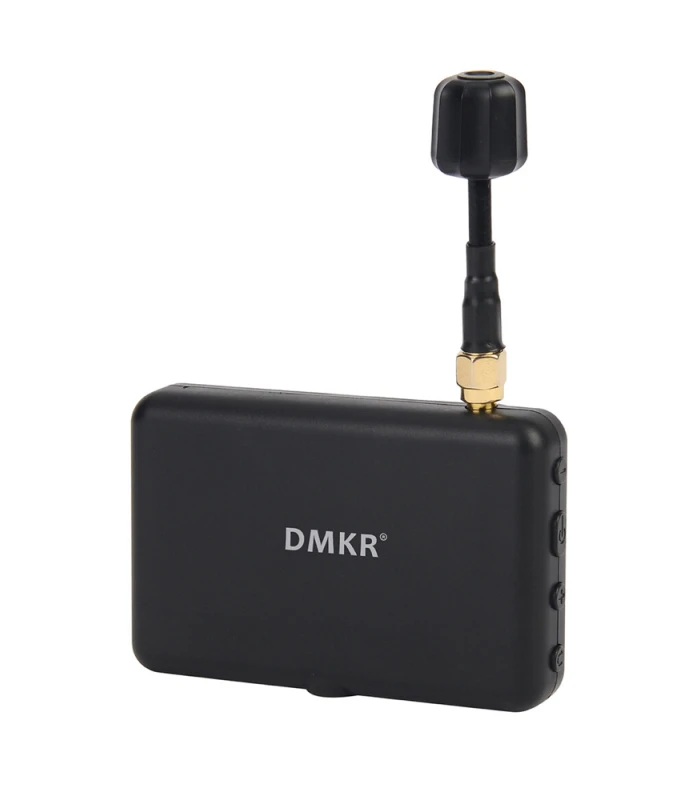

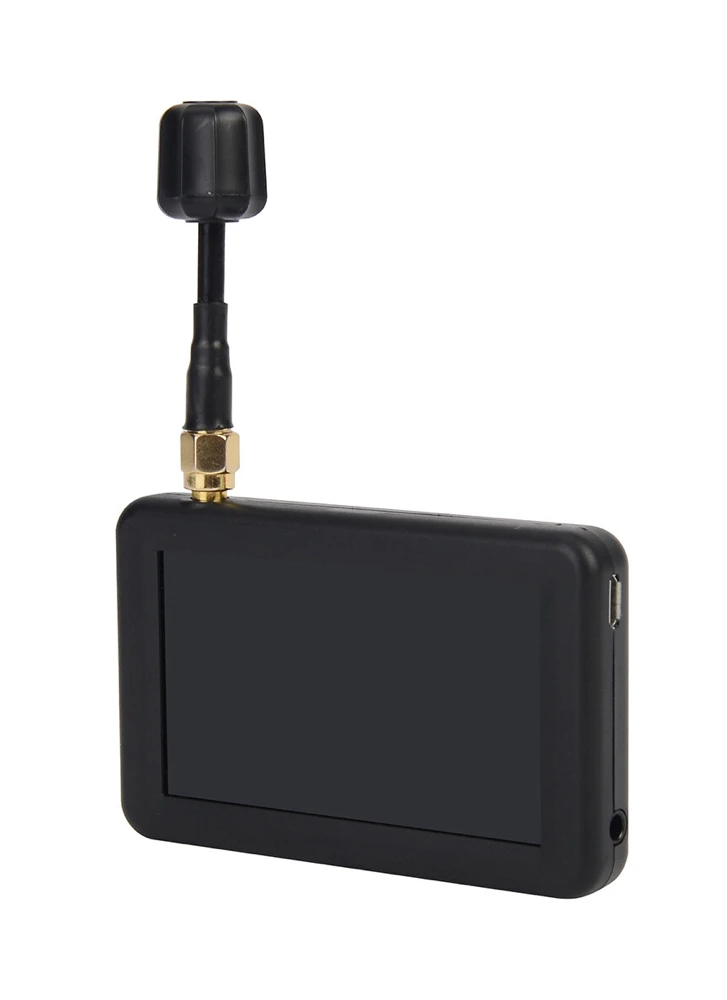

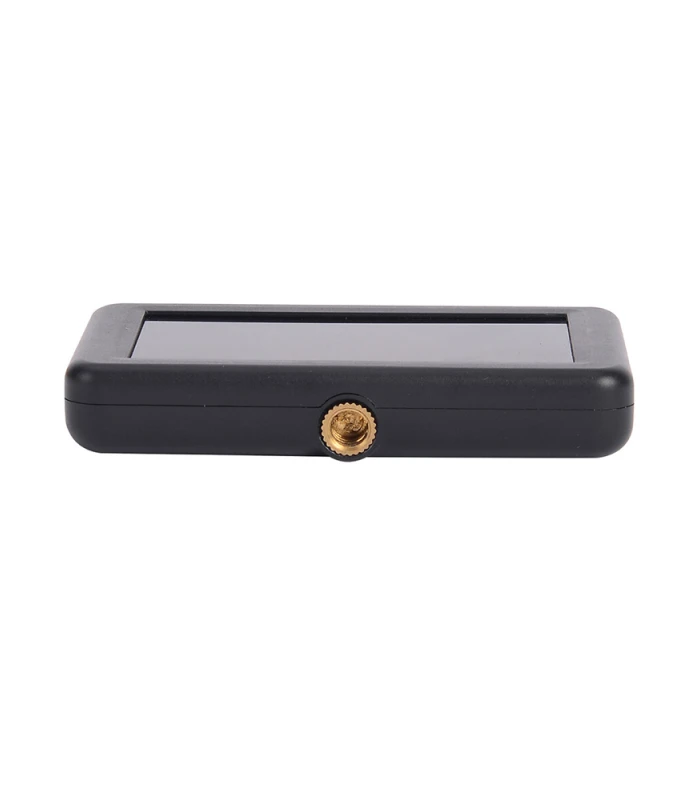

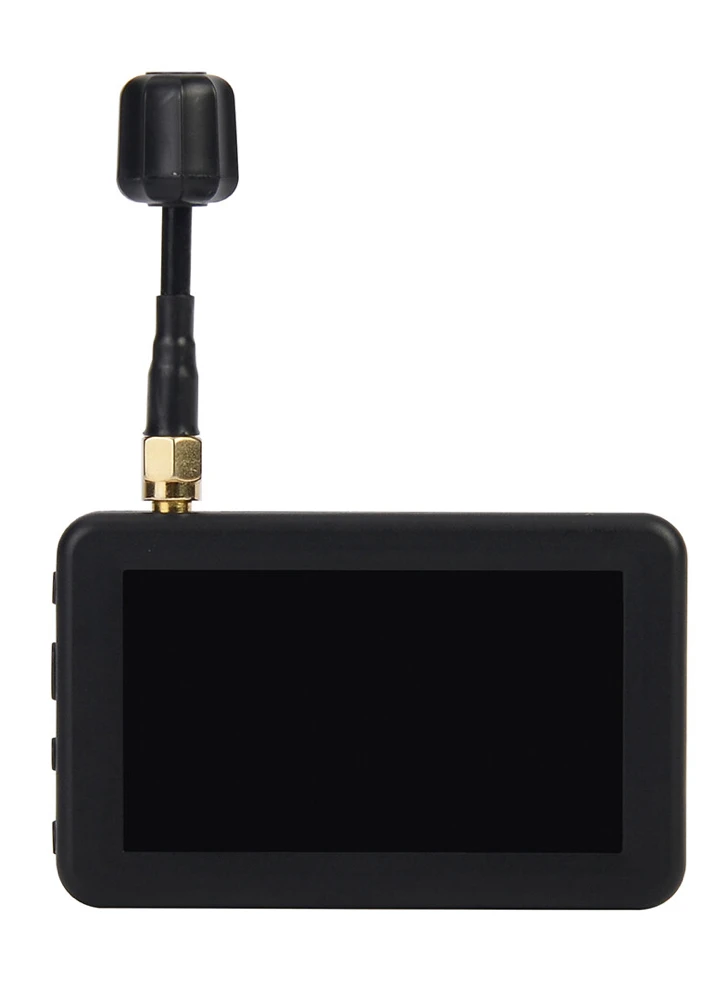

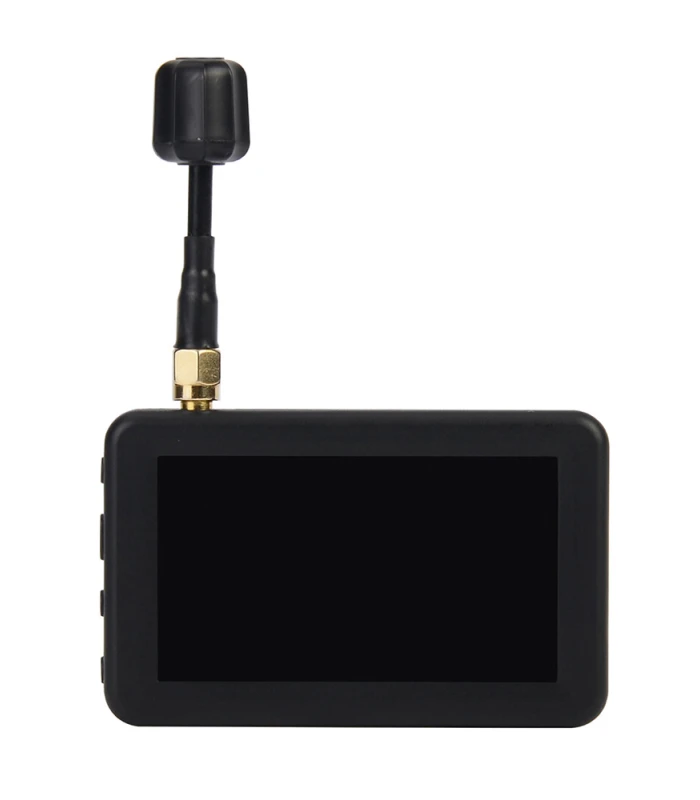

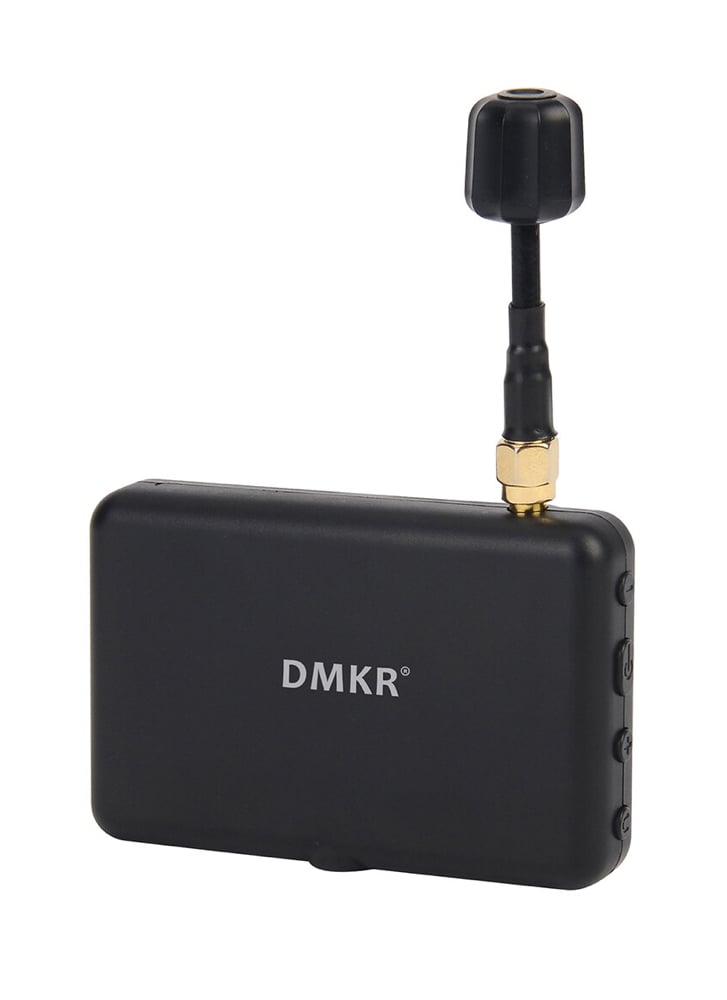

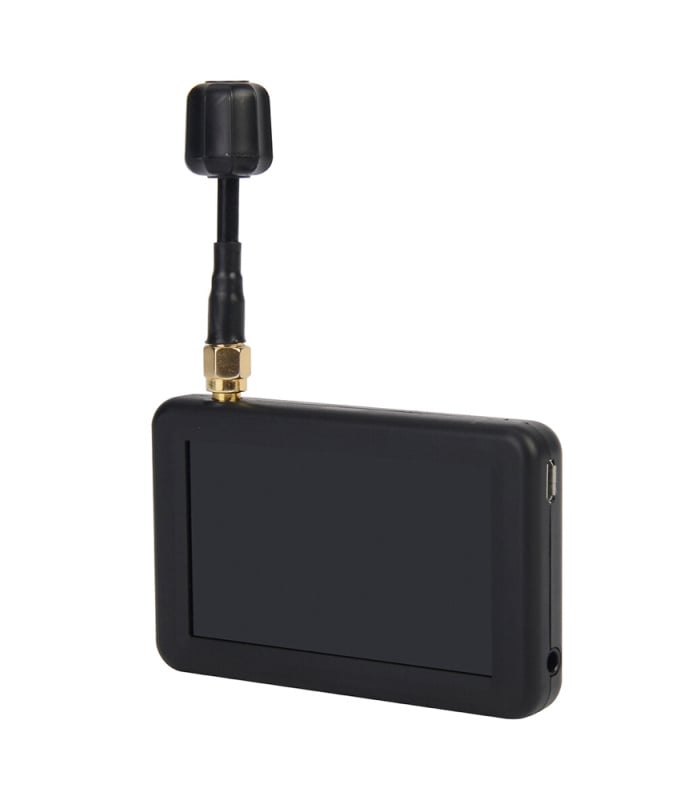

DMKR LS-5804 3 Inch All-in-One 5.8GHz 40CH FPV Monitor
£44.00 Inc. VAT
A budget friendly mini 5.8GHz FPV screen.
In stock|Next shipping: 16/03/2026
The DMKR LS-5804 is a compact 3-inch FPV monitor that’s perfect for your bench, field bag, or sharing live FPV feeds with spectators. Featuring a 480×320 high-brightness LCD display in a 16:9 aspect ratio, it delivers a surprisingly clear picture for its size. With an integrated 5.8GHz 40-channel receiver (including RaceBand with auto search), it’s ready to pick up analog FPV signals straight out of the box.

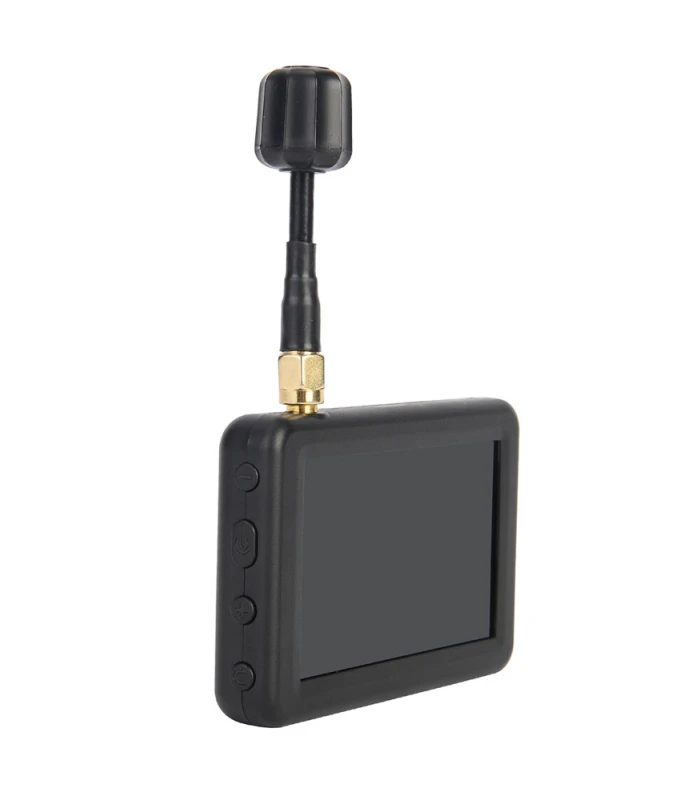

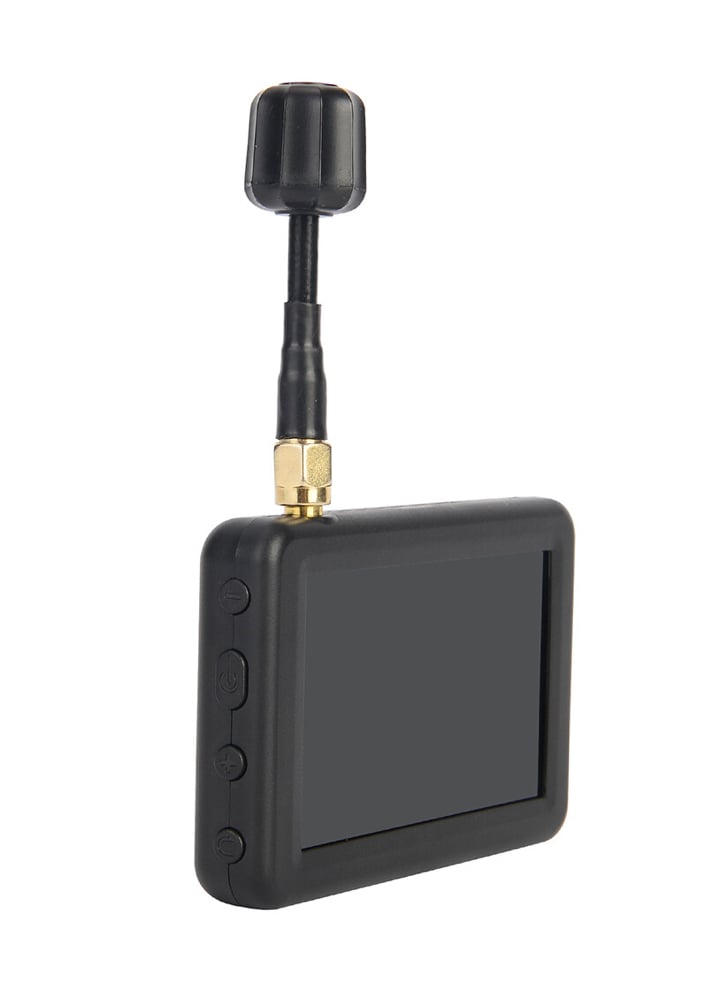

The built-in 3.7V 800mAh Li-Ion battery provides around 2 hours of use, easily recharged via USB, while its low power consumption makes it practical for travel and field use. Simple controls allow you to power on/off, switch channels manually, or use auto-scan to find your signal quickly.
The LS-5804’s external video output makes it a great analog receiver for DJI Goggles, letting you easily add analog capability to your digital setup, while the AV output can be used to connect to an external DVR for recording your flights. It’s also a handy tool for testing builds and tuning quads or wings, offering a lightweight, no-fuss way to view and record video feeds anywhere you go.
While it’s too small to replace your primary goggles or monitor, the DMKR LS-5804 is a great addition to your FPV toolkit, providing a lightweight, no-fuss way to view and test video feeds anywhere you go.
Note: The antenna connector on this monitor is RP-SMA, so if you plan to use your own SMA antennas, you’ll need an SMA to RP-SMA adapter.

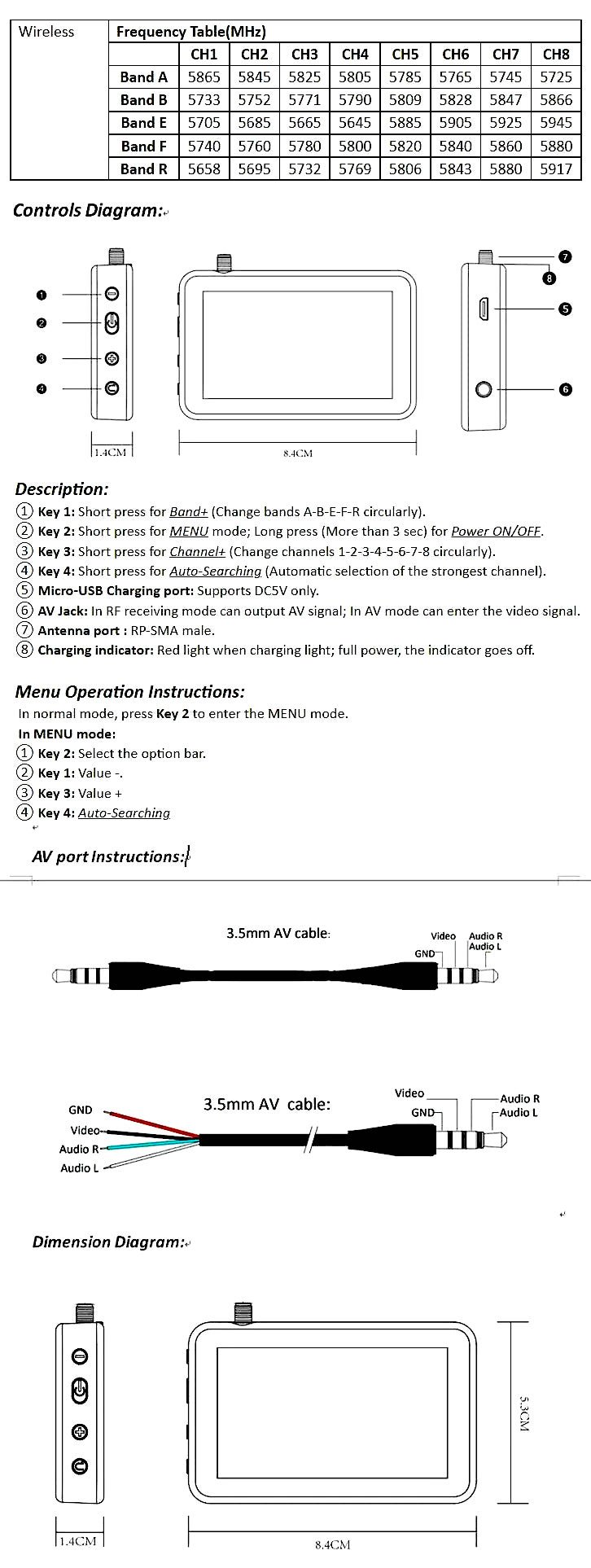

- Brightness: 500cd/m2 with high brightness backlight LED
- AV Jack: external video or internals AV signal output
- Battery: 3.7V Built-in 800mAh (max)
- Operating Current: 360-400mAh
- Video Delay: less than 20ms
- Power Adapter: DC 5V / 1A

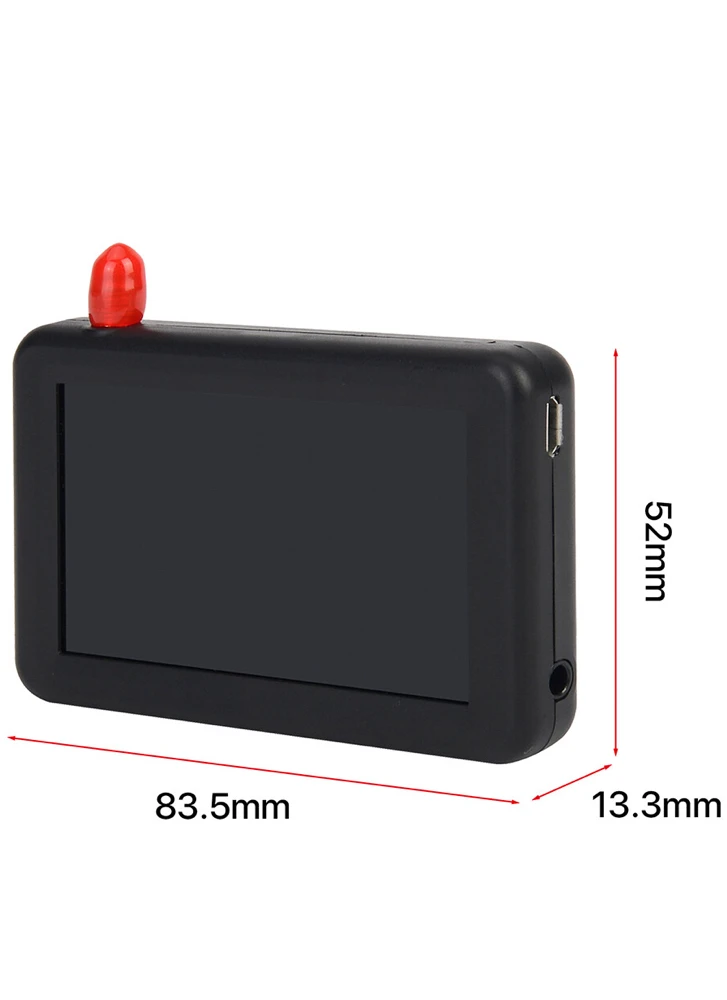

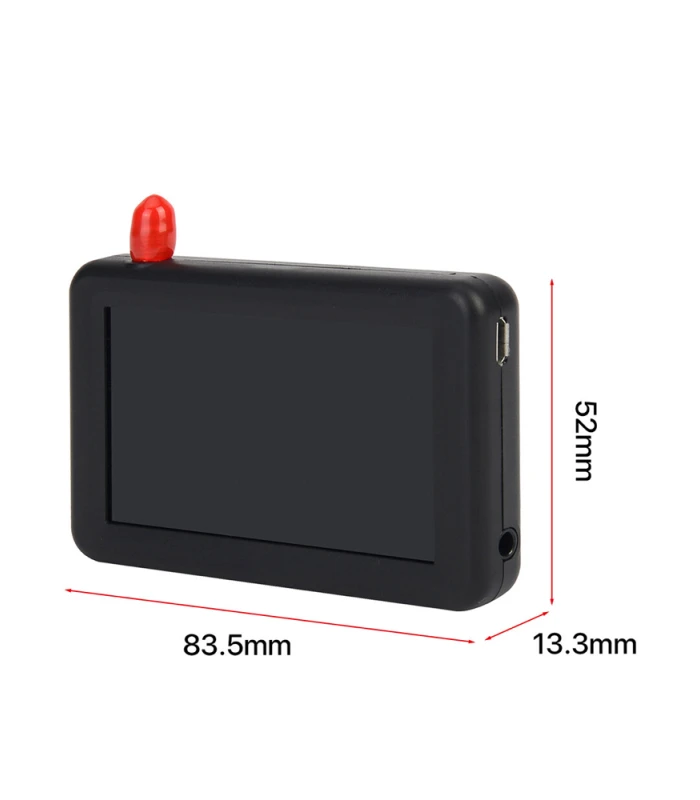

- Dimensions: 3.3″ x 2″ x .5″

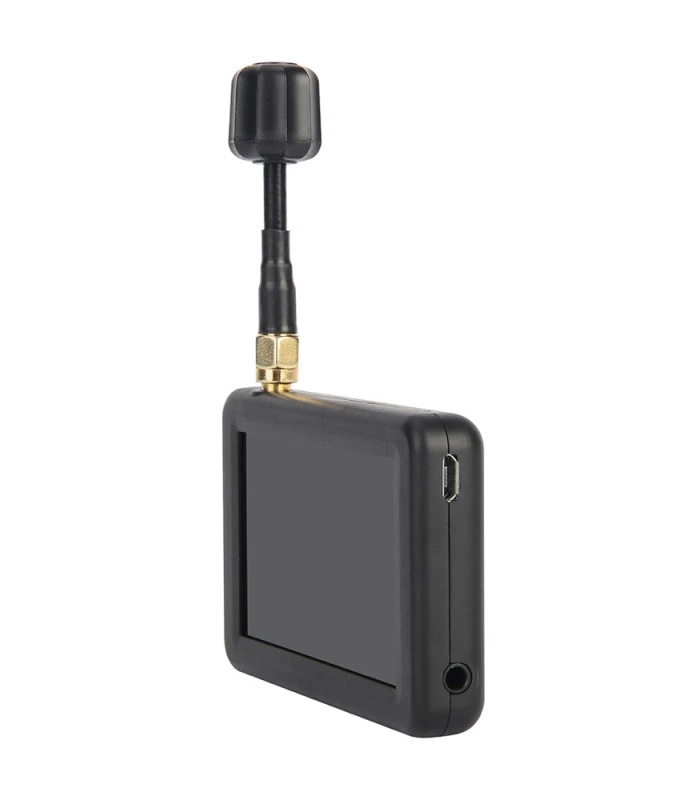

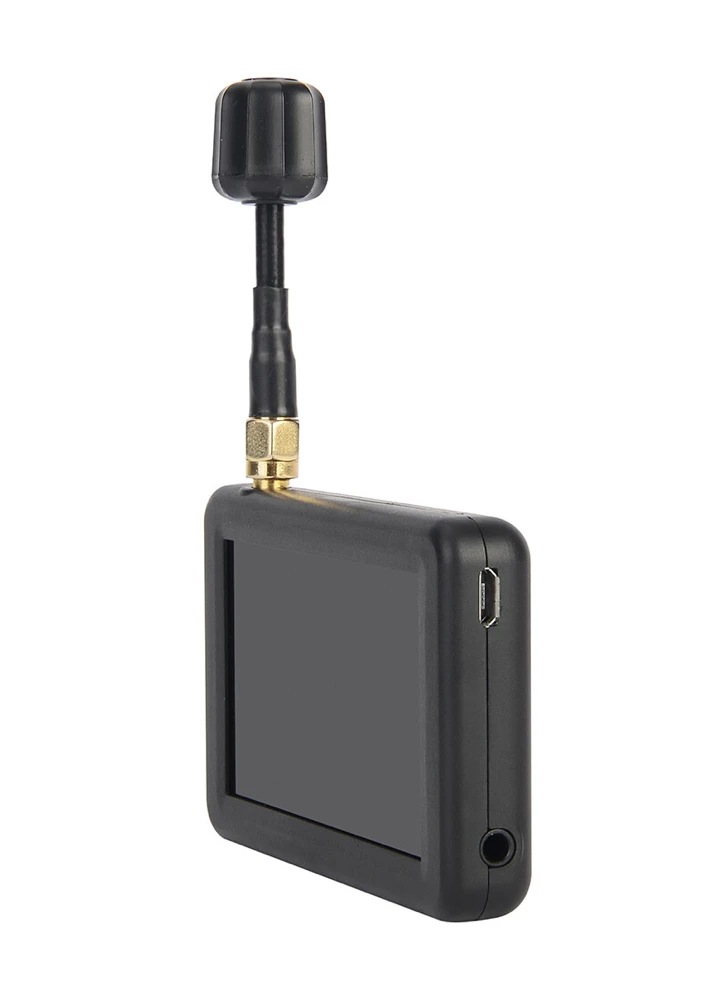

- Charging interface: USB
- Antenna: RP-SMA male
- Battery Life: 2 Hours
- Resolution: 480×320
- Display Ratio: 16:9
- Screen Type: LCD
- Model: LS-5804
- Channels: 40
- Weight: 65g

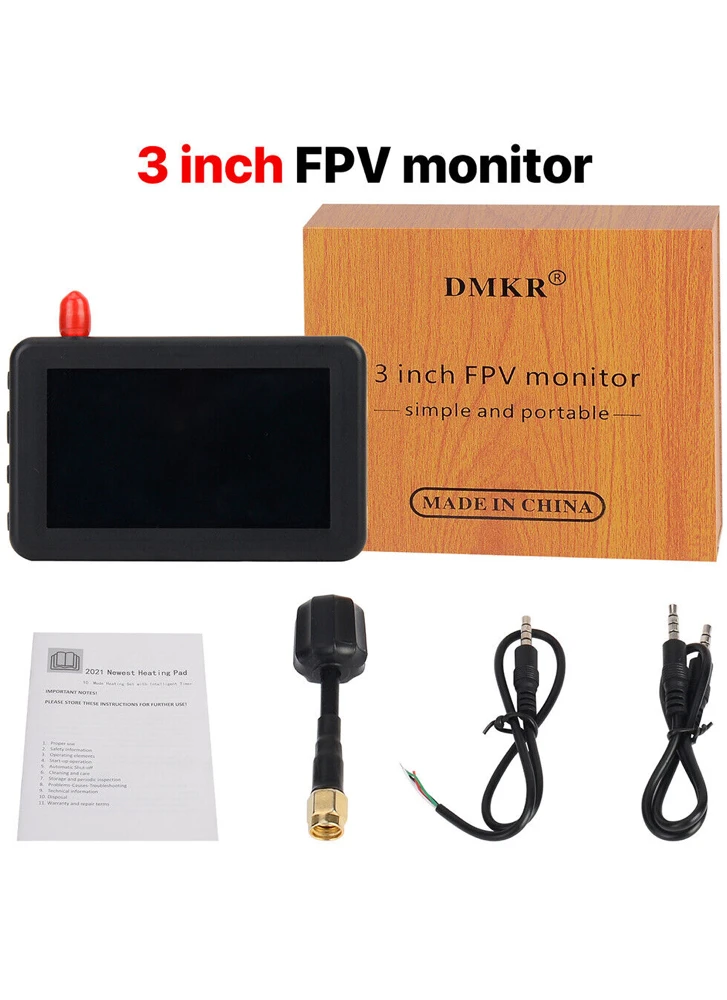

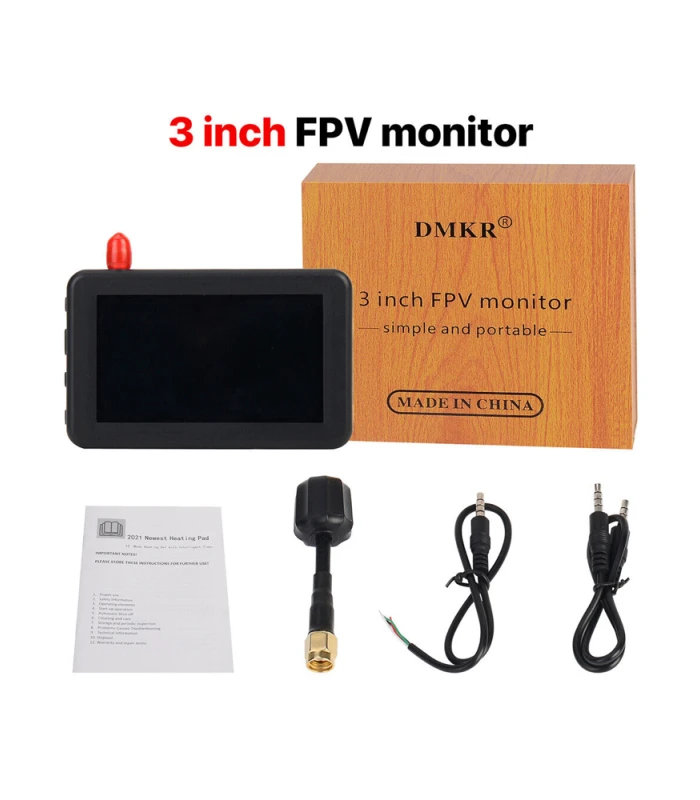

Included:
- 1 x DMKR LS-5804 3″ Mini FPV LCD Monitor
- 1 x Aux Cable (male to open wire)
- 1 x Aux Cable (male to male)
- 1 x RP-SMA Antenna (male)
