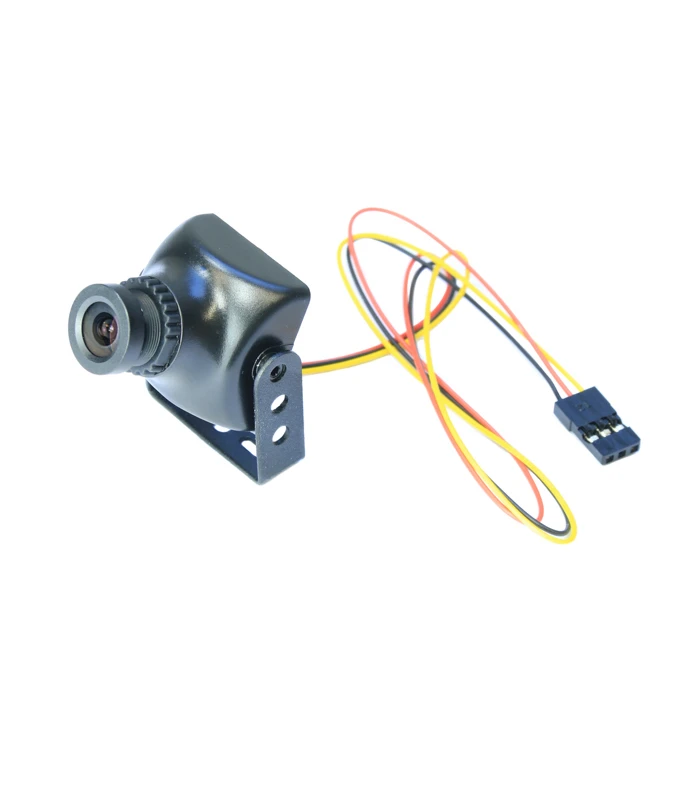

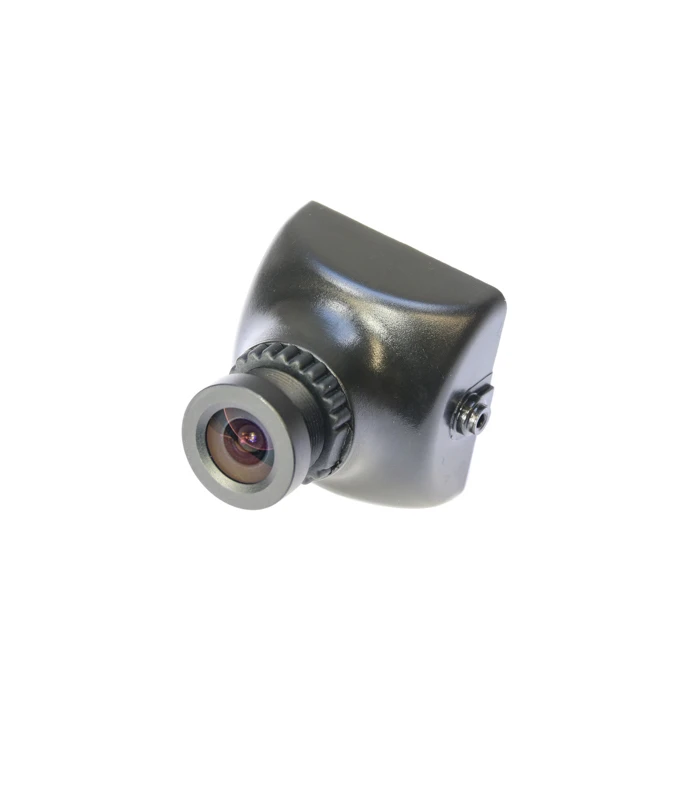

HS1177 Mini Sony CCD 600TVL FPV Board Camera 5V-22V PAL

£24.90 Inc. VAT

Theย HS1177 is a legendary FPV camera.

In stock

Frequently Bought Together

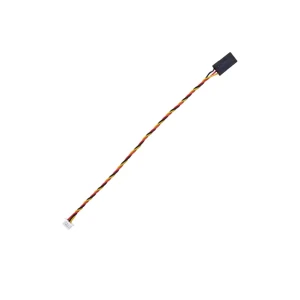

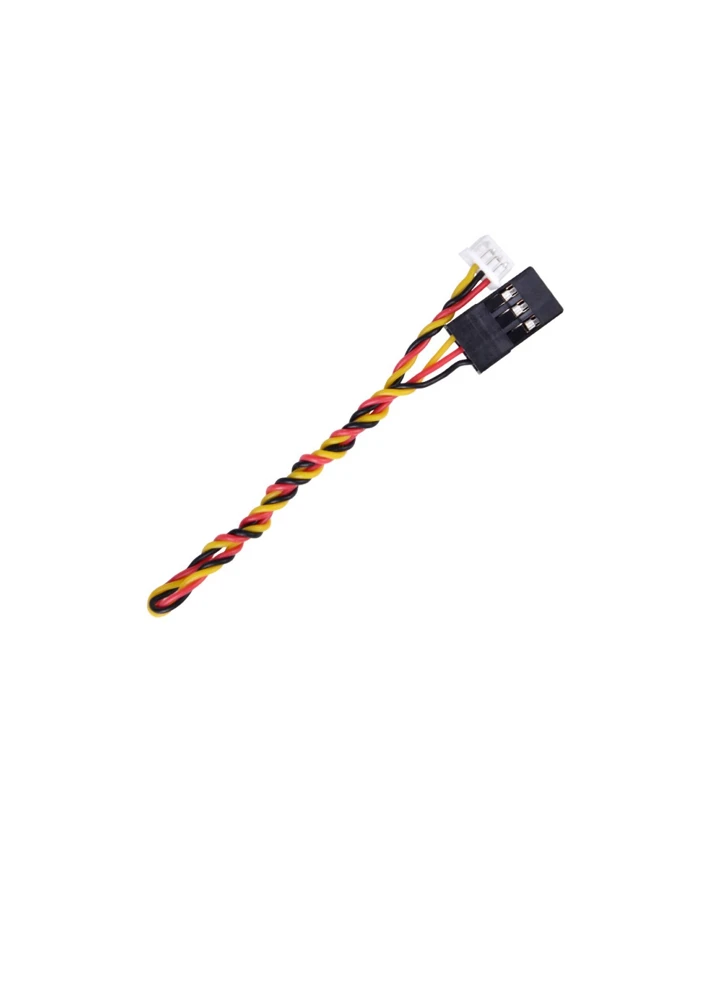

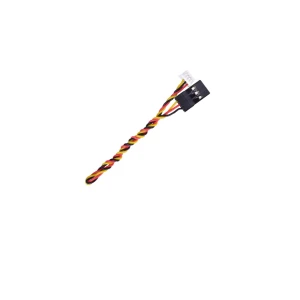

20cm FPV Cable for HS1177 Camera - JST 1.25 4pin

Replacement video, power cable for theย HS1177 camera. It will also fit lots of other FPV cameras.

0 People watching this product now!
SKU: FPV-CAM-XAT600M-OSD Categories: , , Tags: , , , , ,
Description

Theย HS1177 is a legendary FPV camera. It has been around for ages and yet still sets the standard for what a good quality FPV camera should be. Over the years lots of different manufacturesย have rebranded the camera as their own, but essentiallyย they all use the same Sony 600TVL Super HAD II image chip with aย 600TVL resolution. This version of the HS1177 is our own unbranded model; it keeps all the performance of the branded HS1177 cameras like theย Foxeer XAT600M, but sells for much less!

The camera boasts Digital Wide Dynamic Range (D-WDR) andย 2Dย Noise Reduction (2DNR)ย to give better clarity and image definition in all light conditions. Itย will work using a wide range of operating voltages, 5V to 22VDC, so you don’t need to worry about using a BEC for 2-5S setups.

The package comes with a camera mount, so you can angle the camera to your needs, plus an in-lineย OSDย Menu Keyย making it easy to change your camera settings while looking through your goggles.

With a low price point and superbย quality, you can’t go wrong with theย HS1177ย as your camera of choice for FPV.

  • 600TVL, high picture quality
  • 1/3″ SONY SUPER HAD II CCD
  • Nextchip 2040 DSP
  • Powerful OSD menu
  • D-WDR (Wide Dynamic Range)
  • 2D-DNR (Digital Noise Reduction)
  • Low Power Consumption(70mA)
  • Mirror function
  • Low illumination: 0.01Lux
  • Weight 12g without bracket
  • Suitable for FPV (First Person View)

OSDย Programmingย Cable – here

Specification
  • Model: HS1177
  • CCD: 1/3โ€ Sony SUPER HAD II CCD
  • Pixel: PAL: 976(H) x 494(V);NTSC: 768(H)ร—494(V)
  • TV System: PAL/NTSC(according to country)
  • Resolution: 650TVL(b/w), 600tvl(color)
  • Synchronization: Internal synchronize
  • Shutter Speed (CCD IRIS): PAL: 1/50~1/100000 sec; NTSC: 1/60~1/100000 sec
  • Noise: > 60 (AGC OFF)
  • Video Out: 75ohm, synchronize
  • Min. Illumination: 0.01Lux
  • Auto Gain: Off/Low/Mid/High
  • Back Light Compensation: (BLC) Off /Back light compensation/ Strong light suppression
  • Private shading (PRIVACY): 1~8 private shading area
  • Motion Detection (MD): On/ Off (Multi level sensitivity settable)
  • Auto White Balance: Manual / Auto / Auto track
  • Mirror: Horizontal Mirror optional
  • Negative: Positive / Negative optional
  • Color to B&W: Auto
  • DNR: 2DNR
  • WDR: D-WDR
  • Day / Night Shift: Auto/ Color/ B&W
  • Menu (OSD): English menu
  • White Dot Repair: Support
  • Image Adjustment: Support
  • Camera Title: Support
  • Power Requirement: DC5V~22V
  • Working Temperature: -10 C ~ 50 C
  • Working Humidity: 20~80%
  • Storage Temperature: -40 C ~ 60 C
  • Storage Humidity: 20~95%
  • Dimensions(mm): 26X26(W*L)
  • Power Consumption 70mA

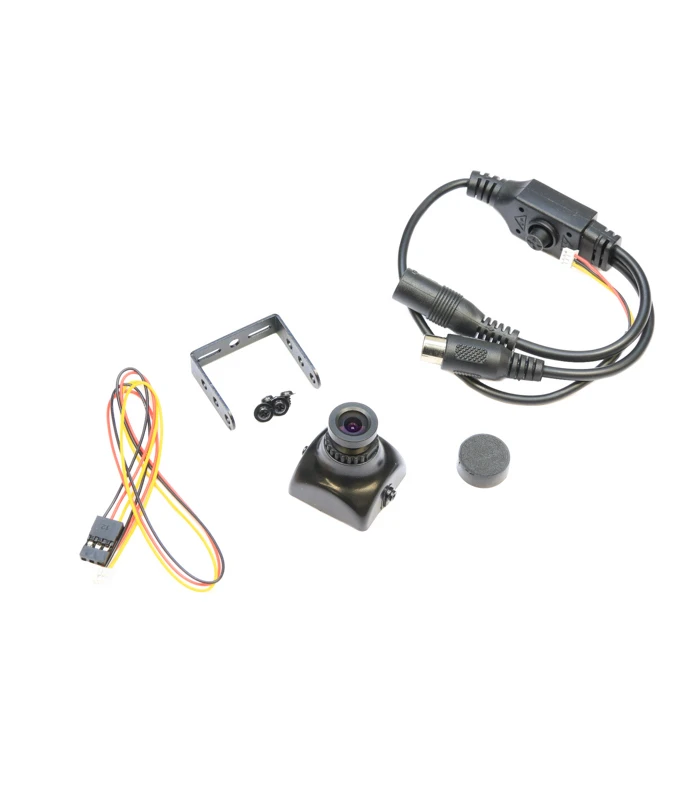

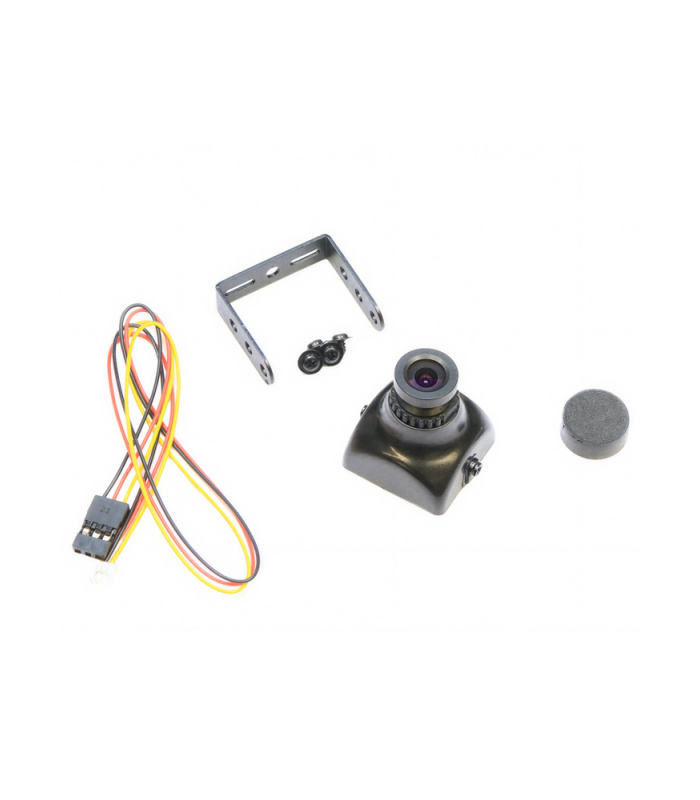

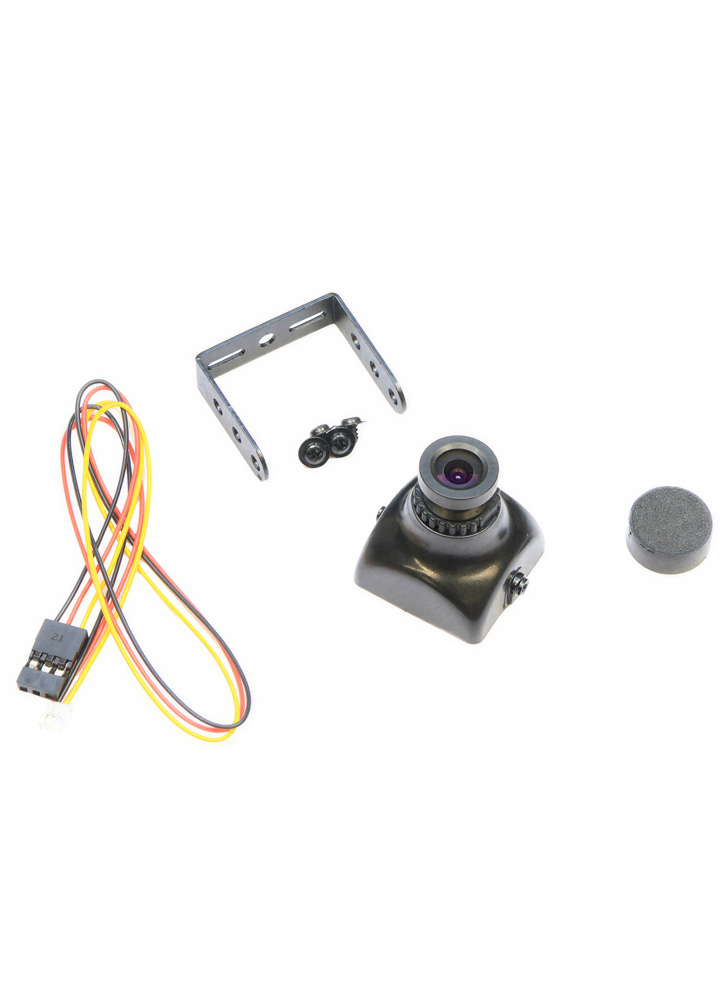

Included:

  • 1x Sonyย HS1177 CCDย camera with OSD Function
  • 1 x 3pin video cable
  • 1 x 4pin servo cable
  • 1 x OSD
  • 1 x Manual
