AllXF Robotics XF Headtracker Datalink Pro
£44.99 Inc. VAT
Long-range wireless datalink for transmitting XF Headtracker movement data directly to your FPV gimbal system.
In stock|Next shipping: 13/05/2026
The AllXF Robotics XF Headtracker Datalink Pro expands the XF Headtracker system with a dedicated long-range wireless link, allowing head movement data to be transmitted directly to your FPV gimbal, flight controller, or servo system without relying on your RC transmitter. Designed for immersive FPV applications, the system provides smooth, low-latency control for camera pan and tilt simply by moving your head.

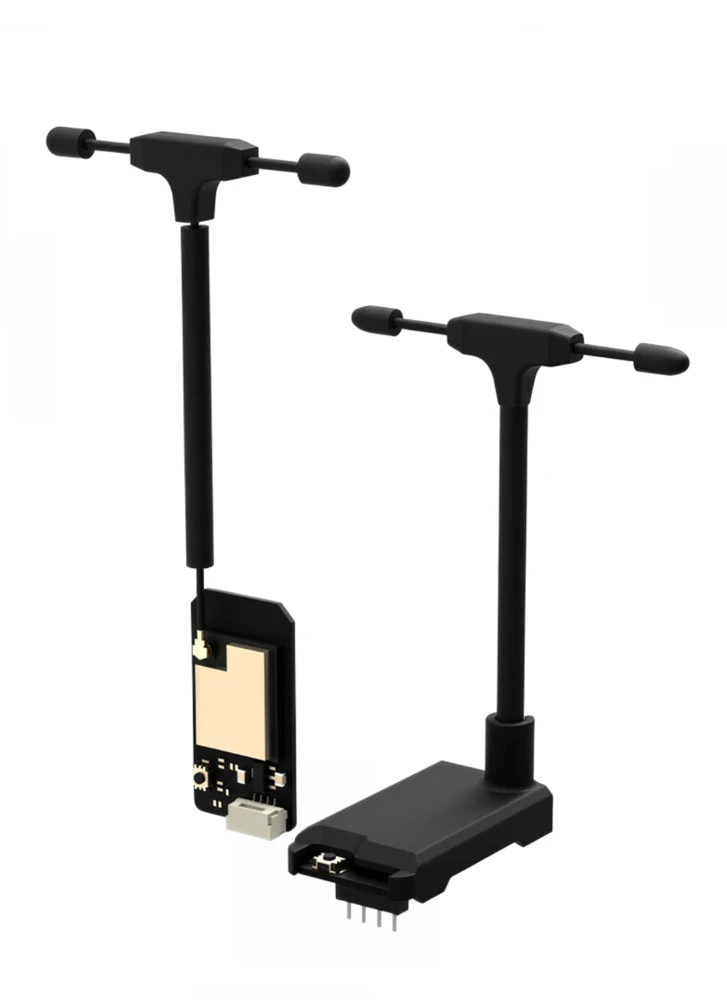

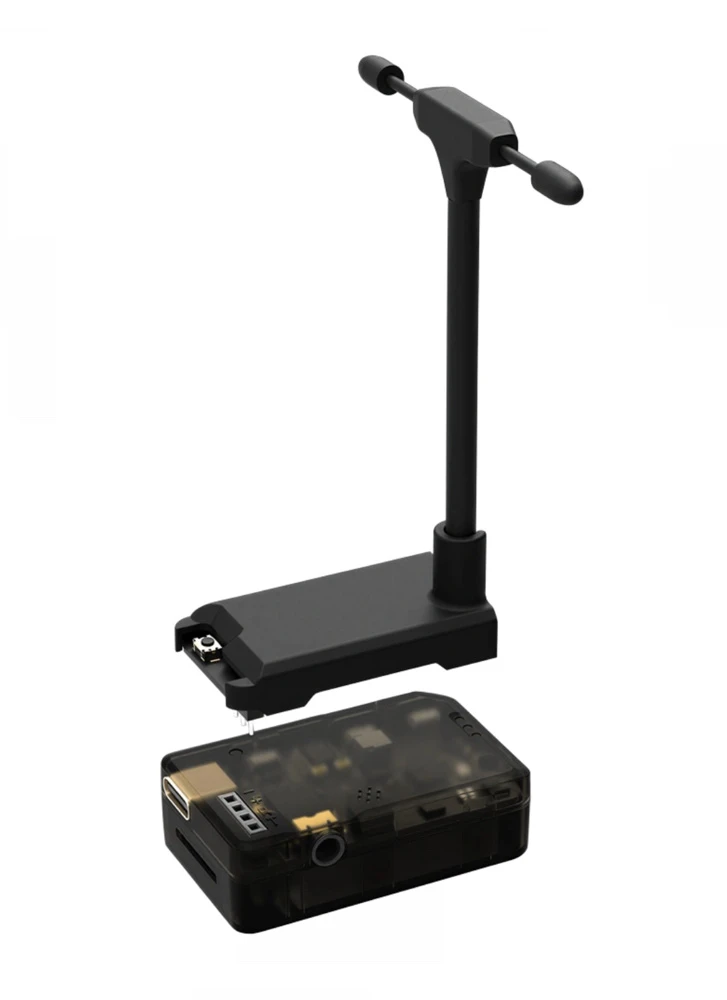

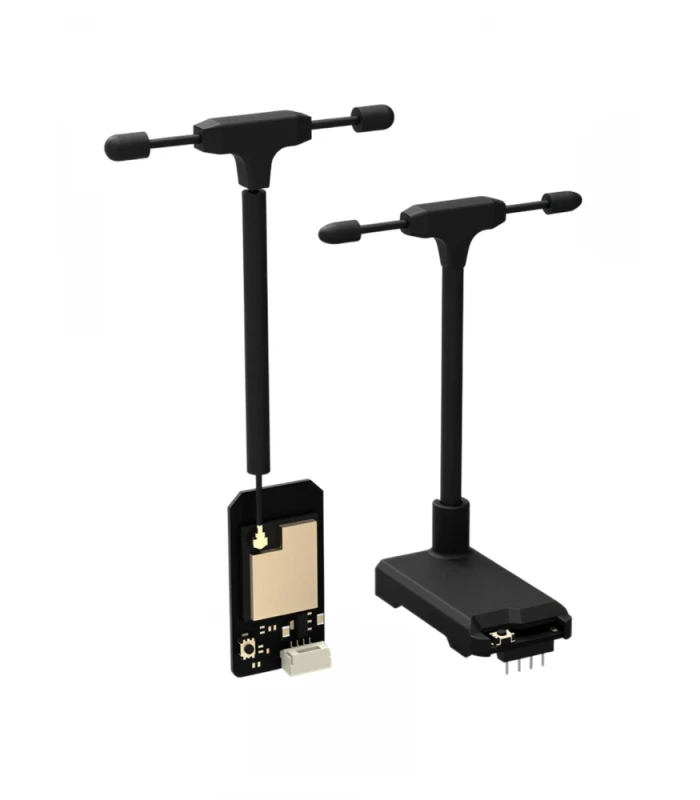

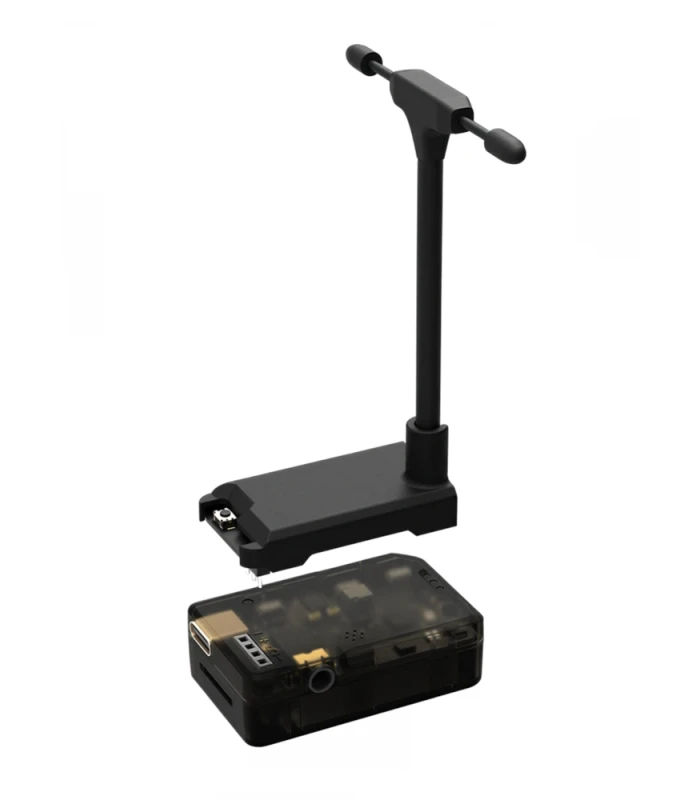

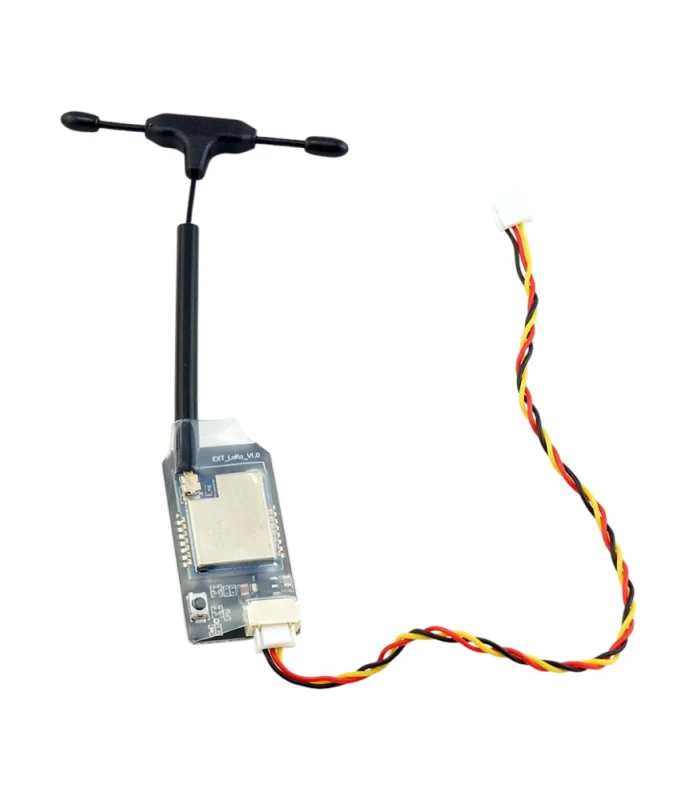

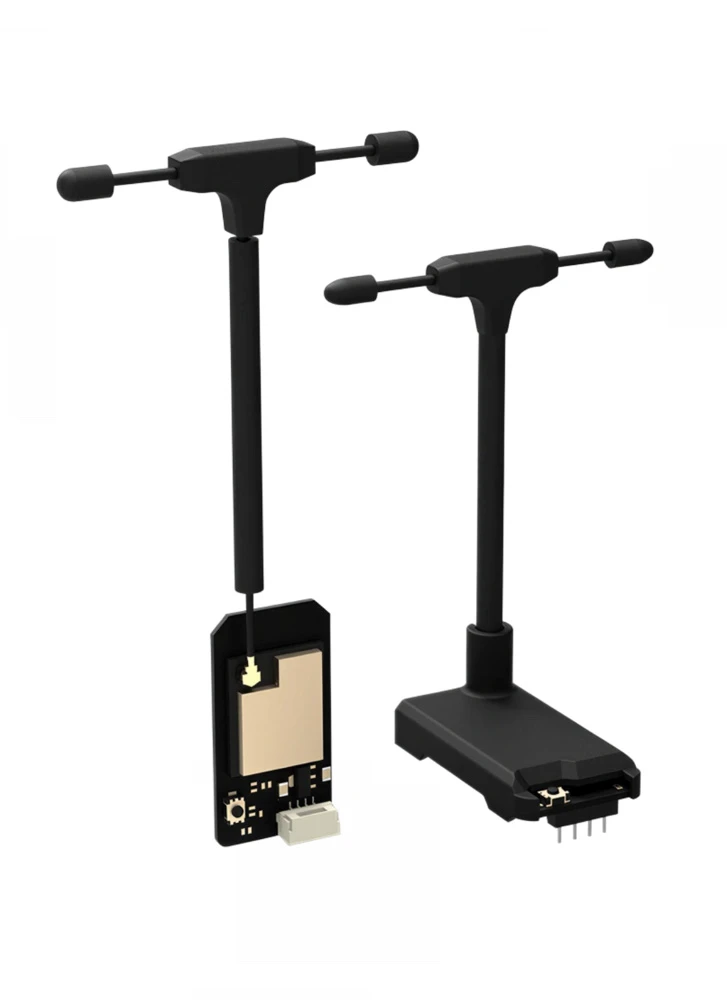

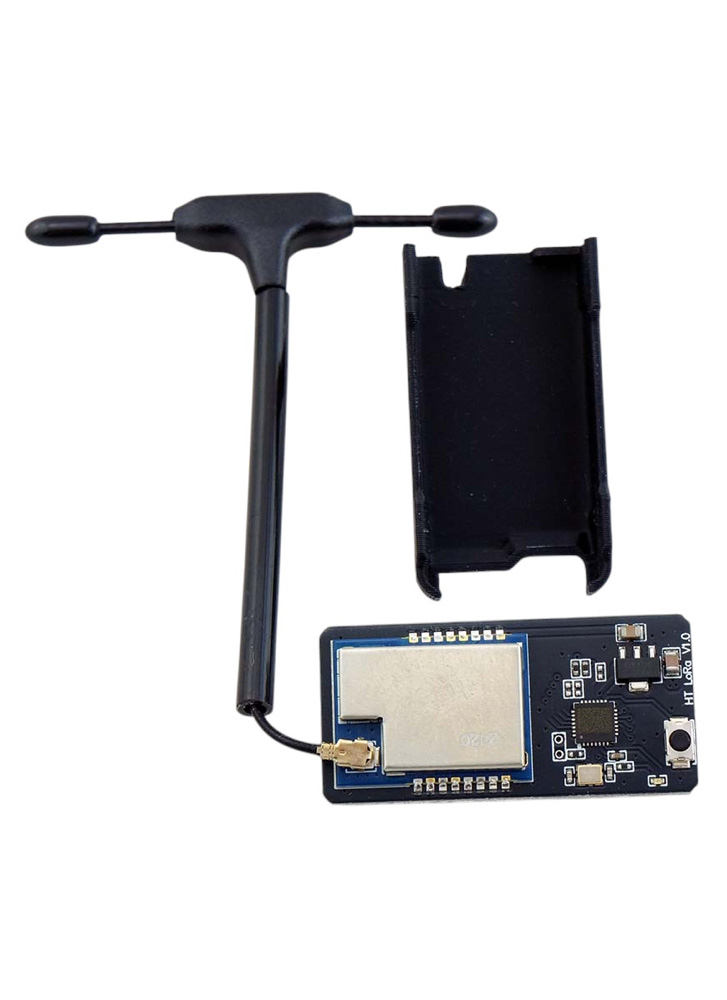

The system consists of a wireless transmitter module for the XF Headtracker and a receiver integrated into the included C-20 Base Plate. Once paired, head tracking data is transmitted instantly, enabling responsive real-time gimbal control at distances of up to 4km. Pairing is handled using a simple button-link process with LED status indicators for quick setup and monitoring.

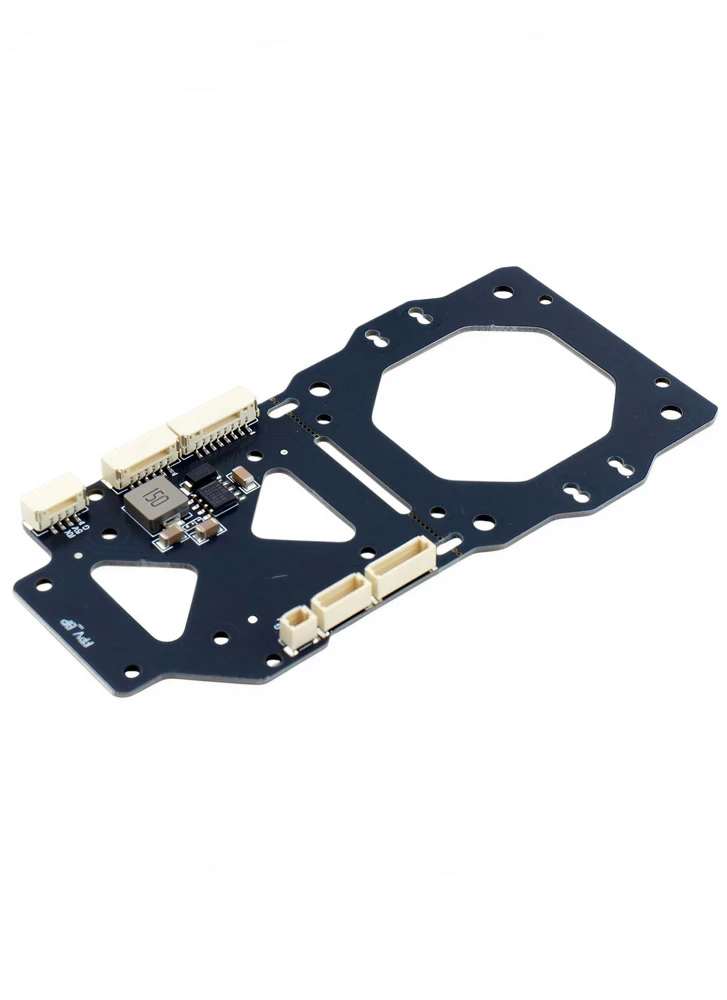

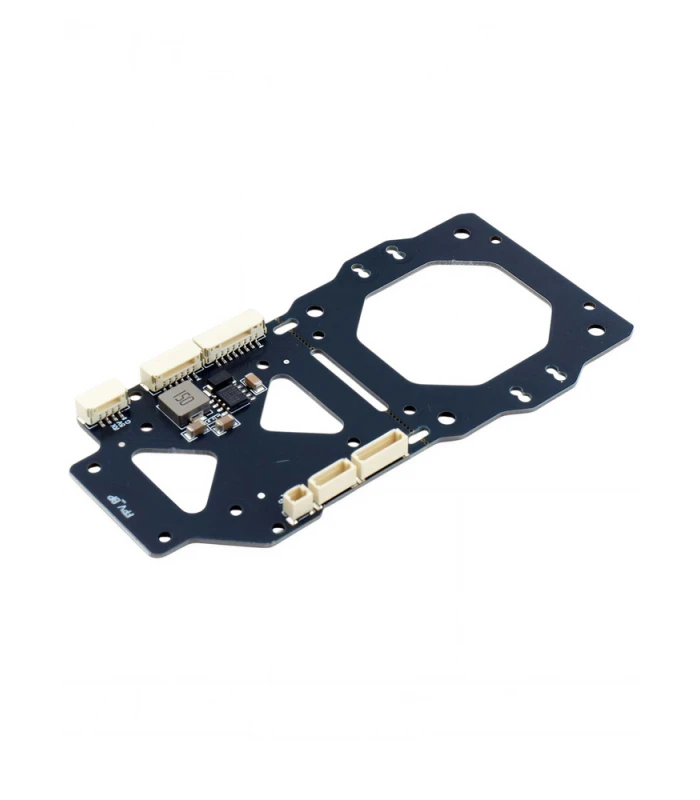

The included C-20 Integrated Base Plate simplifies installation by combining power distribution, signal routing, mounting points, and cooling support into a compact platform. It supports a wide range of digital FPV systems including DJI O4 Pro, O4, O3, Walksnail Moonlight, and Walksnail Avatar air units. The base plate also includes PWM outputs and a 5V output for accessories such as cooling fans and servos.
Designed to integrate directly with compatible XF gimbal systems, the Datalink Pro provides a cleaner and more dedicated control solution compared to traditional trainer-port or radio-based head tracking setups. The system supports 2S–6S input power on the aircraft side and includes dedicated mounting hardware and wiring provisions for supported video systems.
Please note: This product is an expansion accessory for the AllXF Robotics XF Headtracker Module, which is required for operation and sold separately.
Features:
- Long-range wireless head tracking datalink system
- Up to 4km transmission range
- Real-time low-latency gimbal control
- Designed for use with the XF Headtracker Module
- Includes C-20 Integrated Base Plate
- Supports DJI O4 Pro, O4, O3, Walksnail Moonlight, and Walksnail Avatar systems
- PWM outputs for gimbal and servo integration
- Integrated power and signal distribution
- 5V accessory power output for cooling fans and accessories
- Simple button pairing with LED link indicators
- Supports 2S–6S LiPo input on the aircraft side
- Frequency band: 2,4GHz
- Maximum range: 4m
- Size Tx: 35,2×18,5x6mm
- Weight Tx: 5,5g
- Size Rx: 39,4x21x11,5mm
- Weight Rx: 7g

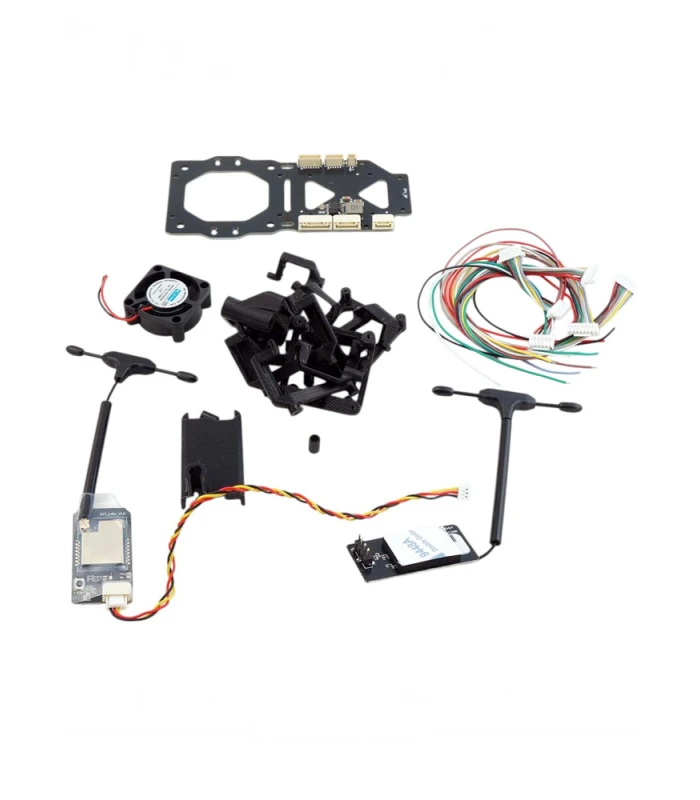

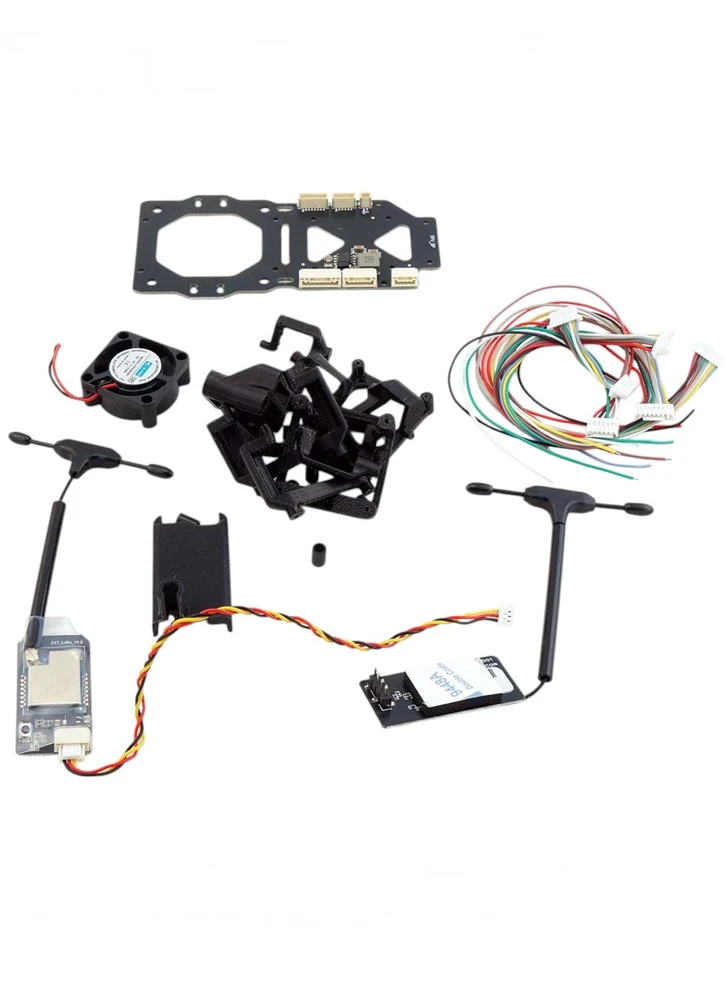

Included:

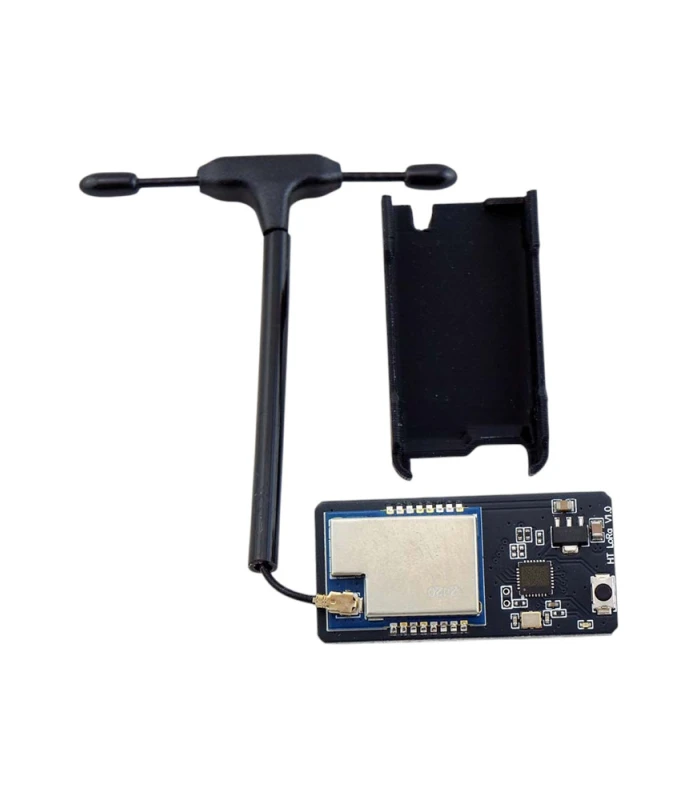

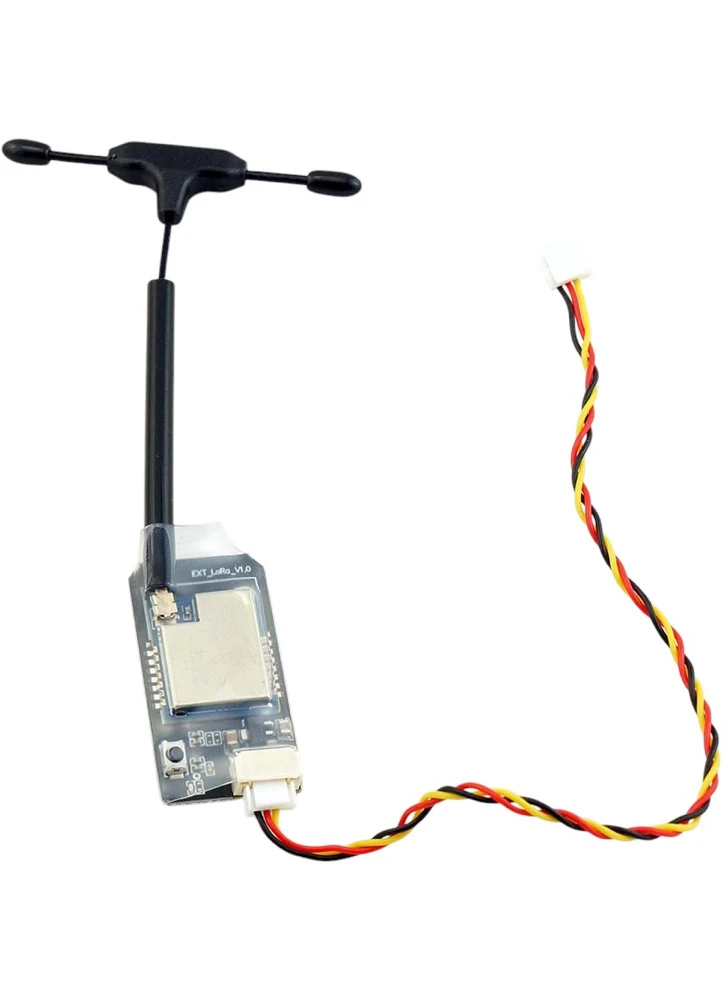

- 1x Transmitting Module
- 1x Receiving Module
- 1x C-20 Base Plate
- 1x Fan
- 1x Cable Kit
- 1x Screw Kit
- 1x 3D Printed Bracket Kit
