Name: Walksnail Avatar HD Pro Micro Kit with Gyroflow (32GB) - Flying Tech
Brand: Walksnail
SKU: HD-FPV-AVATHDPRO32-KIT
Price: 151.50 GBP
Availability: InStock

Description

This version is the 32GB kit with PRO camera and supports gyroflow. Enjoy the unparalleled performance and take your FPV adventures to new heights with this cutting-edge technology!

This latest edition of the Walksnail Avatar VTX and Camera Combo brings some new features and improvements. Starting with the new Pro Camera. It utilises a 1/1.8 inch Sony Starvis Ⅱ sensor, which boasts unparalleled clarity for both day and night vision. Its low light performance is particularly impressive, arguably the best of any HD digital FPV system. It delivers 1080P/120fps high frame rate night vision – an industry first! The VTX has been upgraded too. Complimenting the camera, it now houses a built in 32GB storage capacity allowing you to record more video. It also supports Gyroflow to provide image stabilisation on the recorded video. The VTX has a redesigned PCB board with enhanced TVS protection and improved heatsink which makes it more robust. In addition to the JST connector, the VTX module now includes solder pads, allowing you to direct solder the VTX to your flight controller. In addition to the original 25mm x 25mm mounting holes, the kit now includes 20mm x 20mm holes for greater compatibility with a wider range of FPV drone models.

The video transmitter can be powered by a voltage of 6-25V (2-6S). When feeding directly from 6S batteries, a capacitor of at least 470uF/50V must be used at the input.

Compatible with HD Goggles such as the Walksnail Avatar and Fat Shark HD Dominator.

Featuring a 1/1.8 inch Sony Starvis Ⅱ sensor, this camera delivers excellent night vision performance.

The camera ( 32G VTX KIT) supports Gyroflow, allowing you to capture smooth and stable video.

Features

4K pixel, 1080P, 120fps compatibility
Sony Starvis Ⅱ Technology
Excellent low light level performance
Camera FOV 160°
F/1.6 Large Aperture
Built-in 32GB storage
Supports GyroFlow
Supports Canvas Mode
22ms low latency
Input Voltage: 6V-25.2V
20mmx20mm mounting holes added

Specification

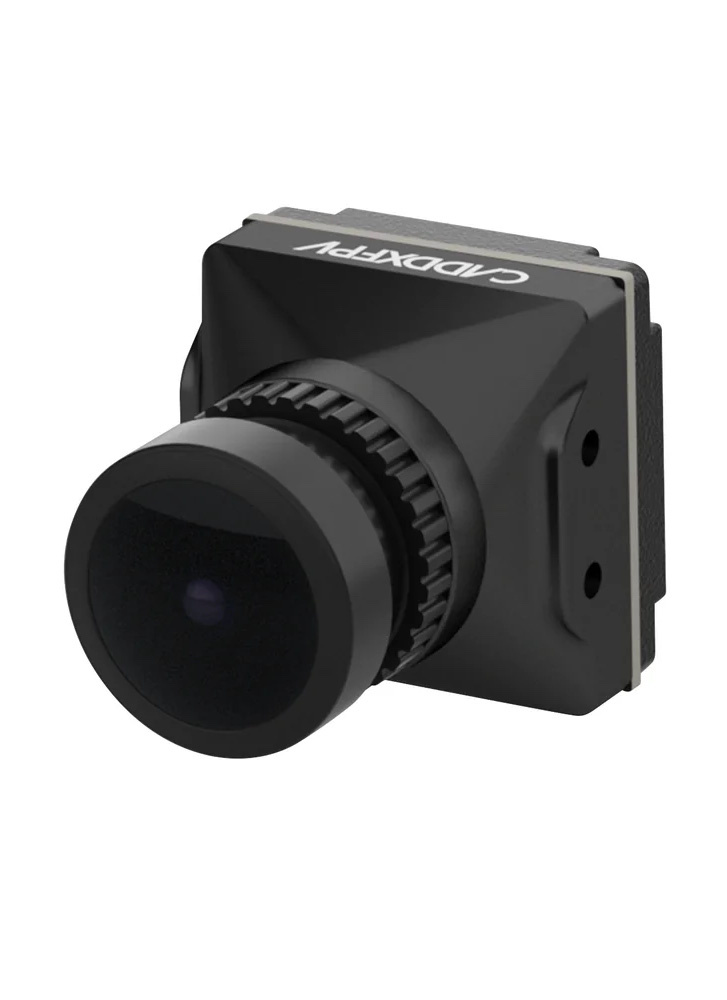

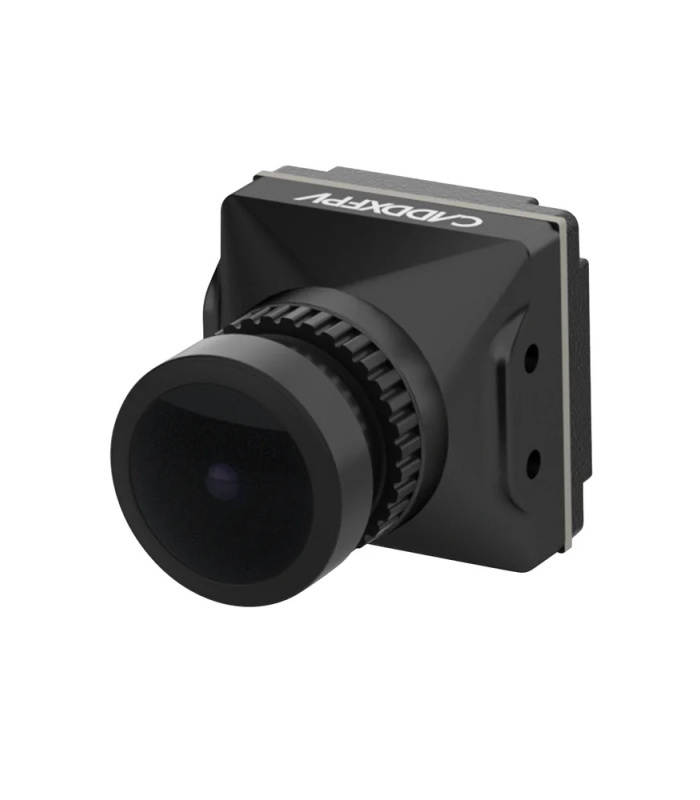

HD PRO CAMERA

Resolution: 1080P/60fps;720P/120fps,720P/60fps;1080P/120fps compatibility;
Image Sensor: 1/1.8-Inch Sony Starvis Ⅱ Sensor
Model: Avatar HD Pro camera
Min.Illumination: 0.00001Lux
Dimensions: 19*19*24mm
Shutter: Rolling shutter
Coaxial Cable: 140mm
Ratio: 16/9; 4/3
Aperture: F1.6
Weight: 9.5g
Lens: 8Mp
FOV: 160°

AVATAR V2 VTX

Transmitter Power (EIRP: FCC:<30dBm;CE:<14dBm;SRRC:<20dBm; MIC:<25dBm
Supported FC System: Betaflight; Inav; Fettec; ArduPilot;Kiss
1/O Interface: JST1.0*4(Power in)JST0.8*6(USB)
Communication Frequency: 5.725-5.850GHz
Mounting Holes: 25.5*25.5mm; 20*20mm
Operating Temperature: -20-40℃
Dimensions: 33.5*33.5*10.5mm
Latency: Average delay 22ms
Wide Power Input: 6V-25.2V
Model: Avatar V2 module
Recording: 1080p/720p
OSD: Canvas mode
Antenna: 1(IPEX)
Storage: 32G
Weight: 17.6g
Channels: 8

AVATAR V2 ANTENNA

Frequency range: 5600MHz-6000MHz
Size: R15 X 45mm(without cable)
Input Impedance: 50Ω
Polarization: LHCP
Interface: IPEX-1
Gain: 1.9dBi
VSWR: ≤1.5
Weight: 2g

Included:

1x Walksnail Avatar V2 VTX – 32GB w/ Gyro
1x Walksnail Avatar HD Pro Camera
1x Walksnail Avatar V2 Antenna
1x USB transfer extension cable
4x M2*5*0.5mm gasket
1x 4 Pin silicone cable
4x M2*14mm screws
8x M2*4mm screws
4x M2*5mm screws
4x M2*6mm screws
