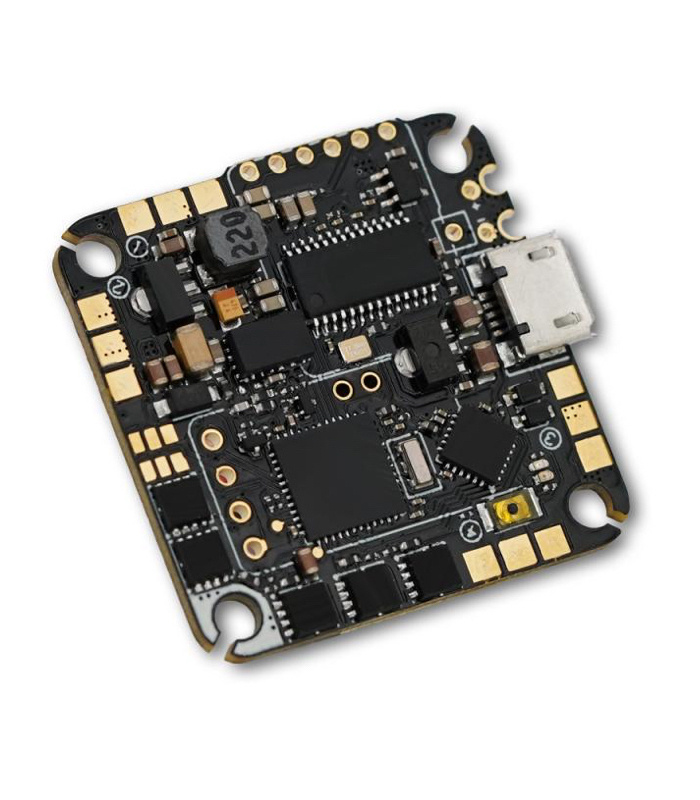

TBS Podracer AIO F4 Flight Controller and 30A BLHELI32 ESC (25.5 x 25.5)

£88.90 Inc. VAT

This powerful AIO FC has onboard ESCs rated to 30A. It suits Cinewhoops and Toothpick class drones.

Only 1 left in stock

0 People watching this product now!

Description

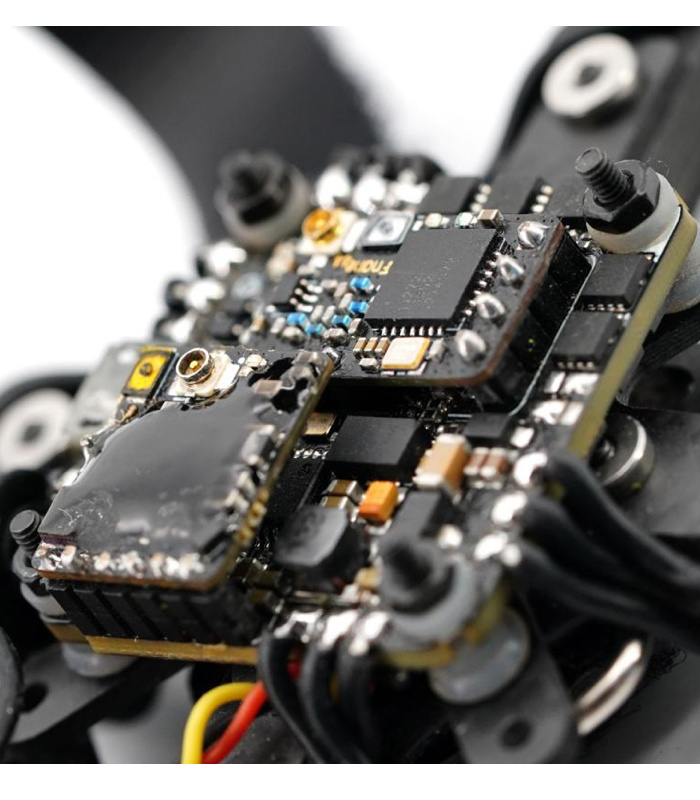

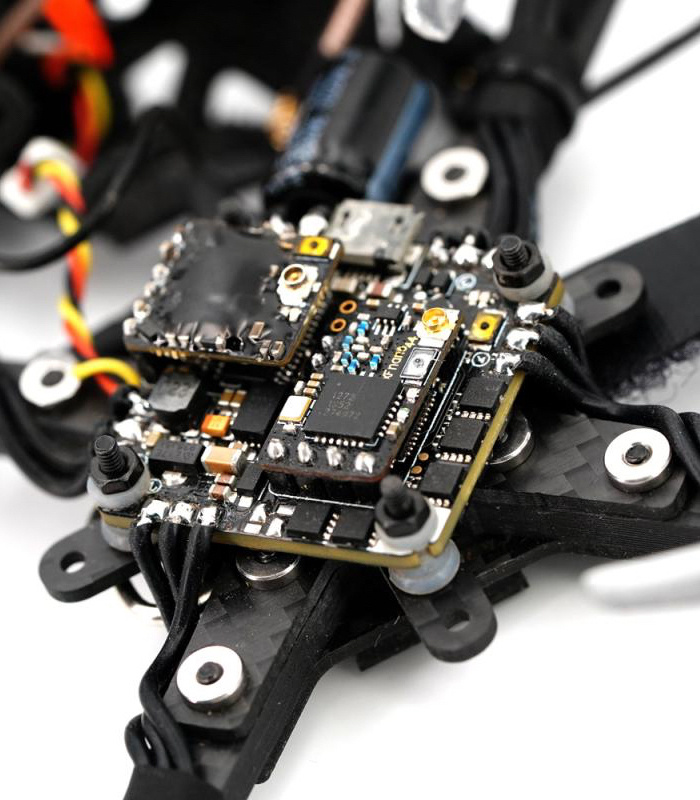

TBS partnered with Zeez to make this awesome whoop AIO. Introducing the the TBS Podracer AIO, the board is designed to cater for TBS Pro32 Nano VTX and TBS Crossfire / Tracer Nano RX with direct pin-header installation. The result is a clean, compact and lightweight core for your build..

The FC is equipped with F4+MPU6000 and the ESC is capable of True 30A current running BLHeli32. This board is versitle enough to run on your cinewhoop, 4/5″ racer like the podracer and longrange cruiser like the TBS Aureo.

GPS INSTALLATION

Because of the phyiscal limitations, installing a GPS module to the FC will require a few extra steps to remap the board’s resources.
Note: The follow steps will disable LED and FC’s SmartAudio and use as softserial for GPS.

HOW TO:

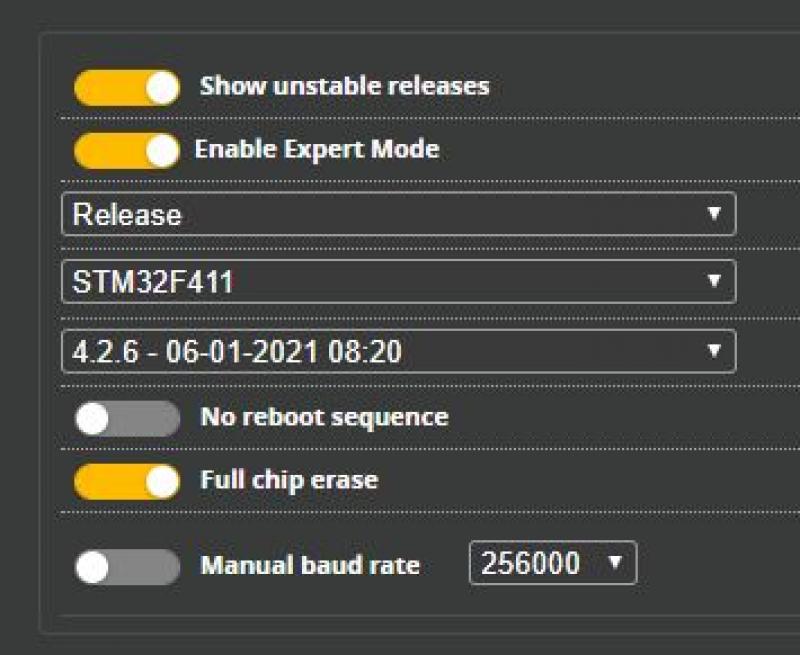

1. Flash the board with Target: STM32F411

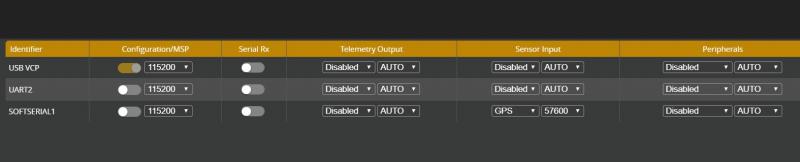

2. Download the Config file [HERE]. Then load it the board.

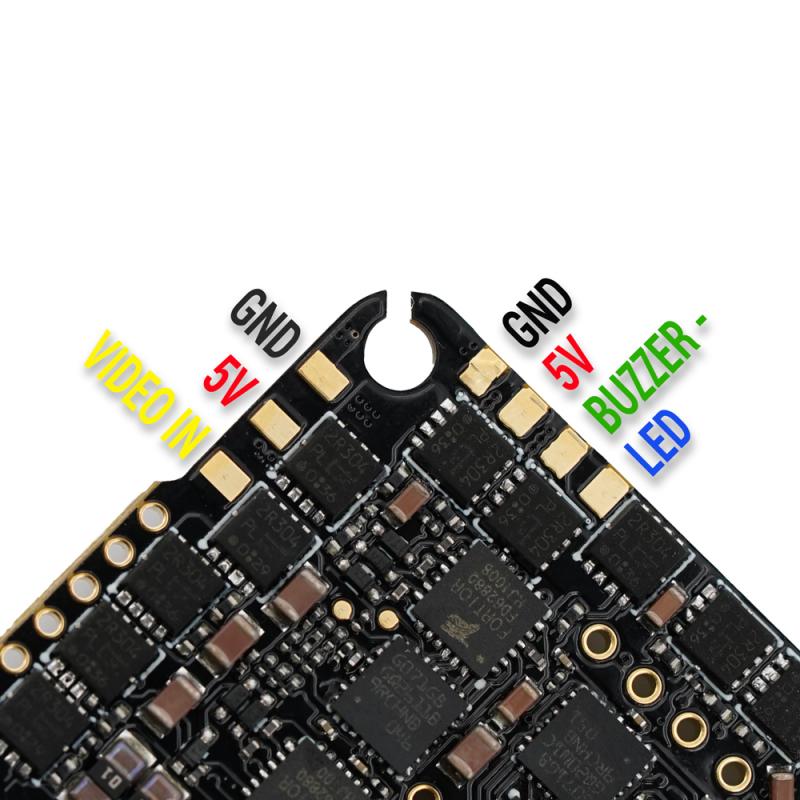

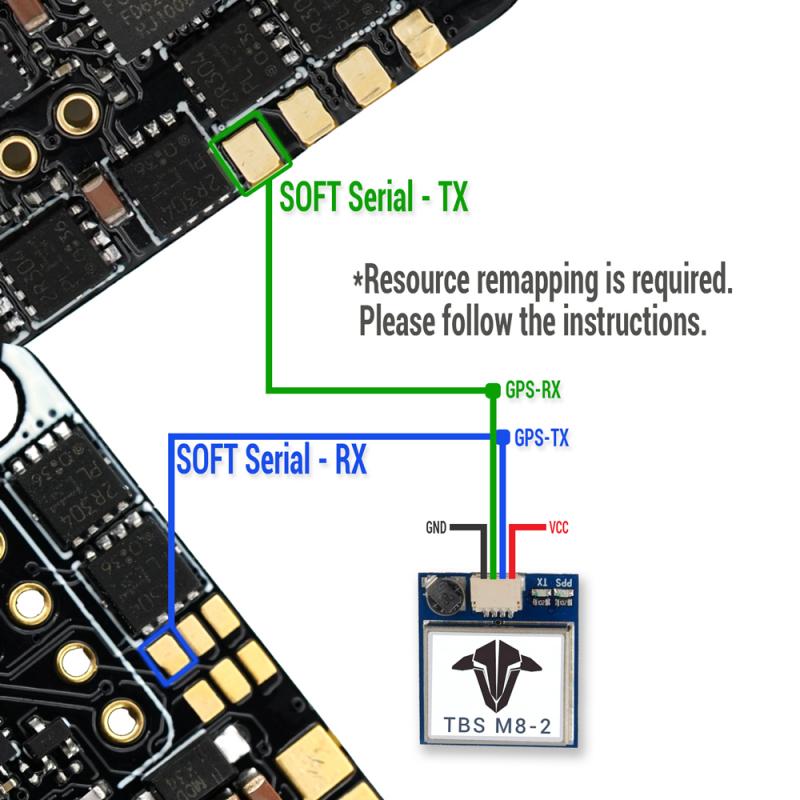

3. Wire the GPS as shown:

Specification

FC SIDE

Mounting holes: 25.5×25.5 mm / M2 holes
Up to 6S input
5V BEC up to 1.2A continuous
STM32F411 MCU (Support BetaFlight, EmuFlight)
MPU6000 Gyro/ACC
OSD chip Onboard (AT7456E)
2 available UART
LC Filter for 5V VTX and Camera
Direct solder connection for TBS Nano RX and TBS Unify Pro32 Nano
Support programmable LED like WS2812 etc
Built-in current sensor

ESC SIDE

Signal support: PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600
Input voltage: 2S-6S Lipo
Continuous current: 30A
Peak current: 35A
ESC firmware: BLHELI 32
PWM Frequency Range: 24KHz up to 96KHz

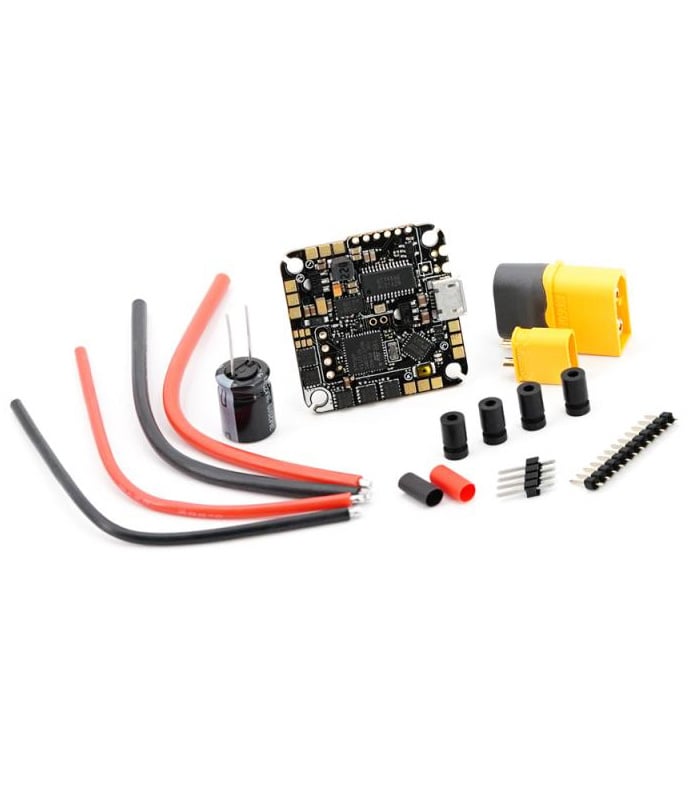

Included:

1 x TBS Podracer AIO
1 x Capacitor
1 x AWG cables set with shrink tubes
4 x mounting gromets
1 x XT60 (Male)
1 x XT30 (Male)
1 x Pinheaders set for TBS VTX and RX

Downloads

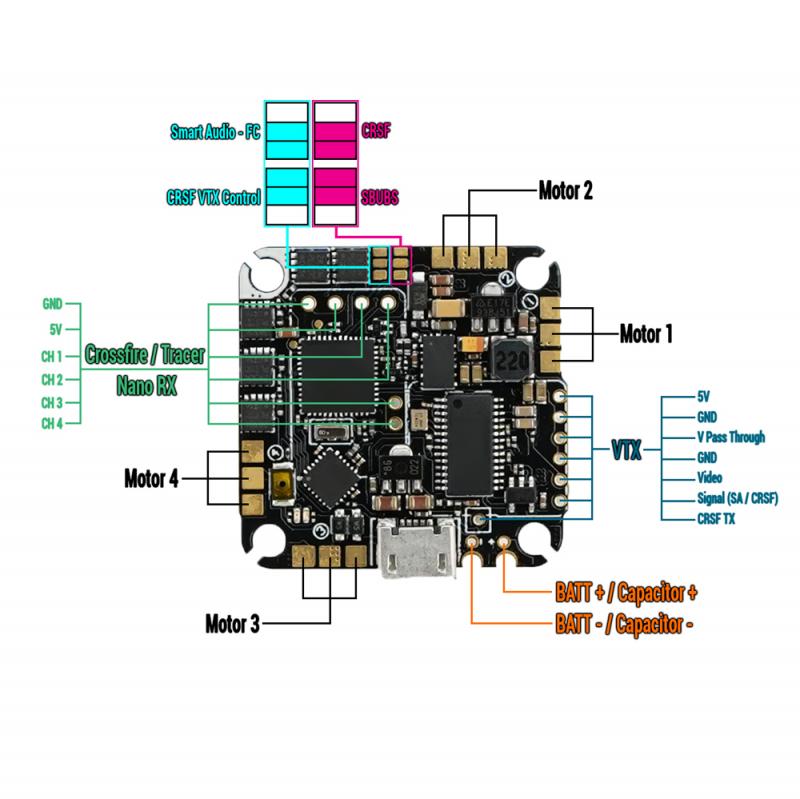

Pinouts Top

Download File

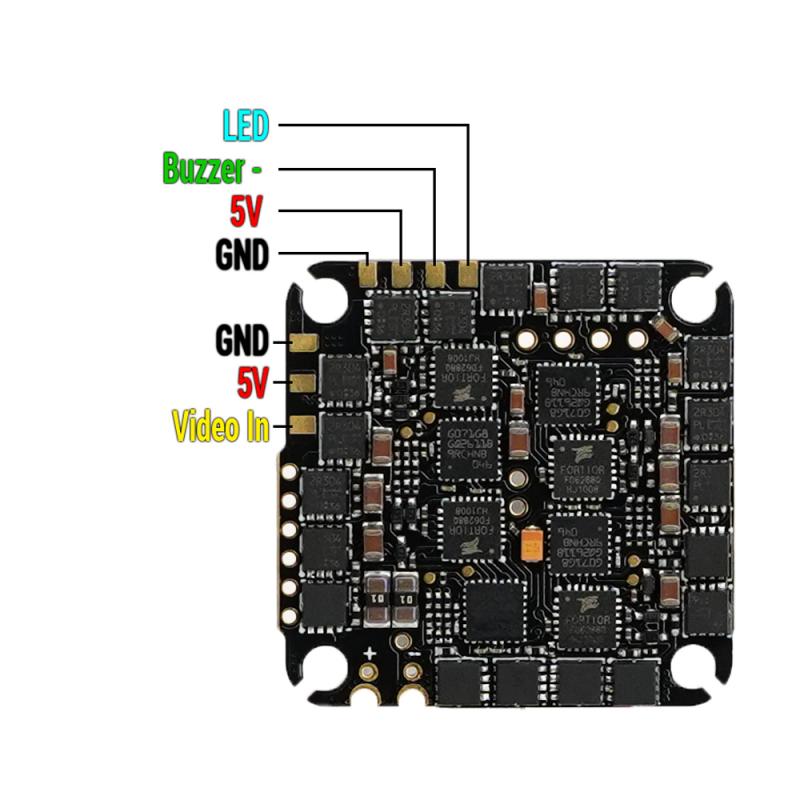

Pinouts Bottom

Download File
