Tarot Mini FPV Infrared Thermal Imaging Camera

Name: Tarot Mini FPV Infrared Thermal Imaging Camera - Flying Tech
Brand: Tarot
SKU: FPV-CAM-TL300M6
Price: 339.90 GBP
Availability: InStock

£339.90 Inc. VAT

Upgrade your FPV drone to a whole new level of capability with this Mini Thermal Imaging Camera from Tarot.

In stock

Add to compare

0 People watching this product now!

SKU: FPV-CAM-TL300M6 Categories: Thermal Imaging Cameras, Analog FPV, FPV, FPV Cameras Tags: Camera, Infrared, Infrared camera, Thermal Imaging

Description

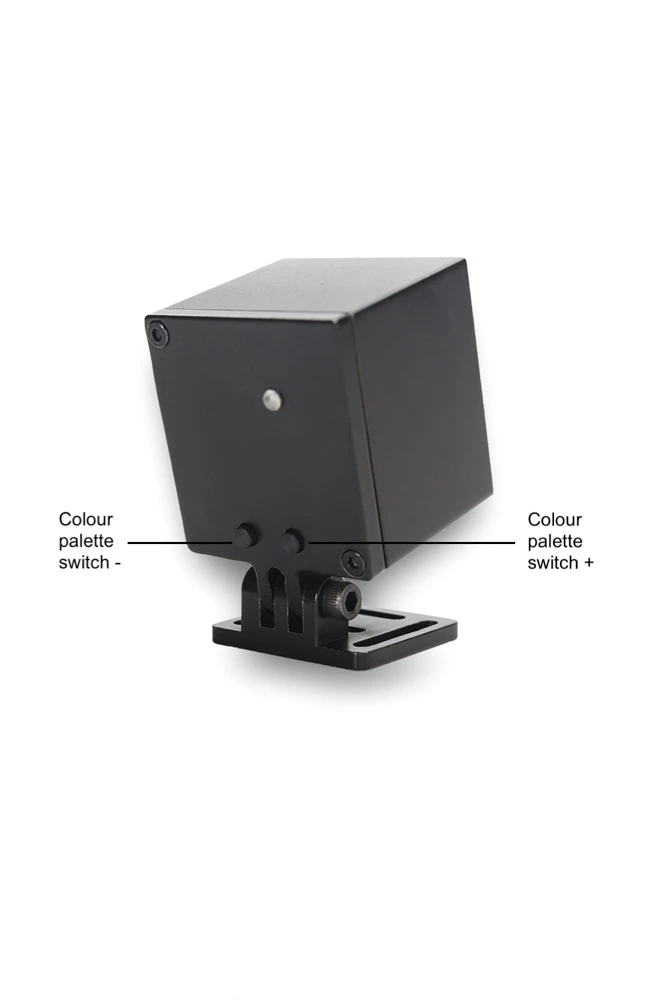

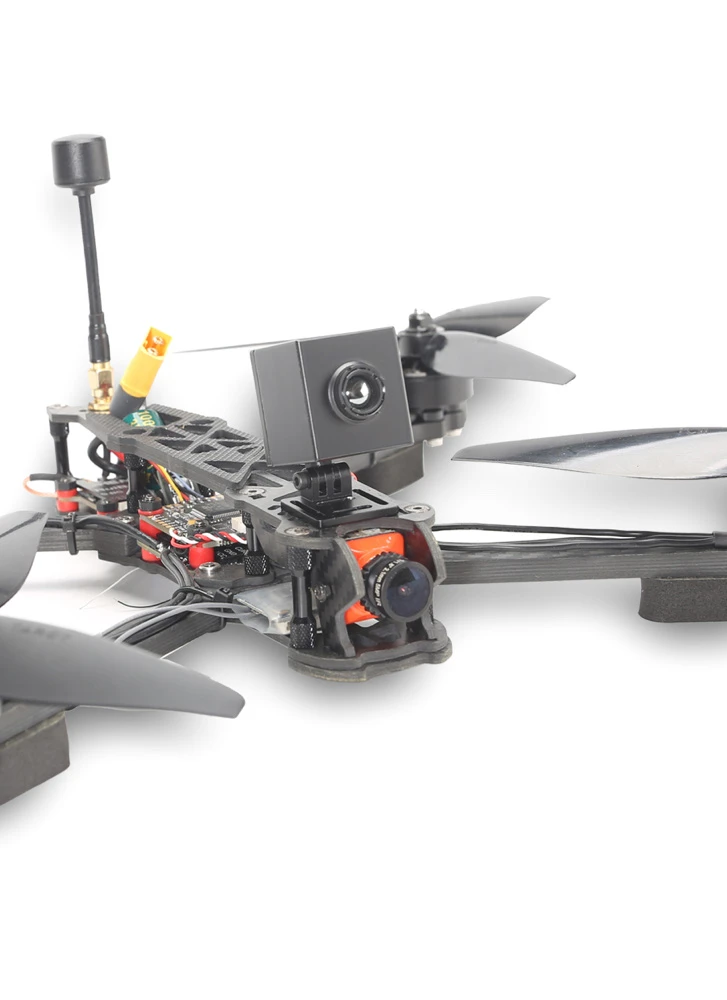

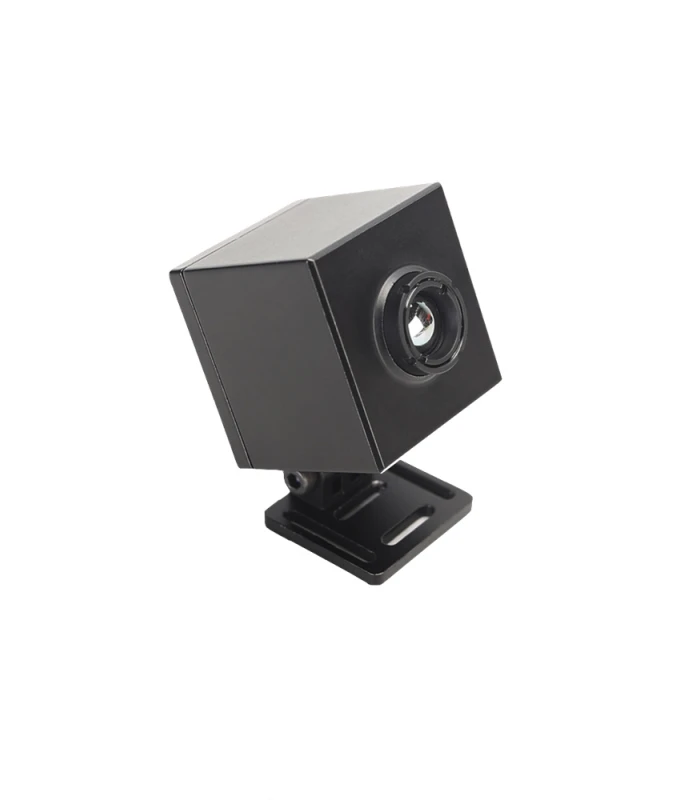

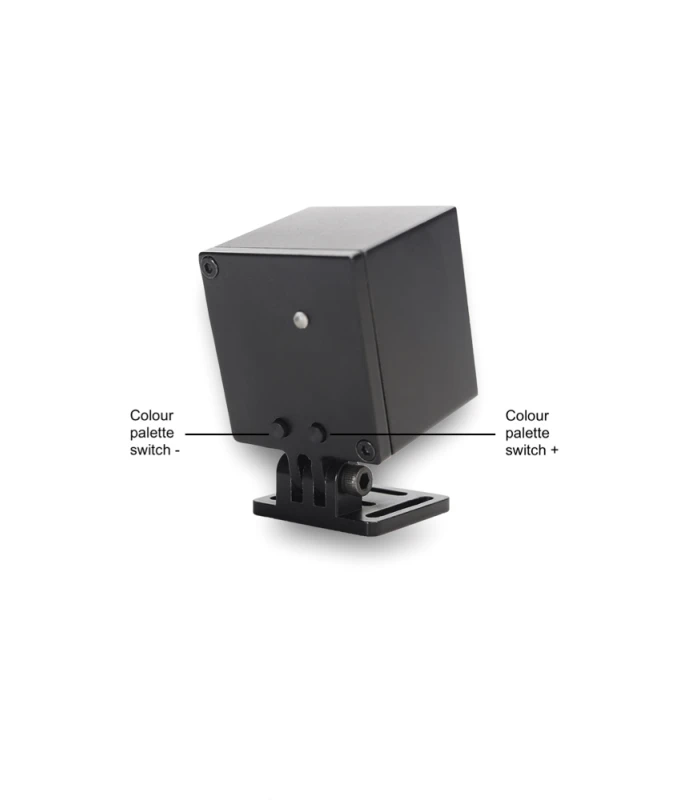

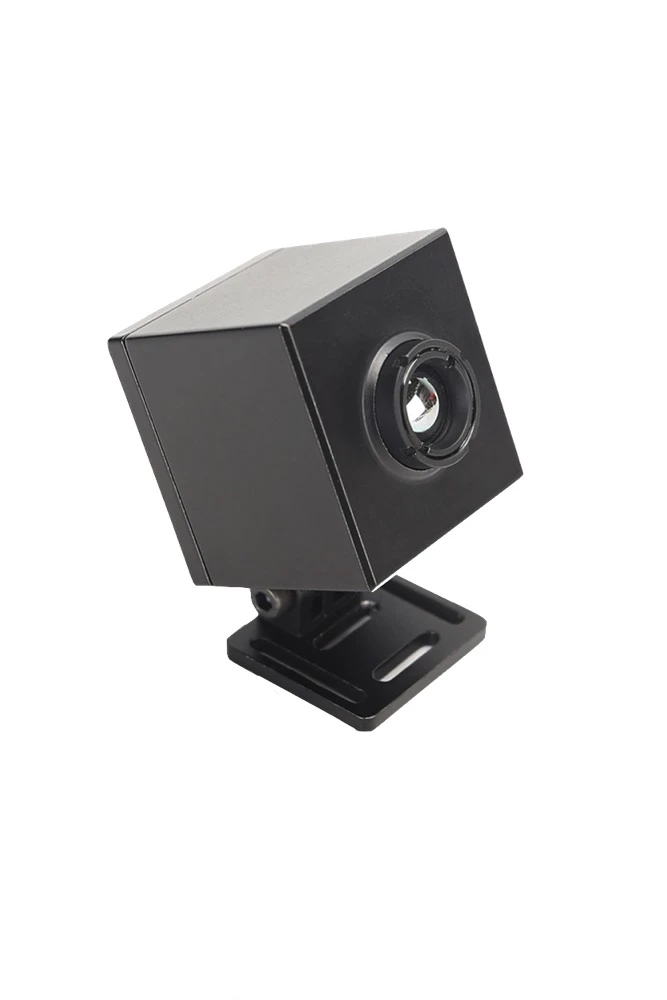

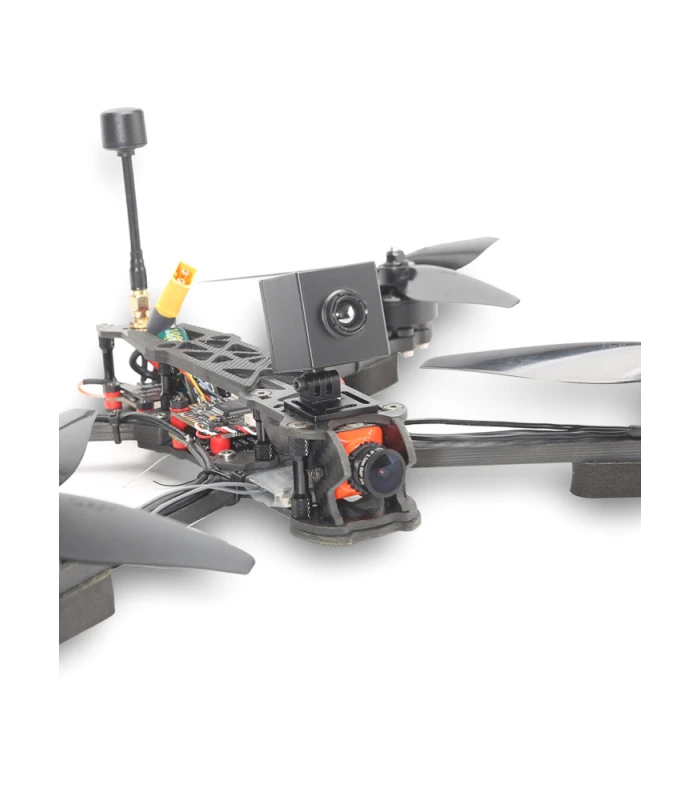

Upgrade your FPV drone to a whole new level of capability with this Mini Thermal Imaging Camera from Tarot. With this compact marvel experience a new level of situational awareness using this camera’s thermal sensing capabilities. With it you will be able to detect heat signatures, identify obstacles and even see in low-visibility conditions that would be impossible to navigate using a normal camera. Beyond FPV drone flying, this mini thermal imaging camera is versatile and can be used for a variety of applications. Explore wildlife monitoring, search and rescue missions, scientific research, thermal inspections or even home security. In terms of image quality and performance, the image resolution is 256×192, operating with a 25Hz frame rate and a thermal contrast (NETD) of 50mk. The camera offers a choice of 20 colour palettes to pick from to suit different applications. These can be selected via push buttons on the rear of the camera or remotely via UART control. The camera can be used with any analog FPV video transmitter. It comes housed in a aluminium case, attached to a tilt adjustment mount.

The camera requires a 5v power supply.

Specification

Operating Voltage: 5V
Power Consumption: Approx 500mW @25°C
Communication Interface: UART
Video Output: AV PAL
Resolution: 256×192
Lens: 7.0mm F1.0
FOV (Horizontal x Vertical): 24.8° x 18.7°
Momentary FOV: 1.69 mrad
Pixel Spacing: 12µm
Detector Frame Frequency: 25Hz
Response Band: 8 ~ 14µm
Noise Equivalent Temperature Difference (NETD): <50mk @25°C , F#1.0
False Colour: 20 / One Click Switching
Operating Temperature: -20°C ~ +60°C
Size: 26x25x28mm
Weight: 28.7g

Downloads

Serial Protocol for UART Control (png, 24KB)

Download

Q&A

Questions and answers of the customers

can this IR camera "Tarot Mini FPV Infrared Thermal Imaging Camera" be compatible with Speedybee F7 V3 Flight controller ? how about the video transmitter part and googles ? i'm having a DJI O3 Videotransmitter with Googles 2, how to integrate with the Videotransmitter and the Googles

0 votes

Q can this IR camera "Tarot Mini FPV Infrared Thermal Imaging Camera" be compatible with Speedybee ...... Read more answer now

A
Hi, it can be used with the F7 V3 flight controller. However, it's not compatible with Digital FPV equipment such as the DJI O3. It is compatible with analog FPV systems, so you would need to use an analog video transmitter.
