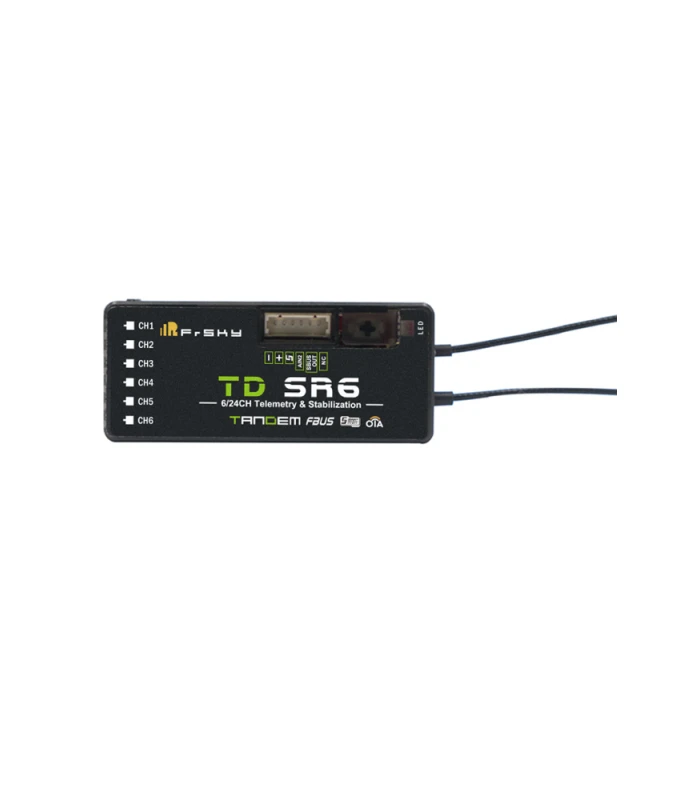

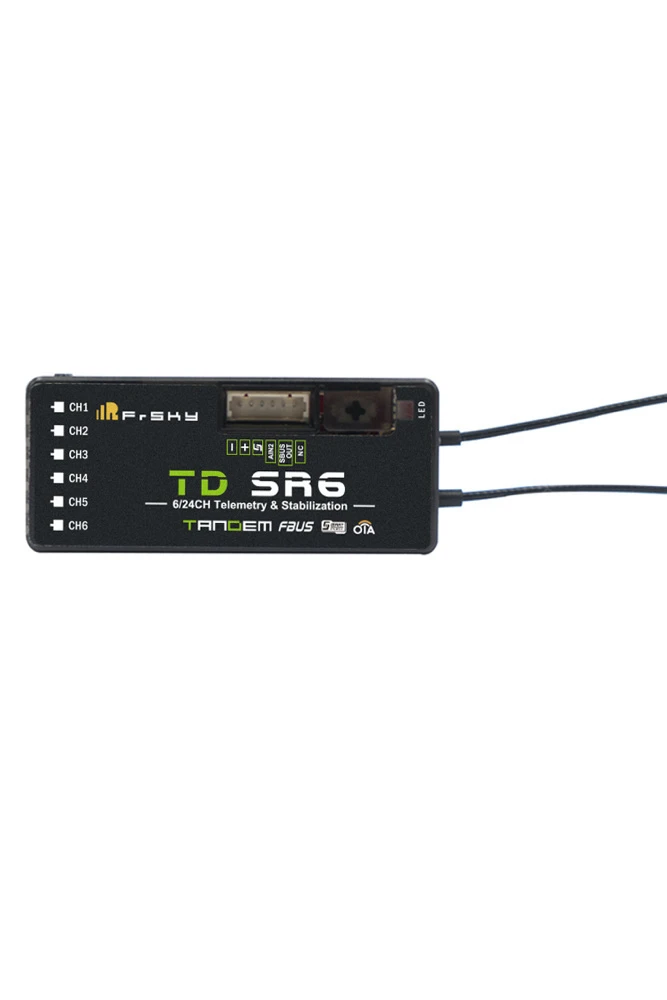

FrSky Tandem Dual-Band TD SR6 Receiver w/ ADV Stabilizer

The Tandem dual-band receivers are unlike any other FrSky 2.4Ghz or 868Mhz/900Mhz receivers, instead they work simultaneously at both 868Mhz and 2.4Ghz frequencies. That means Tandem receivers provide not only the low latency signal control, but long range with an enhanced level of high reliability and anti-interference performance as well.

The Tandem series receivers adopt a triple antenna design that provides multi-directional wide coverage for the remote signal. The 868Mhz antenna is a newly designed small form factor, but has the equivalent high-performance as with previous 868mhz antennas.

TD SR6 receiver offers 6 PWM channel outputs and is bundled in a compact lightweight design, the receiver also provides two of 3-pin ports accordingly for SBUS Out and FBUS/S.Port. By setting the S.Port to the FBUS protocol, the TD receivers can open up the possibility of seamlessly pairing with multiple telemetry devices (Neuron ESC, Advance Sensors, etc.) as well as simplifying the build setup.

Stabilization Function
The TD SR6 offers an enhanced Stabilization function which is an upgrade over the original classical gyroscope stabilization modes. The TD SR6 offers an advanced mode that provides more programmable stabilized channels and flexibility.

The classical stabilization mode has been enhanced with 5 additional stabilization channels, providing pin mapping to each channel in the multiple flight modes like Stabilization, Auto-Level, Hover, and Knife-Edge with an airplane model.

In the advanced stabilization mode, all the output pins are configurable for stabilization and additional advanced features such as Stab file sharing, programmable parameters, developer access, etc.

Please Note: This receiver is only compatible with the Tandem series transmitters with dual-band transmitter module.

Features:

• Simultaneous working 2.4G&900M dual-band TD mode
• Dual-band antenna design for multi-directional coverage
• Compact lightweight design
• Built-in Stabilization Function
• Black Box function
• 4ms race mode with telemetry
• Long control range (Range varies based on the RF Power settings.)
• Over-The-Air (OTA) FW update
• 6 PWM channel ports
• FBUS / S.Port
• SBUS Out (Supports 16CH / 24CH mode)
