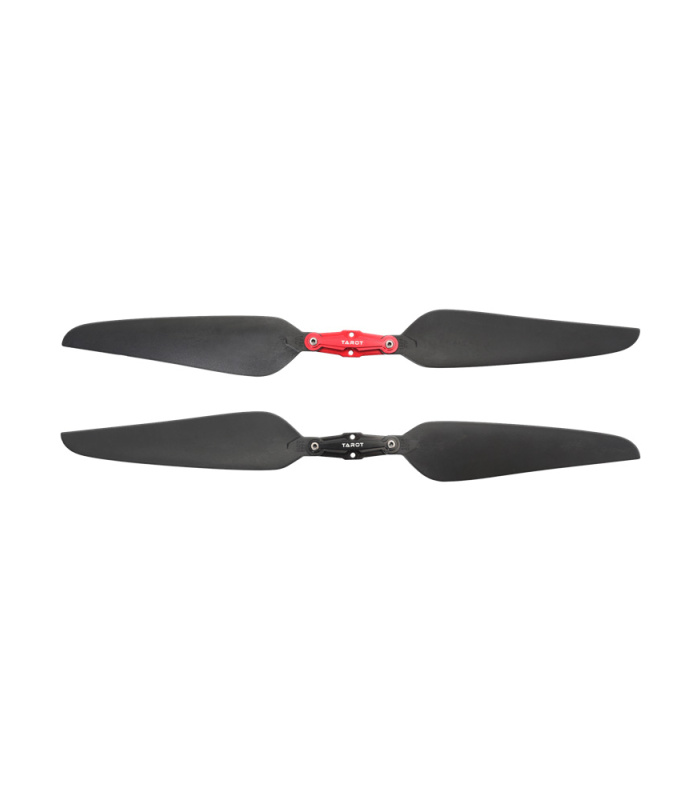

Tarot High Efficiency Folding Propellers CW/CCW

High-strength, foldable propellers from Tarot, designed for multi-rotor drones where compact transport and efficient flight are required. Folding propellers are ideal for foldable frames, allowing the aircraft to be packed down smaller for easier handling and transport.

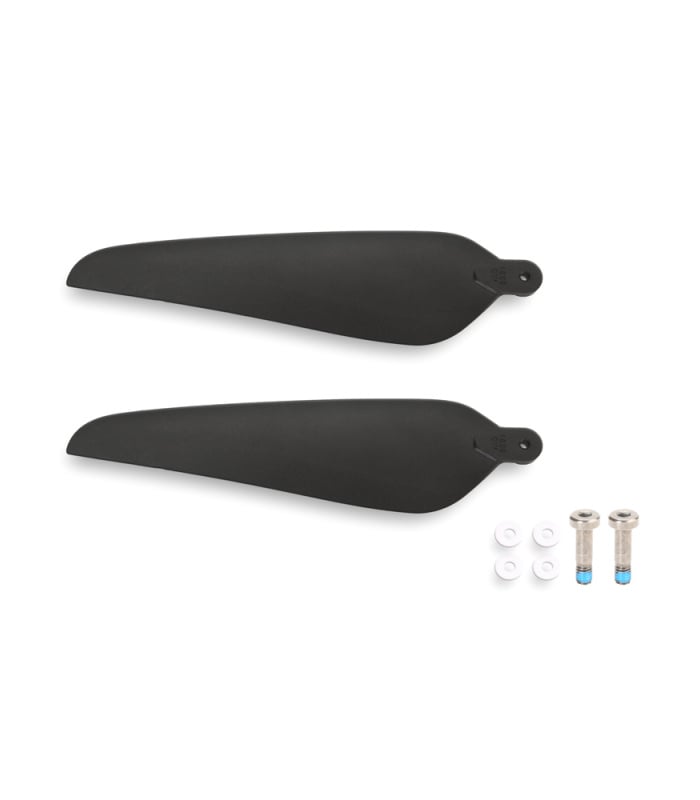

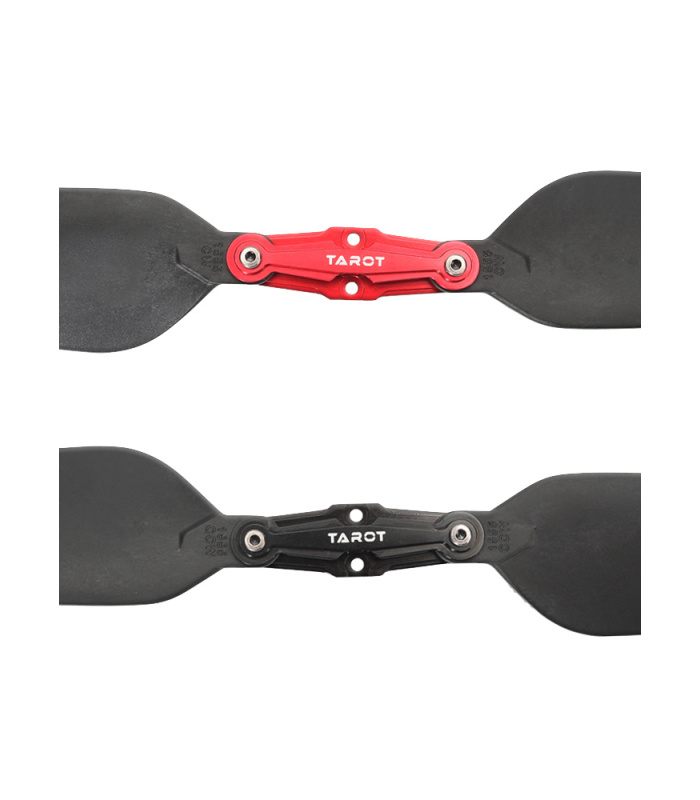

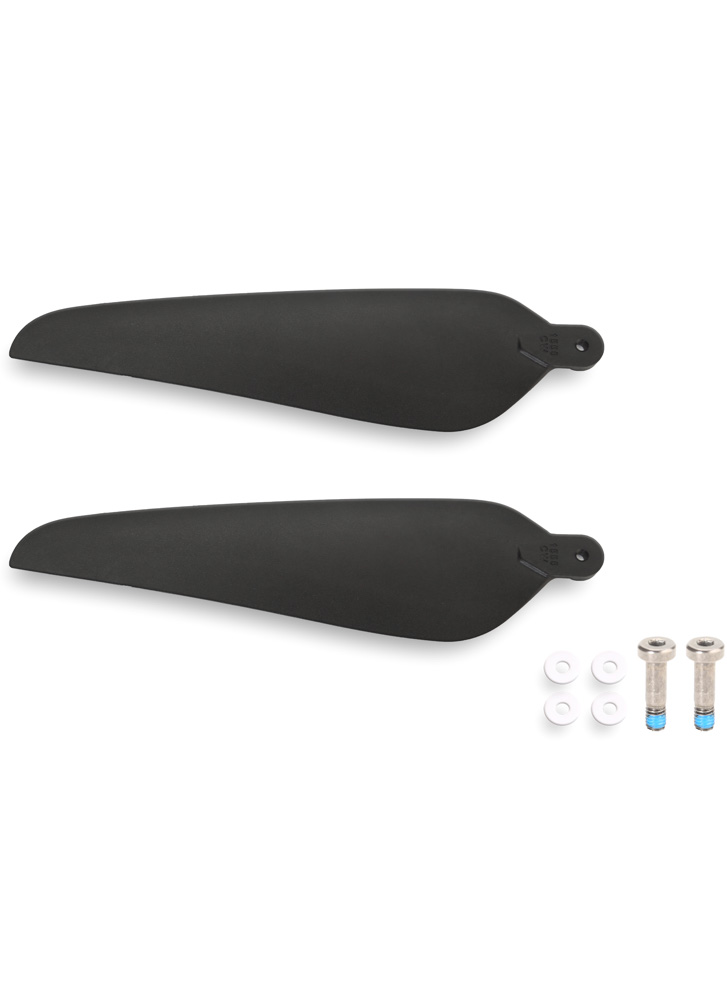

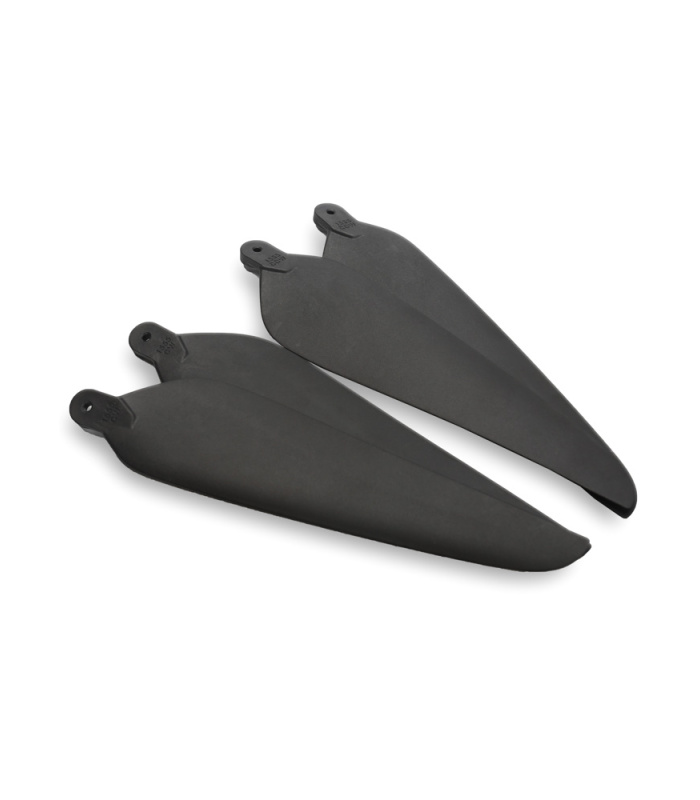

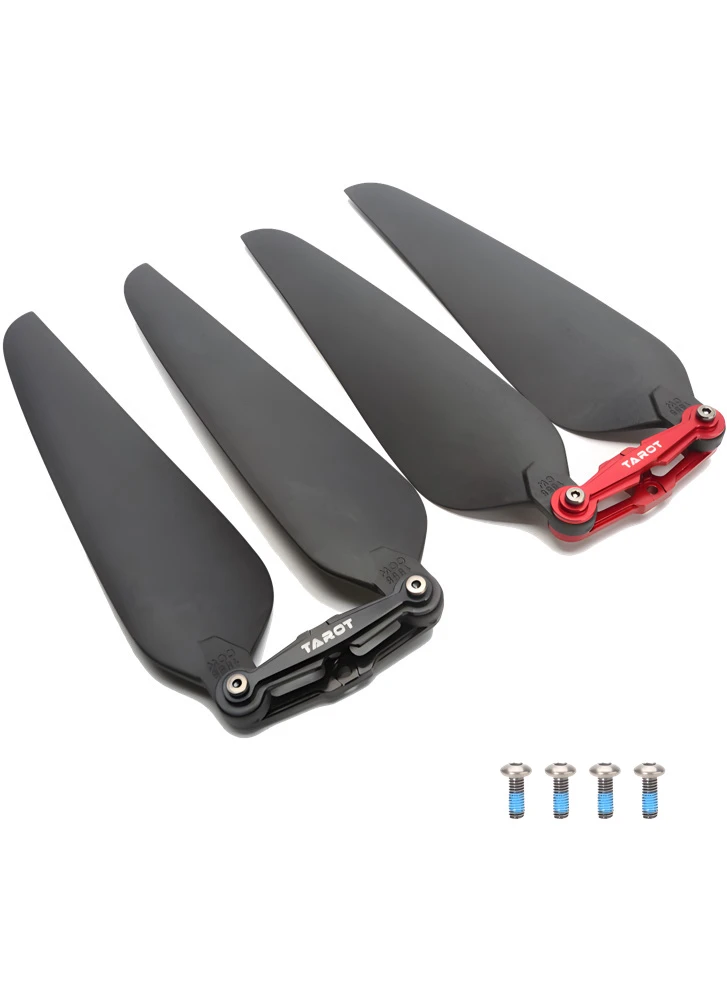

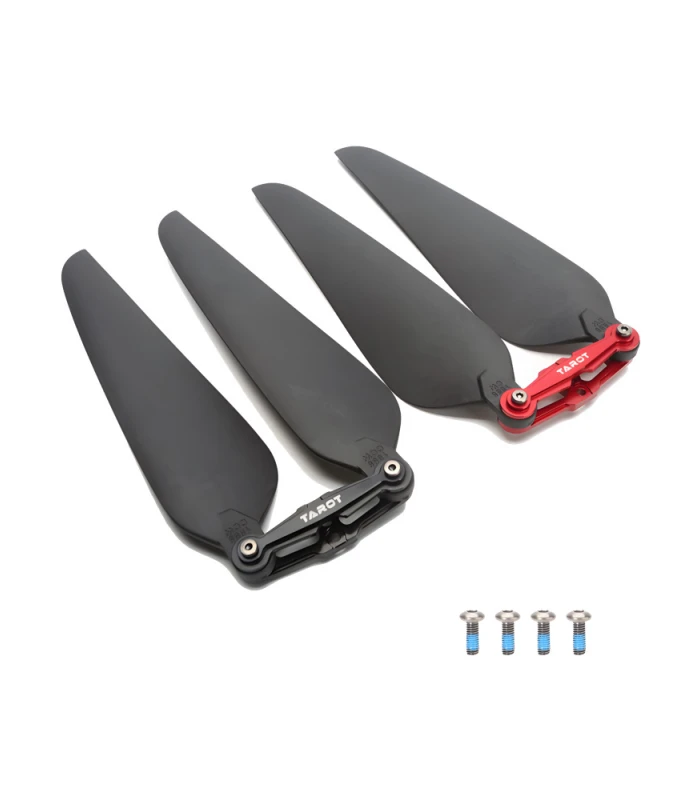

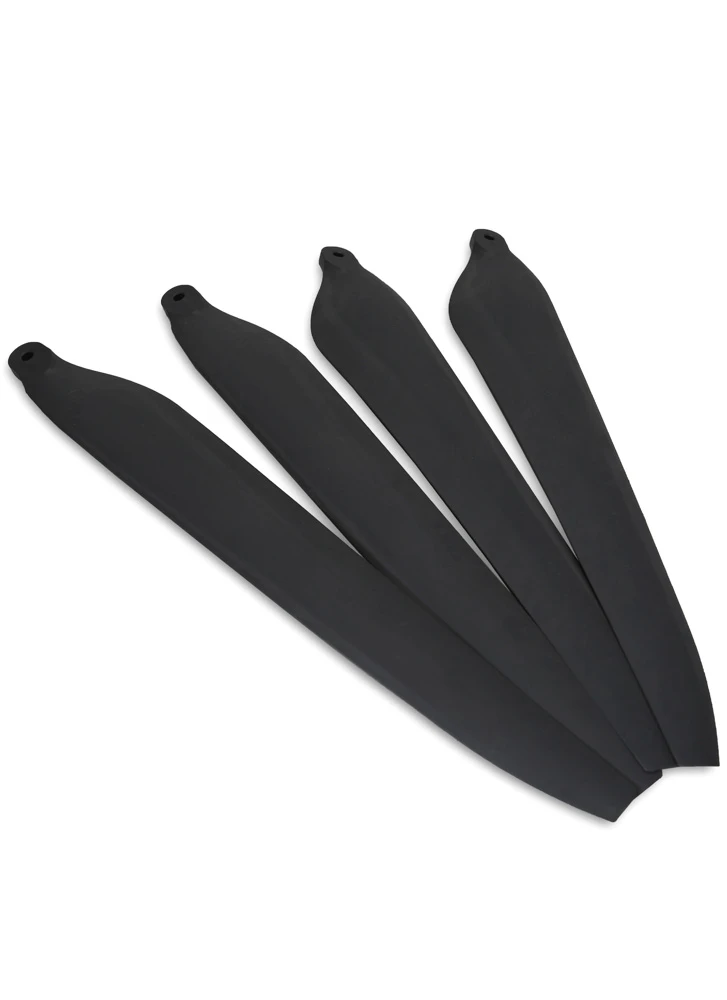

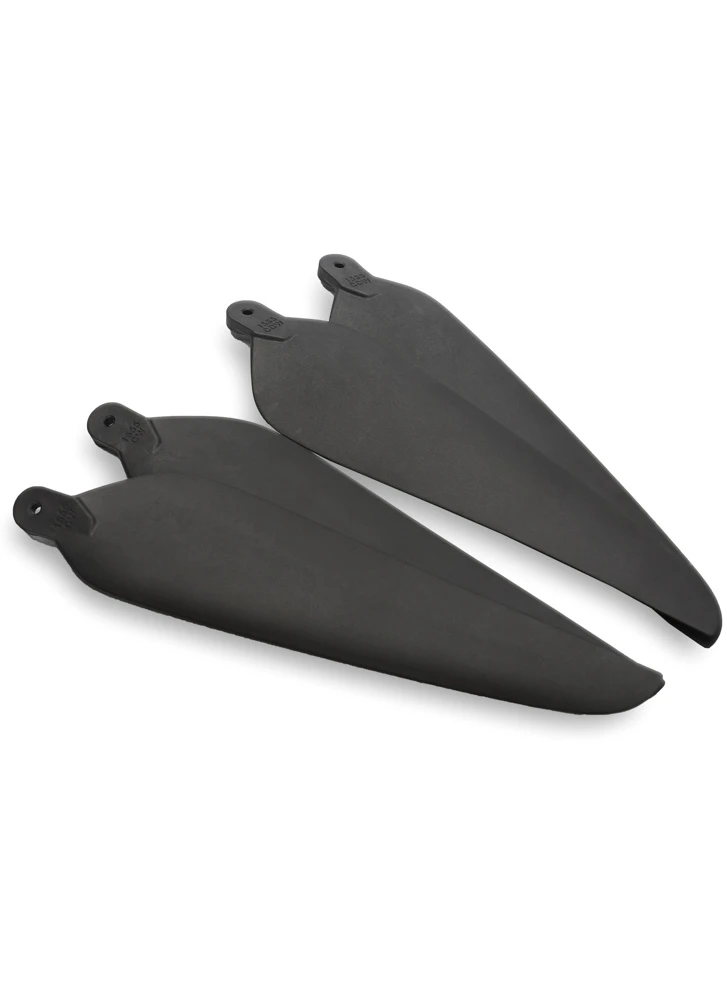

Individual replacement blades and complete sets with prop holders are available across all sizes — please select the required option.

Prop Size Options:

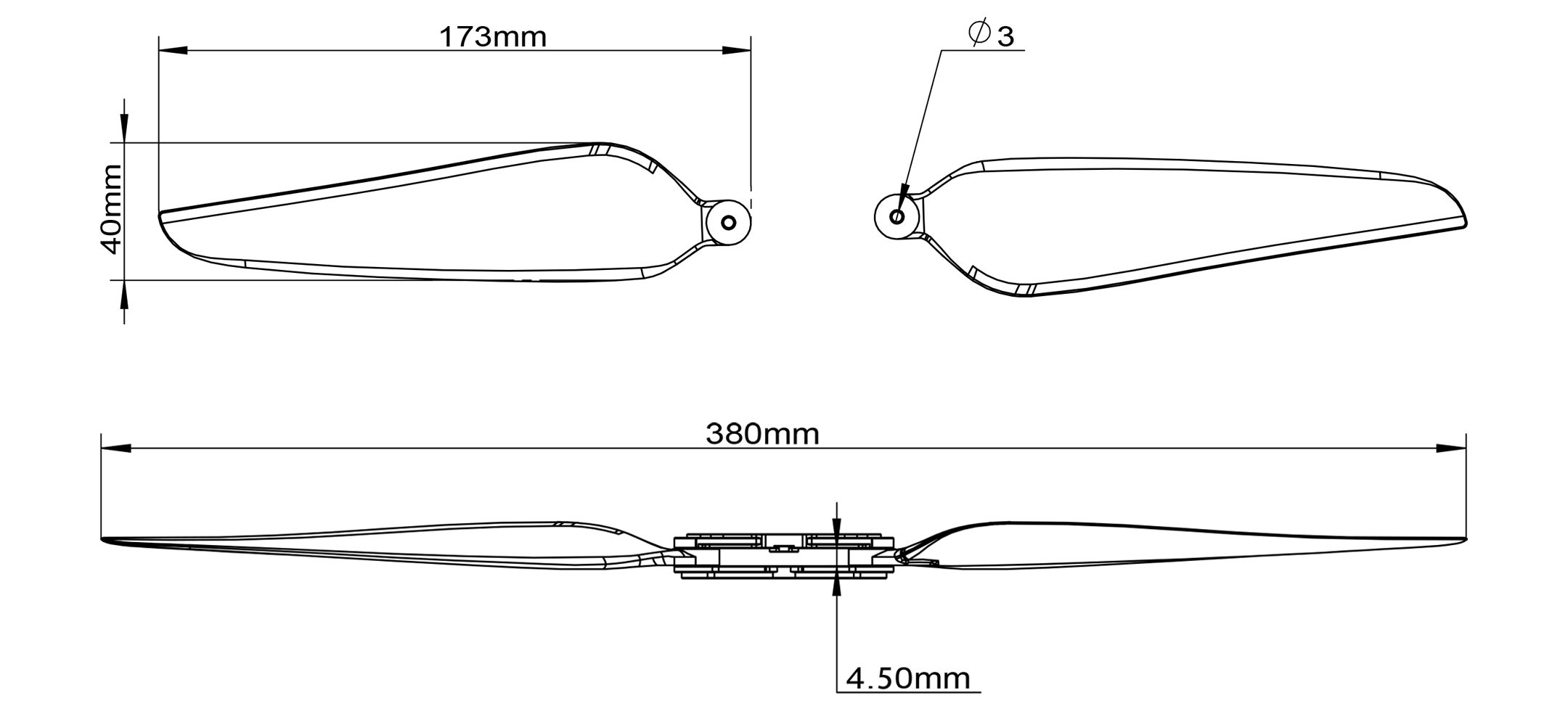

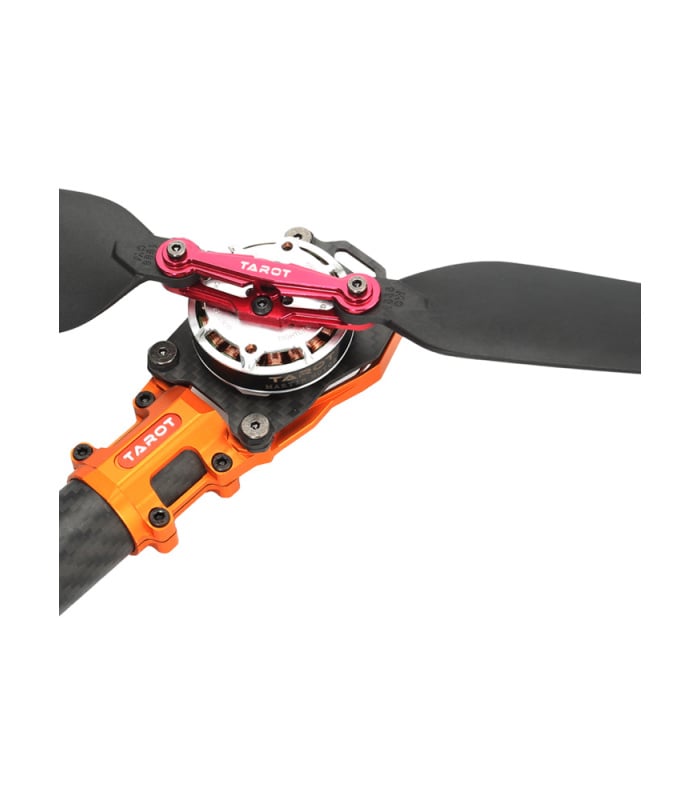

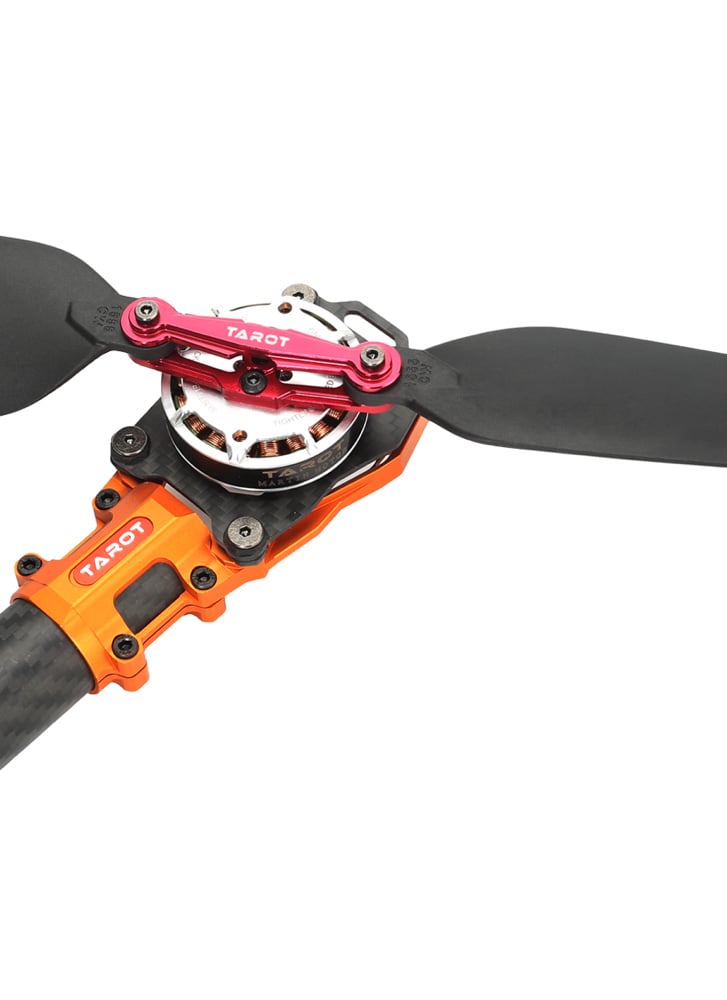

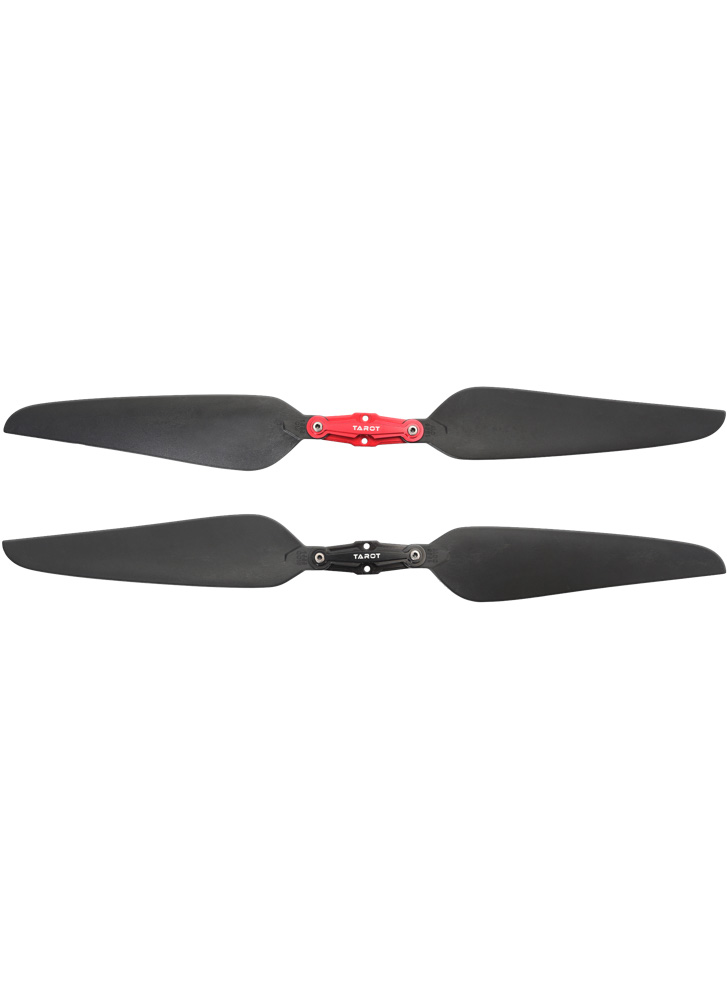

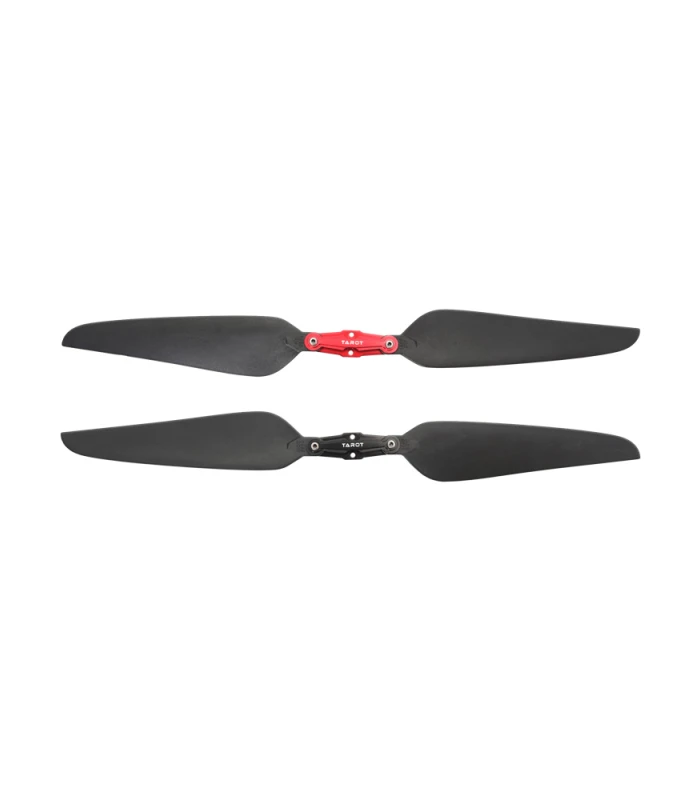

The 14″, 15″ and 16″ propellers use a T-mount style interface, fitting motors with a 4 mm shaft and M3 mounting holes on a 12 mm bolt circle. The 14″ version has a 5.5″ pitch, while the 15″ and 16″ versions use a 6.5″ pitch.

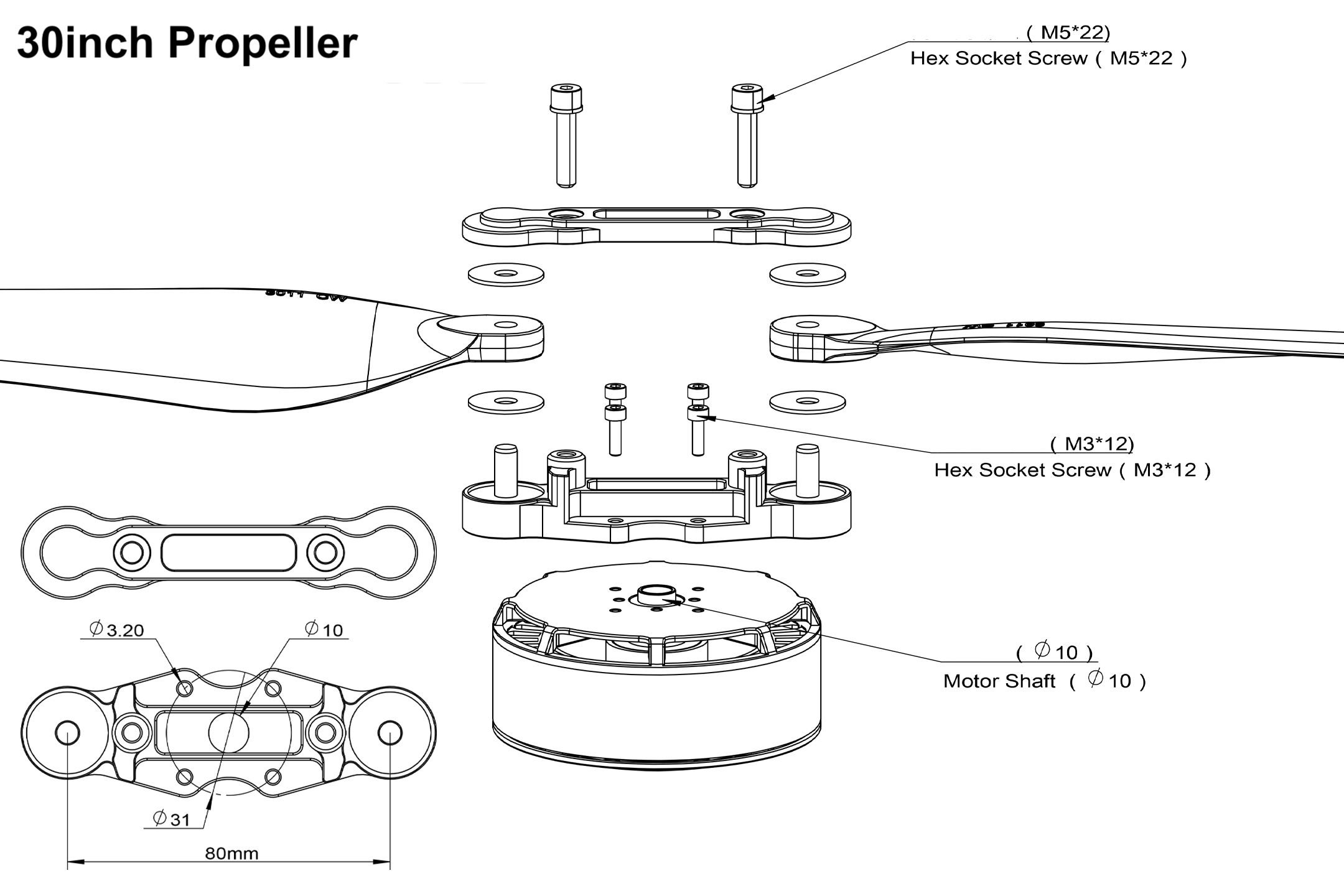

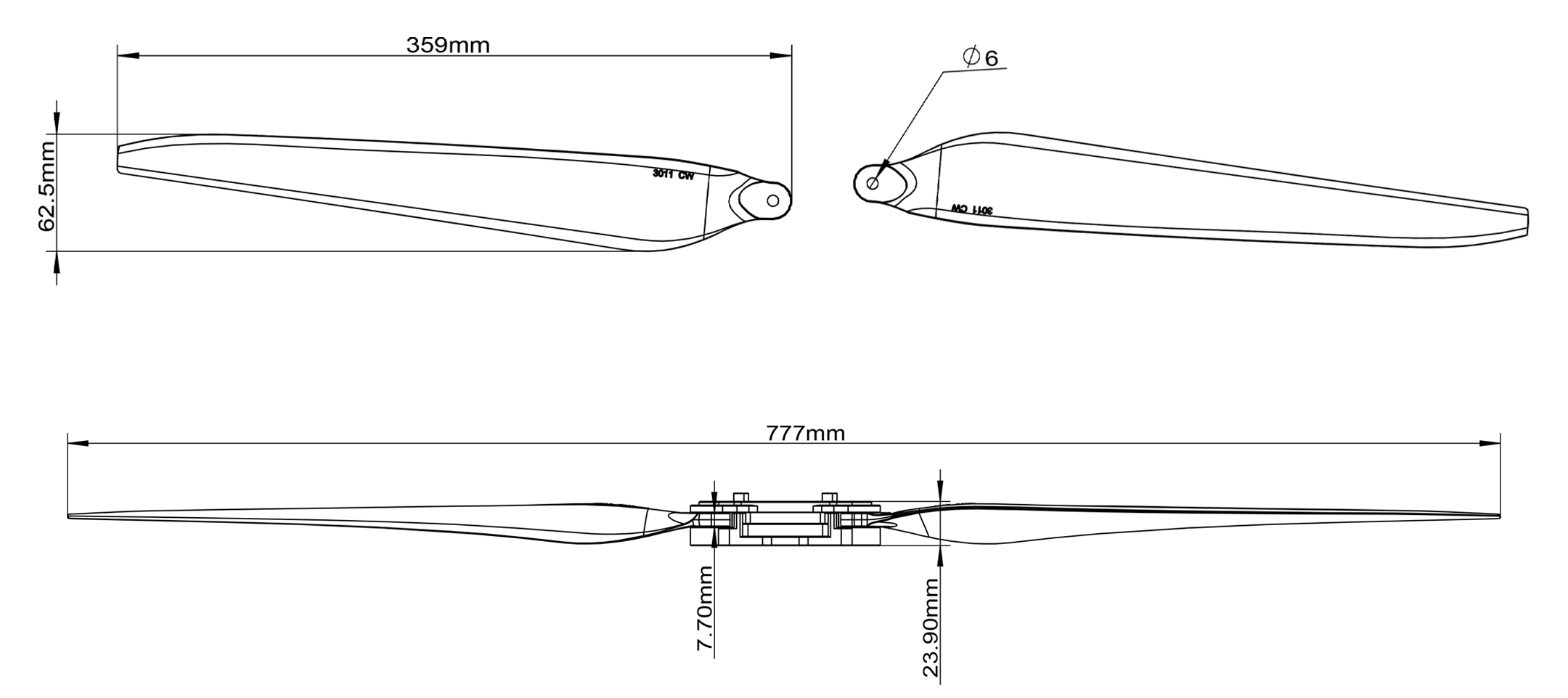

The 30″ propellers are intended for larger multi-rotor platforms and use a different mounting standard. They are compatible with motors featuring an 8 mm centre shaft and a 31 mm mounting hole pattern (M3 × 4). Overall propeller length is 777 mm, pitch is 31″ × 1.1, and weight is approximately 180 g per pair including clamps.

Prop Size Options:

14″ / 15″ / 16″ please select as required. 14″ has a 5.5″ pitch, 15/16″ have a 6.5″ pitch.

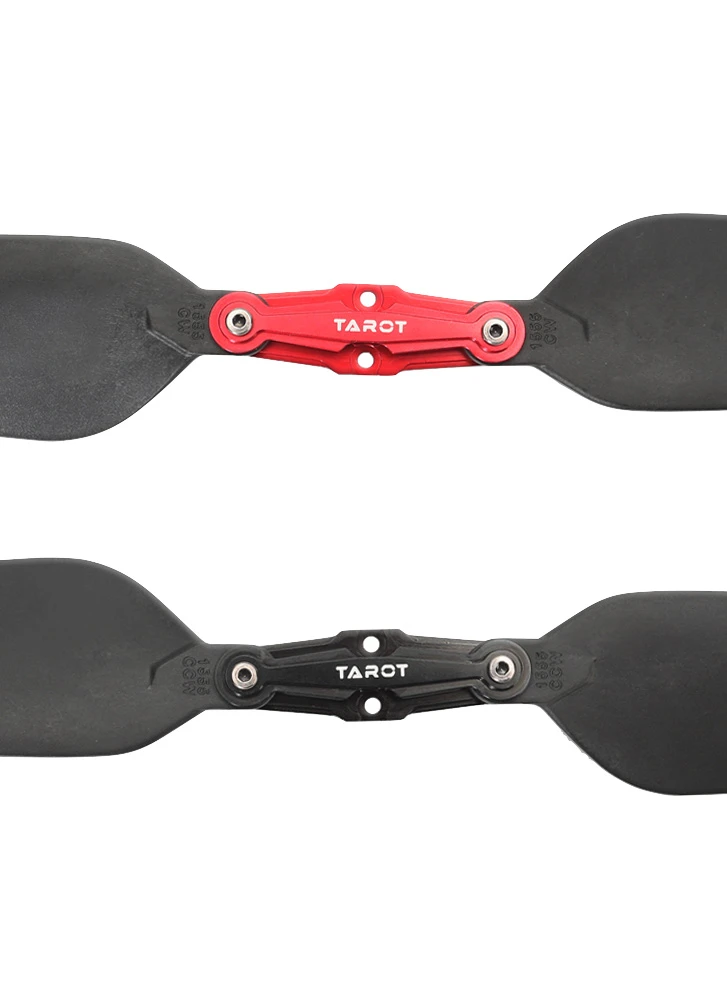

Assembly advice: Do not over-tighten the bolts securing the propellers into their holders. The fixing bolts are supplied with pre-applied thread-locking compound, and over-tightening can prevent the blades from rotating freely and unfolding correctly.
