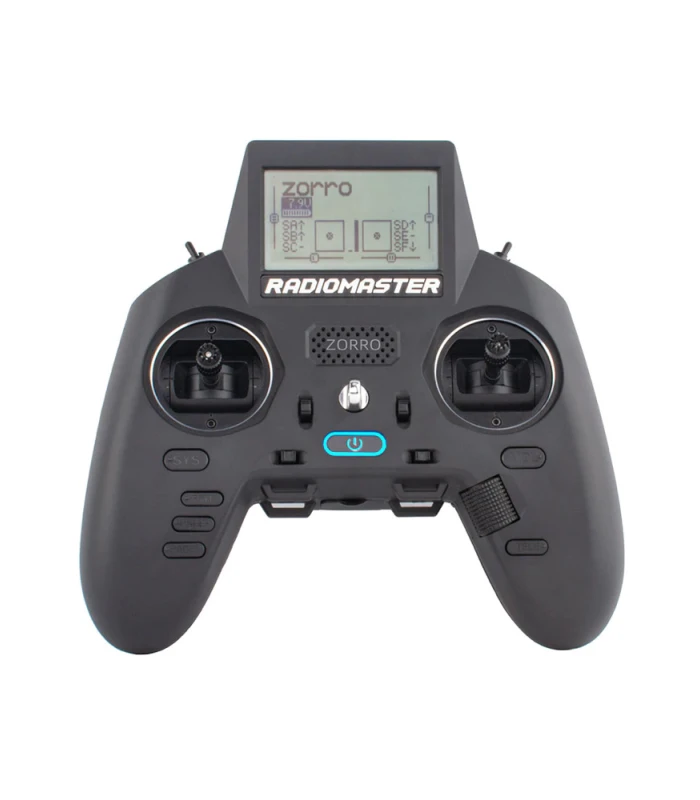

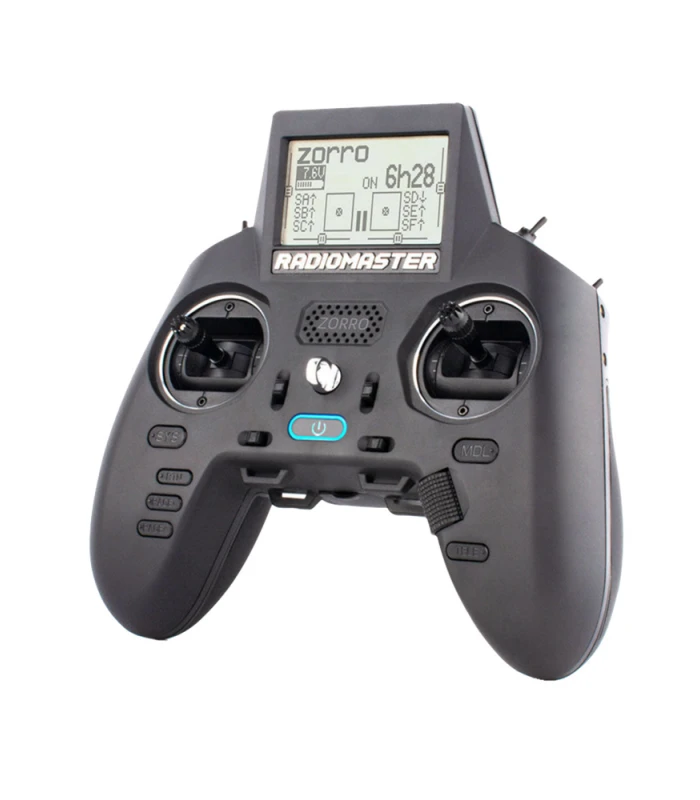

RadioMaster Zorro Radio 4-in-1 Multi-Protocol / ELRS 2.4Ghz

£119.99 Inc. VAT

The Zorro is a popular gamepad style controller, available as a 4in1 Multi-Protocol or ELRS radio.

Protocol	Clear

Compare

0 People watching this product now!

SKU: N/A Categories: 2.4GHz Radio Controllers, Radio Control, Long Range RC, ExpressLRS, ELRS Transmitters Tags: 4in1, ExpressLRS, Gamepad Controller, Multi-Protocol, Radio Controller, Transmitter

Description

This radio controller features an oversized LCD display and officially supports OpenTX and EDGETX Firmware. It also has travel adjustable HALL sensor gimbals, a nano size external RF module bay which supports both TBS Crossfire/Tracer and ExperessLRS, built-in USB-C Charging, USB-C Data port for updating and playing simulators, rear and top assignable push buttons, scroll wheels, RadioMasters 7 button menu navigation system, headphone audio output, external power source input and a host of RF options the RadioMaster Zorro is set to change the game once again.

The Zorro Radio Controller comes in two versions. A Multi-Protocol and a ELRS 2.4G version. Be sure to choose the correct RF version: The 4-in1 Multi-Protocol version supports protocols including FRSKY ACCST, Spektrum DSMX and FlySky ADHDS 2A etc. The ELRS version, supports 2.4GHz ExpressLRS protocol only. We also sell the Zorro ELRS Starter Set HERE. Both versions have a nano size module bay and can work with external modules i.e. a multi-protocol module, ELRS module or long range module.

NEW – Zorro Max Version – HERE

Accessories:

Sticky360 Mini Gimbal Stick Ends
900mah 3.7v Li-ion 18350 Cells – The Zorro takes two 18350 Li-ion batteries (not included) – they can be recharged internally via the USB-C connector
External 2S power wire – a 2S LiPo can be used as an external power supply for the Zorro to extend the run time.
Case for Zorro
Leather Hand Grips
TBS Crossfire Nano Module
ELRS EP1 Nano Receiver
ELRS EP2 Nano Receiver

Features

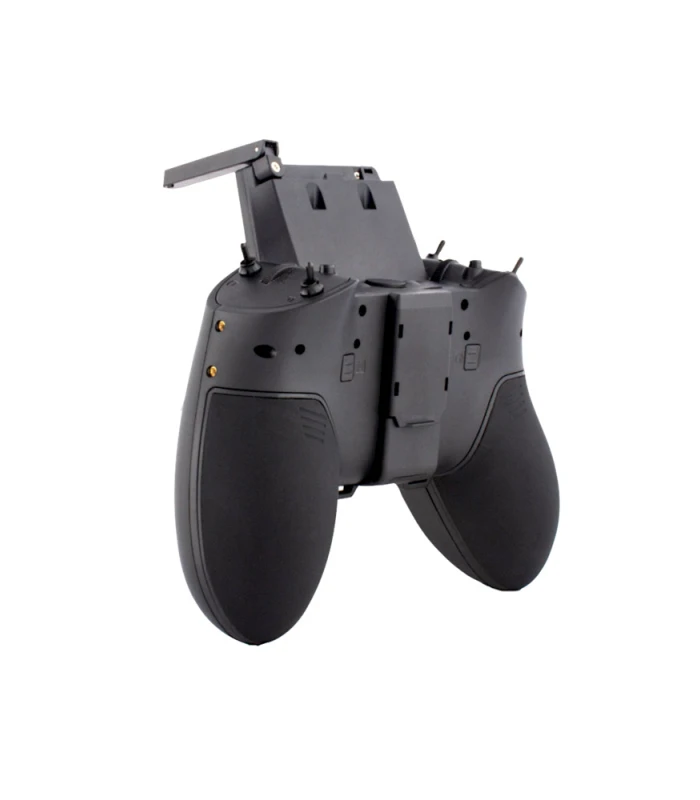

External Module Bay Supports TBS / ELRS
Improved Metal Roller for Precise Control
Supports External 2S Power Supply
Supports USB-C direct charging
Supports OPENTX & EDGETX
18350 Battery Compartments
Ergonomically Designed
Adjustable Hall Gimbals
Oversized LCD Screen
Soft Leather Grips
Foldable Antenna

Firmware Versions – FCC and EU LBT: Our stock is supplied with EU LBT firmware. Radios can be reflashed to FCC or vice versa, the hardware itself is not restricted. Please check the supported protocols below. To reflash the 4in1 version to unlock all protocols takes less than 5 minutes. Download the latest Multi-Module Firmware from here – Module Type: STM32 4-in1 / Radio Type: Serial / Channel Order AETR. The file name will be named: mm-stm-serial-aetr-vX.X.X.XX.bin. Load this file onto the Boxer radio’s SD card in the folder named firmware. Next on the radio, access the system menu. Use the Page button to find the SD card page, then enter on the firmware option. In there you should see the file you added to the SD card mm-stm-serial-aetr-v… enter on that (long press on the scroll wheel) then it gives you some options – select ‘Flash Int. Multi’. That’s it, the internal multi protocol module will now give you options for all MPM protocols.

Standard FCC Version

4in1 (FCC) Version supports all MPM protocols
ELRS (FCC) is pre-installed witn ExpressLRS ISM FW (Max power is hardware dependant)

EU LBT Version

4in1 LBT Version (Europe) is limited to LBT compliant protocols FrSKY X/X2 LBT, HoTT LBT and DSMX
ELRS LBT (Europe) Version is pre-installed with ExpressLRS CE EU domain LBT FW (Limited to 100mw power output)

Specification

Module bay: Nano size (Compatible with TBS Nano Crossfire / Nano Tracer / IRC Ghost)
Firmware Upgrade method: Via USB or SD card (SD Not included)
Operating system: OpenTX / EdgeTX Compatible
Control channels: Maximum 16 (Rx dependent)
Operating frequency: 2.400GHz-2.480GHz
Internal RF Options: 4-in-1 Multi-Protocol / ELRS 2.4Ghz (please select as required)
Supported protocols: Module Dependent
Physical dimensions: 170*159*108mm
Charging: Built-in USB-C Charging
Display: 128*64 Monochrome LCD
Operational current: 160mA@8.4V
Operational voltage: 6.6-8.4v DC
Battery: 2 x 18350 (Not included)
Control distance: > 2km @ 20dbm
RF power: 4-in1 20dBm max
Weight: 350 grams
Gimba: Hall-effect

Included:

1x RadioMaster Zorro Radio Controller
